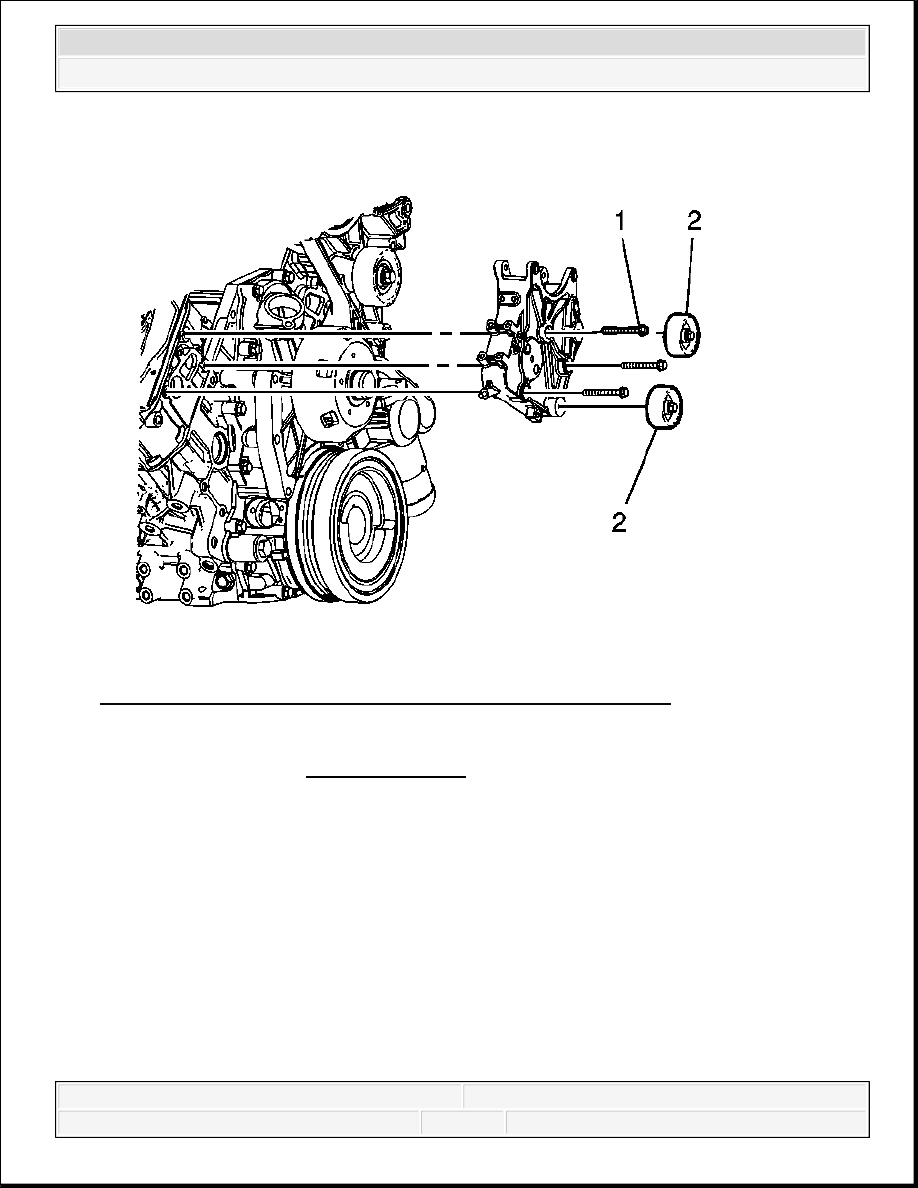

Fig. 284: View Of Generator Bracket Bolts & Idler Pulley Bolts
Courtesy of GENERAL MOTORS CORP.

1. Position the idler pulleys to the generator bracket and tighten the pulley bolts (2), if

necessary.

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

2. Position the generator bracket to the engine and install the bolts (1).

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

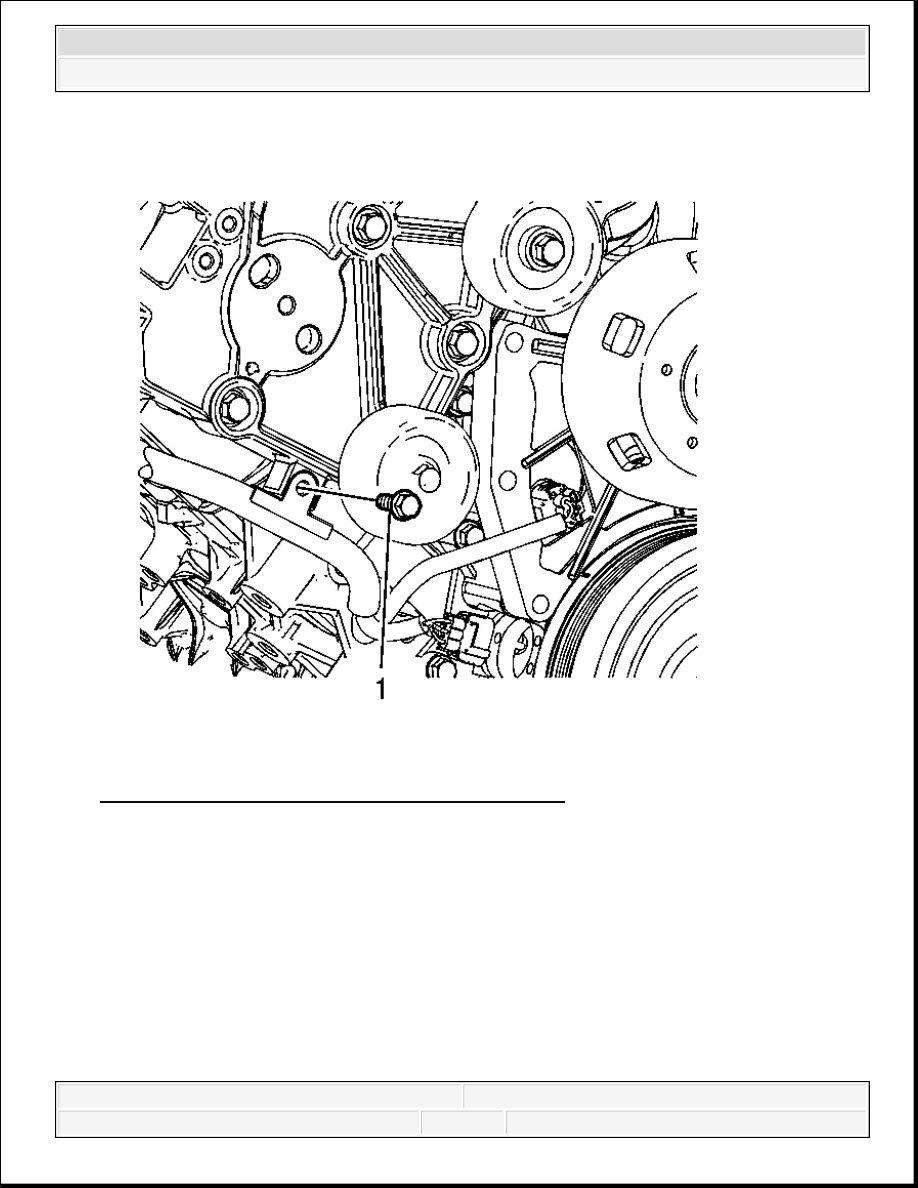

Fig. 285: View Of Engine Wiring Harness Clip Bolt
Courtesy of GENERAL MOTORS CORP.

3. Position the engine wiring harness and install the engine wiring harness clip bolt (1).

Tighten: Tighten the bolt to 10 N.m (89 lb in).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

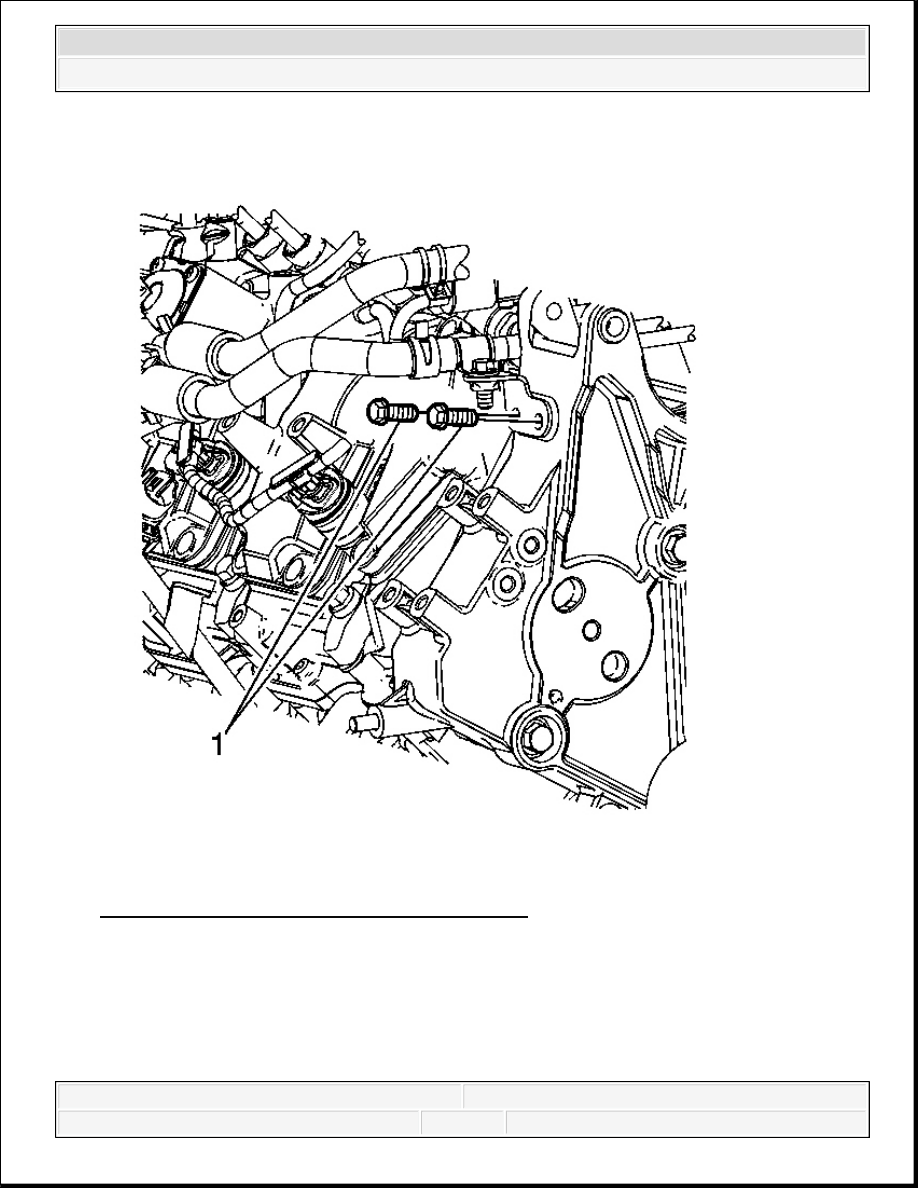

Fig. 286: View Of Fuel Feed Pipe Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

4. Install the fuel feed pipe bracket bolts (1).

Tighten: Tighten the bolts to 24 N.m (18 lb ft).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

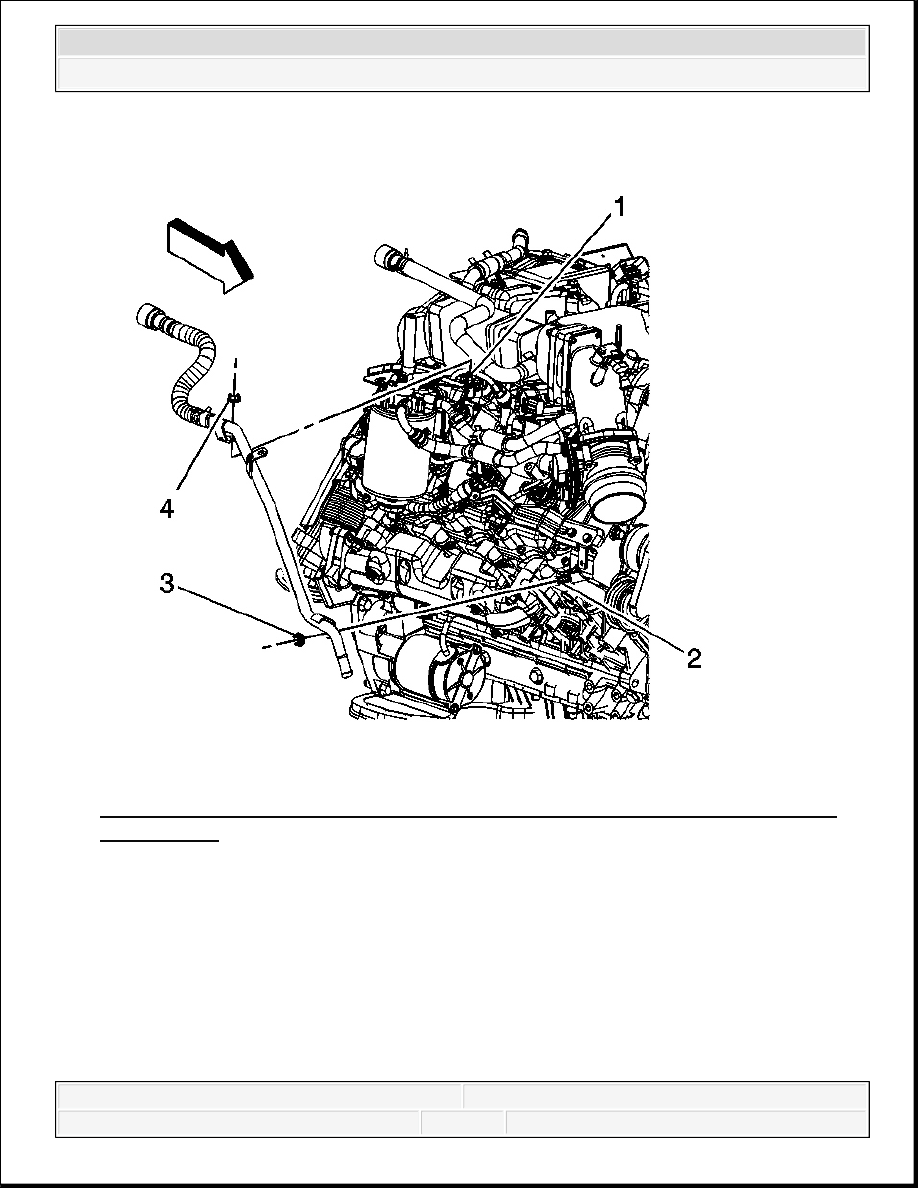

Fig. 287: View Of Fuel Filter Adapter Stud, Generator Bracket Stud & Inlet Hose
Bracket Nuts
Courtesy of GENERAL MOTORS CORP.

5. Position the heater inlet hose/pipe to the engine.

6. Install the heater inlet hose bracket to the generator bracket stud (2) and install the bracket

nut (3).

Tighten: Tighten the nut to 9 N.m (80 lb in).

7. Install the heater inlet hose to the fuel filter adapter stud (1) and install the bracket nut (4).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
