Chevrolet Silverado / GMC Sierra. Manual - part 1745

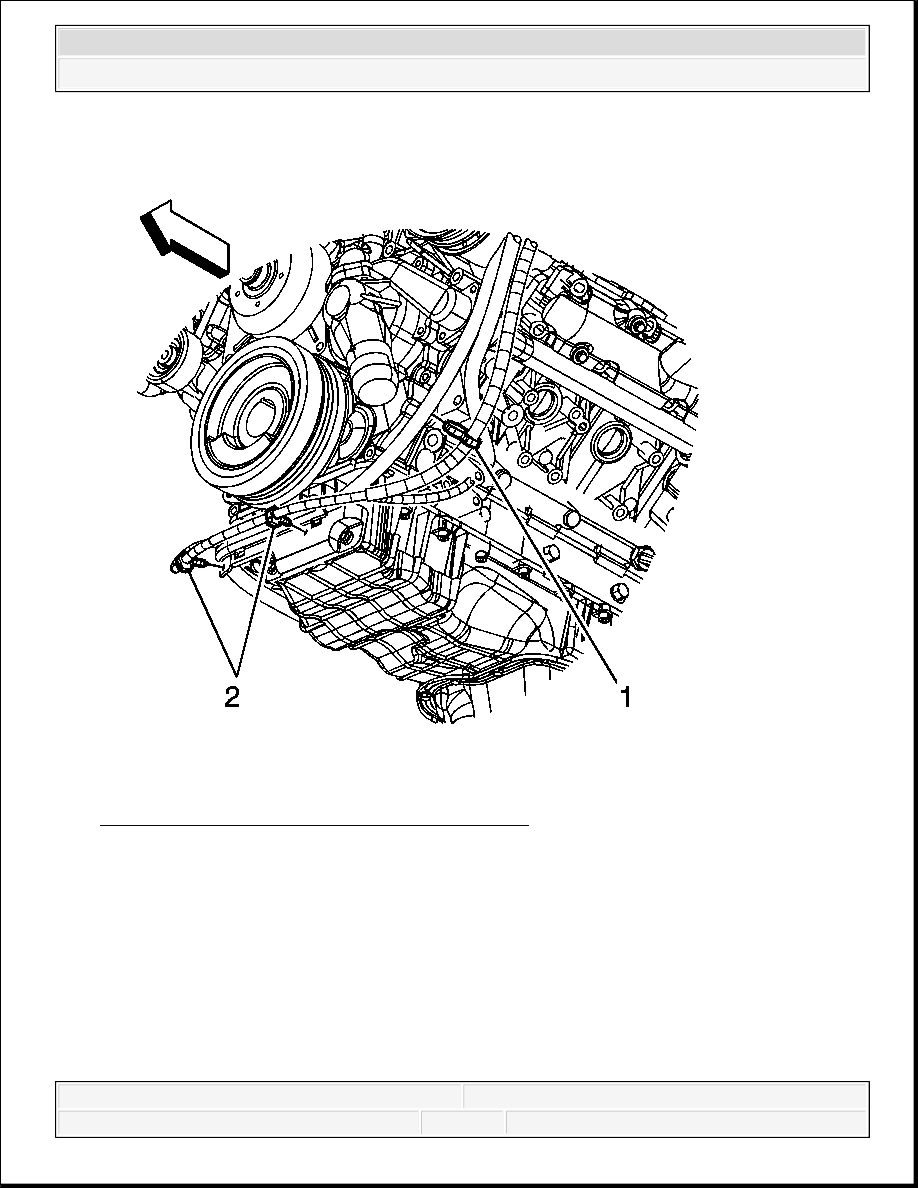

Fig. 157: View Of Engine Wiring Harness Clips
Courtesy of GENERAL MOTORS CORP.
16. Remove the engine wiring harness clip (1) from the starter solenoid cable.
17. Remove the engine wiring harness clips (2) from the starter solenoid cable channel.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

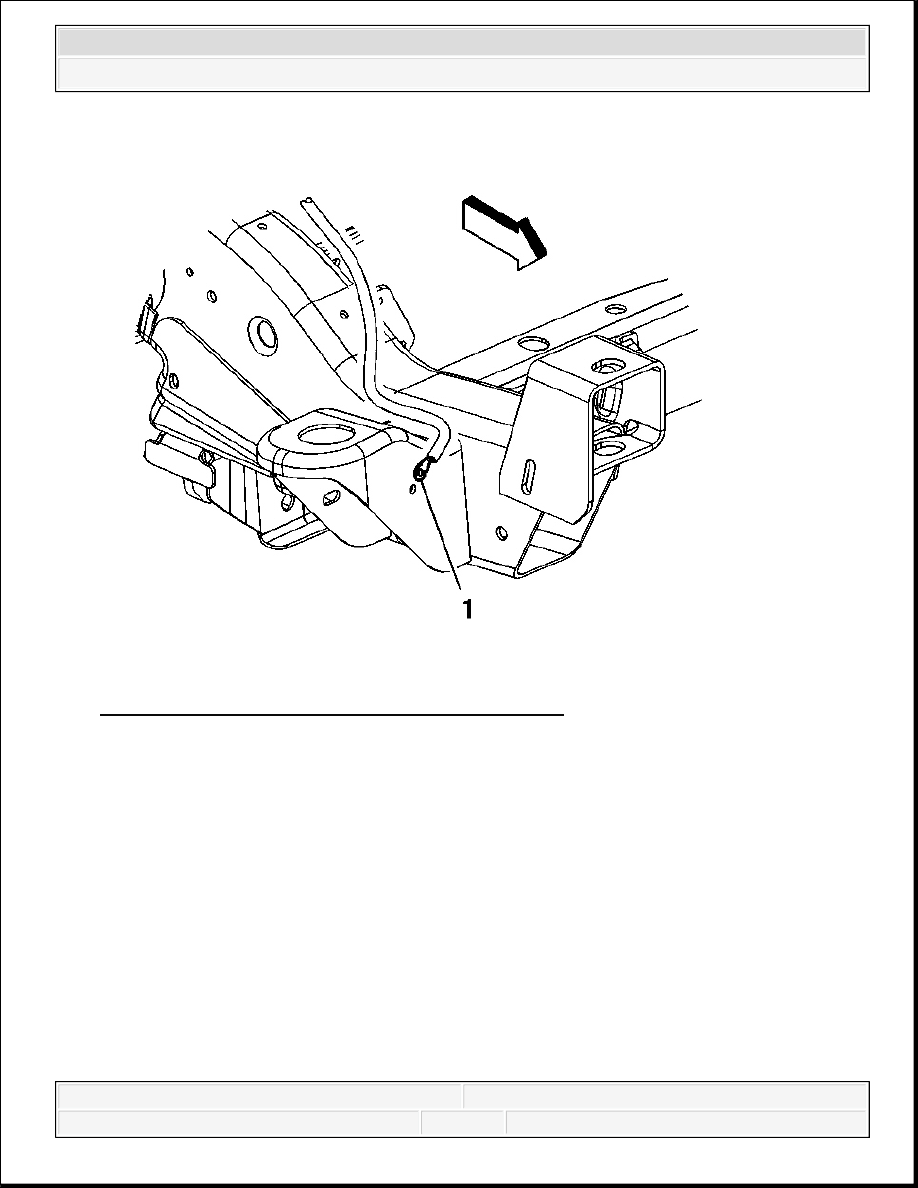

Fig. 158: View Of Starter Solenoid Cable At Frame
Courtesy of GENERAL MOTORS CORP.
18. Remove the starter solenoid cable bolt from the frame.
19. Reposition the starter solenoid cable (1) from the frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

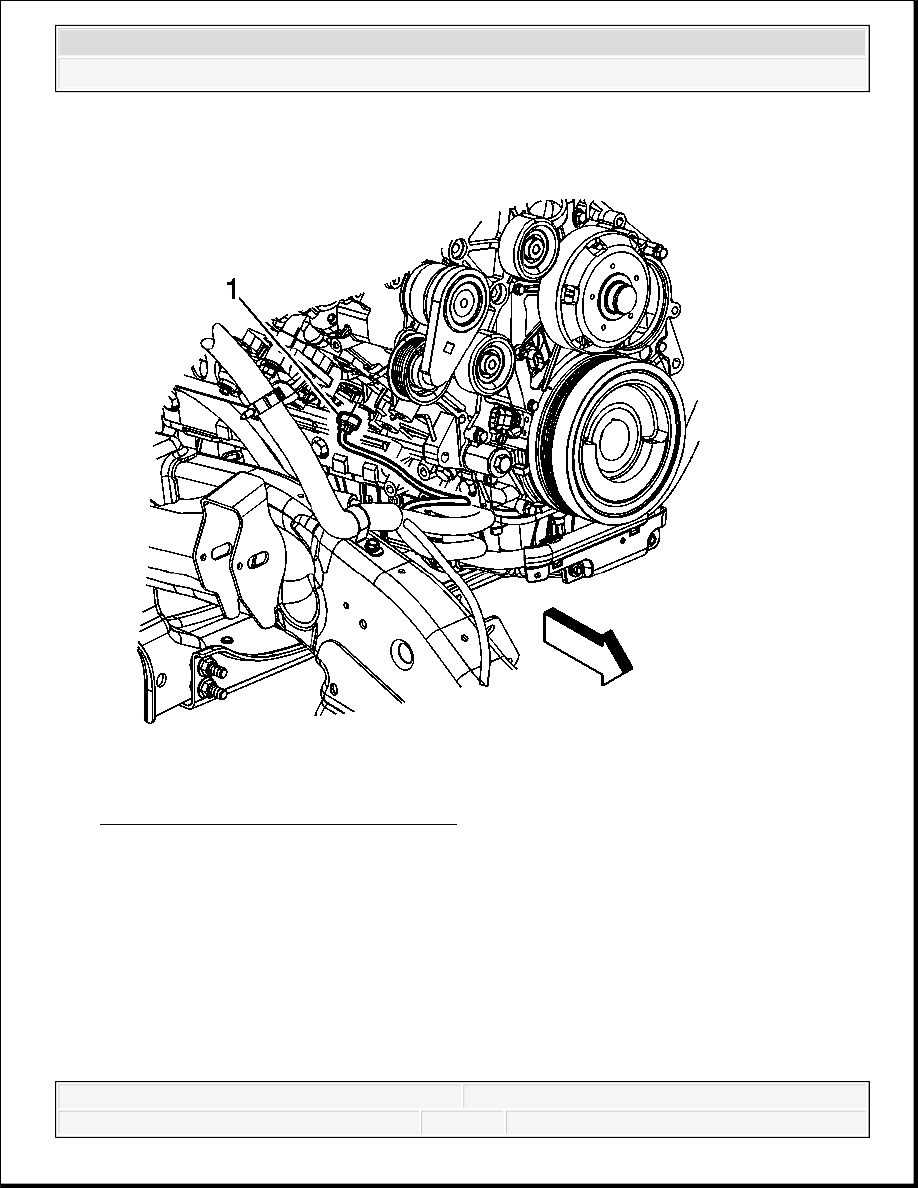

Fig. 159: View Of Coolant Heater Cord
Courtesy of GENERAL MOTORS CORP.
20. Disconnect the coolant heater cord (1) from the coolant heater.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

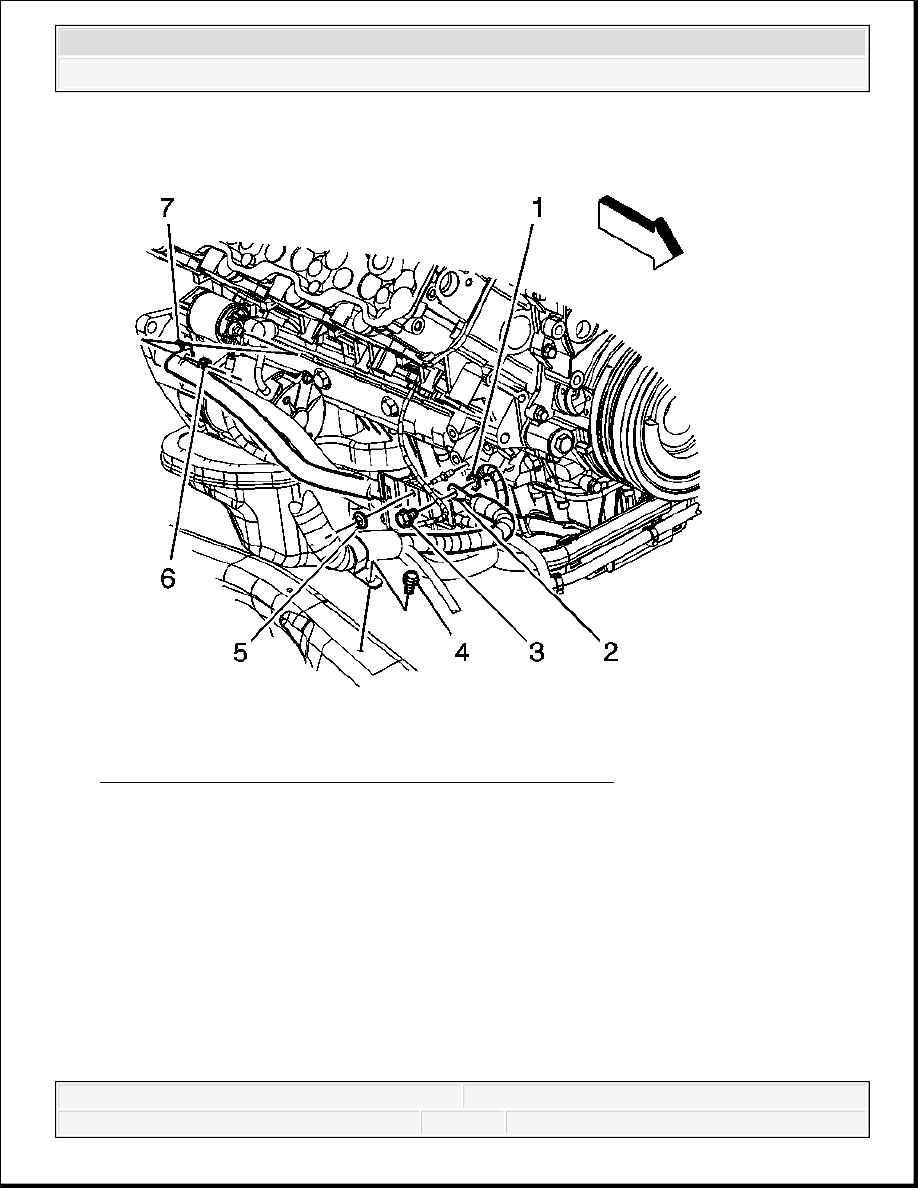

Fig. 160: View Of Starter Solenoid Cable & Components
Courtesy of GENERAL MOTORS CORP.
21. Remove the starter solenoid cable nut (6) from the starter.
22. Remove the starter solenoid cable (7) from the starter.
23. Remove the starter solenoid cable bolt (3) from the engine block.
24. Reposition the starter solenoid cable terminal (2) from the engine wiring harness ground
terminal (1).
25. Remove the starter solenoid cable bracket nut (5) and bracket from the stud.
26. Remove the starter solenoid cable clip bolt (4) from the frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
