Chevrolet Silverado / GMC Sierra. Manual - part 1728
Fig. 90: View Of Positive Battery Cable Clips
Courtesy of GENERAL MOTORS CORP.
13. Remove the positive battery cable clips (1) from the studs on the plenum front panel.
14. Remove the positive battery cable from the vehicle.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 91: View Of Positive Battery Cable Clips
Courtesy of GENERAL MOTORS CORP.
1. Install the positive battery cable to the vehicle.
2. Install the positive battery cable clips (1) onto the studs on the plenum front panel.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

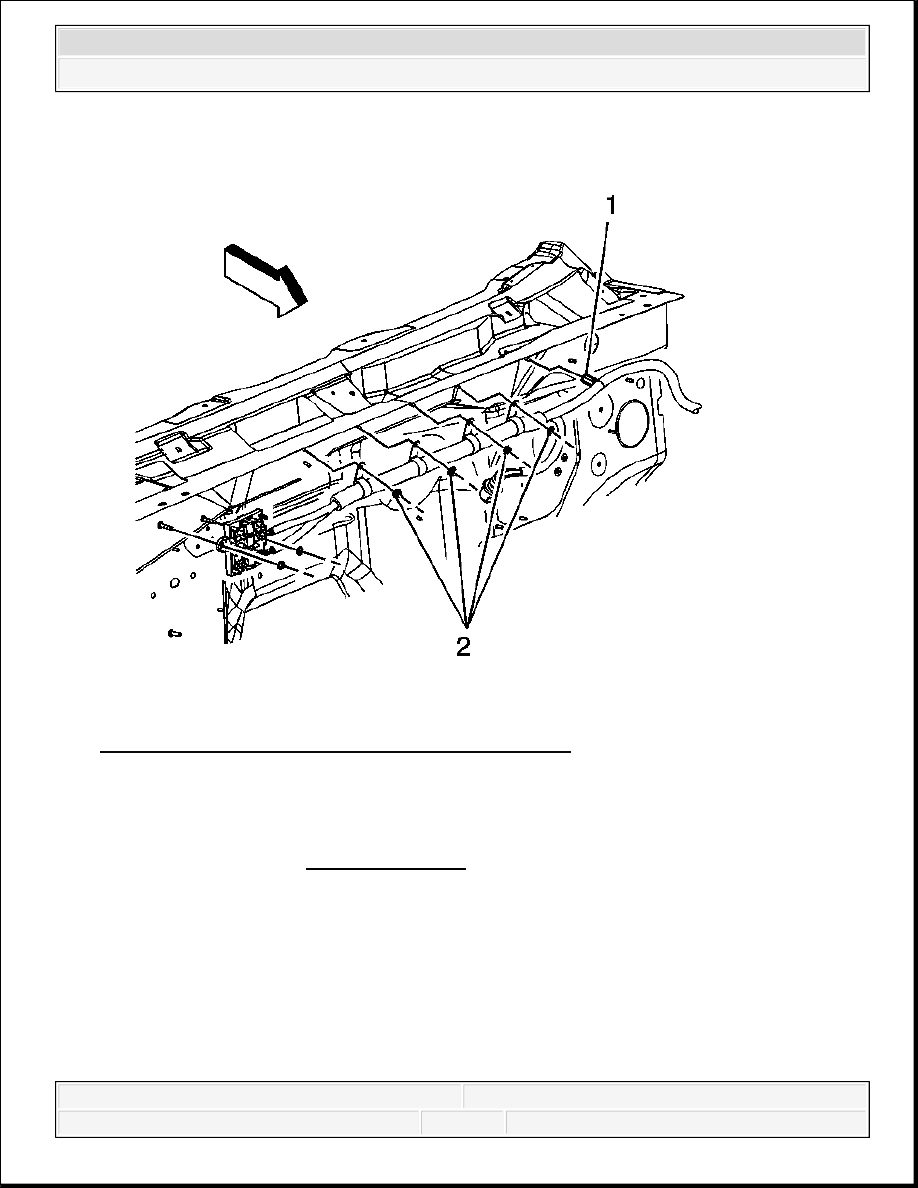

Fig. 92: View Of Positive Battery Cable Clip & Nuts
Courtesy of GENERAL MOTORS CORP.
3. Install the positive battery cable clip (1) onto the stud on the plenum front panel.
4. Install the positive battery cable clip nuts (2) to the studs on the plenum front panel.
Tighten: Tighten the nuts to 3 N.m (27 lb in).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

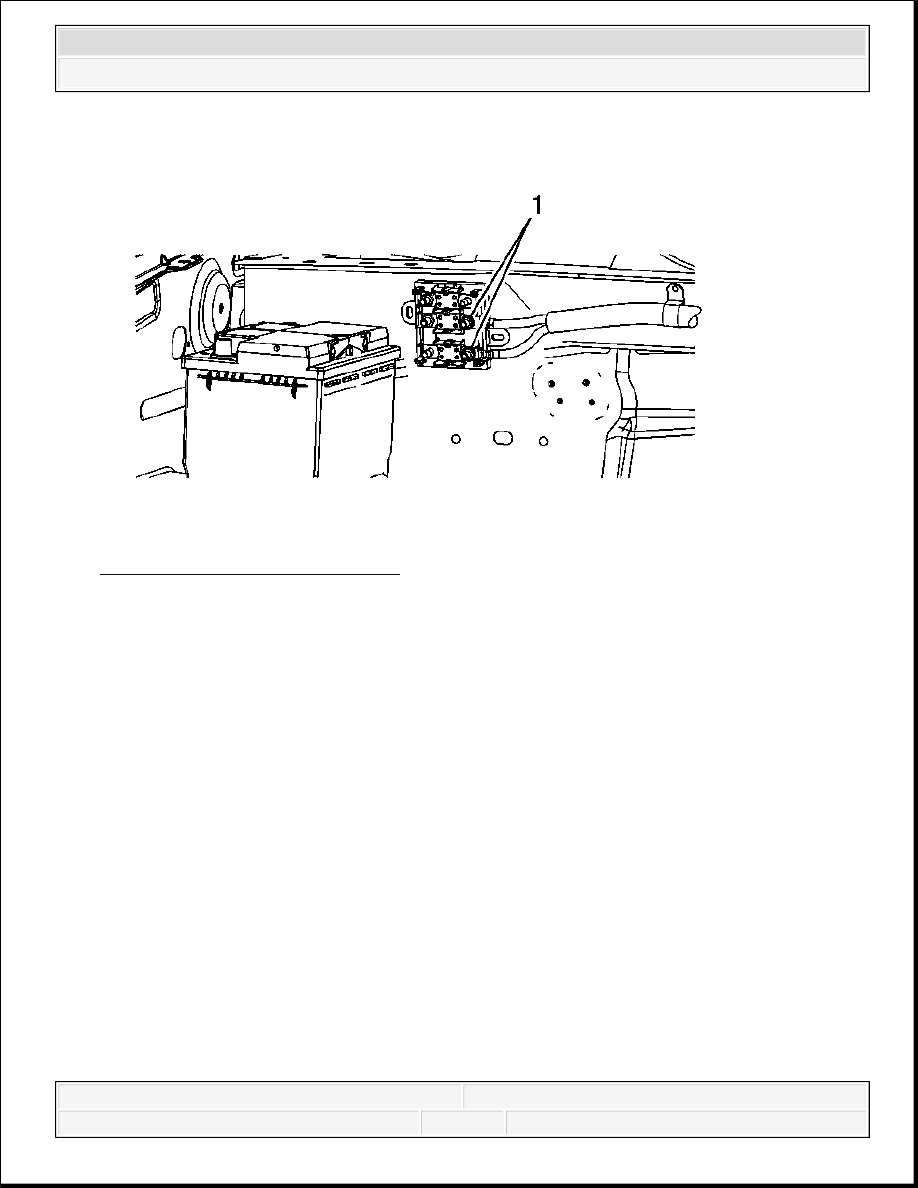

Fig. 93: View Of Mega Fuse Nuts
Courtesy of GENERAL MOTORS CORP.
5. Install the positive battery cable terminals onto the mega fuse studs.
6. Install the positive battery cable to mega fuse nuts (1).
Tighten: Tighten the nuts to 7.5 N.m (66 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
