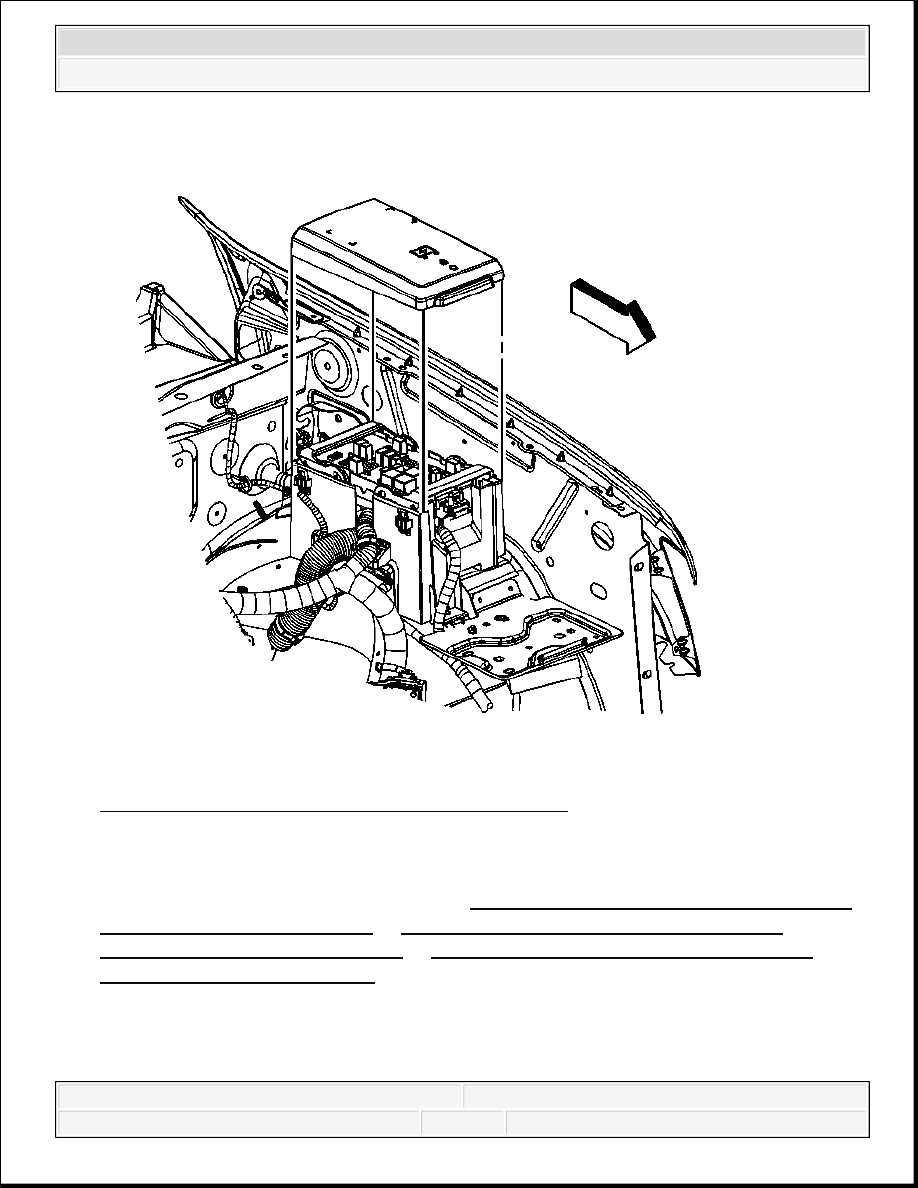

Fig. 82: View Of Under Hood Junction Block Cover 11. Install the under hood junction block cover. 12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and BATTERY POSITIVE CABLE REPLACEMENT (6.6L) Removal Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 83: View Of Under Hood Junction Block Cover 1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and 2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . 3. Remove the underhood junction block cover.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

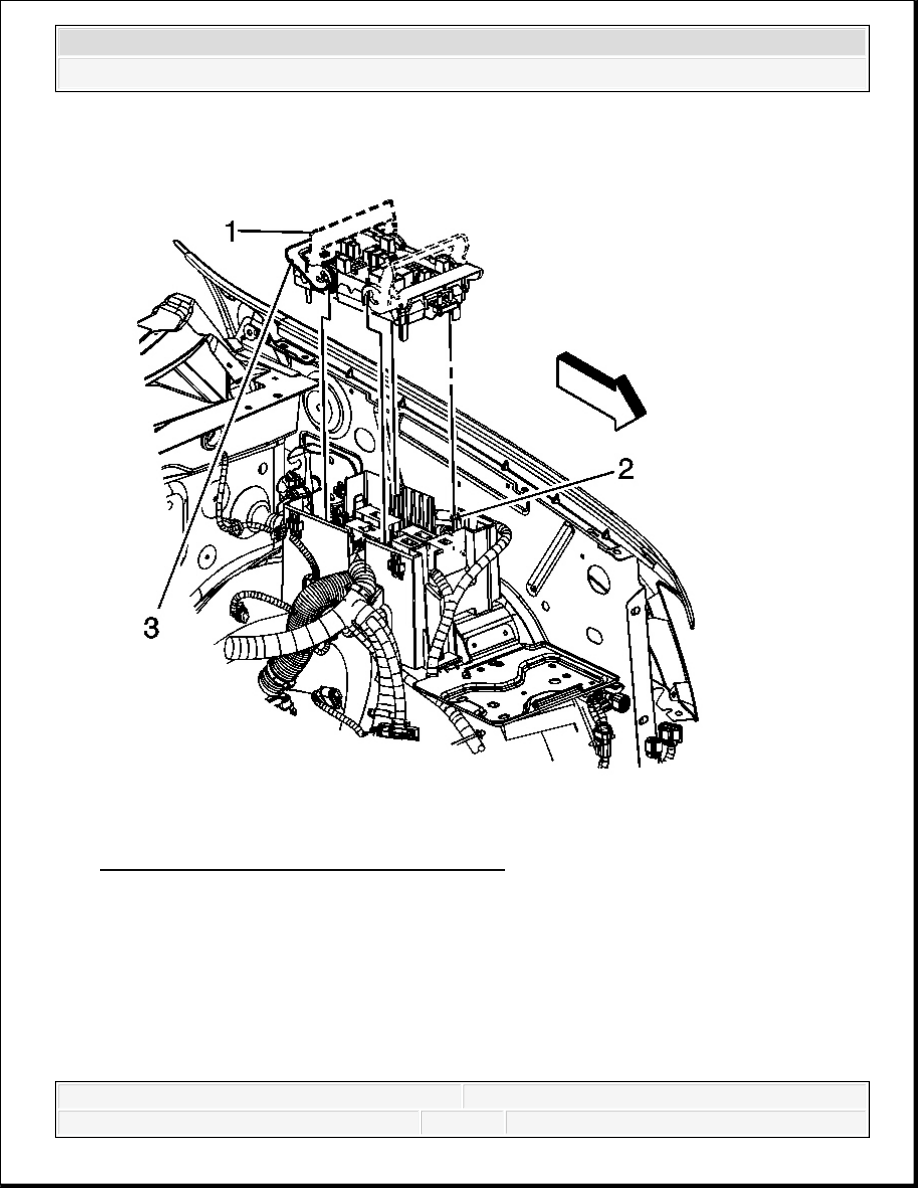

Fig. 84: View Of Junction Block & Retainers 4. Lift the junction block retainers from the locked position (3) and rotate the retainers to the open position (1). 5. Reposition the junction block.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

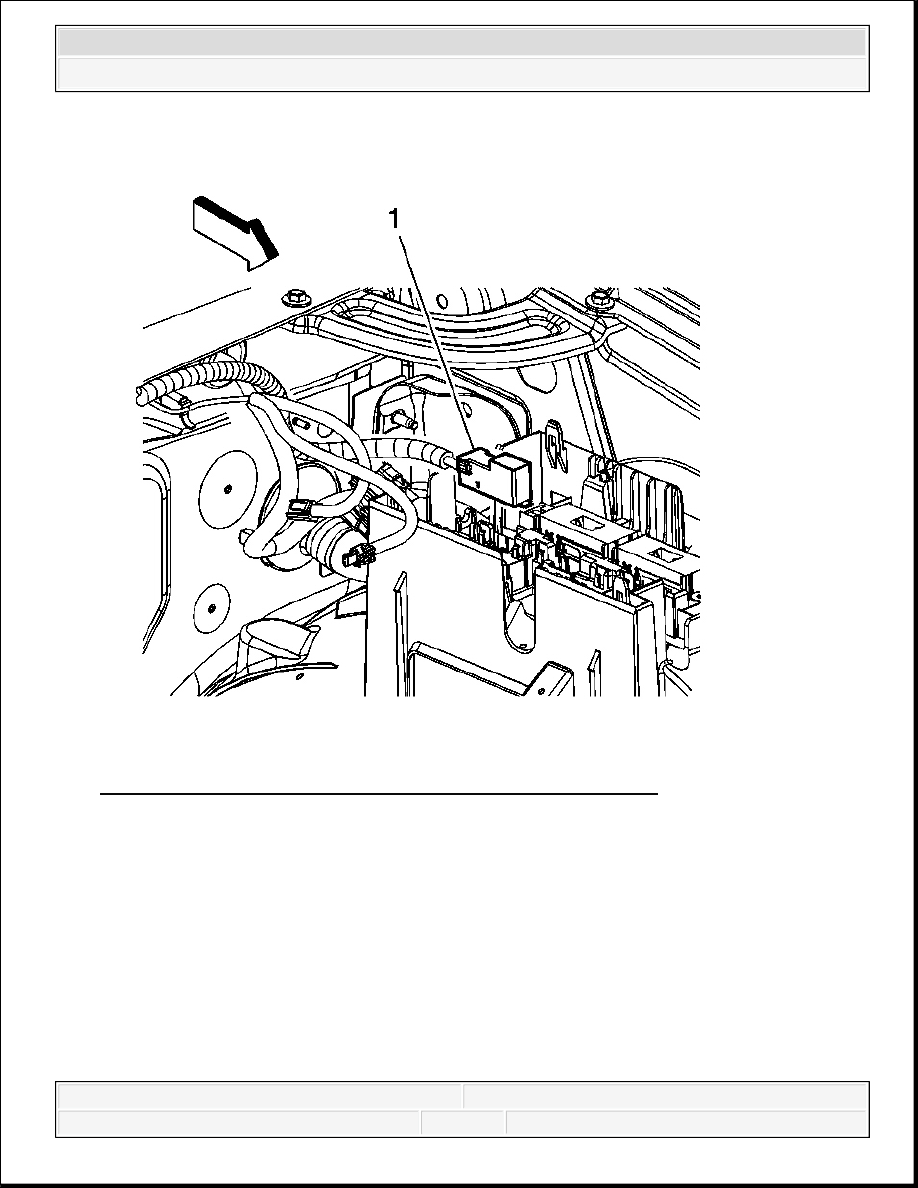

Fig. 85: View Of Positive Battery Cable Connector & (UBEC) 6. Remove the positive battery cable connector (1) from the underhood bussed electrical center (UBEC).
