Chevrolet Silverado / GMC Sierra. Manual - part 1729
Fig. 94: View Of Mega Fuse Cover
Courtesy of GENERAL MOTORS CORP.
7. Install the mega fuse cover.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

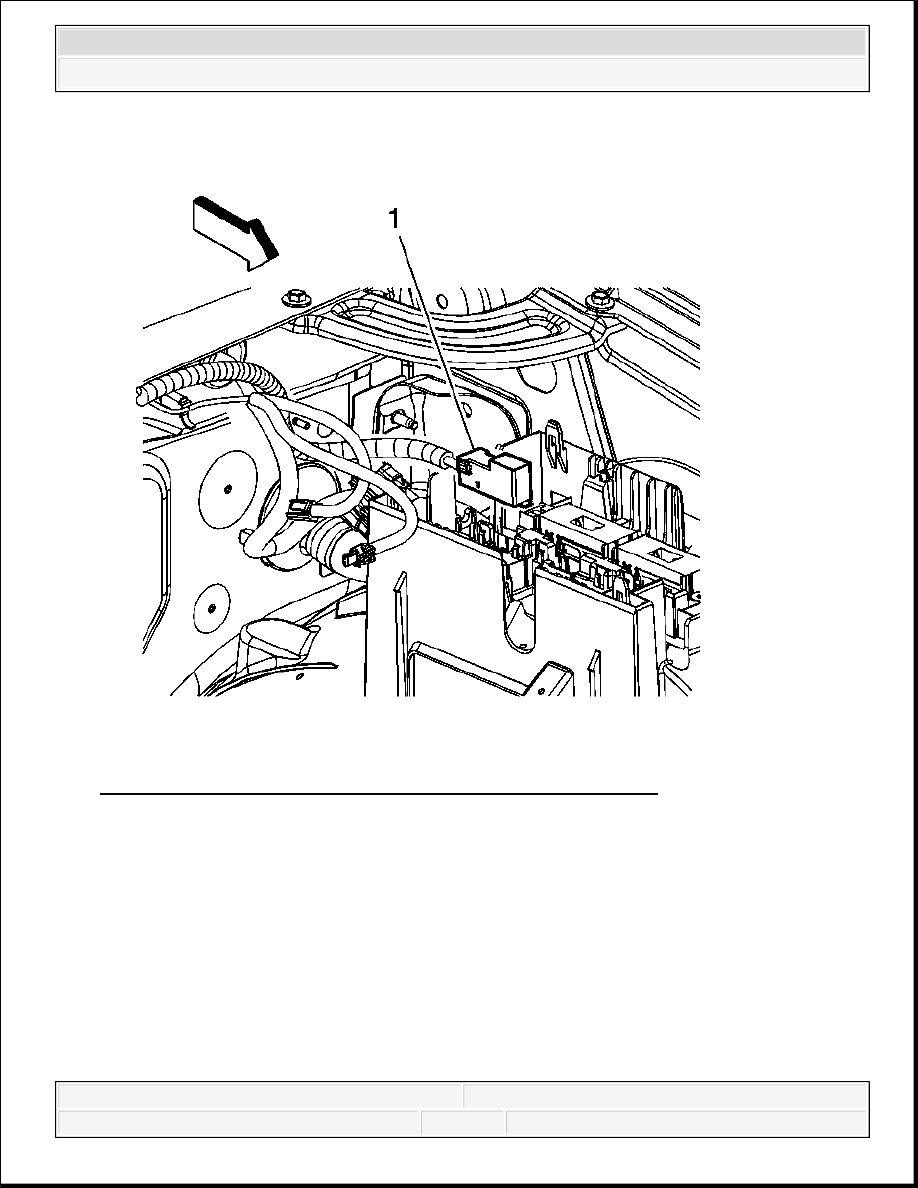

Fig. 95: View Of Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.
8. Connect the positive battery cable (1) to the glow plug control module.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 96: View Of Positive Battery Cable Connector & (UBEC)
Courtesy of GENERAL MOTORS CORP.
9. Install the positive battery cable connector (1) to the UBEC.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

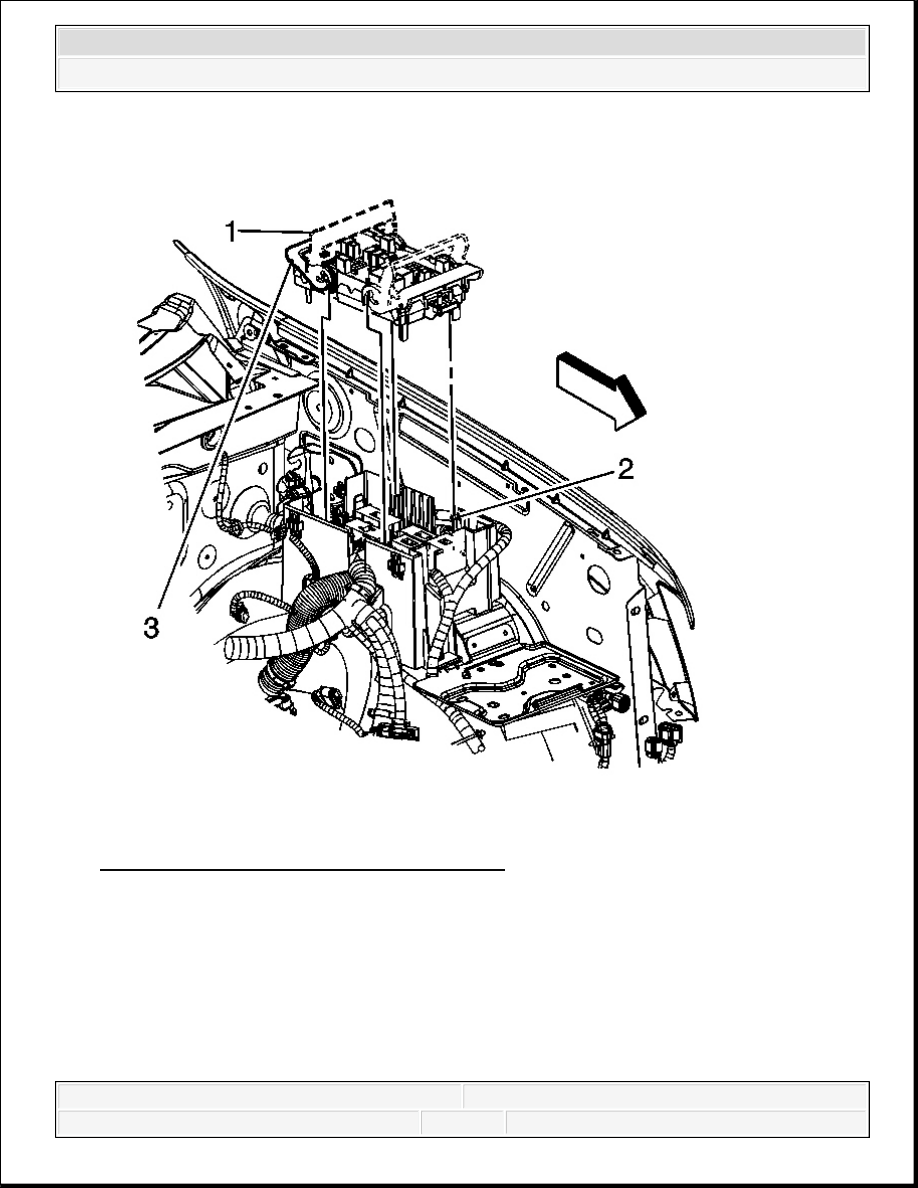

Fig. 97: View Of Junction Block & Retainers
Courtesy of GENERAL MOTORS CORP.
10. Ensure that the junction block retainers are in the open position (1).
11. Position and align the junction block to the 4 bracket pivots (2), once the pivots are
engaged, push the retainers down into the locked position (3).
