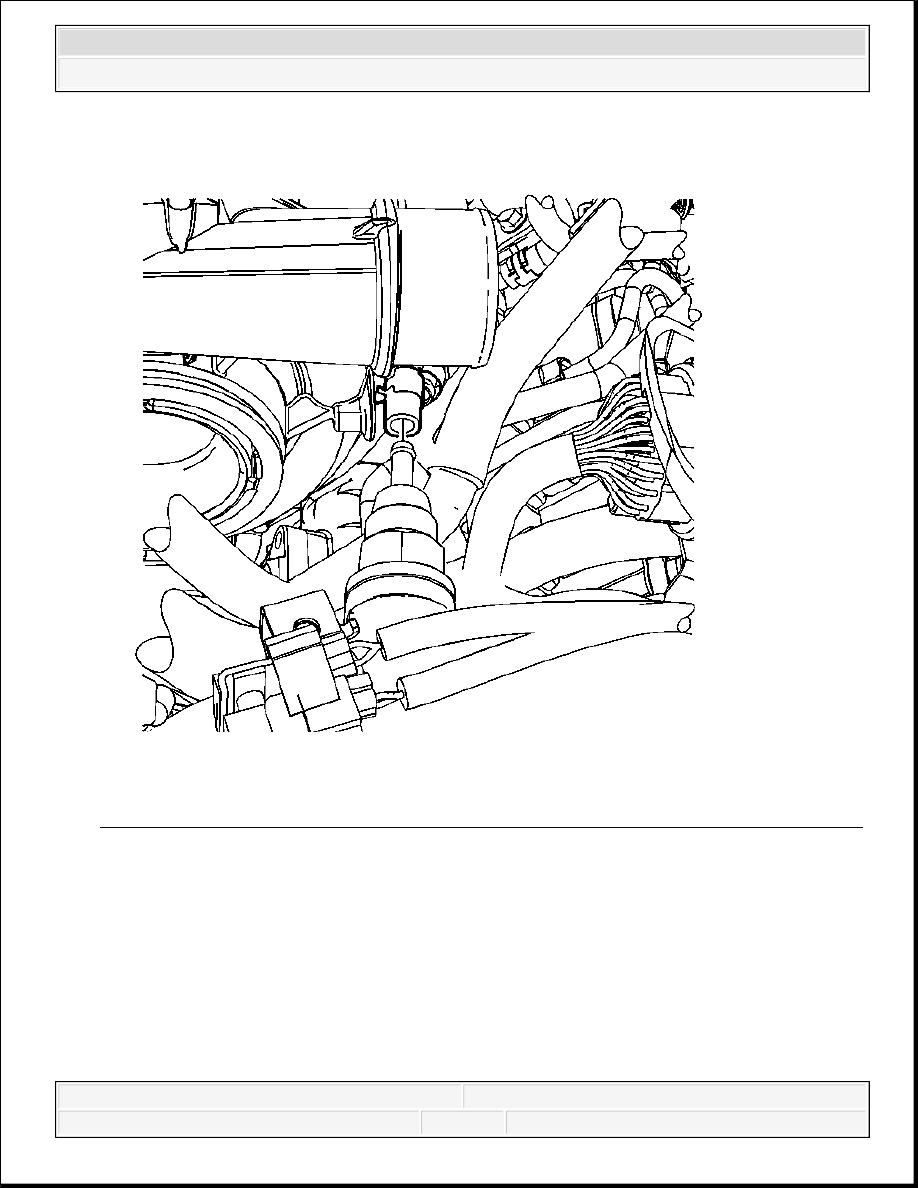

Fig. 101: Identifying Turbocharger Coolant Inlet Hose & Bypass Valve (6.6L, LMM)
Courtesy of GENERAL MOTORS CORP.
5. Reposition the turbocharger coolant inlet hose clamp at the bypass valve.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

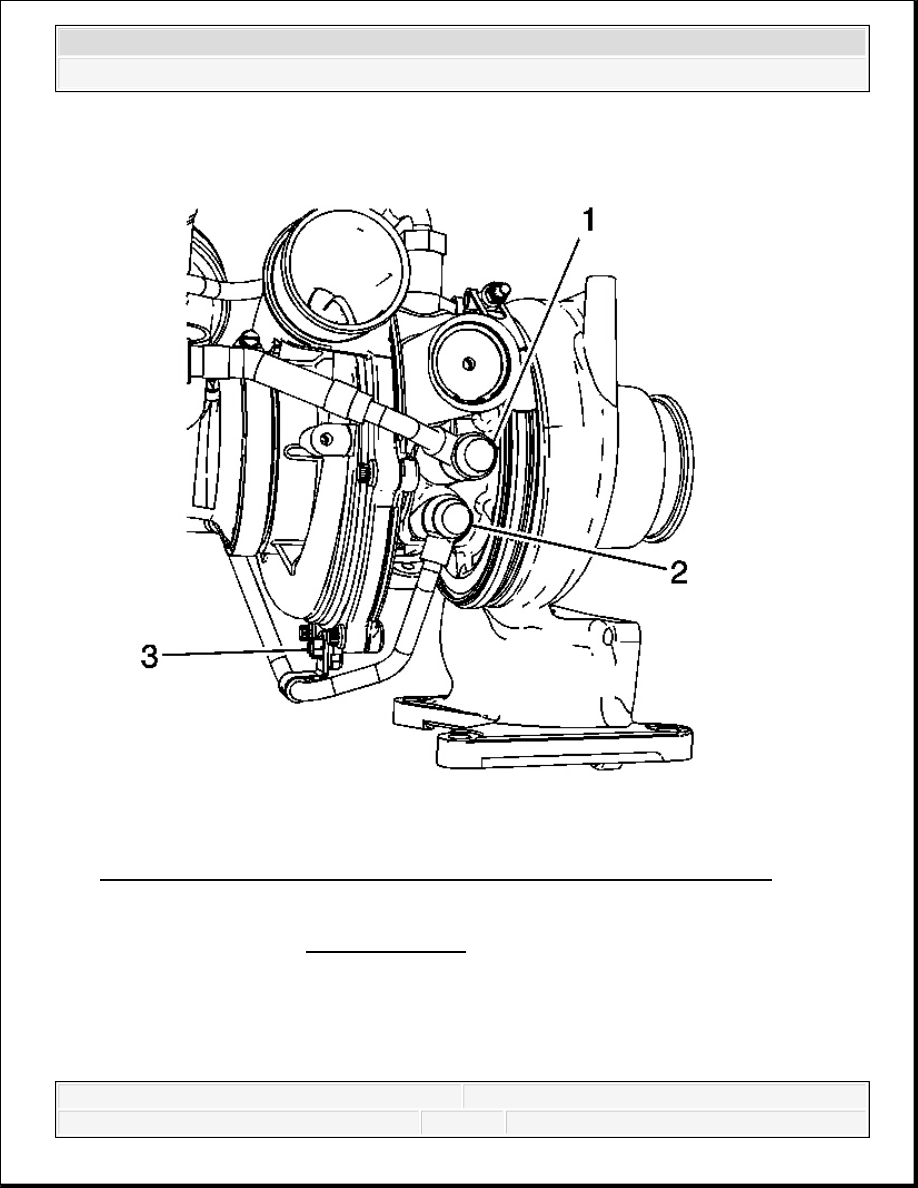

Fig. 102: View Of Turbocharger Coolant Inlet & Outlet Hose Components
Courtesy of GENERAL MOTORS CORP.
6. Remove the turbocharger coolant inlet hose banjo bolt (1).
7. Remove the inlet hose washer and inlet line.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

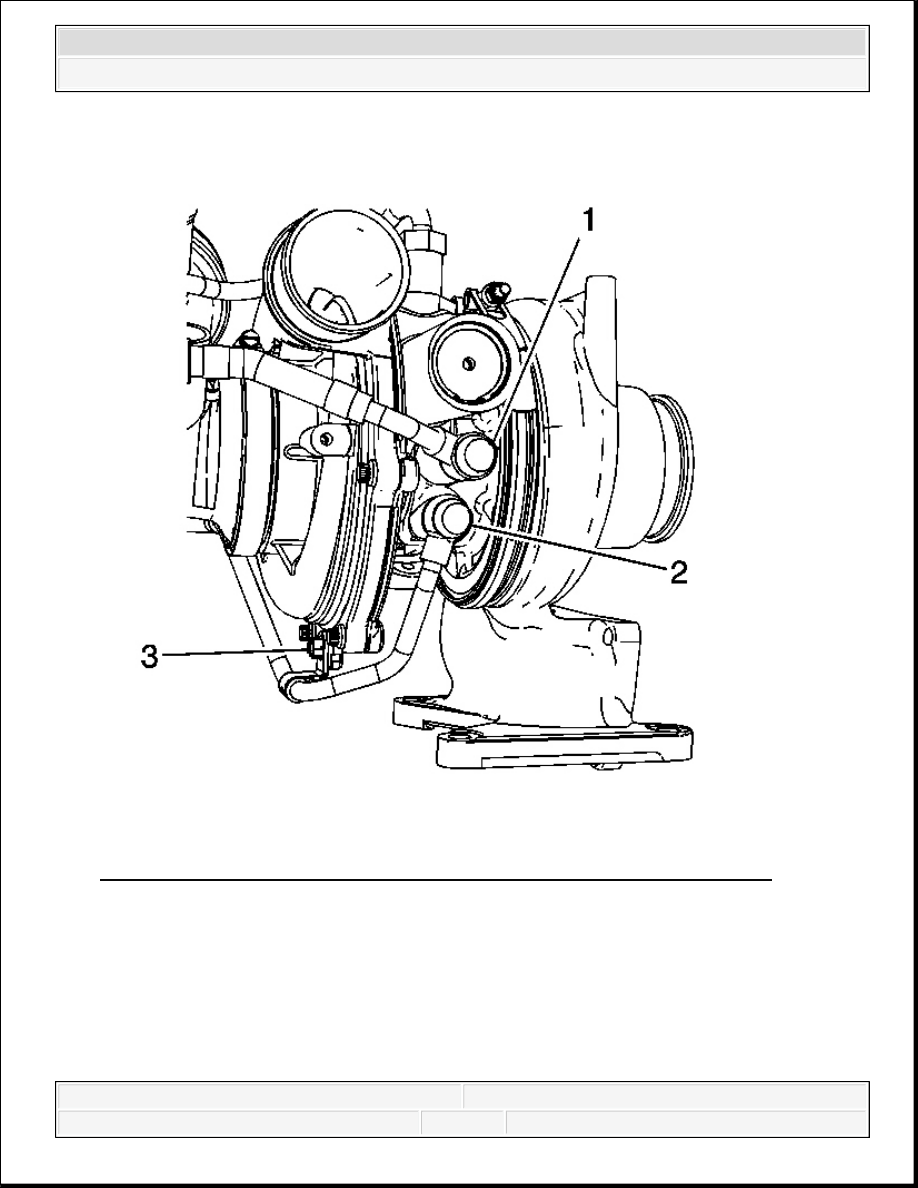

Fig. 103: View Of Turbocharger Coolant Inlet & Outlet Hose Components
Courtesy of GENERAL MOTORS CORP.
1. Install the inlet hose washer and inlet line.
2. Install the turbocharger coolant inlet hose banjo bolt (1).
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

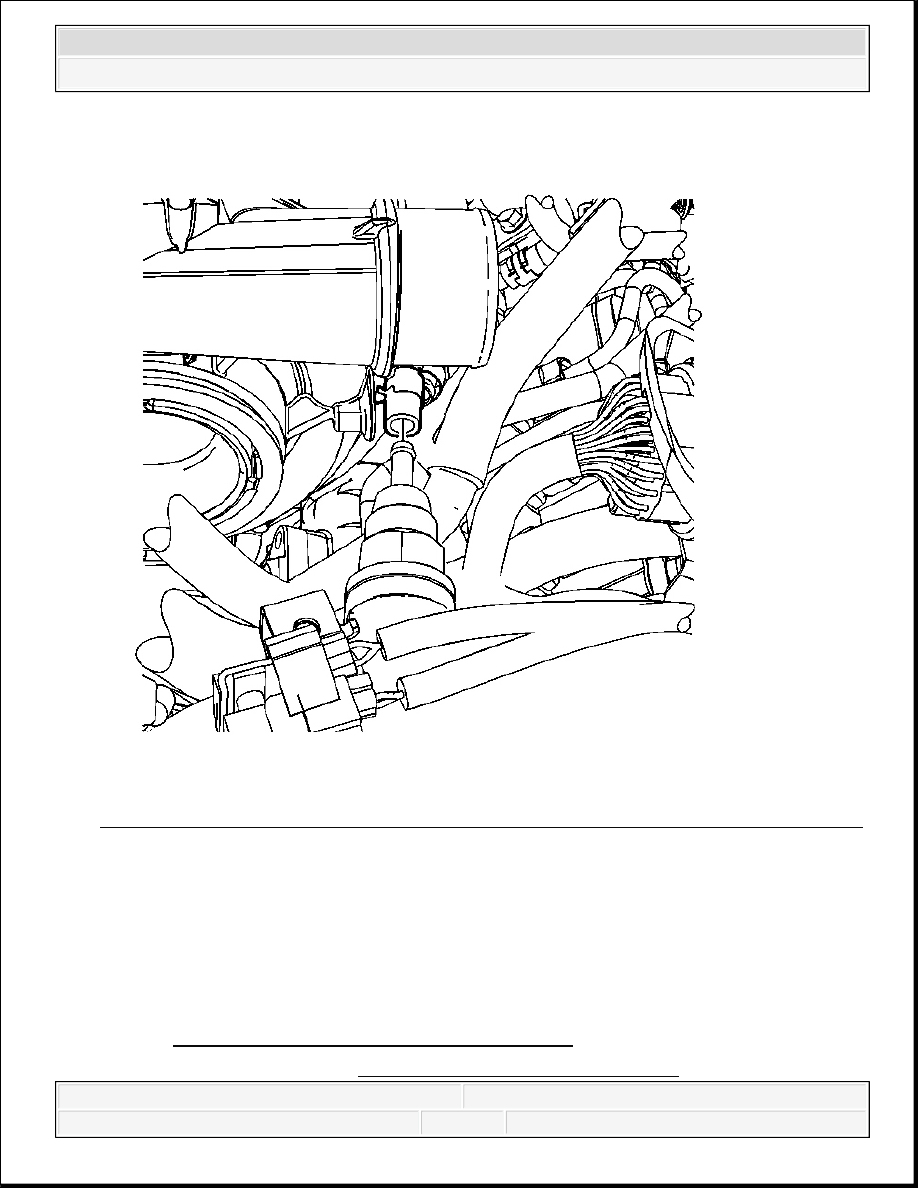

Fig. 104: Identifying Turbocharger Coolant Inlet Hose & Bypass Valve (6.6L, LMM)
Courtesy of GENERAL MOTORS CORP.
3. Position the turbocharger coolant inlet hose clamp at the bypass valve.
4. Remove the tape from the turbocharger openings.
5. Install the charged air cooler outlet pipe to the turbocharger and the charged air cooler.
Refer to Charge Air Cooler Outlet Pipe Replacement .
6. Install the air cleaner. Refer to Air Cleaner Assembly Replacement .
IMPORTANT: Lubricate the end of the duct prior to installation.
