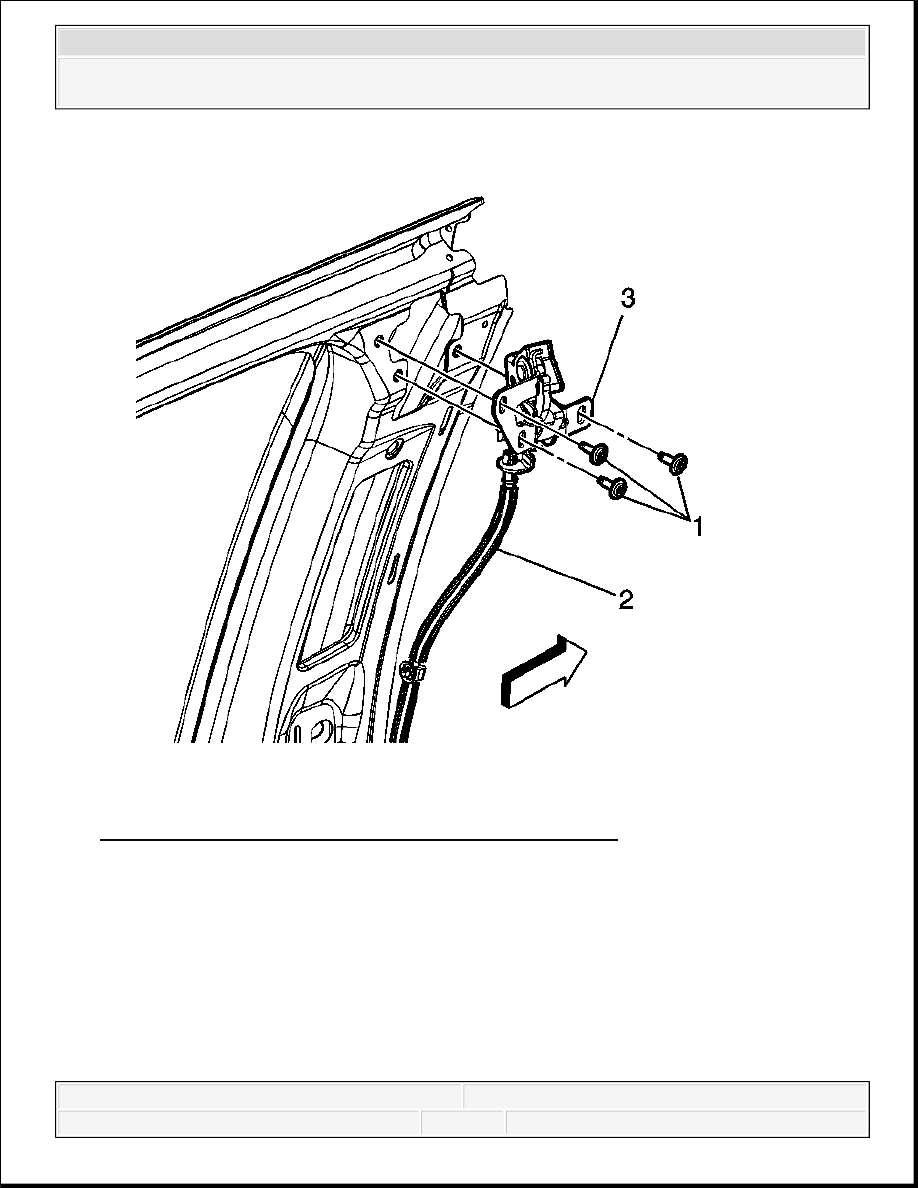

Fig. 22: View Of Upper Latch, Cable & Retaining Screws
Courtesy of GENERAL MOTORS CORP.
3. Remove the screws (1) retaining the upper latch to the rear side door.
4. Disconnect the upper latch cable (2) from the latch by releasing the retaining clip.
5. Remove the upper latch (3) from the rear side door.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 23: View Of Upper Latch, Cable & Retaining Screws
Courtesy of GENERAL MOTORS CORP.
1. Install the upper latch (3) to the rear side door.
2. Connect the upper latch cable (2) to the latch using the retaining clips.
3. Loosely install the screws (1) retaining the upper latch to the rear side door.
Tighten: Tighten the lower rear side door upper latch bolts (1) until the latch bracket is
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
flush to the door panel.
4. Close the rear side door to self align the upper latch.
5. Finish tightening the lower rear side door upper latch bolts.
Tighten: Tighten the upper latch bolts to 9 N.m (80 lb in).
6. Open the rear side door.
7. Install the rear side door upper latch bolt (1).
Tighten: Tighten the upper latch bolt to 9 N.m (80 lb in).
8. Install the rear side door trim panel. Refer to Rear Side Access Door Trim Panel
Replacement .
9. Close the rear side door.
REAR DOOR LOCK REPLACEMENT (CREW CAB)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

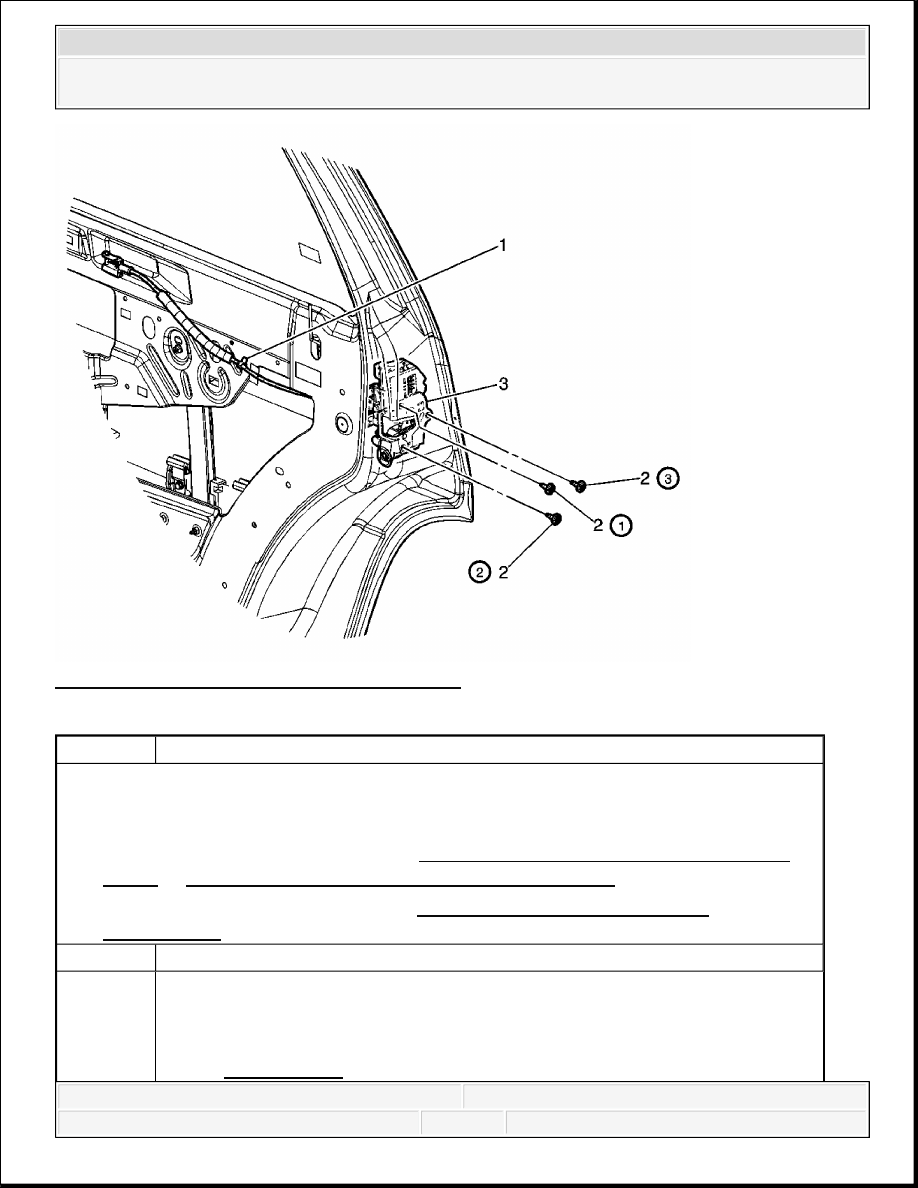

Fig. 24: Rear Side Door Lock & Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Position the door window as needed for service.
2. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement
(YE9) or Rear Side Door Trim Panel Replacement (SLT) .
3. Remove the water deflector. Refer to Rear Side Door Water Deflector
Replacement .
1
Inside Door Handle Cable Retainer Clip
Rear Side Door Lock Screw (Qty: 3)
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
