REAR SIDE DOOR OUTSIDE HANDLE REPLACEMENT (CREW CAB)
1
Front Side Door Inside Handle Seal
Procedure
1. Rotate the front side door inside release handle to full open position.
2. Use a small pair of 45 degree needle nose pliers to remove the foam seal at
the handle to expose retaining clip.
3. Use a small pair of 45 degree needle nose pliers to release the clip inside
the handle.
4. Remove the pin after the clip is released.
2
Front Side Door Inside Handle
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 17: View Of Rear Side Door Outside Handle & Bolts
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Position the door window as needed for service.
2. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement
(YE9) or Rear Side Door Trim Panel Replacement (SLT) .
3. Remove the water deflector. Refer to Rear Side Door Water Deflector
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
REAR SIDE DOOR OUTSIDE HANDLE REPLACEMENT (EXTENDED CAB)

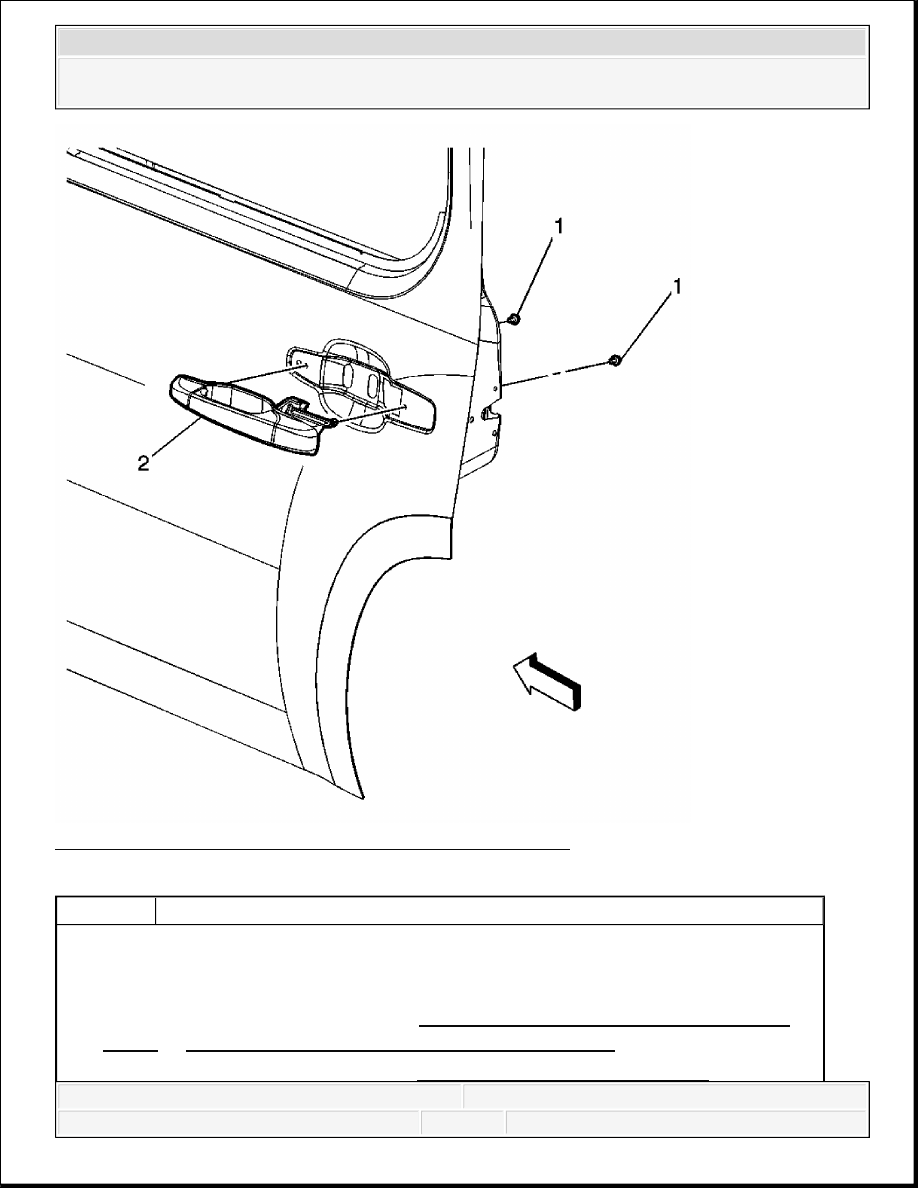

Fig. 18: View Of Rear Side Door Latch Handle Components
Replacement .
1
Rear Outside Door Handle Bolt (Qty: 2)
Tip:
1. Release the outside handle rod from the lock retainer clip.
2. Release the lock cylinder rod from the door lock.
3. Remove the outside door handle with the rod attached.
Tighten: 7 N.m (62 lb in)
NOTE:
Refer to Fastener Notice .
2
Rear Side Door Outside Handle
Tip: Transfer the handle rod to the new handle.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Courtesy of GENERAL MOTORS CORP.
ENDGATE LATCH REPLACEMENT
Callout
Component Name
Preliminary Procedures
1. Position the door window as needed for service.
2. Remove the rear side door trim panel. Refer to Rear Side Access Door Trim Panel
Replacement .

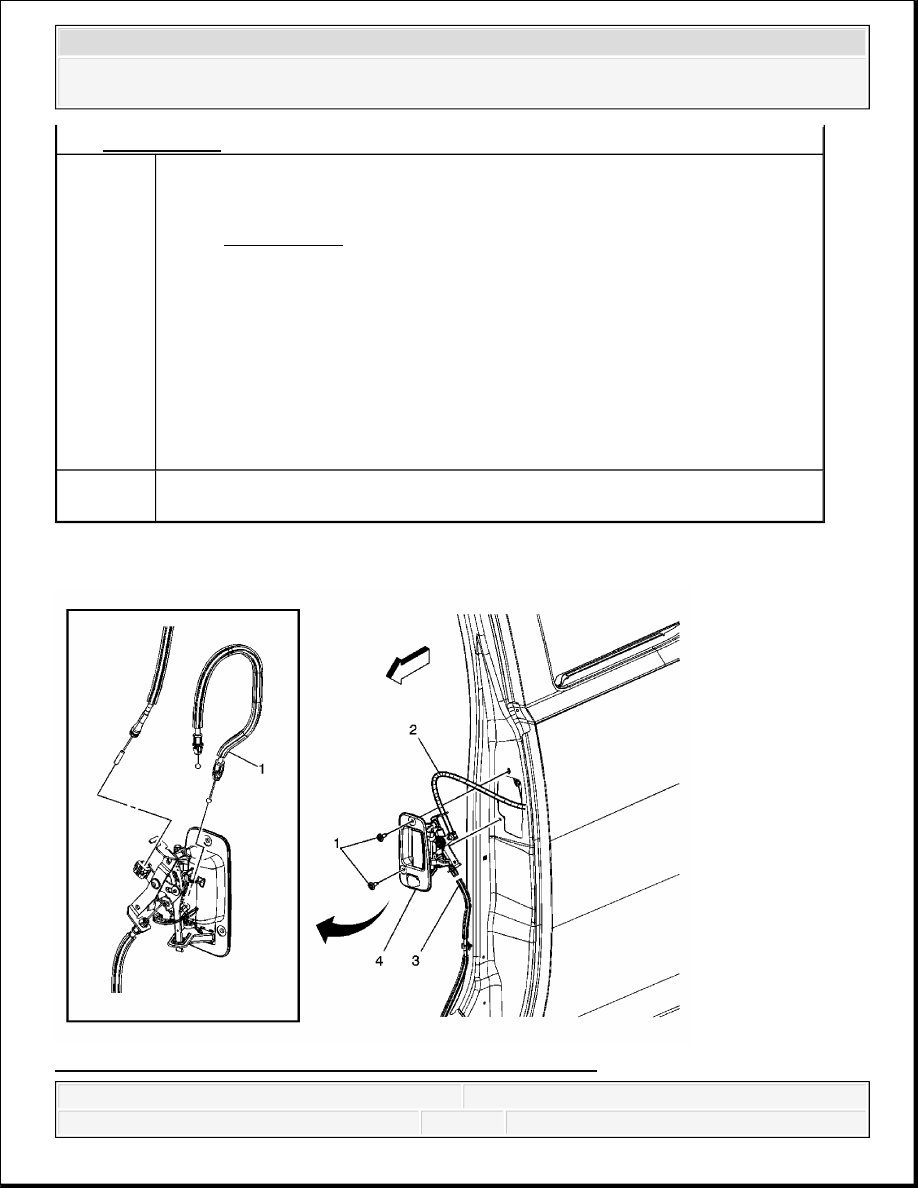

1
Rear Side Door Latch Control Handle Screw (Qty: 2)
Tighten: 5 N.m (44 lb in)
NOTE:
Refer to Fastener Notice .
2
Rear Side Door Latch Control Handle Upper Cable
Tip: Release the cable end from the latch retainer before pull the handle all
way out.
3
Rear Side Door Latch Control Handle Lower Cable
Tip: Release the cable end from the latch retainer before pull the handle all
way out.
4
Rear Side Door Latch Control Handle
Tip: Release the cable end from the inside handle retainer.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
