ENDGATE HANDLE REPLACEMENT (PICKUP BOX)

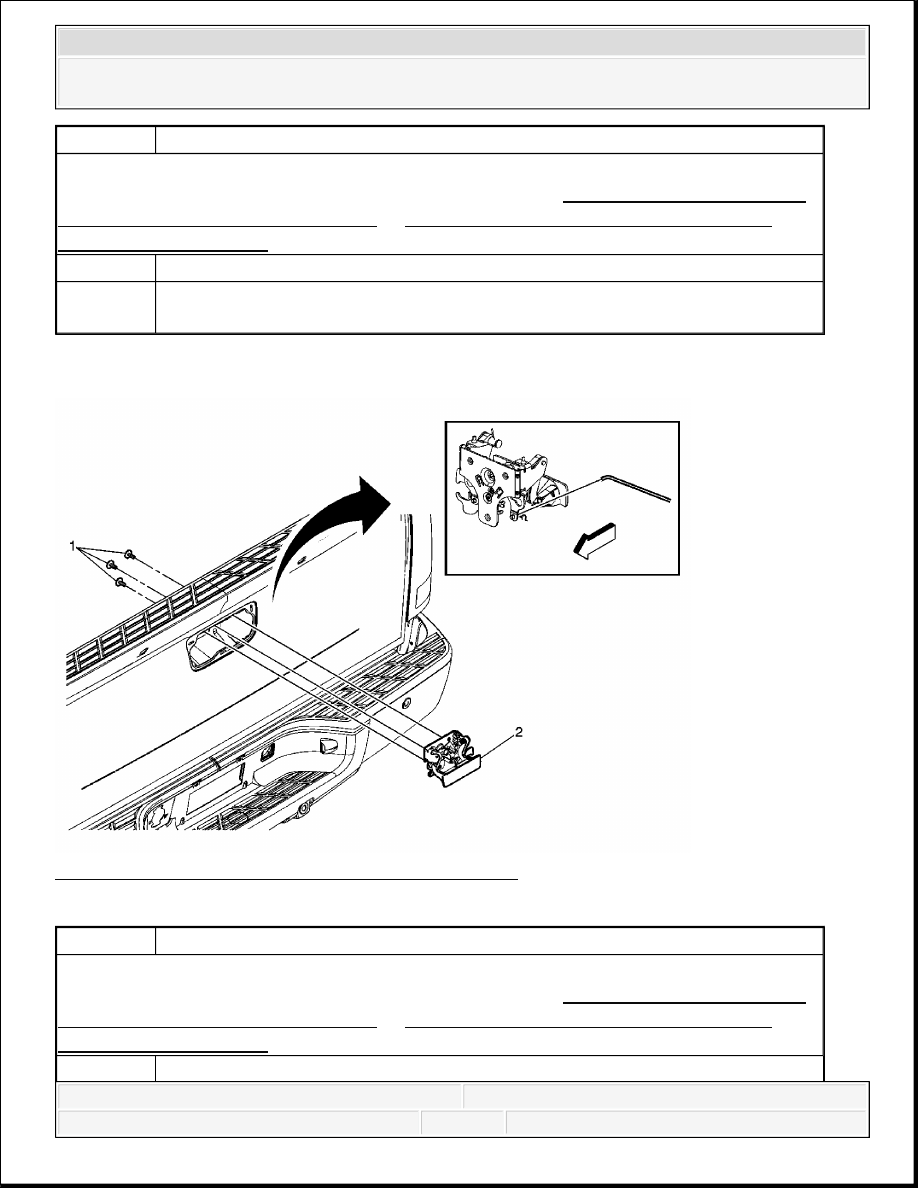

Fig. 11: Pickup Box Endgate Latch Handle & Bolts
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch
Handle Bezel Replacement (Utility) or Pickup Box Endgate Latch Handle Bezel
Replacement (Pick Up) .
1
Endgate Lock Cylinder Retaining Clip
2
Endgate Lock Cylinder
Tip: Code new cylinder as needed.
Callout
Component Name
Preliminary Procedure:
Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch
Handle Bezel Replacement (Utility) or Pickup Box Endgate Latch Handle Bezel
Replacement (Pick Up) .
Pickup Box Endgate Latch Handle Bolt (Qty: 3)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
FRONT SIDE DOOR INSIDE HANDLE REPLACEMENT (WITH SLT)
Fig. 12: View Of Front Side Door Inside Handle Assembly & Bolts
Courtesy of GENERAL MOTORS CORP.
1
Tighten: 25 N.m (18 lb ft)
NOTE:
Refer to Fastener Notice .
2
Pickup Box Endgate Latch Handle
Tip: Release all of the rods before removing.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
FRONT SIDE DOOR INSIDE HANDLE REPLACEMENT (WITHOUT SLT)
Callout
Component Name
Preliminary Procedures
1. Remove door upper trim panel. Refer to Upper Extension Trim Panel
Replacement .
2. Remove door window control switch. Refer to Door Lock and Side Window
Switch Replacement - Driver Side and Door Lock and Side Window Switch
Replacement - Passenger Side.
3. Remove door trim panel. Refer to Front Side Door Trim Panel Replacement
(YE9) or Front Side Door Trim Panel Replacement (SLT) .
1
Front Side Door Inside Handle Bolt (Qty: 2)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Front Side Door Inside Handle Assembly
Tip:
1. Disconnect the electrical connector.
2. If replacing the door handle, transfer heated seat switch to new handle.
Refer to Front Seat Heater Switch Replacement (w/o KB6) .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

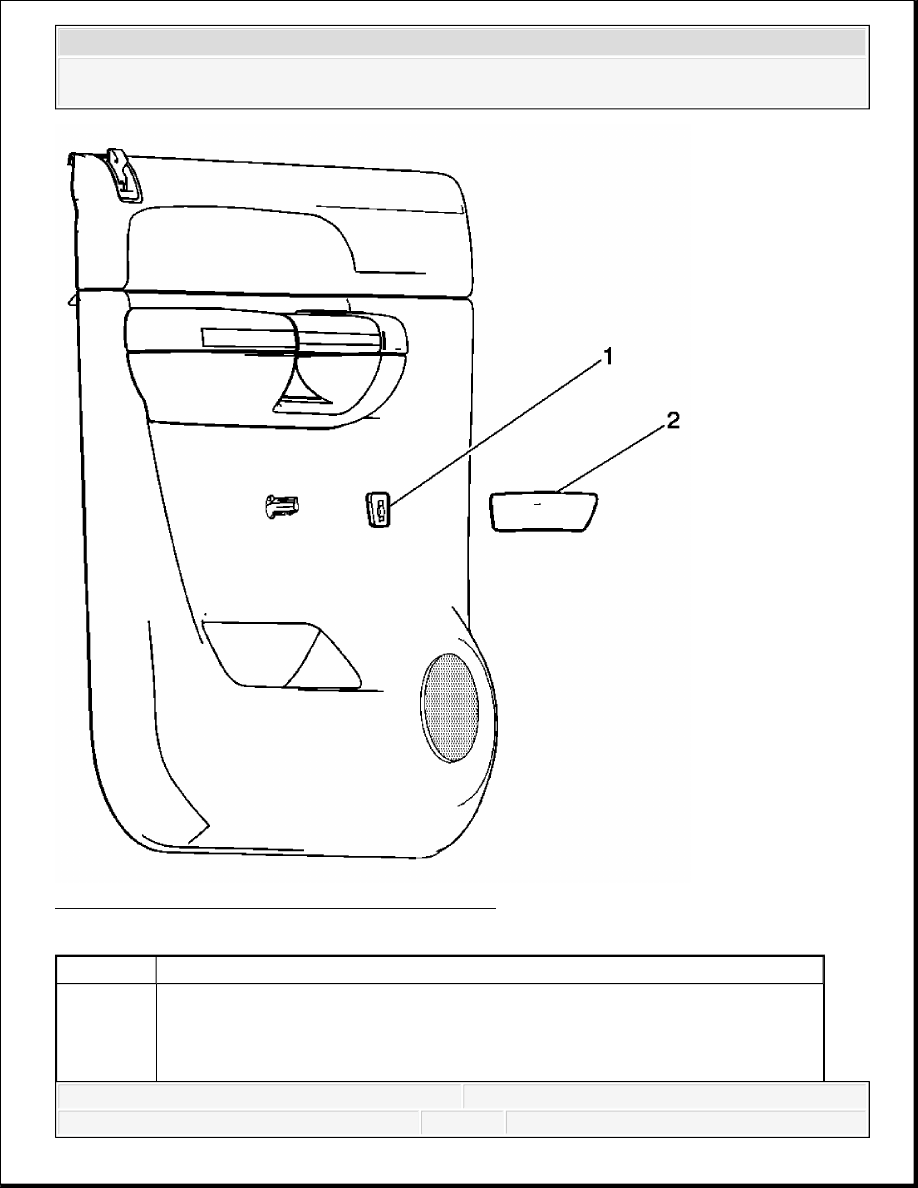

Fig. 13: View Of Side Door Inside Handle & Seal
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Front Side Door Inside Handle Seal
Procedure
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Vehicle Access - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
