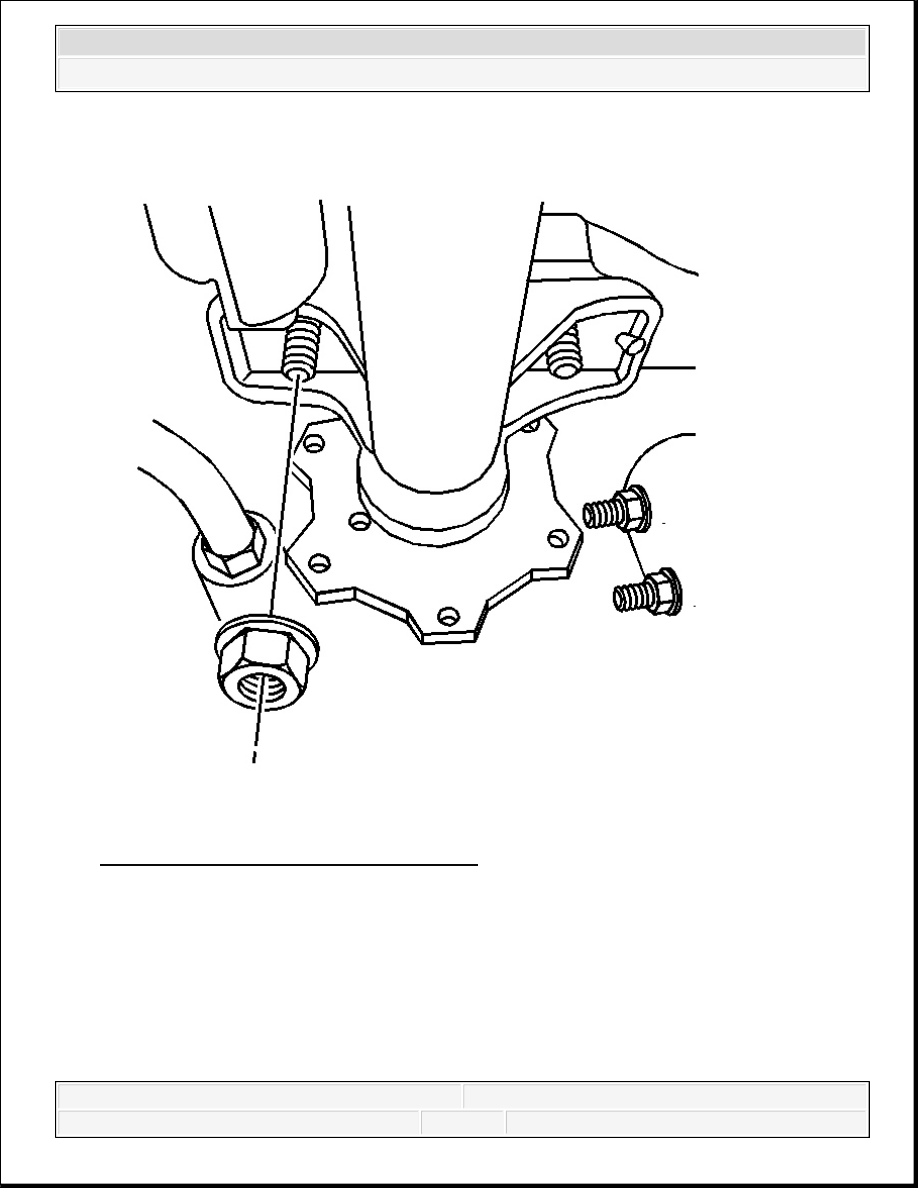

Fig. 69: View Of Inner Axle Housing Nuts
Courtesy of GENERAL MOTORS CORP.
14. Install the inner axle shaft housing washers and nuts to the bracket.
Tighten: Tighten the inner axle shaft housing nuts to 100 N.m (75 lb ft).
15. Connect the wheel drive shaft inboard flange to the inner axle shaft.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

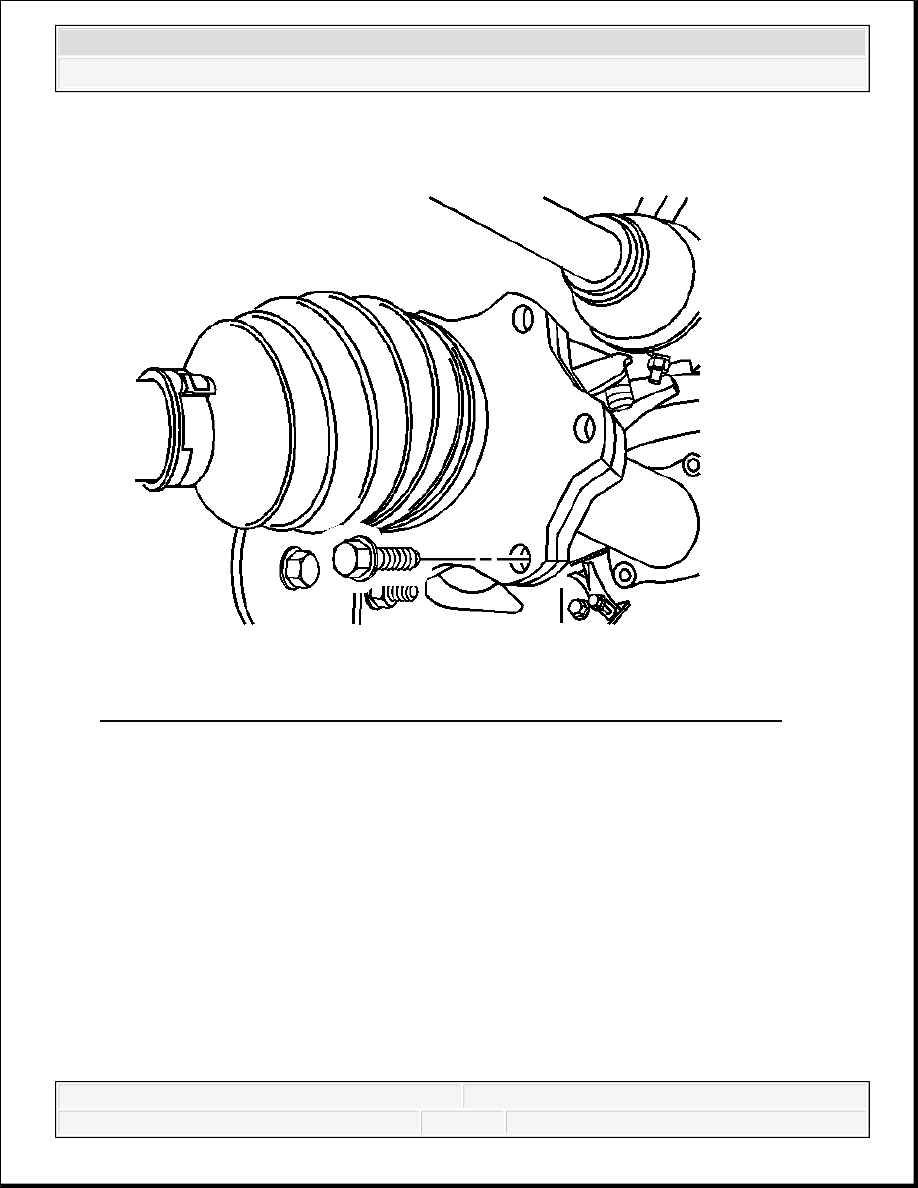

Fig. 70: View Of Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle
Courtesy of GENERAL MOTORS CORP.
16. Install the wheel drive shaft inboard flange to the inner axle shaft bolts.
Tighten: Tighten the wheel drive shaft inboard flange to inner axle shaft bolts to 79 N.m
(58 lb ft).
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

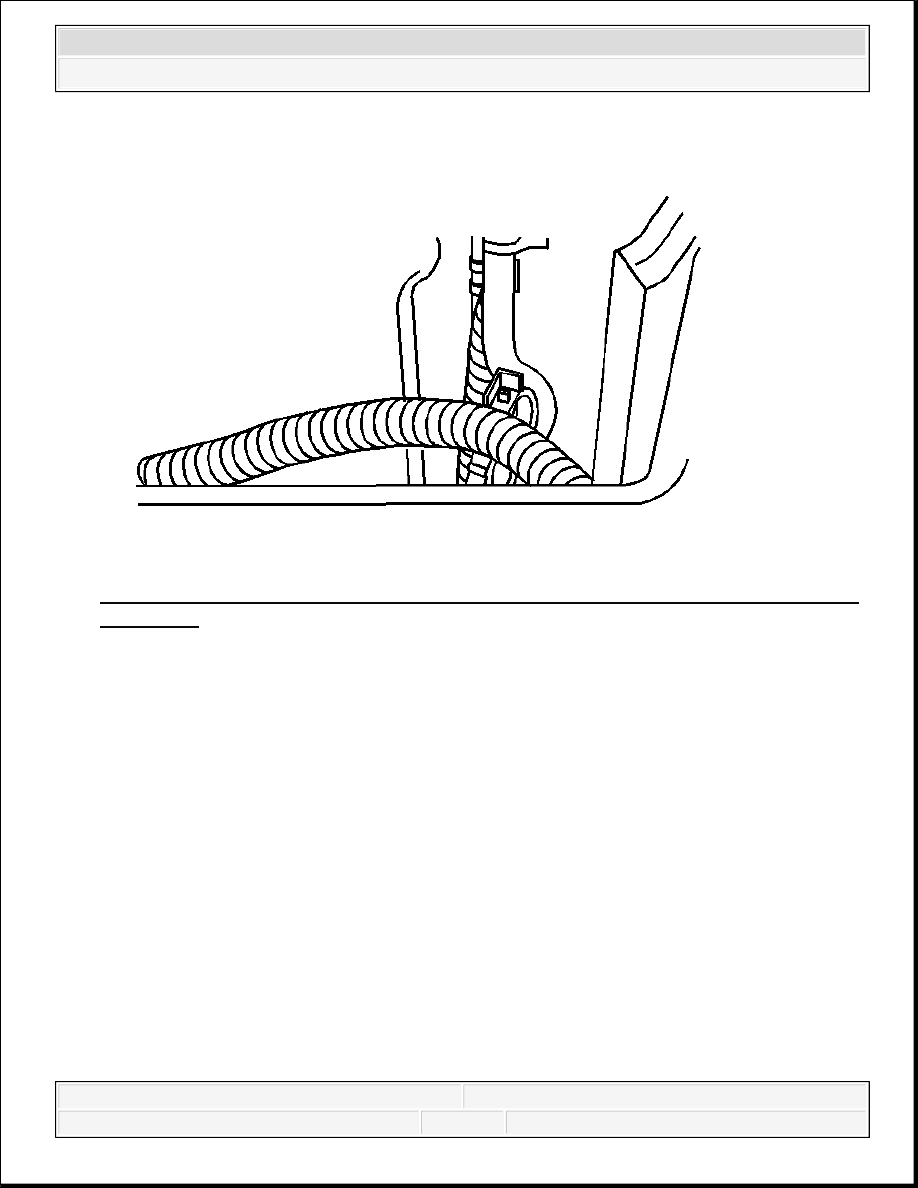

Fig. 71: Inner Axle Shaft Housing Wire Harness - Front Drive Axle (8.25 S4WD and
9.25 Axles)
Courtesy of GENERAL MOTORS CORP.
17. Connect the wire harness to the inner axle shaft housing.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

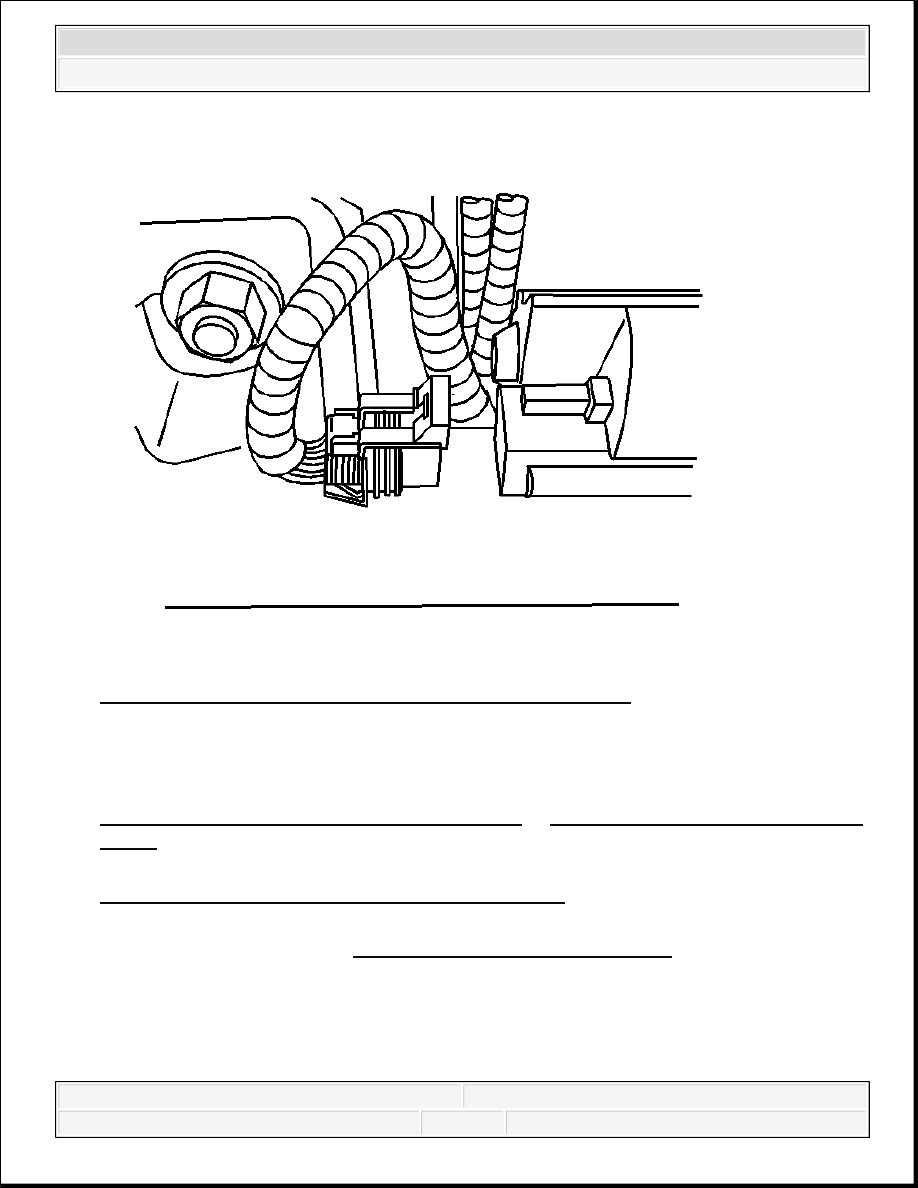

Fig. 72: View Of Front Axle Actuator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
18. Connect the electrical connector to actuator.
19. For vehicles equipped with the 9.25 inch axle, install the stabilizer shaft link. Refer to
Stabilizer Shaft Link Replacement (2500/3500) or Stabilizer Shaft Link Replacement
(1500) .
20. For vehicles equipped with the 8.25 inch axle, install the front shock module. Refer to
Shock Absorber and Spring Assembly Replacement .
21. With either replacement procedure, fill the differential carrier assembly with axle lubricant.
Use the correct fluid. Refer to Front Axle Lubricant Replacement.
22. Lower the vehicle.
FRONT DRIVE AXLE CLUTCH FORK REPLACEMENT
