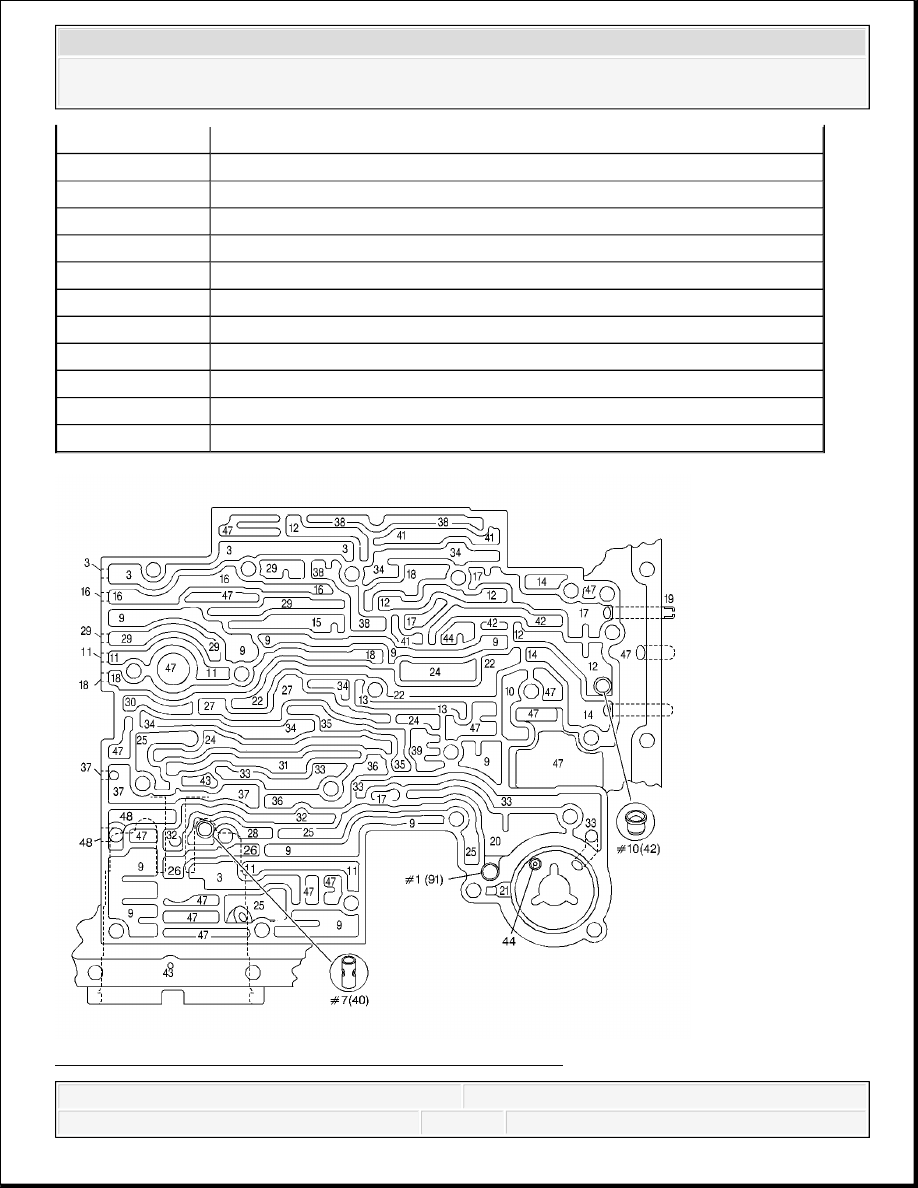

Fig. 563: Case Fluid Passages (Control Valve Body Side)
16
Reverse Input
16
Reverse Input
18
Forward Clutch Feed
18
Forward Clutch Feed
29
3-4 Clutch
29
3-4 Clutch
37
Overrun Clutch
37
Overrun Clutch
39
Pressure Plug
45
Vent
48
Regulated Apply
48
Regulated Apply
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
#1
Checkball (91)
#7
3rd Accumulator Retainer and Ball Assembly (40)
#10
Checkball (42)
3
Line
3
Line
3
Line
3
Line
3
Line
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
9
Actuator Feed Limit
10
Filtered Actuator Feed
11
Torque Signal
11
Torque Signal
11
Torque Signal
11
Torque Signal
11
Torque Signal
12
PR
12
PR
12
PR
12
PR
12
PR
13
D4-3-2
13
D4-3-2
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
14
Lo/Reverse
14
Lo/Reverse
14
Lo/Reverse
15
Reverse
16
Reverse Input (Rev. Clutch
16
Reverse Input (Rev. Clutch
16
Reverse Input (Rev. Clutch
16
Reverse Input (Rev. Clutch
17
D4
17
D4
17
D4
17
D4
18
Forward Clutch Feed
18
Forward Clutch Feed
18
Forward Clutch Feed
18
Forward Clutch Feed
19
Rear Lube
20
Accumulator
21
Orificed Accumulator
22
Signal A
22
Signal A
22
Signal A
24
2nd
24
2nd
24
2nd
25
2nd Clutch
25
2nd Clutch
25
2nd Clutch
25
2nd Clutch
26
C.C. Signal
26
C.C. Signal
27
3-4 Signal
27
3-4 Signal
28
3rd Accumulator
29
3-4 Clutch
29
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
3-4 Clutch
29
3-4 Clutch
29
3-4 Clutch
29
3-4 Clutch
30
4th Signal
31
Servo Feed
32
4th
32
4th
33
3-4 Accumulator
33
3-4 Accumulator
33
3-4 Accumulator
33
3-4 Accumulator
33
3-4 Accumulator
34
D3
34
D3
34
D3
34
D3
34
D3
35
Overrun
35
Overrun
36
Overrun Clutch Feed
36
Overrun Clutch Feed
37
Overrun Clutch
37
Overrun Clutch
37
Overrun Clutch
38
D2
38
D2
38
D2
38
D2
39
Orificed D2
41
Lo
41
Lo
41
Lo
42
Lo/1st
42
Lo/1st
43
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
