Chevrolet Silverado / GMC Sierra. Manual - part 1185

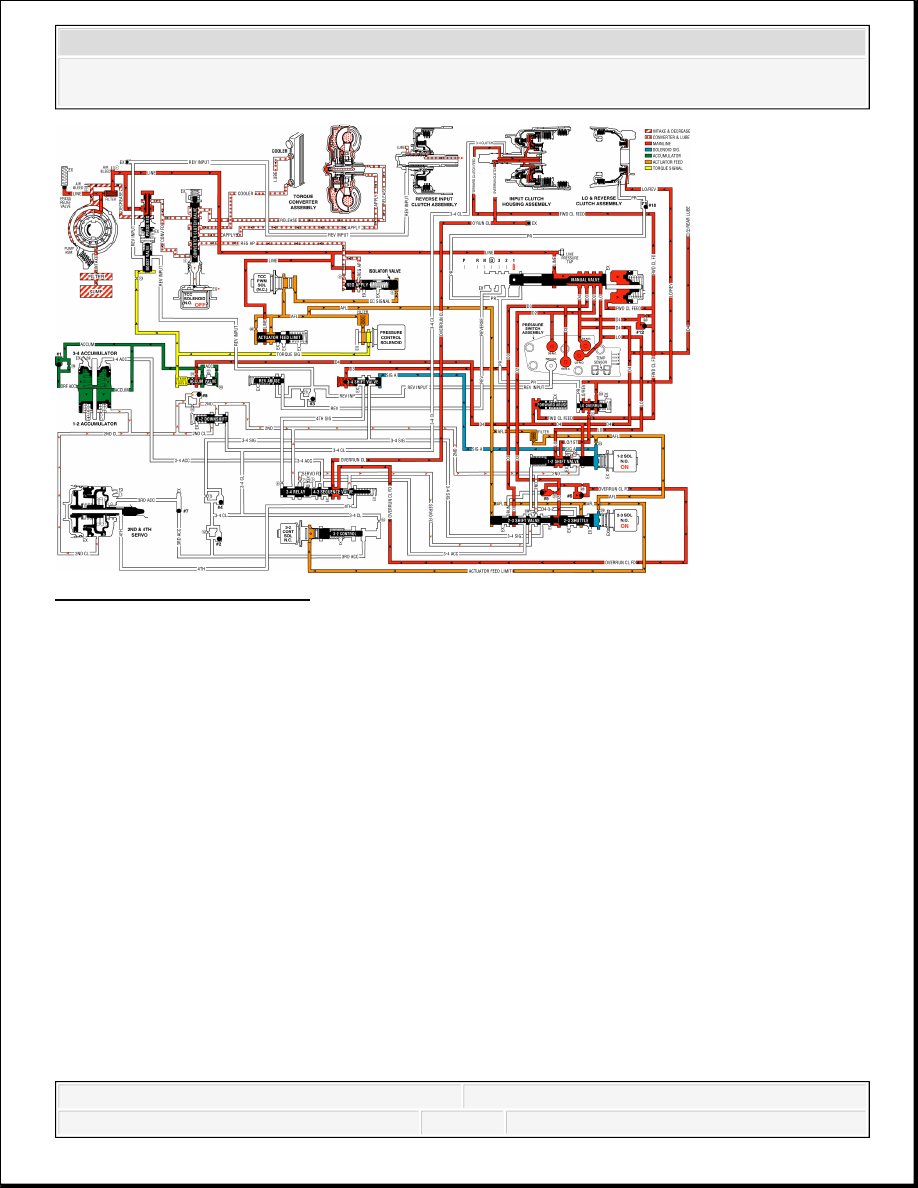

Fig. 558: Manual First Gear
Courtesy of GENERAL MOTORS CORP.
FLUID PASSAGES
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

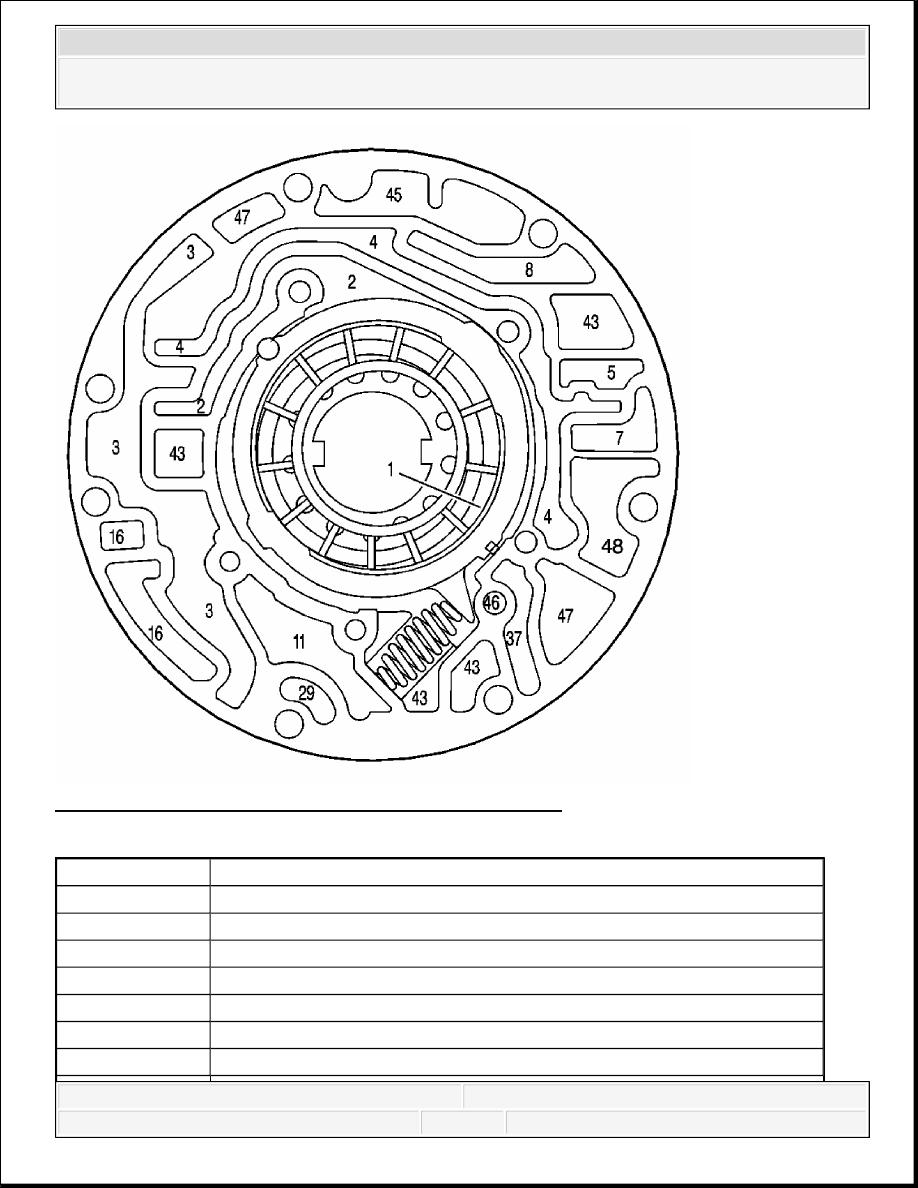

Fig. 559: Pump Body Fluid Passages (Pump Cover Side)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Suction (intake)
2
Decrease
2
Decrease
3
Line
3
Line
3
Line
4
Converter Feed
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
4
Converter Feed
4
Converter Feed
5
Release
7
To Cooler
8
Lube from Cooler
11
Torque Signal
16
Reverse Input
16
Reverse Input
29
3-4 Clutch
37
Overrun Clutch
43
Exhaust
43
Exhaust
43
Exhaust
43
Exhaust
45
Vent
46
Seal Drain
47
Void
47
Void
48
Regulated Apply
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

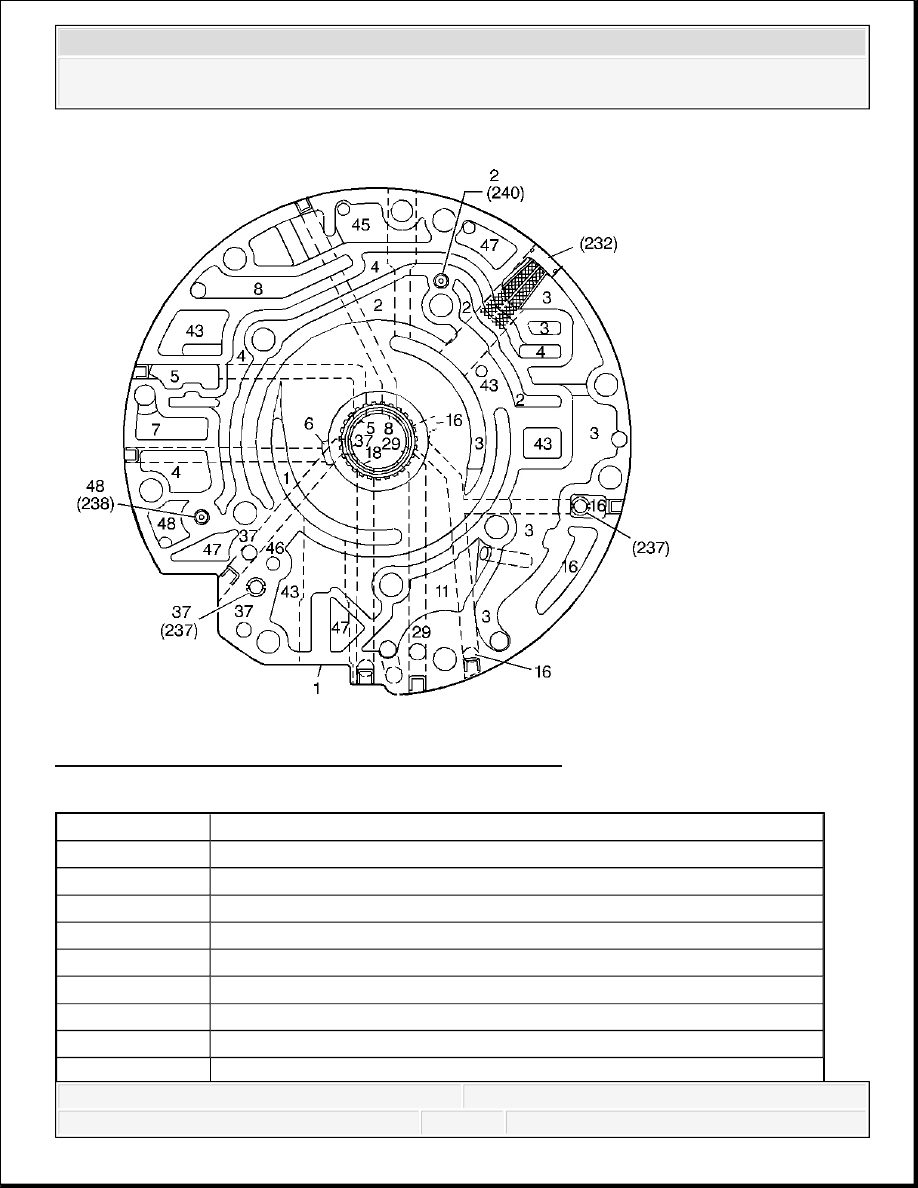

Fig. 560: Pump Cover Fluid Passages (Pump Body Side)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Suction (intake)
1
Suction (intake)
2
Decrease
2
Decrease
2
Decrease
2
Decrease
3
Line
3
Line
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
