Chevrolet Silverado / GMC Sierra. Manual - part 1186
3
Line
3
Line
3
Line
3
Line
4
Converter Feed
4
Converter Feed
4
Converter Feed
4
Converter Feed
5
Release
5
Release
6
Apply
7
To Cooler
8
Lube from Cooler
8
Lube from Cooler
11
Torque Signal
16
Reverse Input
16
Reverse Input
16
Reverse Input
16
Reverse Input
18
Forward Clutch Feed
29
3-4 Clutch
29
3-4 Clutch
37
Overrun Clutch
37
Overrun Clutch
37
Overrun Clutch
37
Overrun Clutch
43
Exhaust
43
Exhaust
43
Exhaust
43
Exhaust
45
Vent
46
Seal Drain
47
Void
47
Void
47
Void
48
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

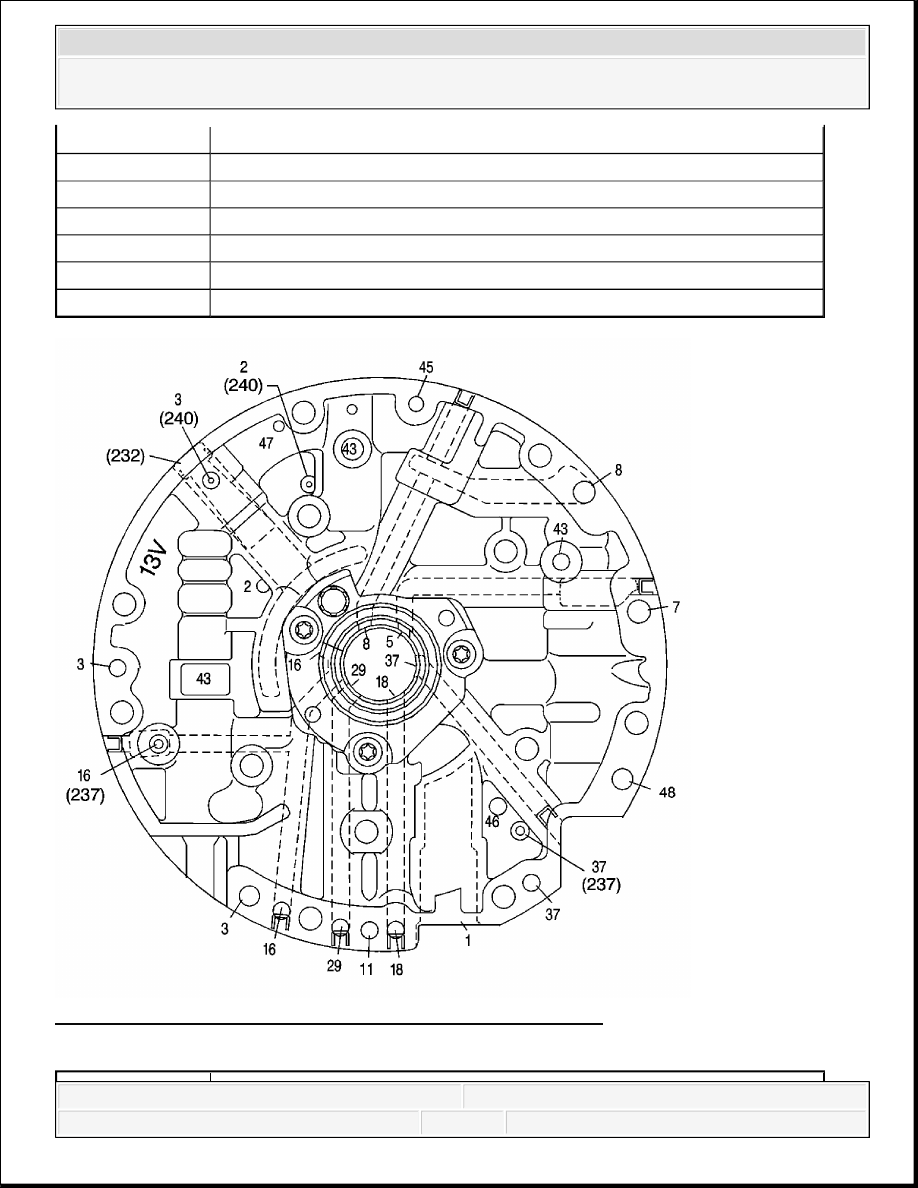

Fig. 561: Identifying Pump Cover Fluid Passages (Case Side)
Courtesy of GENERAL MOTORS CORP.
Regulated Apply
48
Regulated Apply
232
Oil Pump Cover Screen
237
Check Valve Retainer and Ball Assembly
237
Check Valve Retainer and Ball Assembly
238
Converter Clutch Signal Orificed Cup Plug
240
Orificed Cup Plug
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Callout
Component Name
1
Suction (Intake)
2
Decrease
2
Decrease
3
Line
3
Line
3
Line
5
Release
7
To Cooler
8
Lube from Cooler
8
Lube from Cooler
11
Torque Signal
16
Reverse Input (Rev. Clutch
16
Reverse Input (Rev. Clutch
16
Reverse Input (Rev. Clutch
18
Forward Clutch Feed
18
Forward Clutch Feed
29
3-4 Clutch
29
3-4 Clutch
37
Overrun Clutch
37
Overrun Clutch
37
Overrun Clutch
43
Exhaust
43
Exhaust
43
Exhaust
45
Vent
46
Seal Drain
47
Void
48
Regulated Apply
232
Oil Pump Cover Screen
237
Check Valve Retainer and Ball Assembly
237
Check Valve Retainer and Ball Assembly
240
Orificed Cup Plug
240
Orificed Cup Plug
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

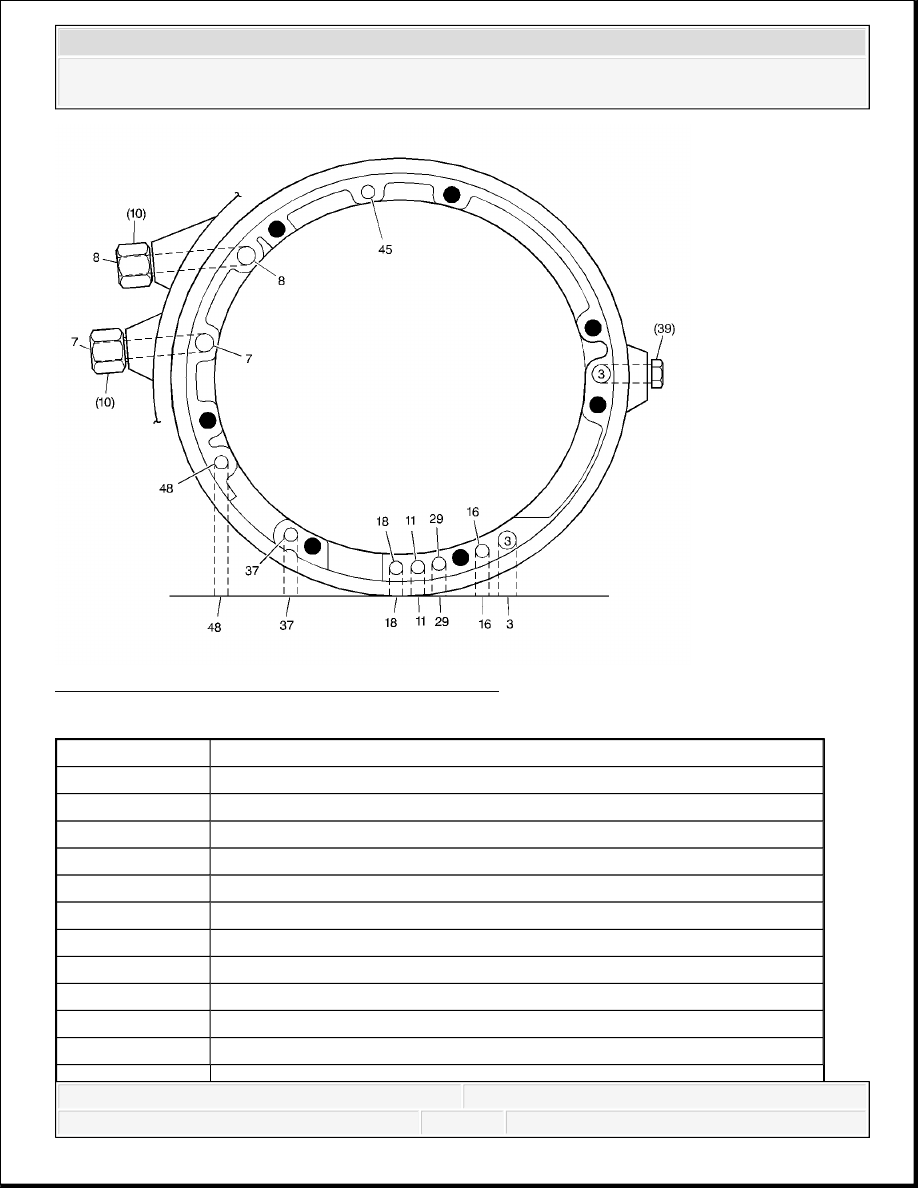

Fig. 562: Case Fluid Passages (Pump Cover Side)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
3
Line
3
Line
3
Line
7
To Cooler
7
To Cooler
8
Lube from Cooler
8
Lube from Cooler
10
Oil Cooler Pipe Connector
10
Oil Cooler Pipe Connector
11
Torque Signal
11
Torque Signal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
