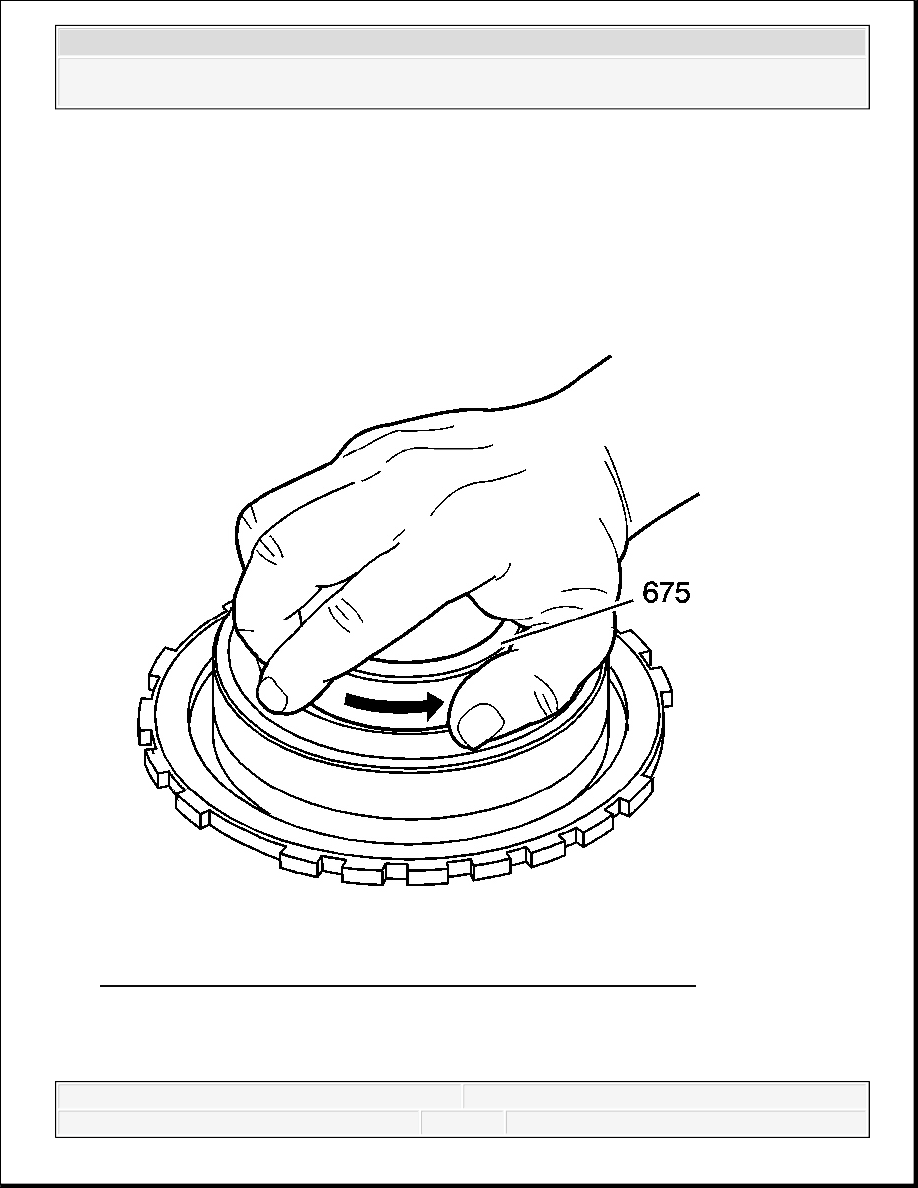

Courtesy of GENERAL MOTORS CORP. 4. Clean and install the low and reverse roller clutch assembly (678) into the low and reverse clutch support (679). Install the low and reverse retainer ring (677). LOW AND REVERSE CLUTCH SUPPORT INSTALLATION Fig. 328: Checking Low And Reverse Roller Clutch Race Rotation 1. Install the low and reverse roller clutch race (675). Simultaneously, turn and insert the race. 2. Rotate the race in order to verify proper operation. The race should only rotate in one
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

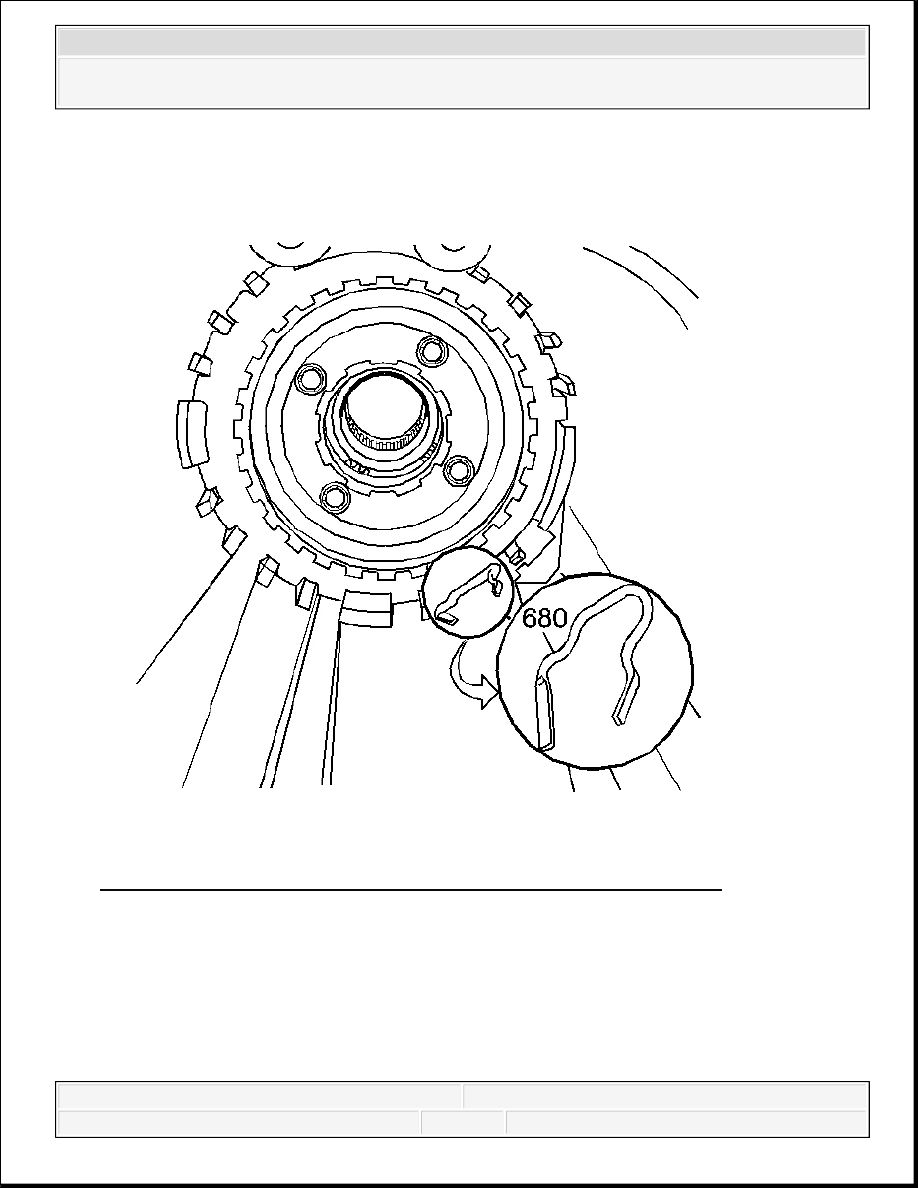

direction. Fig. 329: View Of Low And Reverse Clutch Support Retainer Spring 3. Install the low and reverse clutch support retainer spring (680) into the case.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

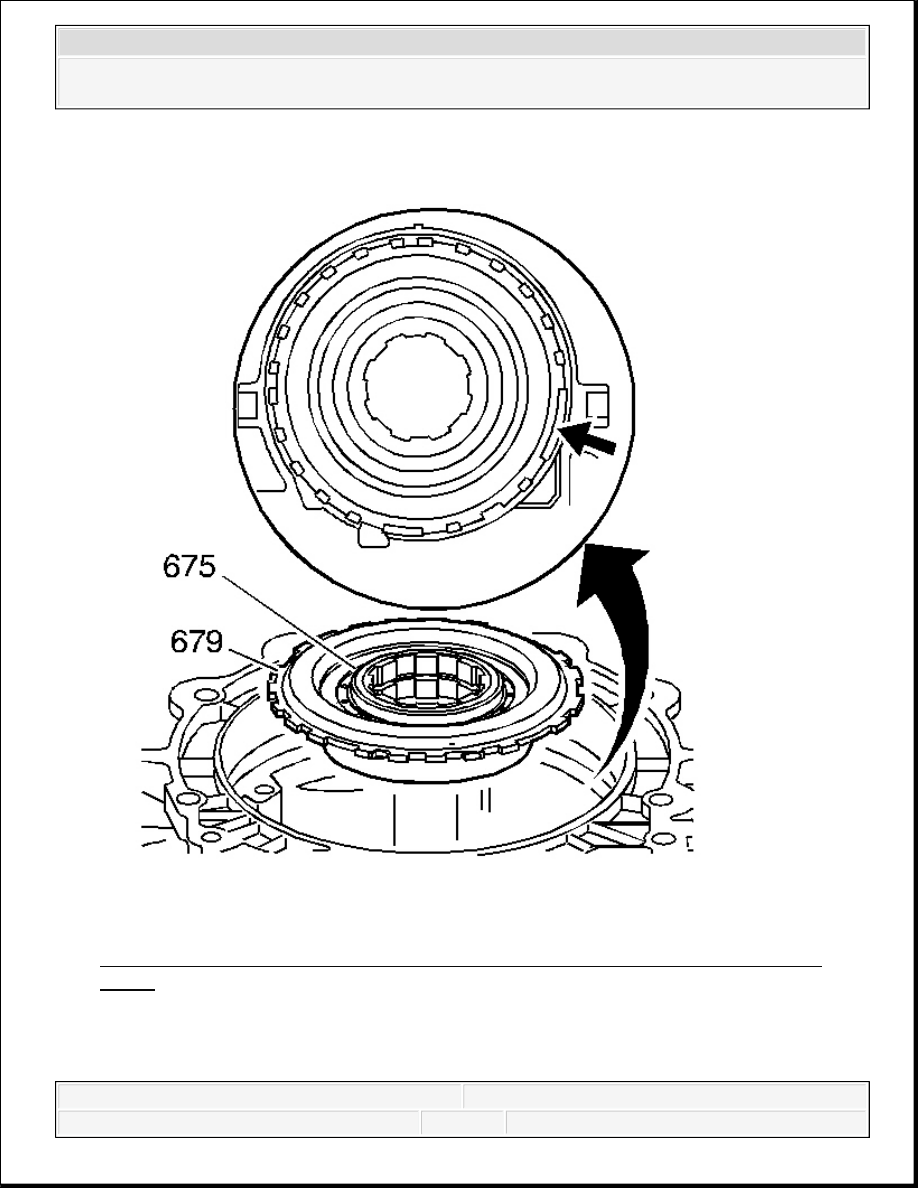

Fig. 330: Aligning Wide Case Lug With Wide Low And Reverse Clutch Support IMPORTANT: Align the wide low and reverse clutch support notch with the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

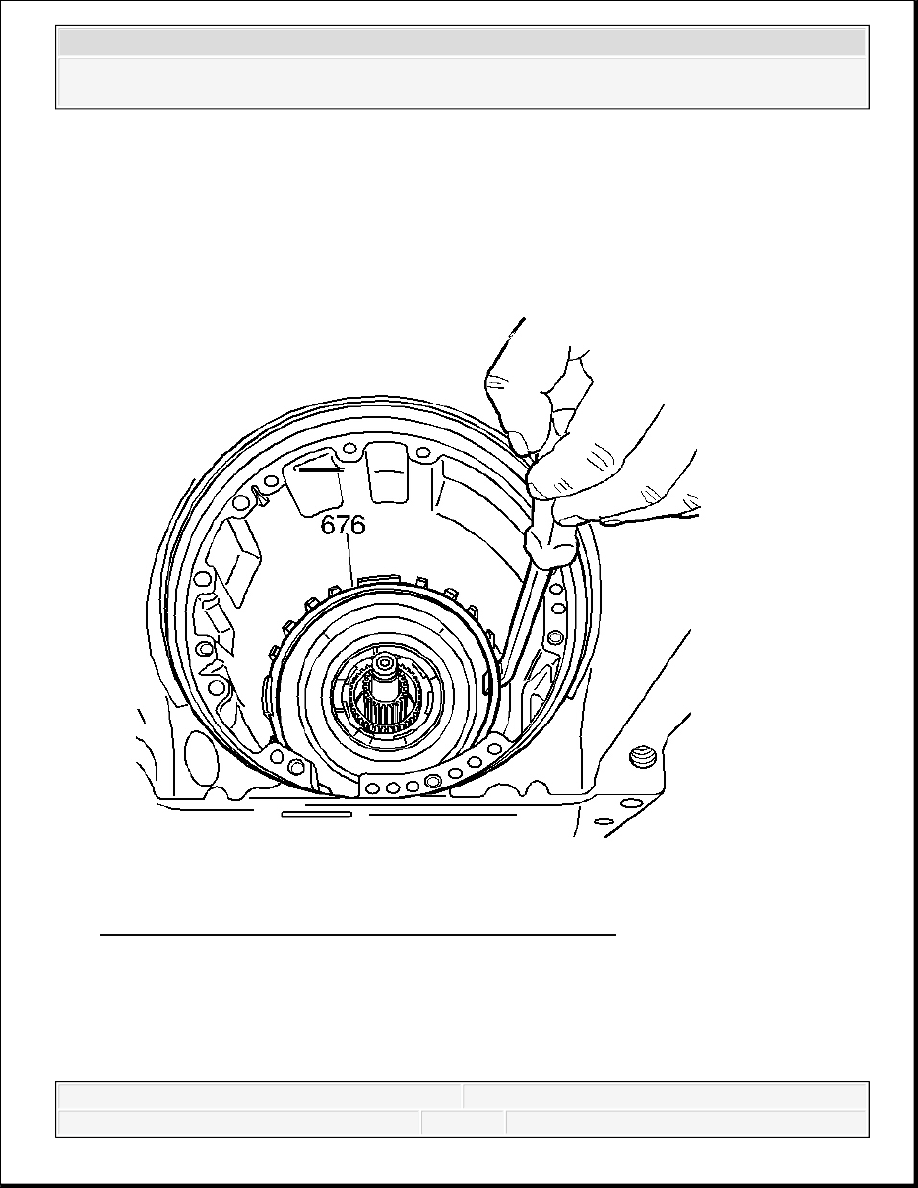

4. Install the low and reverse clutch support (679), roller clutch and roller clutch race (675) assembly into the case. Position the hub side down during the installation. Fig. 331: View Of Low & Reverse Support Retainer Ring wide case lug. IMPORTANT: Align the opening of the low and reverse clutch support retainer ring (676) with the low and reverse clutch support
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
