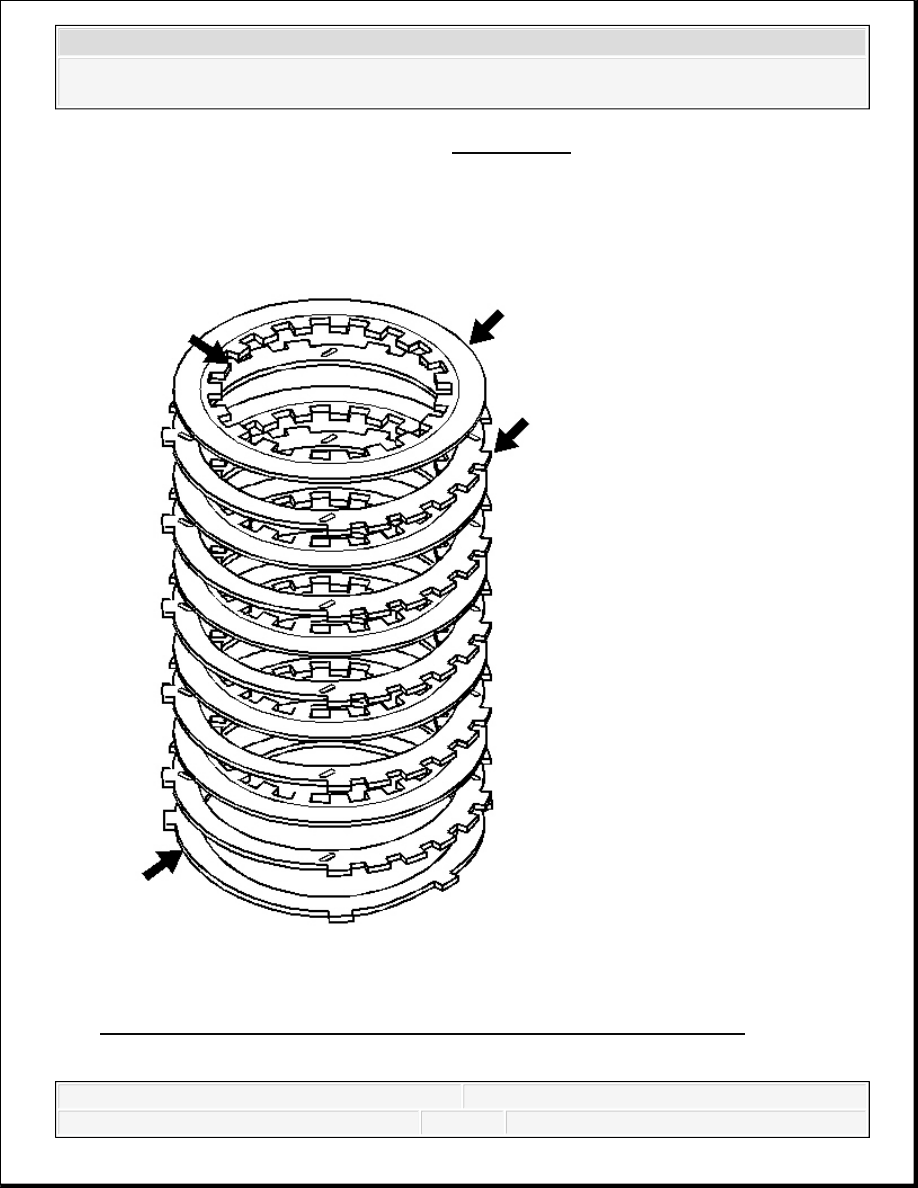

J 26900-13 Magnetic Indicator Base. See Special Tools. Selection Fig. 321: Locating Inspection Areas On Low And Reverse Clutch Plates
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

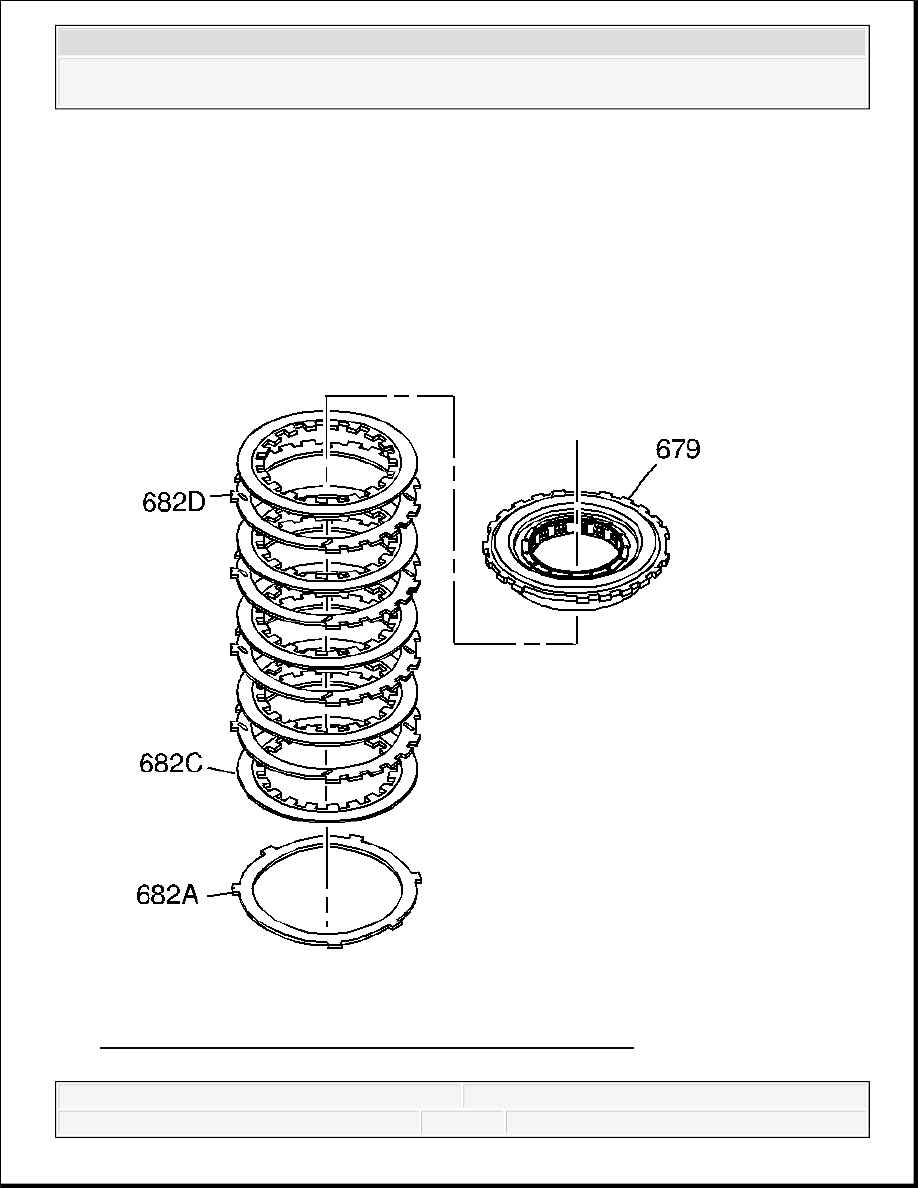

1. Inspect the low and reverse clutch plates for the following conditions: Composition material wear Composition material heat damage Composition material delamination Steel plates heat damage Steel plates surface finish damage Fig. 322: View Of Low And Reverse Clutch Plate Assembly
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

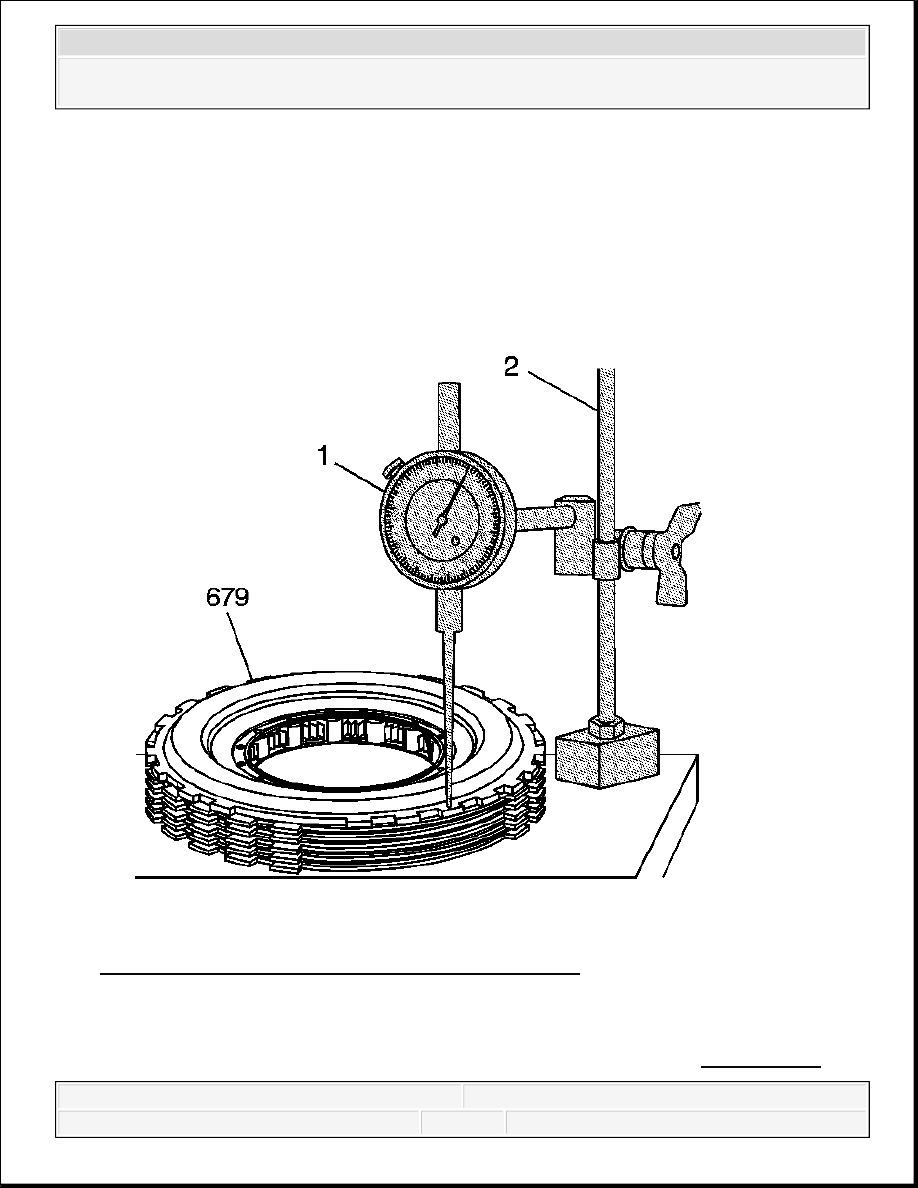

2. Stack the low and reverse clutch plate assembly on a flat surface in the following order: 1. One waved plate (682A) 2. Five fiber plate assemblies (682C) and four steel plates (682D), starting with one fiber plate assembly and alternating with steel 3. Low and reverse clutch support (679) Fig. 323: Measuring Clutch Pack Height With J 8001 3. Using the J 8001 (1) and the J 26900-13 (2), measure the height of the clutch pack from the work surface to the top of the low and reverse clutch support (679). See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

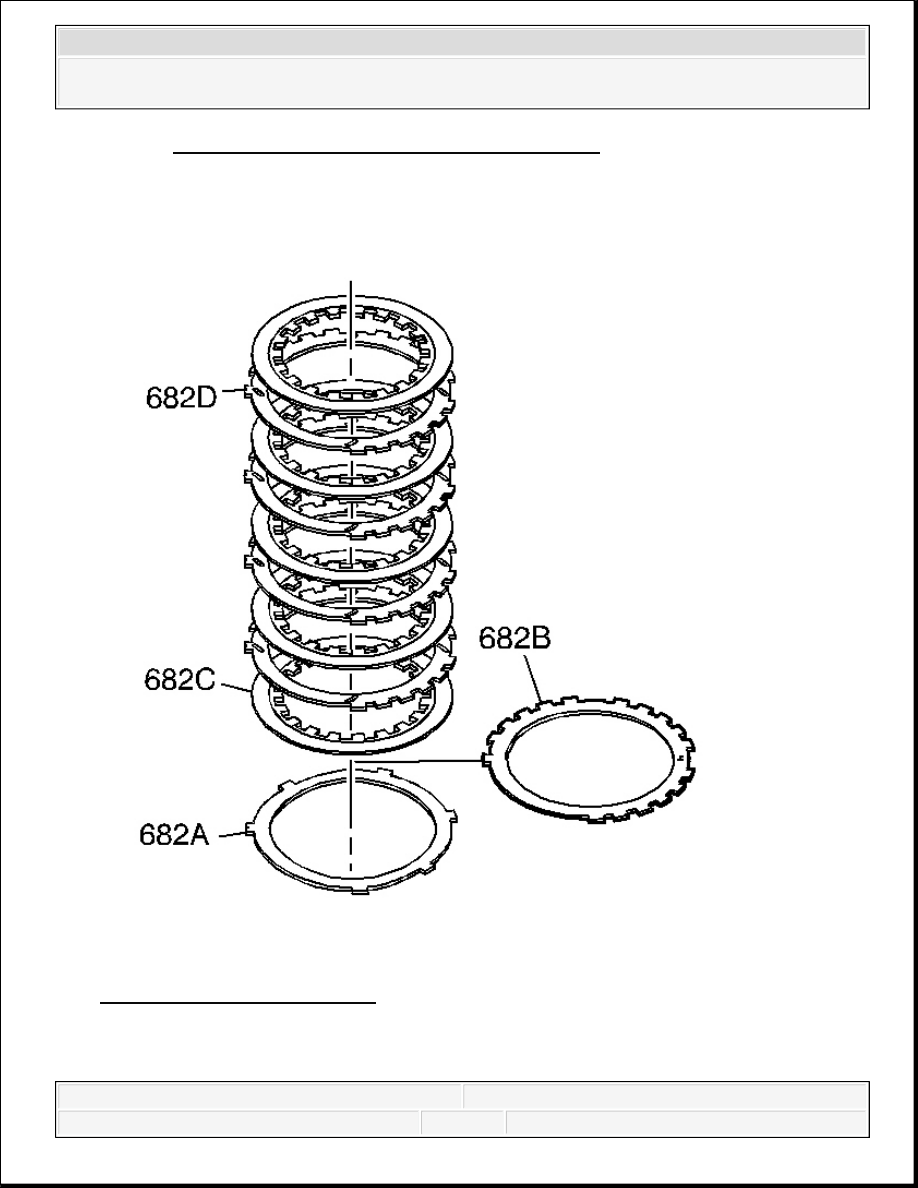

4. Refer to Low and Reverse Clutch Spacer Plate Selection in order to select the proper thickness of the low and reverse clutch selective spacer plate (682B). Fig. 324: View Of Clutch Pack 5. Install the proper selective spacer plate (682B) between the wave plate (682A) and the first
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
