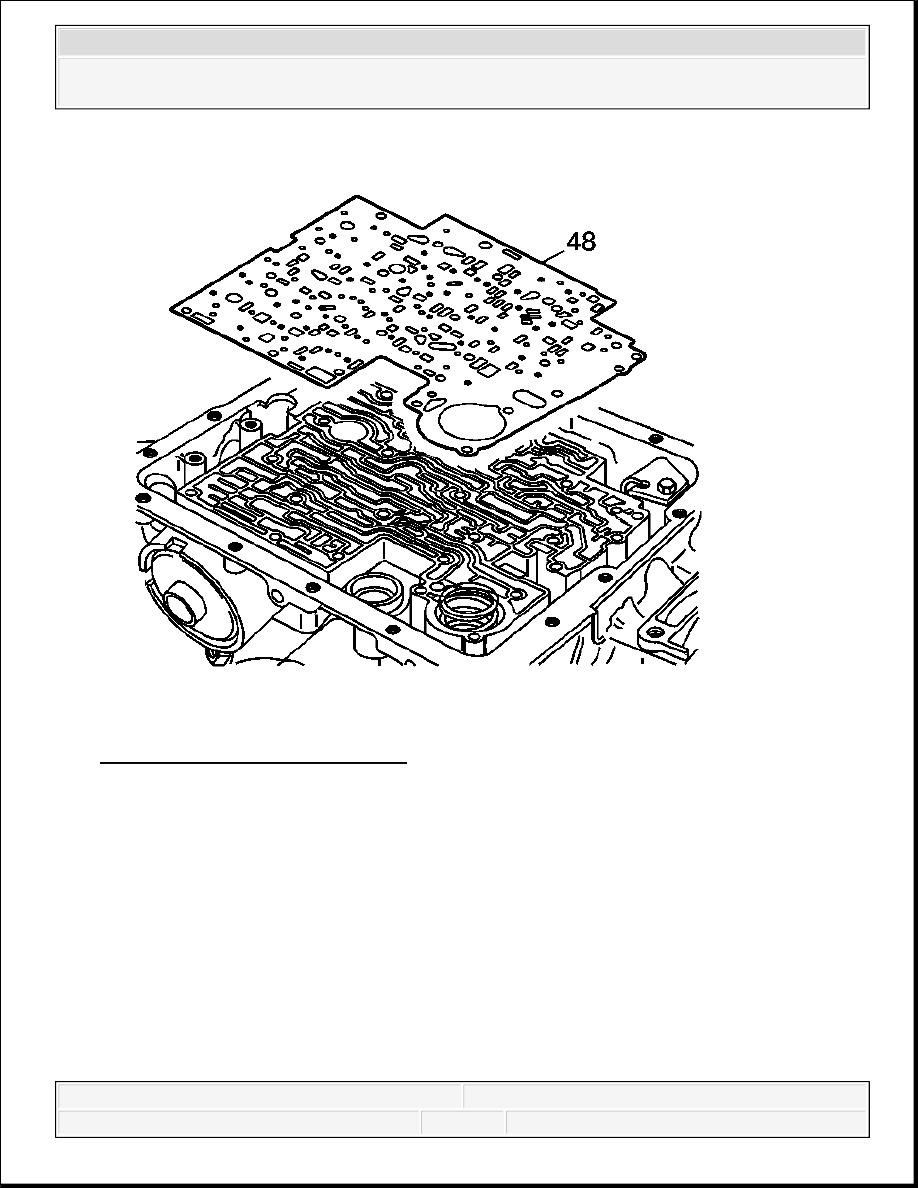

Fig. 262: Valve Body Spacer Plate 18. Remove the bonded valve body spacer plate (48), discard and do not reuse. IMPORTANT: Do not reuse the bonded spacer plate. Replace with a NEW bonded spacer plate.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

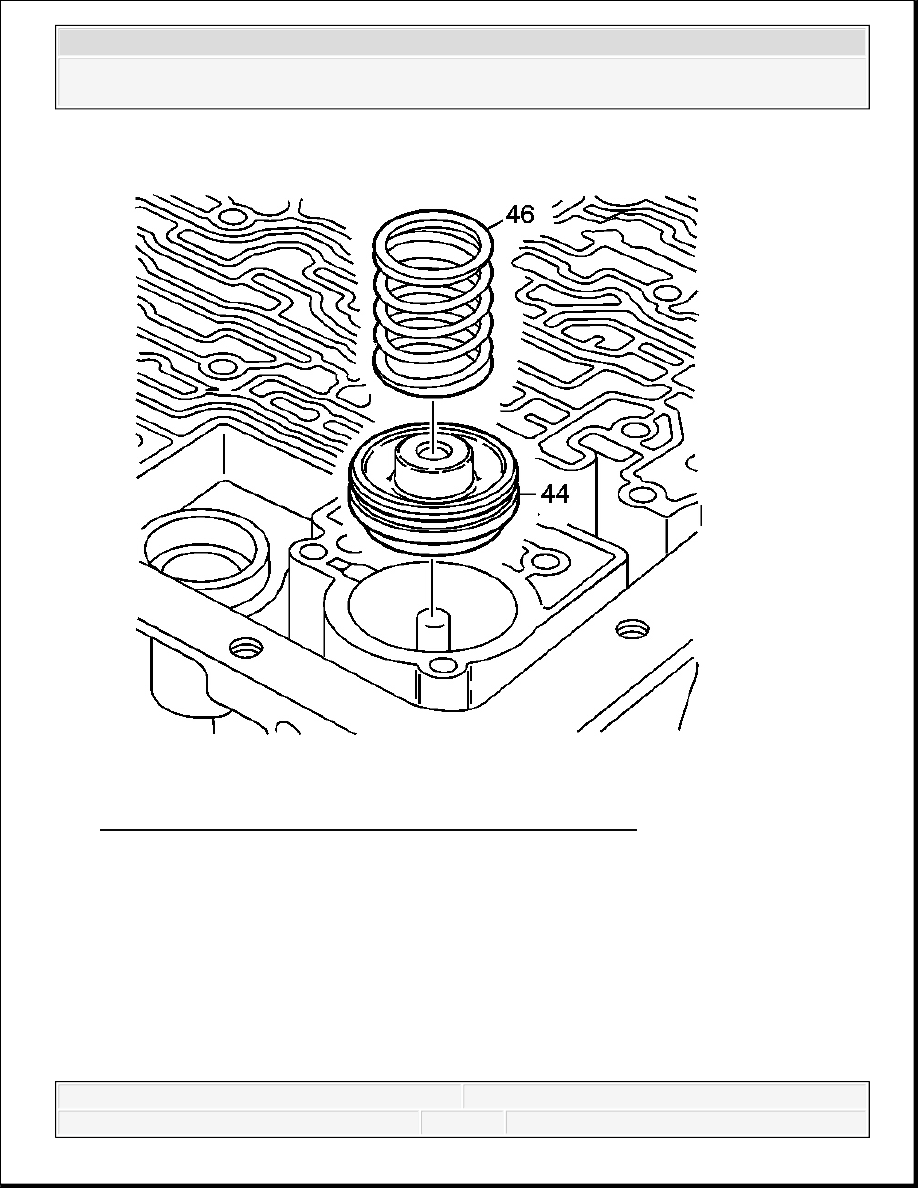

Fig. 263: View Of 3-4 Accumulator Piston & Seal Assembly 19. Remove the 3-4 accumulator spring (46) and the 3-4 accumulator piston (44). IMPORTANT: Some models do not use a 3-4 accumulator spring (46).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

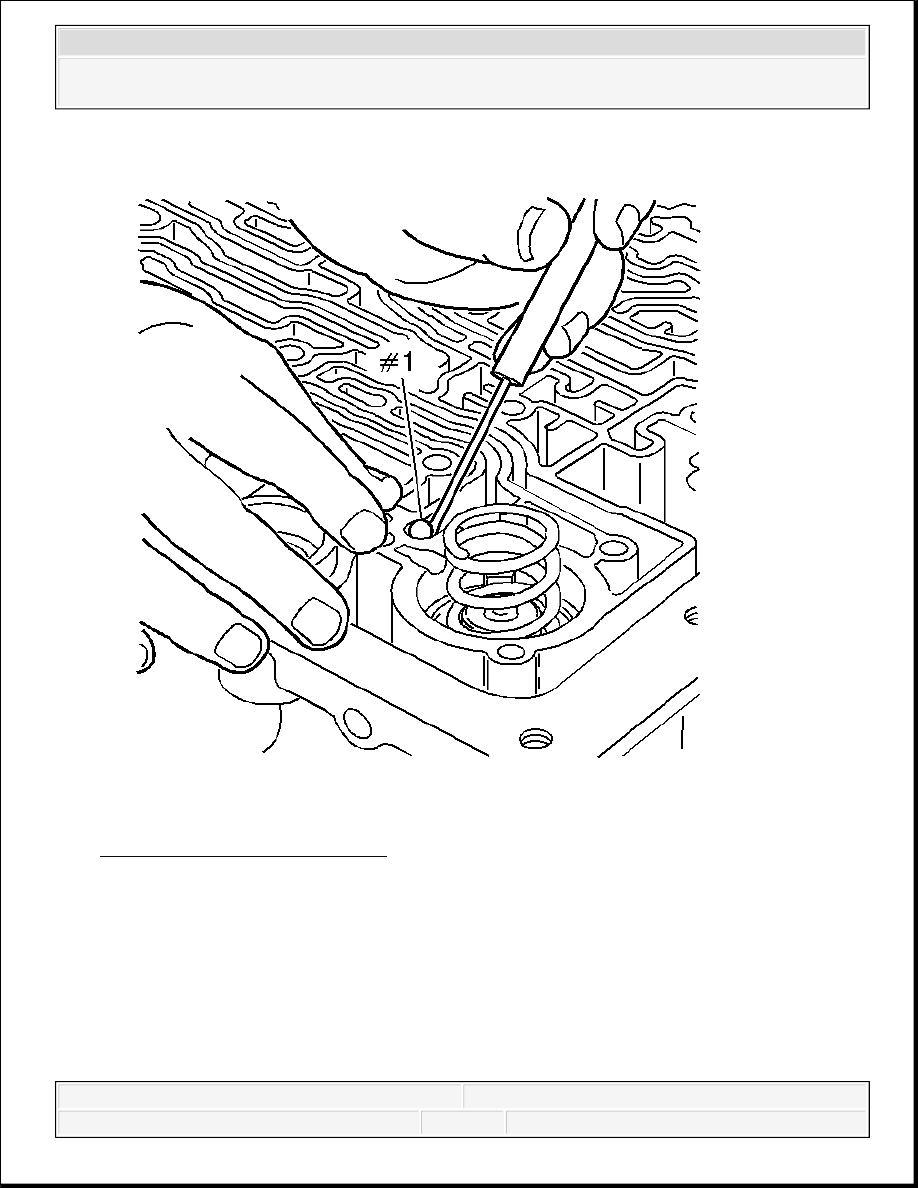

Fig. 264: Locating #1 Checkball 20. Remove the #1 case ball check valve. TURBINE SHAFT O-RING REMOVAL NOTE: Do not use a magnet in order to remove the control valve body
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

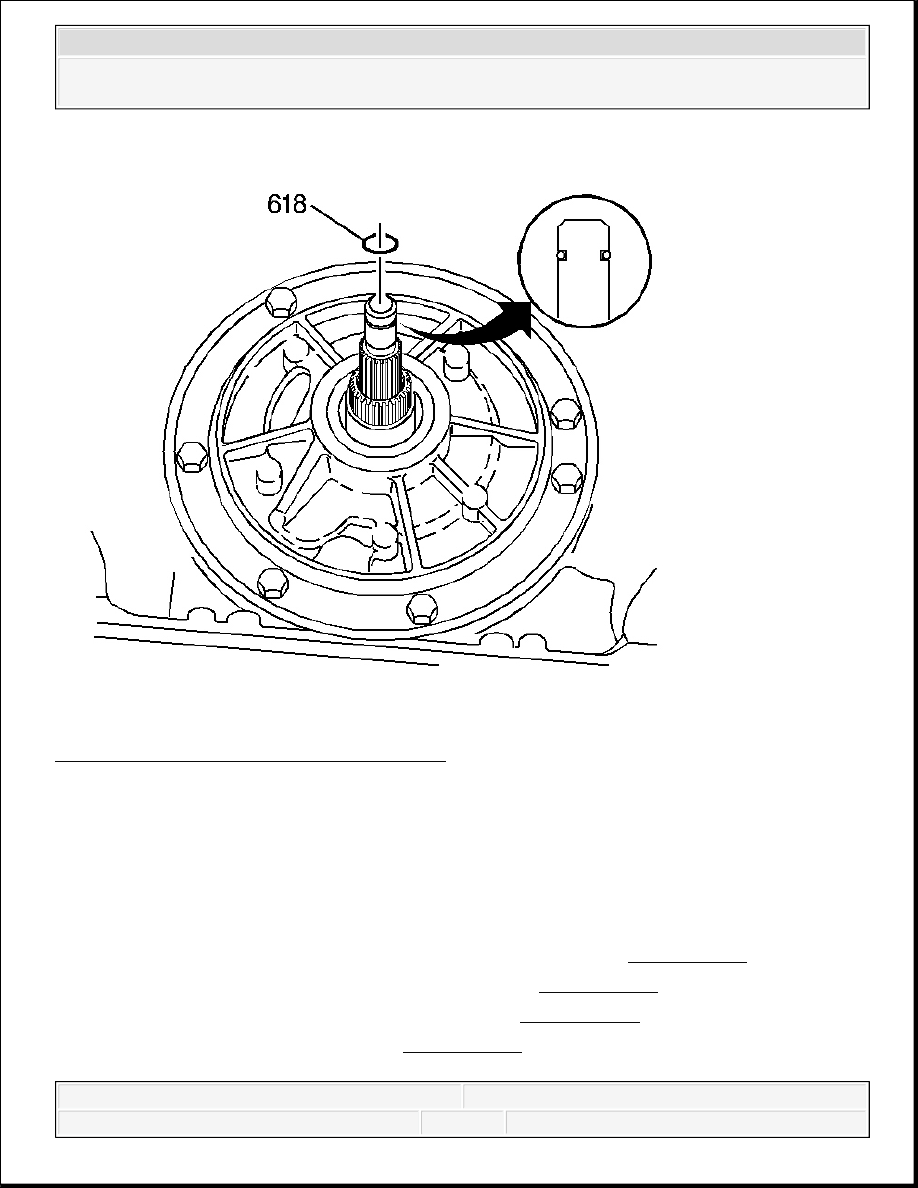

Fig. 265: Identifying Turbine Shaft O-Ring Remove the O-ring (618) from the turbine shaft. O-Ring location is model dependent. TRANSMISSION END PLAY CHECK Tools Required J 25022 End Play Fixture Adapter (245 mm and 258 mm). See Special Tools. J 34725 End Play Checking Adapter (298 mm). See Special Tools. J 43205 End Play Fixture Adapter (300 mm). See Special Tools. J 24773-A Oil Pump Remover. See Special Tools. J 8001 Dial Indicator Set. See Special Tools.
