Chevrolet Silverado / GMC Sierra. Manual - part 1092

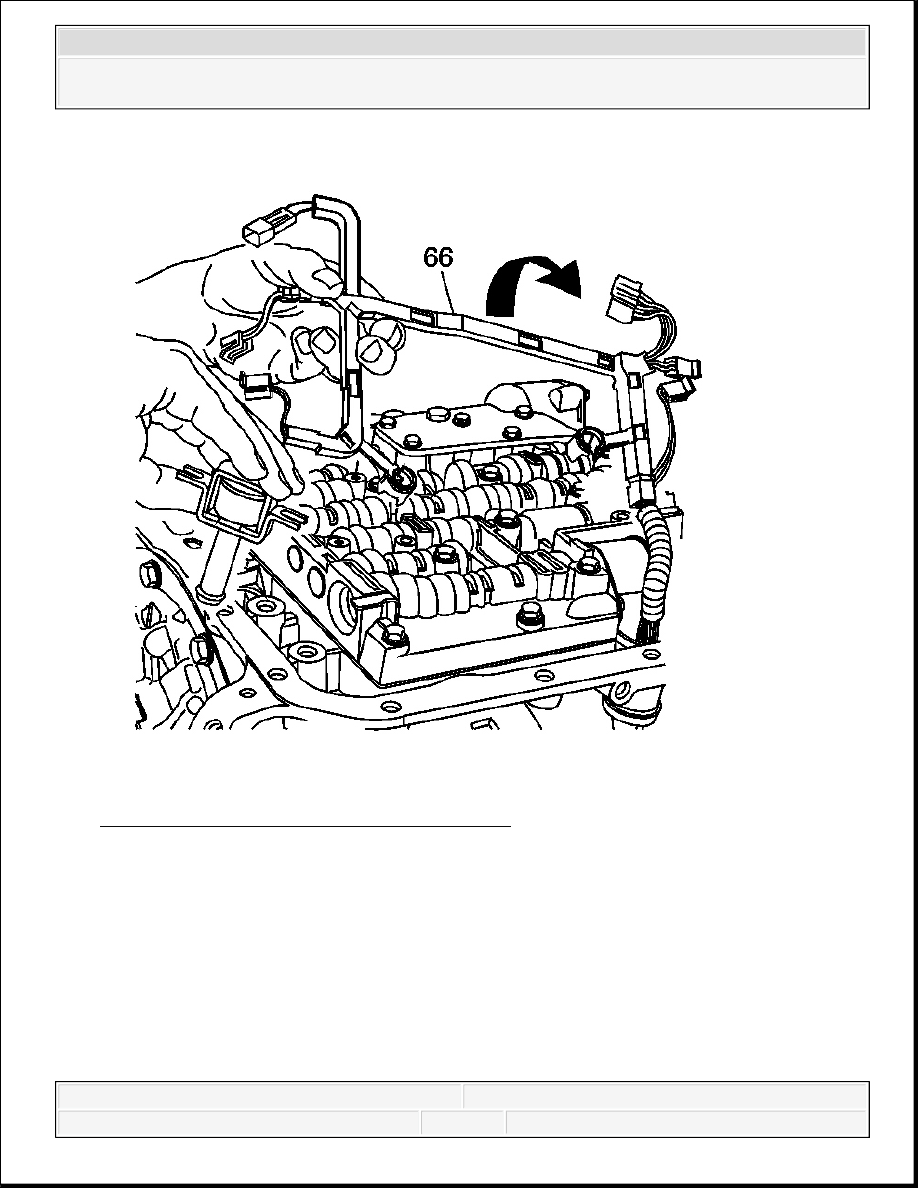

Fig. 254: View TCC Solenoid Wiring Harness
Courtesy of GENERAL MOTORS CORP.
5. Remove the TCC solenoid and wiring harness (66). Turn the wiring harness over so that it
hangs over the side of the transmission.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

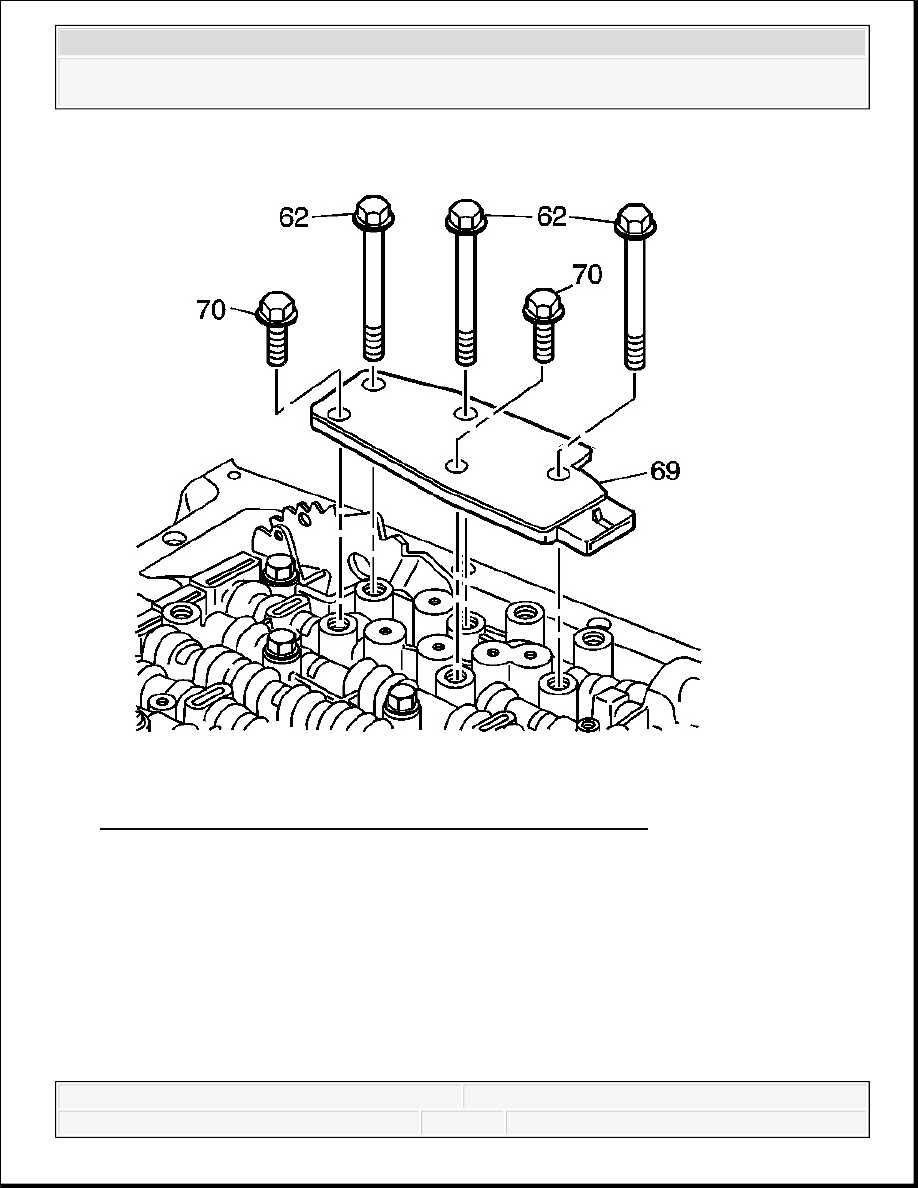

Fig. 255: TFP Manual Valve Position Switch Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
6. Remove the transmission fluid pressure (TFP) manual valve position switch assembly bolts
(62, 70).
7. Remove the TFP manual valve position switch (69).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

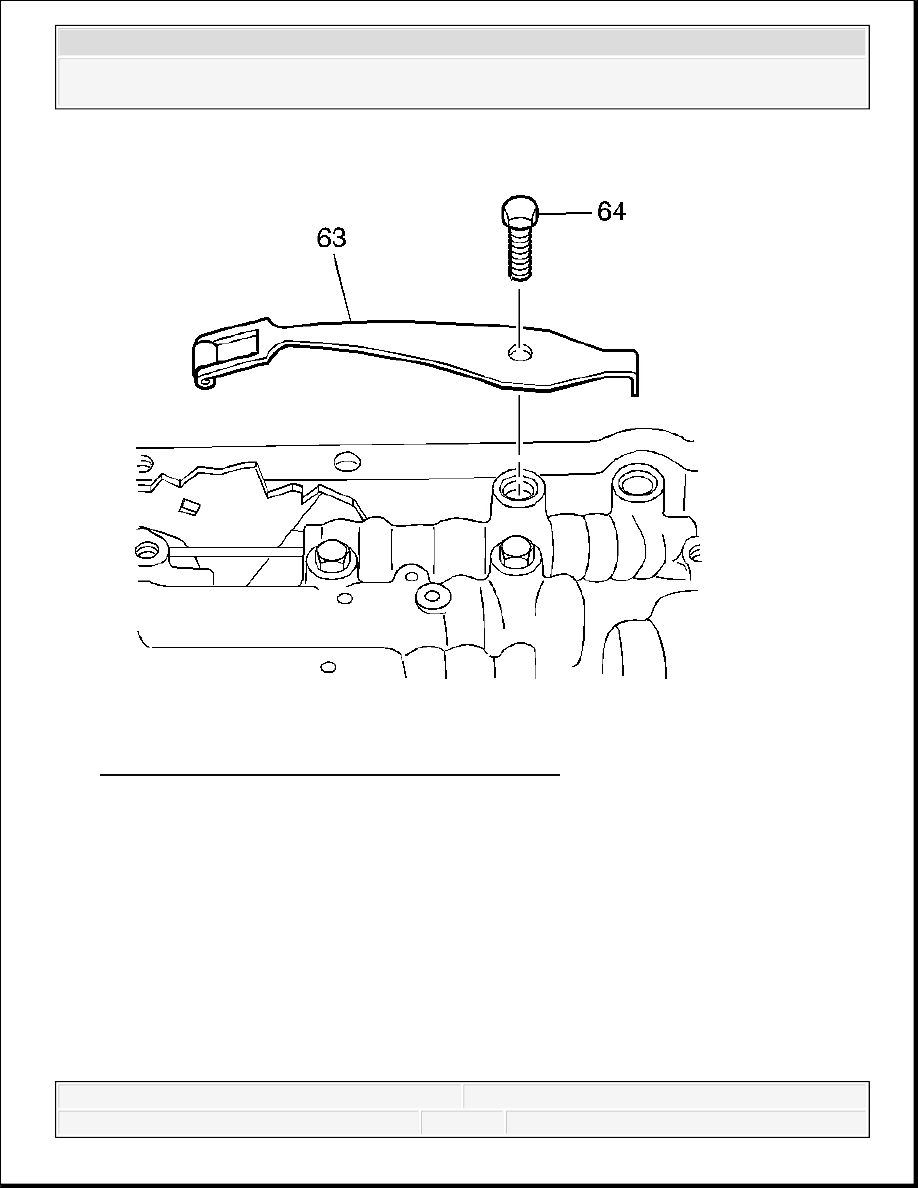

Fig. 256: View Of Manual Detent Spring Assembly
Courtesy of GENERAL MOTORS CORP.
8. Remove the manual detent spring bolt (64).
9. Remove the manual detent spring assembly (63).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

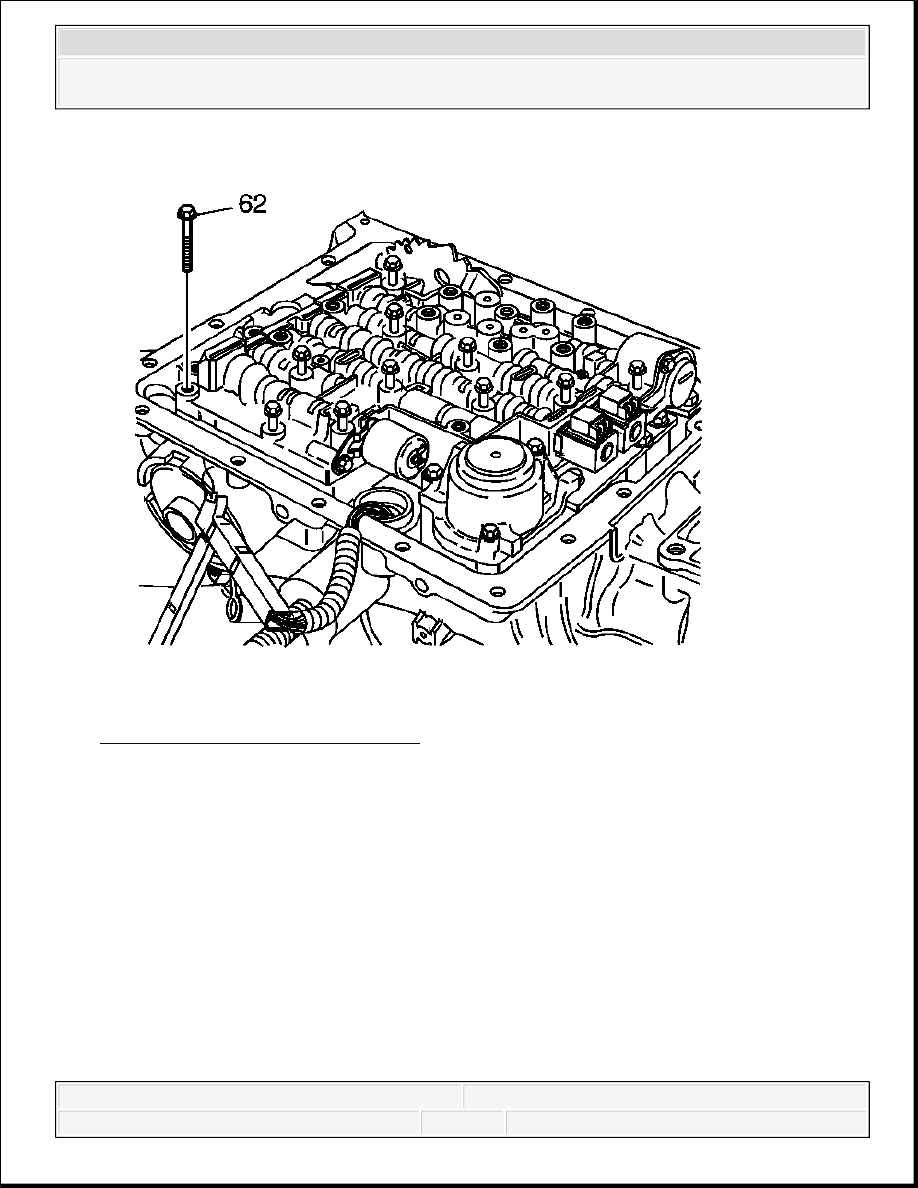

Fig. 257: View Of Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.
10. Remove all valve body bolts (62).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
