Chevrolet Silverado / GMC Sierra. Manual - part 1061

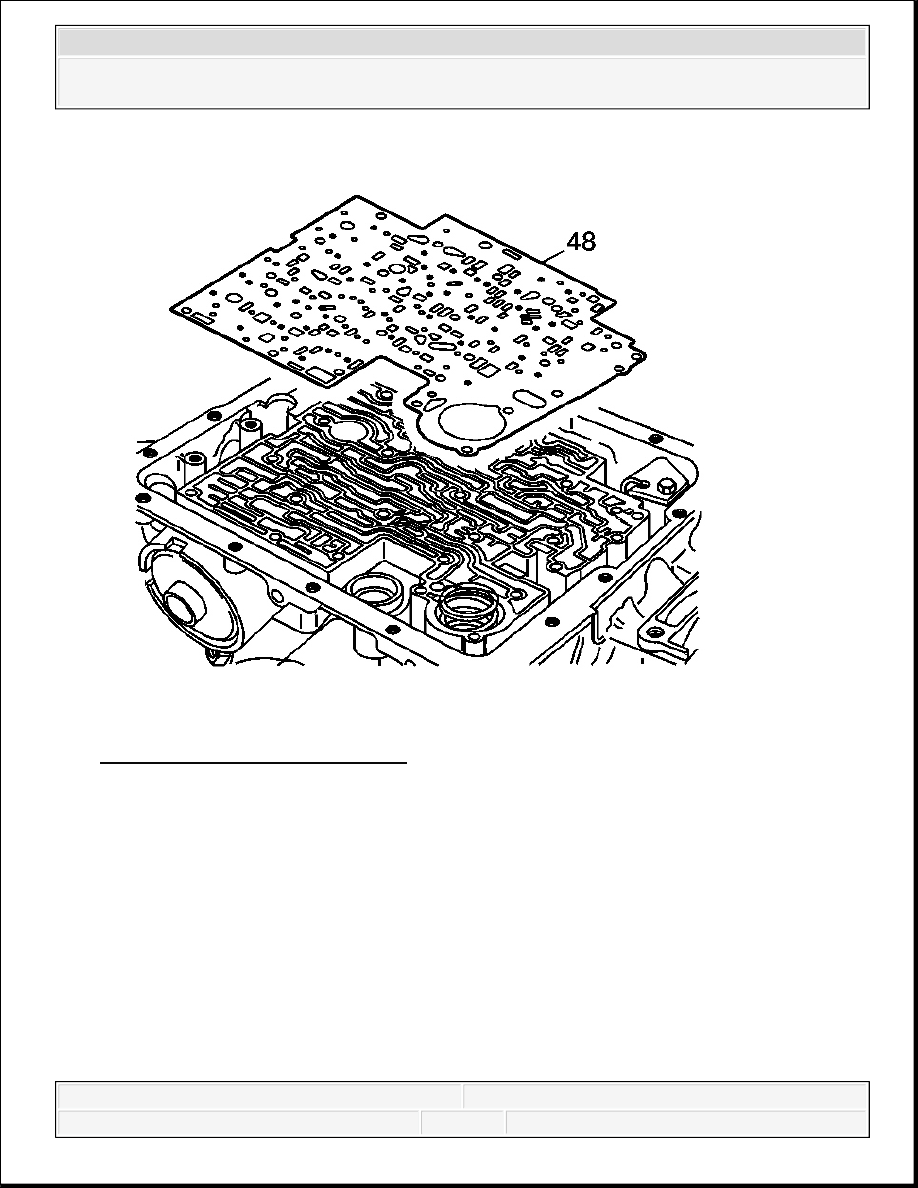

Fig. 137: Valve Body Spacer Plate
Courtesy of GENERAL MOTORS CORP.
1. Install a NEW bonded valve body spacer plate (48).
IMPORTANT: Do not reuse the bonded spacer plate. Replace with a NEW
bonded spacer plate.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

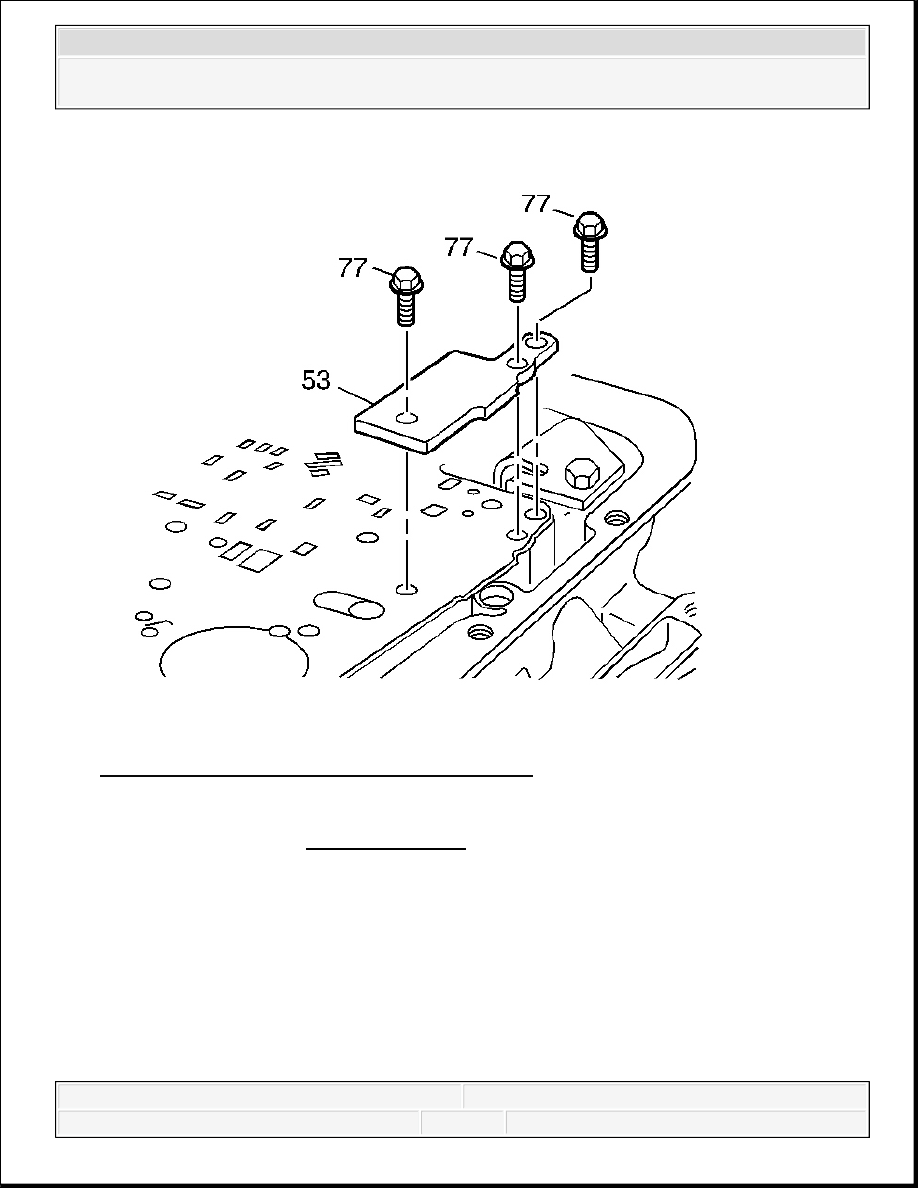

Fig. 138: View Of Spacer Plate Support & Bolts
Courtesy of GENERAL MOTORS CORP.
2. Install the spacer plate support (53) and bolts (77).
Tighten: Tighten the bolts to 10 N.m (89 lb in).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

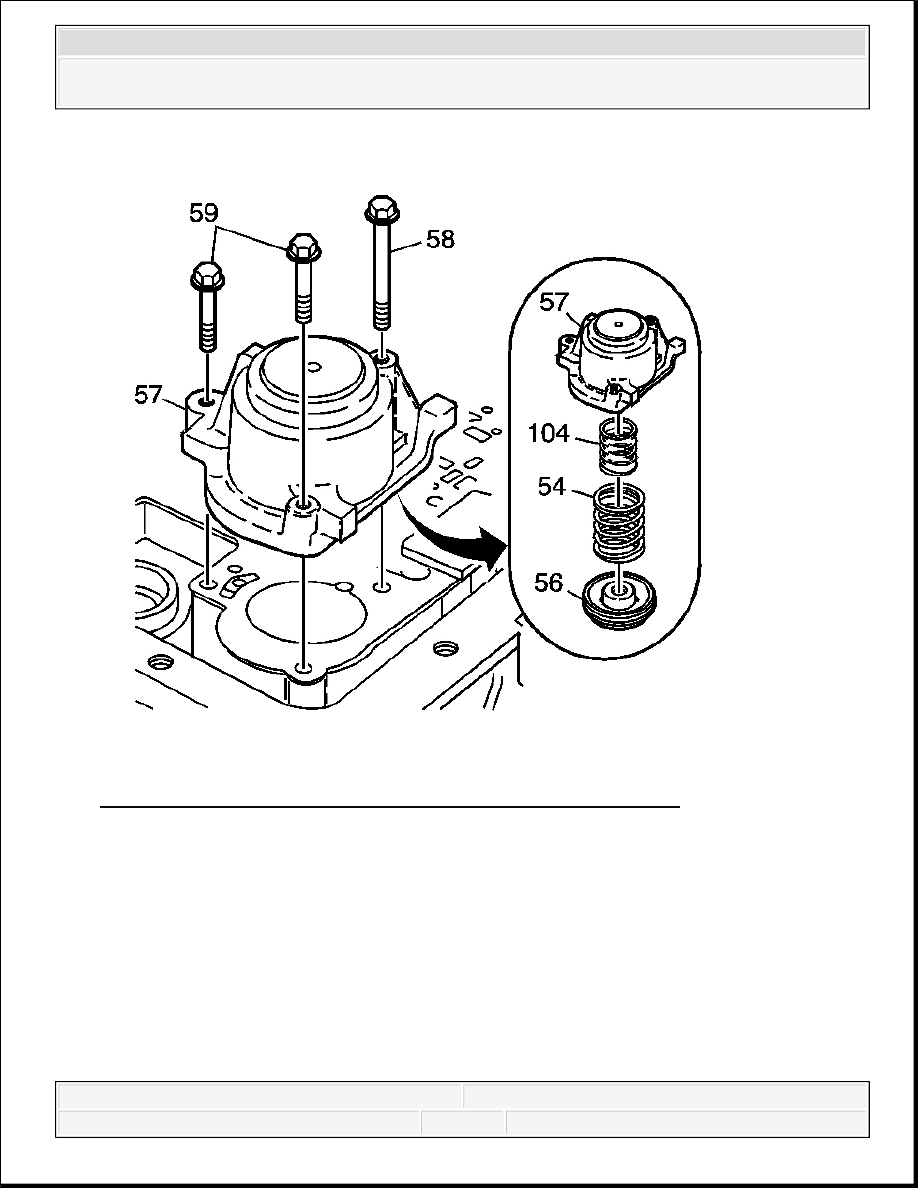

Fig. 139: View Of 1-2 Accumulator Cover/Pin Assembly & Bolts
Courtesy of GENERAL MOTORS CORP.
3. Install the 1-2 accumulator cover and pin assembly (57).
4. Install the 1-2 accumulator cover bolts (58, 59).
Tighten: Tighten the bolts to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

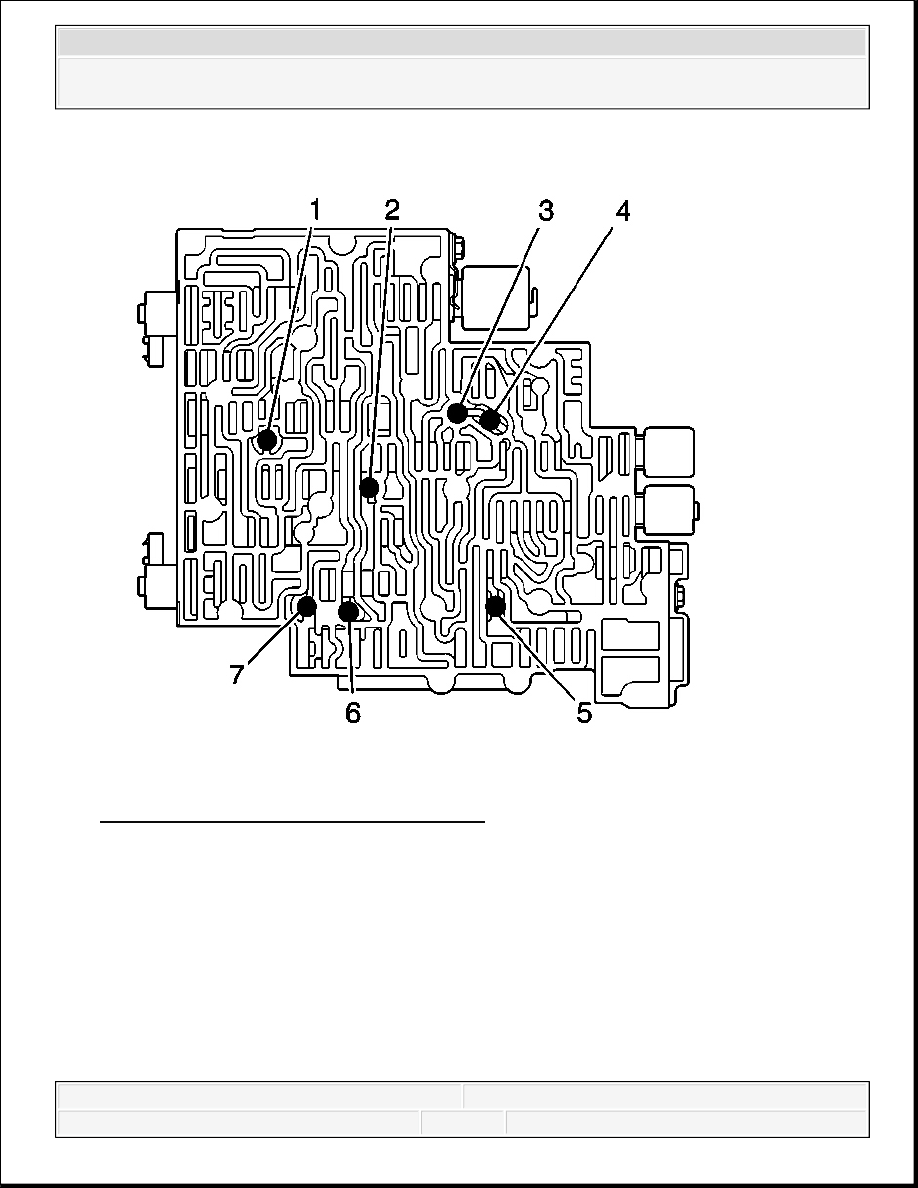

Fig. 140: Locating Valve Body Check Balls
Courtesy of GENERAL MOTORS CORP.
5. Install the 7 checkballs into the valve body.
