Fig. 133: Locating Valve Body Check Balls 18. Remove the 7 valve body checkballs.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

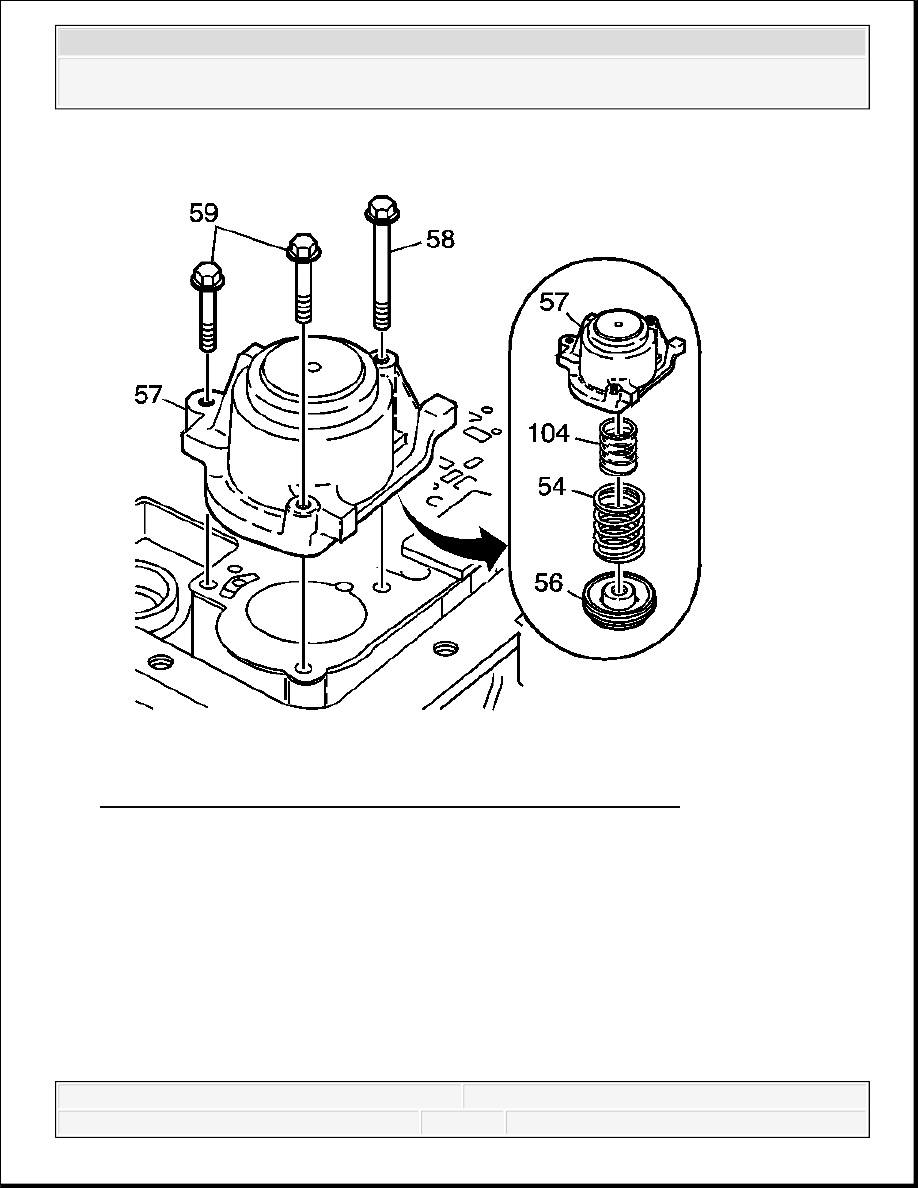

Fig. 134: View Of 1-2 Accumulator Cover/Pin Assembly & Bolts 19. Remove the accumulator cover bolts (58, 59). 20. Remove the 1-2 accumulator cover and pin assembly (57). IMPORTANT: Some models do not have an outer spring. Note spring usage during removal.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

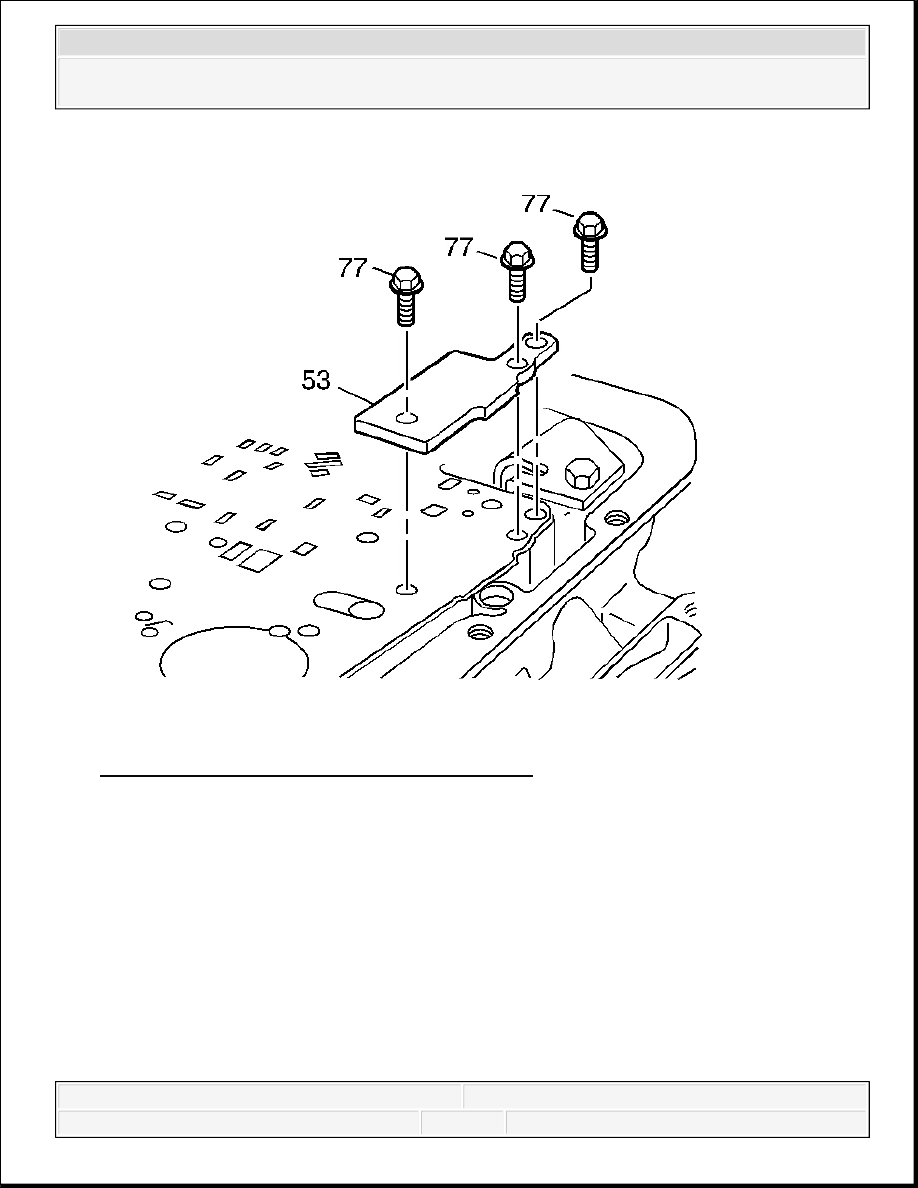

Fig. 135: View Of Spacer Plate Support & Bolts 21. Remove the spacer plate support bolts (77). 22. Remove the spacer plate support (53).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

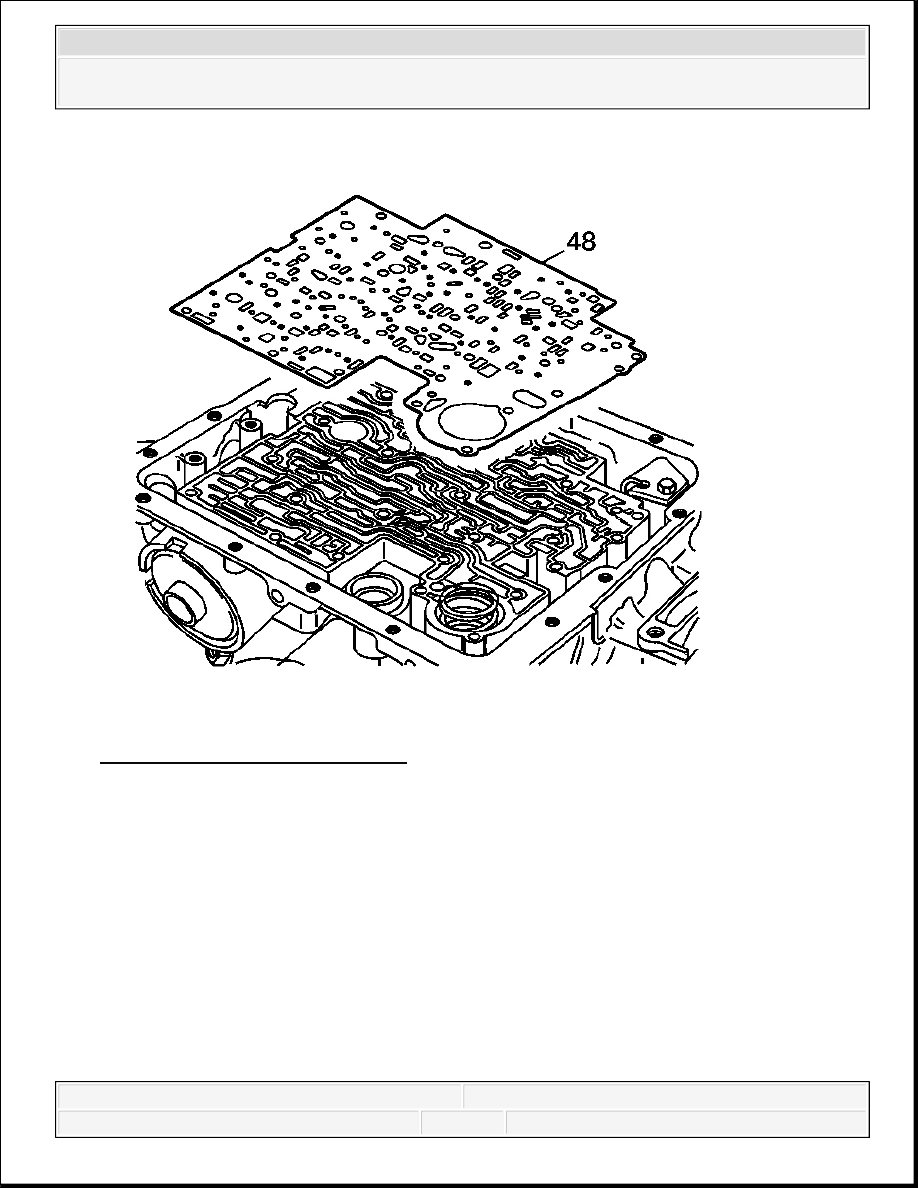

Fig. 136: Valve Body Spacer Plate 23. Remove the bonded valve body spacer plate (48), discard and do not reuse. Installation Procedure IMPORTANT: Do not reuse the bonded spacer plate. Replace with a NEW bonded spacer plate.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
