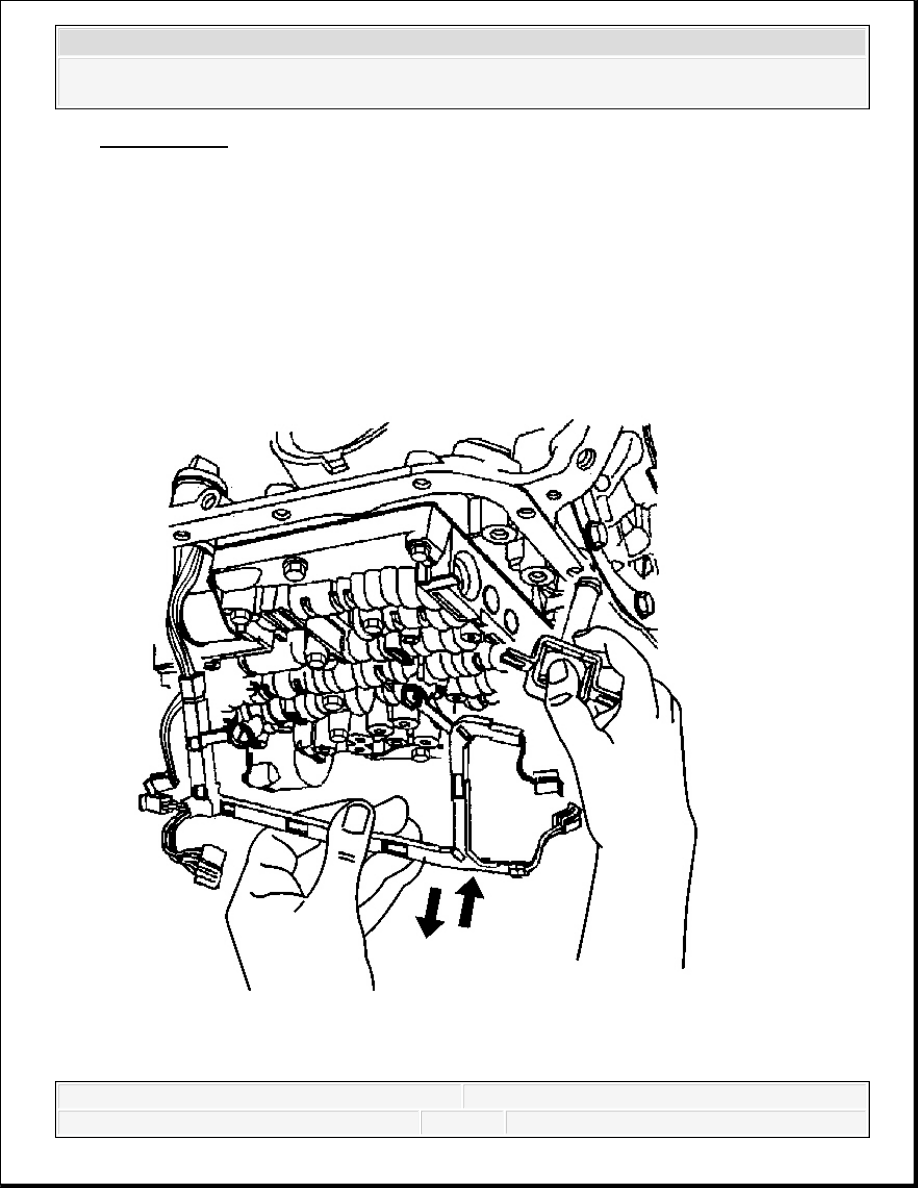

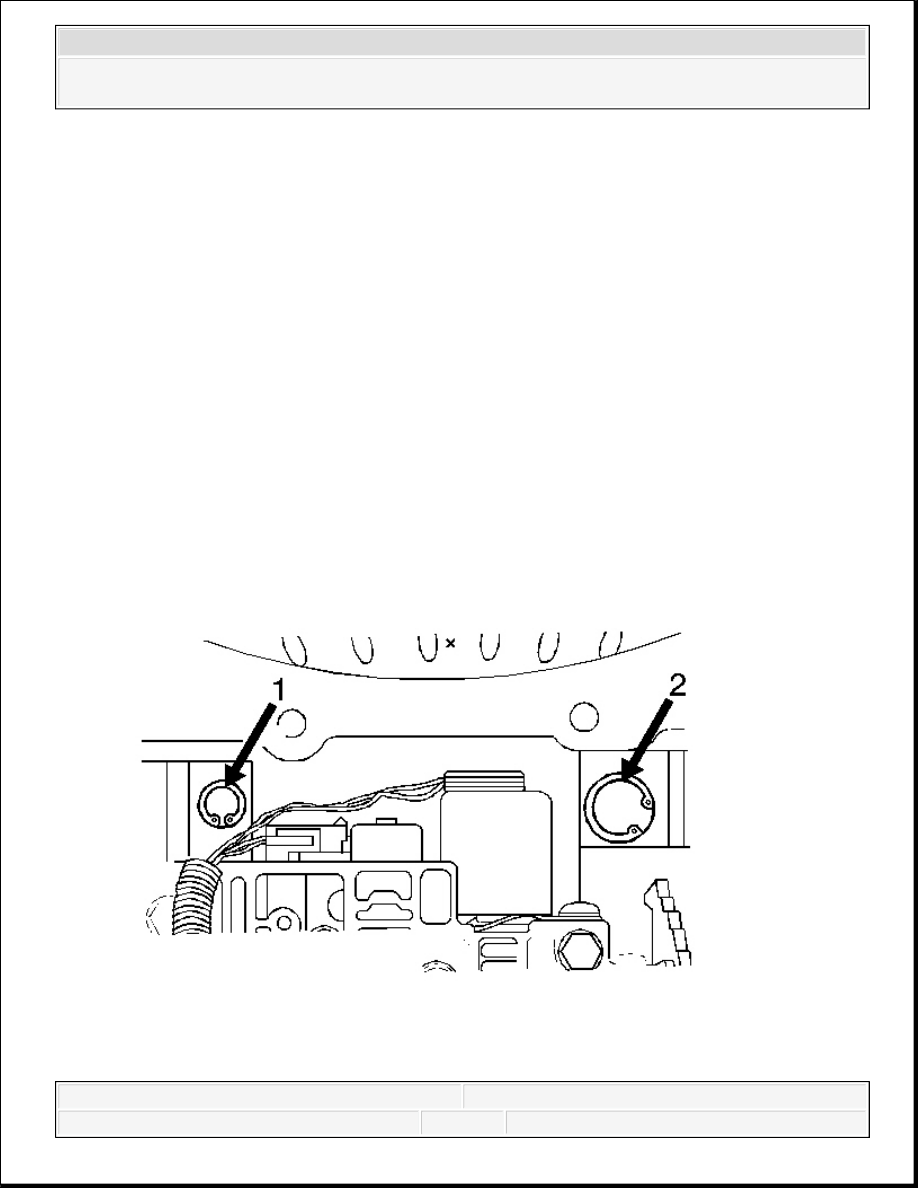

Courtesy of GENERAL MOTORS CORP. 1. Install the following parts: The TCC valve spring The TCC valve The valve bore plug Fig. 99: View Of Valve Bore Plug Retainer Ring & Reverse Boost Valve Bushing IMPORTANT: Clean and inspect the TCC solenoid O-ring for cuts, Inspect the TCC bore for sediment and debris. Flush the Clean and inspect the TCC valve for binding, scoring, Inspect the TCC spring for cracks and deformed or
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Retainer Ring 2. Install the TCC valve retainer ring (1). 3. Install the TCC control solenoid. 4. Install the TCC control solenoid retaining bolts. Tighten: Tighten the bolts to 8-14 N.m (71-124 lb in).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

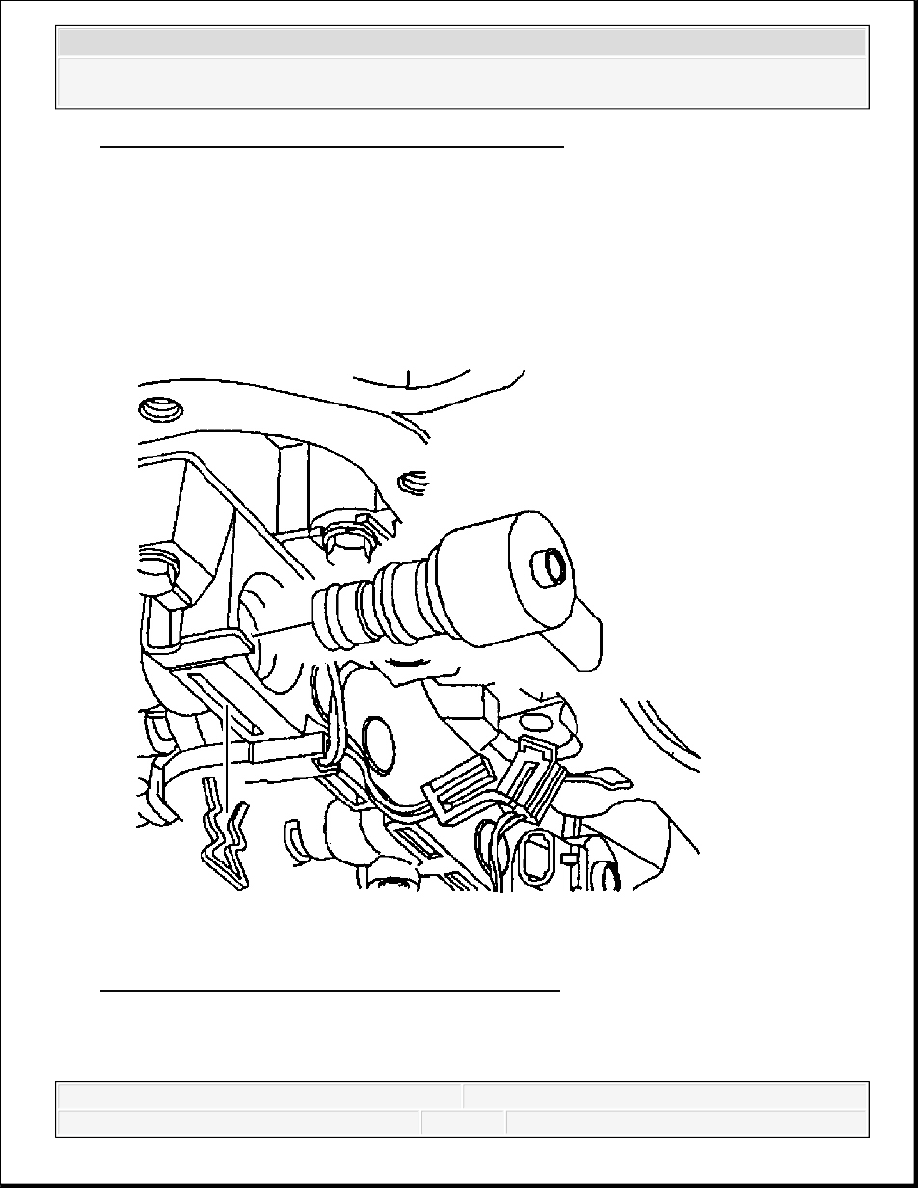

Fig. 100: View Of TCC Solenoid & Wiring Harness 5. Connect the TCC control solenoid connector. 6. Install the TCC PWM solenoid. 7. Install the TCC PWM solenoid retainer. Fig. 101: View Of TCC PWM Solenoid & Retainer 8. Connect the TCC PWM Solenoid electrical connector.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

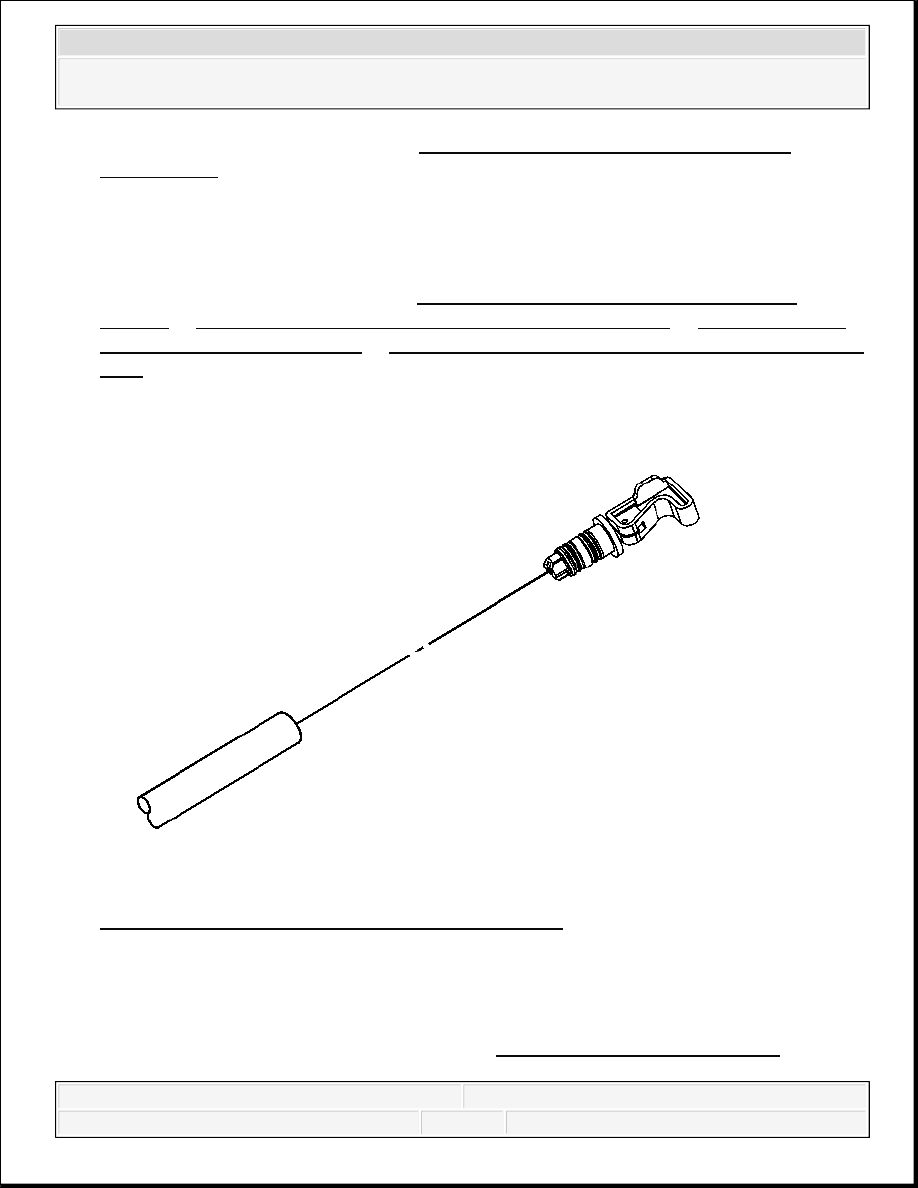

9. Install the transmission filter. Refer to Automatic Transmission Fluid and Filter Replacement. TRANSMISSION FLUID FILLER TUBE AND SEAL REPLACEMENT Removal Procedure 1. Remove the intake manifold. Refer to Intake Manifold Replacement (L92 - First Design) or Intake Manifold Replacement (L92 - Second Design) or Intake Manifold Fig. 102: View Of Transmission Oil Level Indicator 2. Unlock the transmission oil level indicator. 3. Remove the transmission oil level indicator. 4. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
