Chevrolet Silverado / GMC Sierra. Manual - part 1049

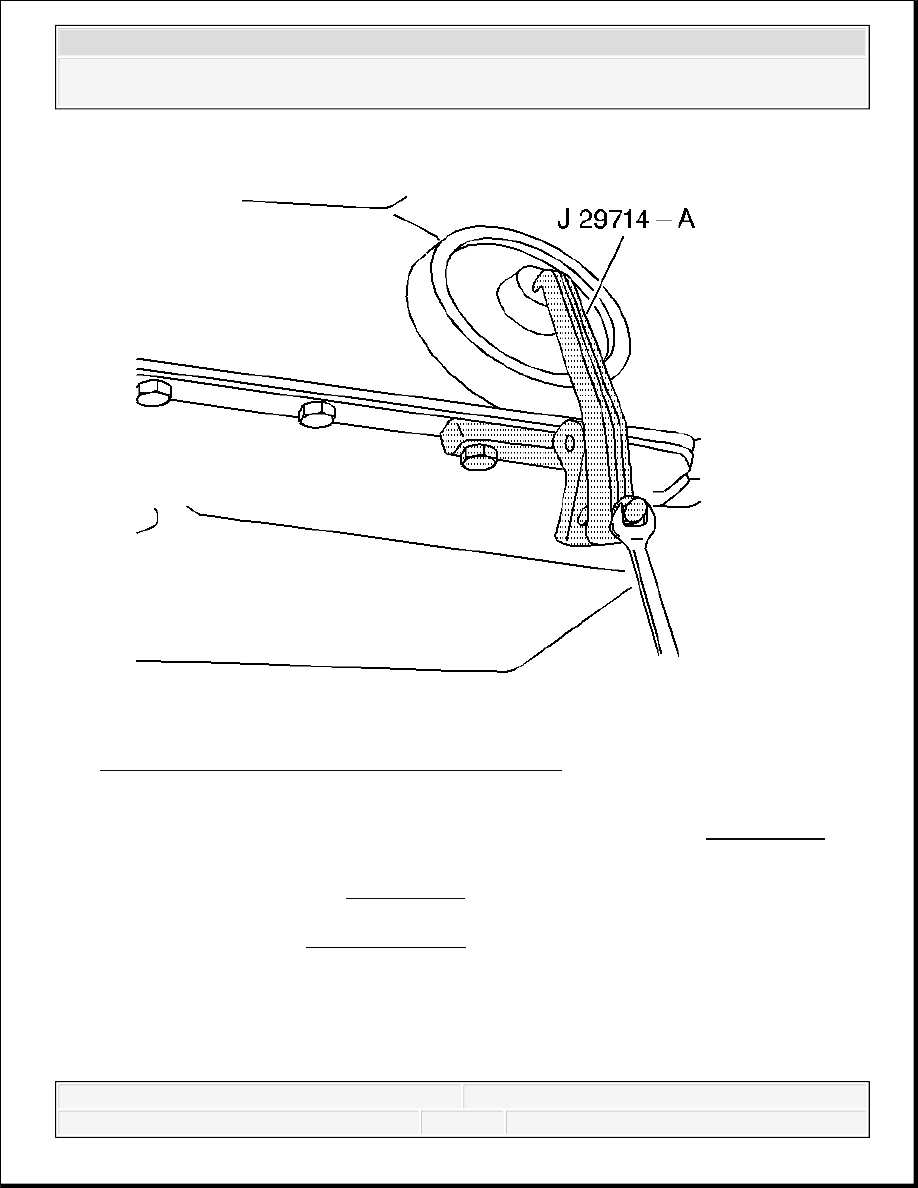

Fig. 92: Compressing Servo Cover Using J 29714-A
Courtesy of GENERAL MOTORS CORP.
4. Tighten the bolt on J 29714-A in order to compress the servo cover. See Special Tools.
5. Install the servo cover ring.
6. Remove the J 29714-A . See Special Tools.
7. Install the oil pan bolt.
Tighten: Tighten the bolt to 11 N.m (97 lb in).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
8. Raise the transmission.
9. Install the transmission crossmember. Refer to Transmission Support Crossmember
Replacement (2WD 2500 HD/3500) or Transmission Support Crossmember
Replacement (2WD 1500/2500) or Transmission Support Crossmember Replacement
(4WD 1500/2500) or Transmission Support Crossmember Replacement (4WD 2500
HD/3500) .
10. Remove the transmission jack.

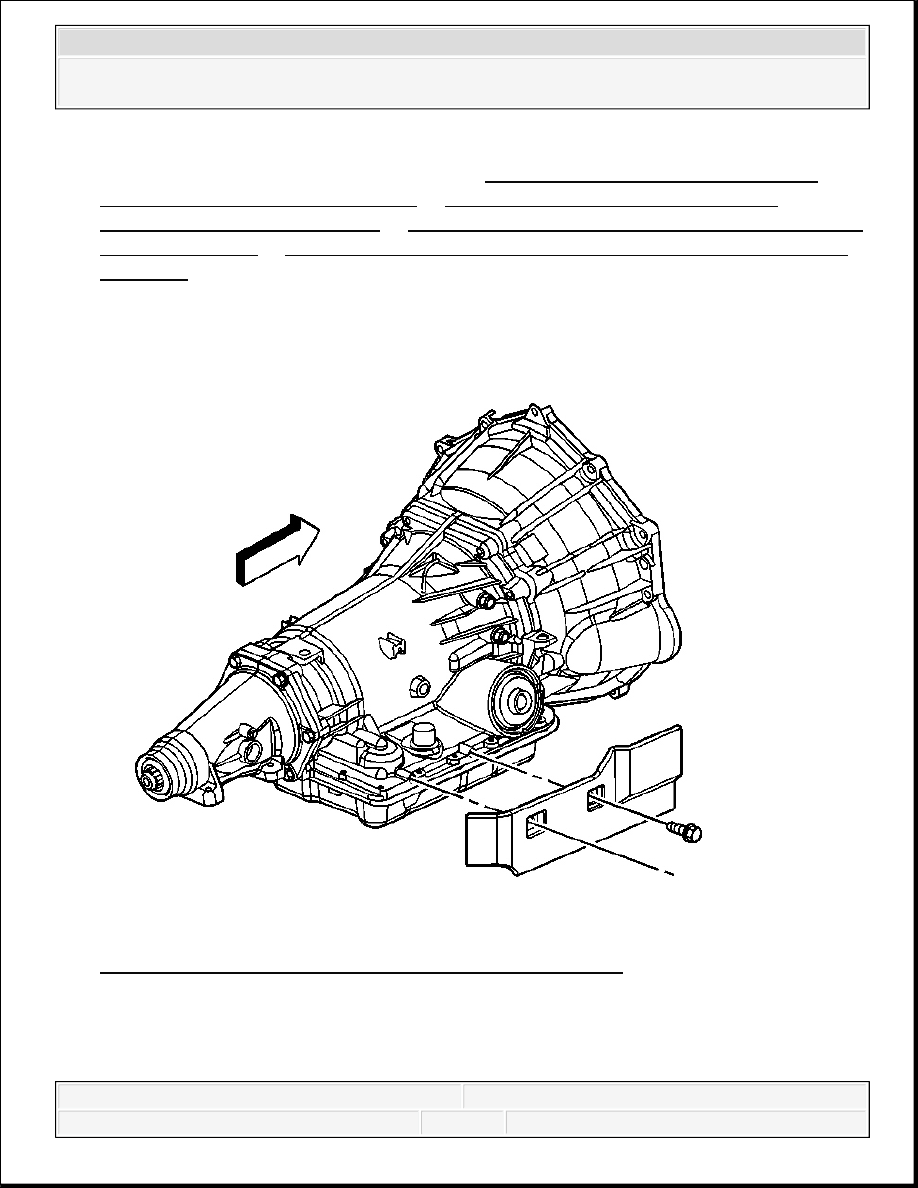

Fig. 93: View Of Transmission Heat Shield Bolts & Shield
Courtesy of GENERAL MOTORS CORP.
11. Install the heat shield and bolts.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Tighten: Tighten the bolts to 17 N.m (13 lb ft).
12. Install the catalytic converter pipe. Refer to Catalytic Converter Replacement (4.3L) or
Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 6.2L) or Catalytic Converter
Replacement (6.6L) .
13. Fill the transmission to the proper level with DEXRON® VI transmission fluid. Refer to
Transmission Fluid Check.
14. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM).
TORQUE CONVERTER CLUTCH VALVE AND SPRING REPLACEMENT
Removal Procedure
1. Remove the transmission filter. Refer to Automatic Transmission Fluid and Filter
Replacement.
IMPORTANT: It is recommended that transmission adaptive pressure (TAP)
information be reset.
Resetting the TAP values using a scan tool will erase all
learned values in all cells. As a result, the engine control
module (ECM), powertrain control module (PCM) or TCM will
need to relearn TAP values. Transmission performance may
be affected as new TAP values are learned.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

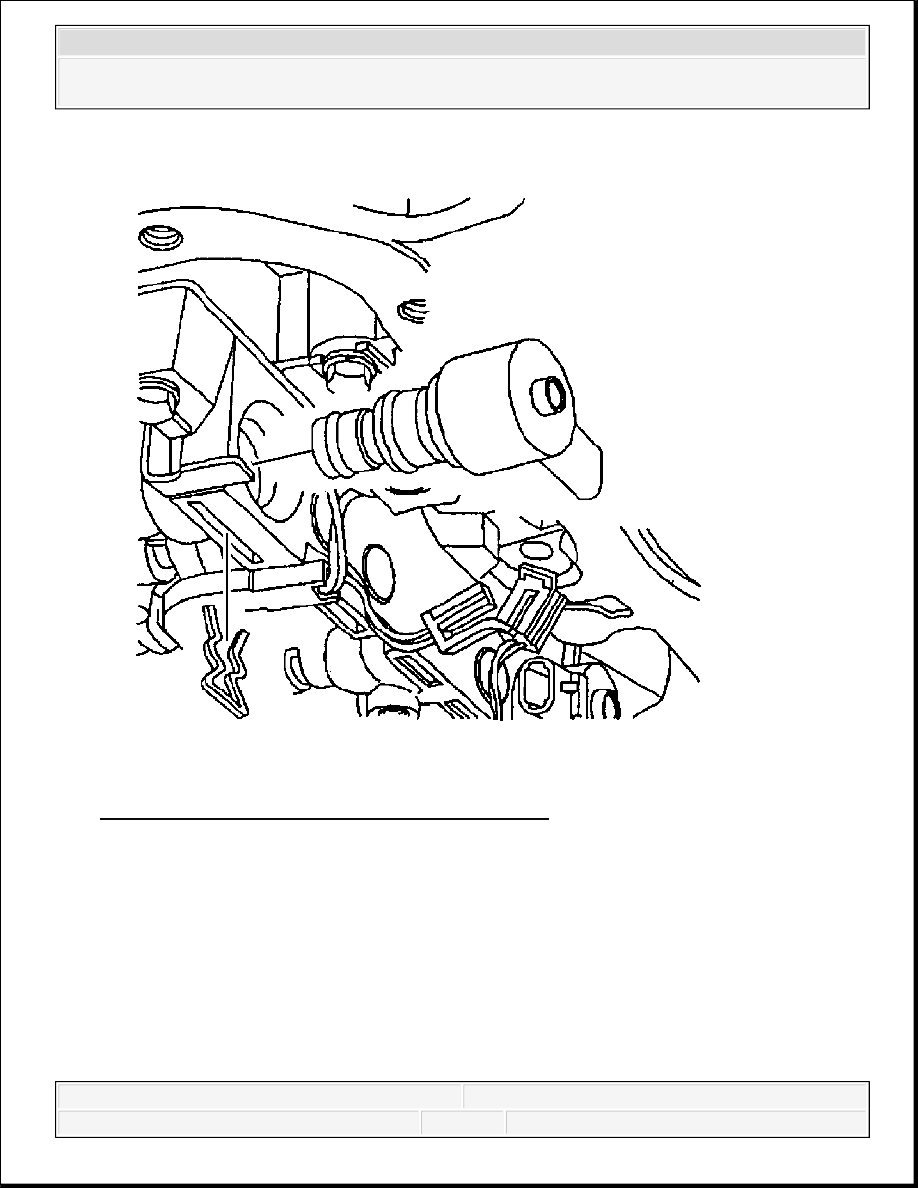

Fig. 94: View Of TCC PWM Solenoid & Retainer
Courtesy of GENERAL MOTORS CORP.
2. Disconnect the torque converter clutch (TCC) pulse width modulation (PWM) solenoid
electrical connector.
3. Remove the TCC PWM solenoid retainer.
4. Remove the TCC PWM solenoid in order to access the TCC control solenoid bolts.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
