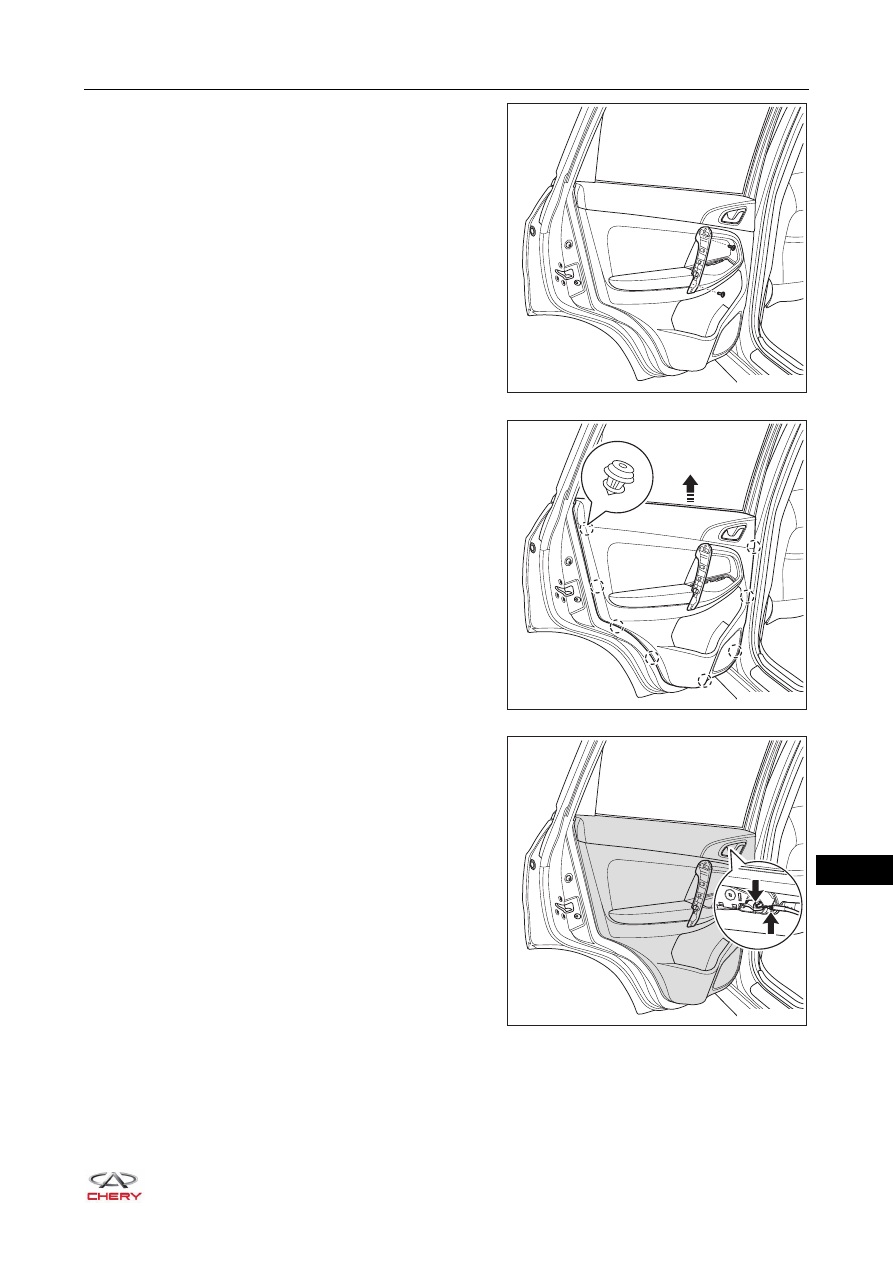

47– 36 47 Rear Door Protector Assembly Removal HINT: Use the same procedures for the right side and left side. Procedures listed below are for the left side. 1. Turn off all the electrical equipment and ignition switch. a. Using a screwdriver wrapped with protective tape, pry up the rear door inside handle screw cover (1). b. Remove the fixing screw (2) from the rear door inside handle assembly. (Tightening torque: 1.5 ± 0.5 N·m) 4. Remove the rear left door assist grip cover. a. Using a screwdriver wrapped with protective tape, pry up the claws on rear door assist grip cover, and 5. Remove the rear left door power glass regulator switch assembly ( ). 6. Remove the rear left door protector assembly. CAUTION Be sure to wear safety equipment to prevent accidents when removing rear door protector assembly. 2 1 RT21470540 RT21470550 |
