 47–

40

47

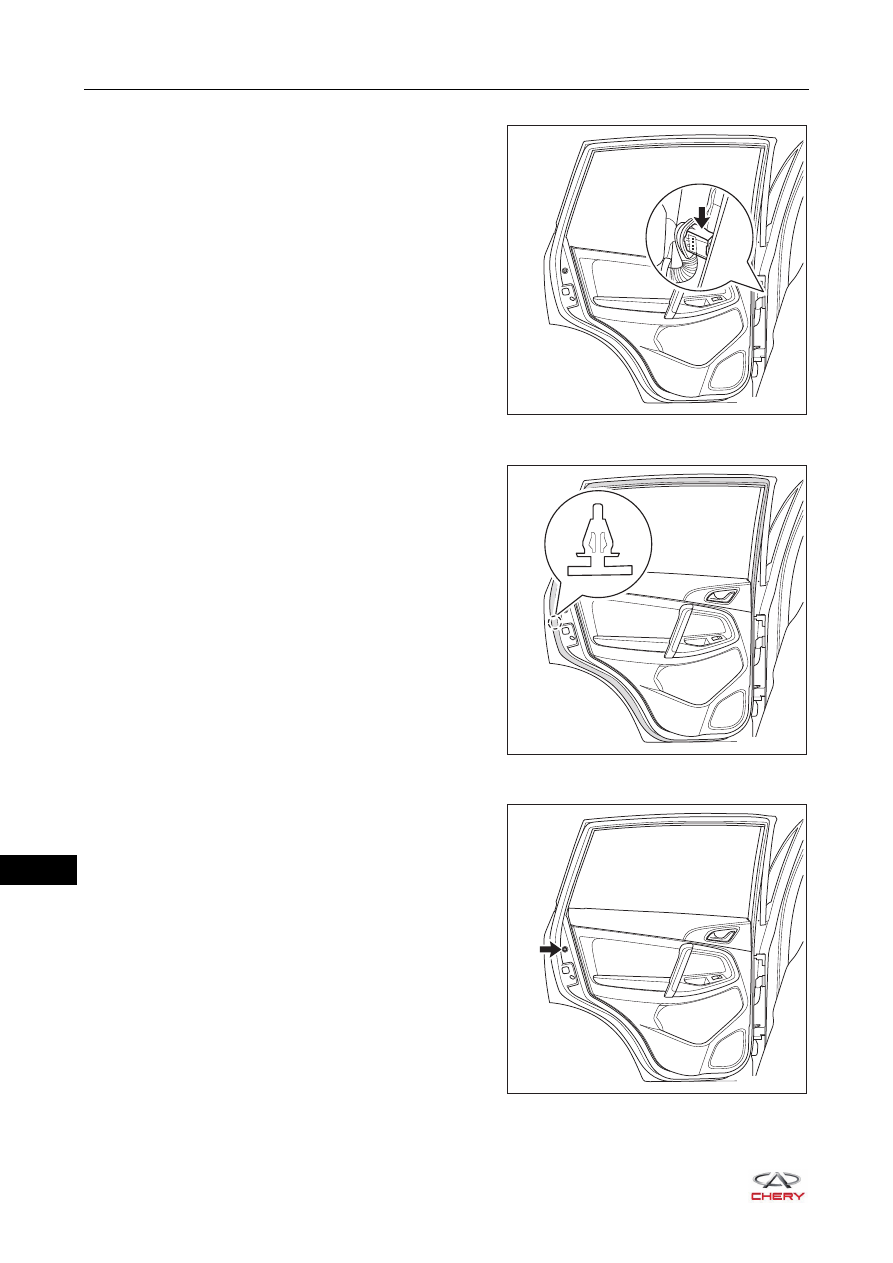

5. Disconnect the rear left door connector.

a. Using a screwdriver wrapped with protective tape,

remove the rear door dust boot.

b. Using a screwdriver wrapped with protective tape, pry

up the claws on connector.

c. Disconnect the rear left door connector (arrow).

6. Remove the rear left door frame weatherstrip.

a. Remove the clip from the rear door frame weatherstrip,

and remove the rear left door frame weatherstrip.

7. Remove the rear left door buffer block.

a. Using a screwdriver wrapped with protective tape,

remove the rear door buffer block (arrow).

8. Remove the rear left door protector assembly (

See page 47-36

).

RT21470621

RT21470640

RT21470650

 47–

41

47

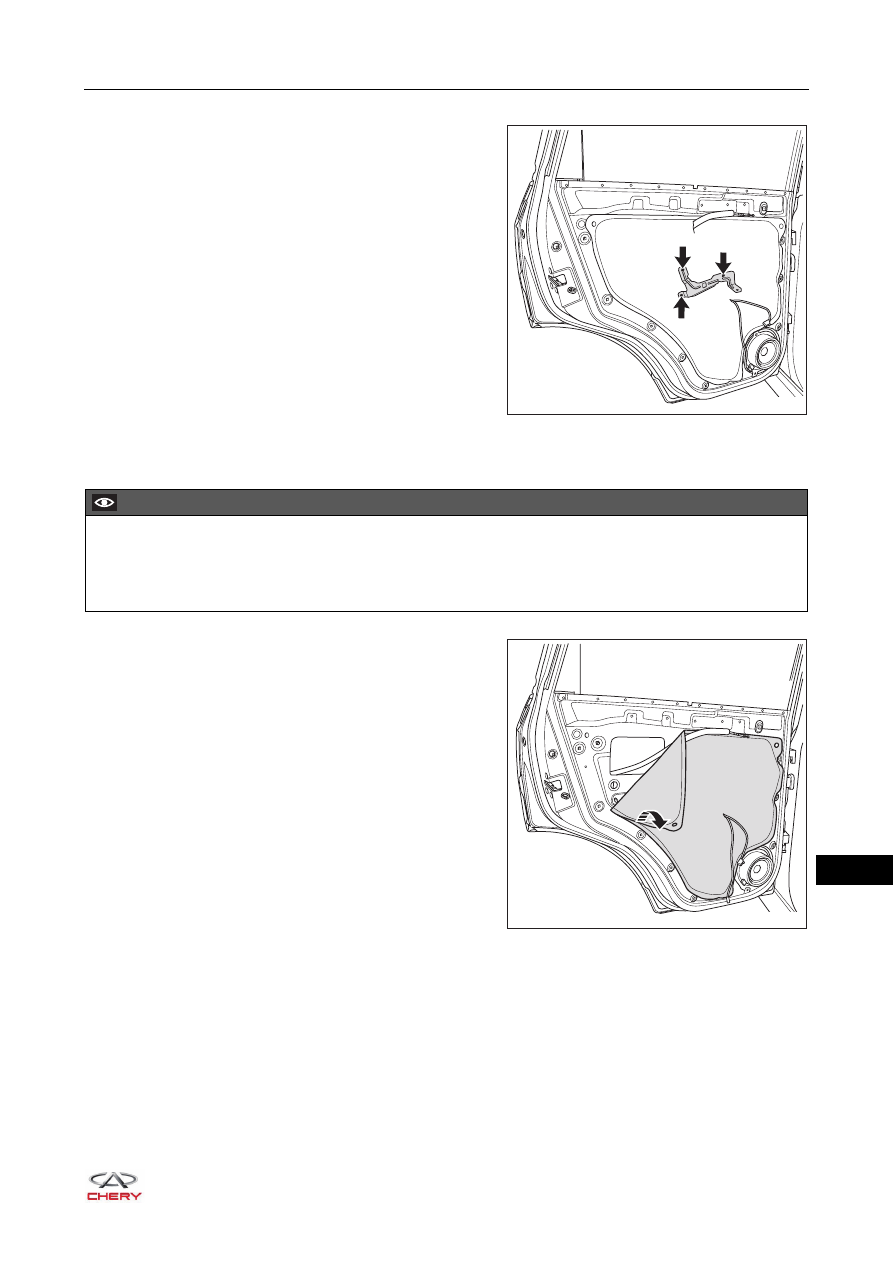

9. Remove the rear left door assist grip mounting bracket assembly.

a. Remove 3 fixing screws (arrow) from the rear door

assist grip mounting bracket assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the rear left door assist grip mounting

bracket assembly.

10.Remove the rear left woofer assembly (

See page 39-17

).

11.Remove the rear left door protective film assembly.

a. Remove the rear left door protective film assembly by

gently pulling it along edges from one corner of the
rear left door protective film assembly.

RT21470620

CAUTION

 Avoid damage to rear door protective film when removing rear door protective film assembly.
 Place rear door protective film assembly properly after removal, and avoid adhesive sticker on rear door

protective film assembly from sticking to other components.

RT21470630

 47–

42

47

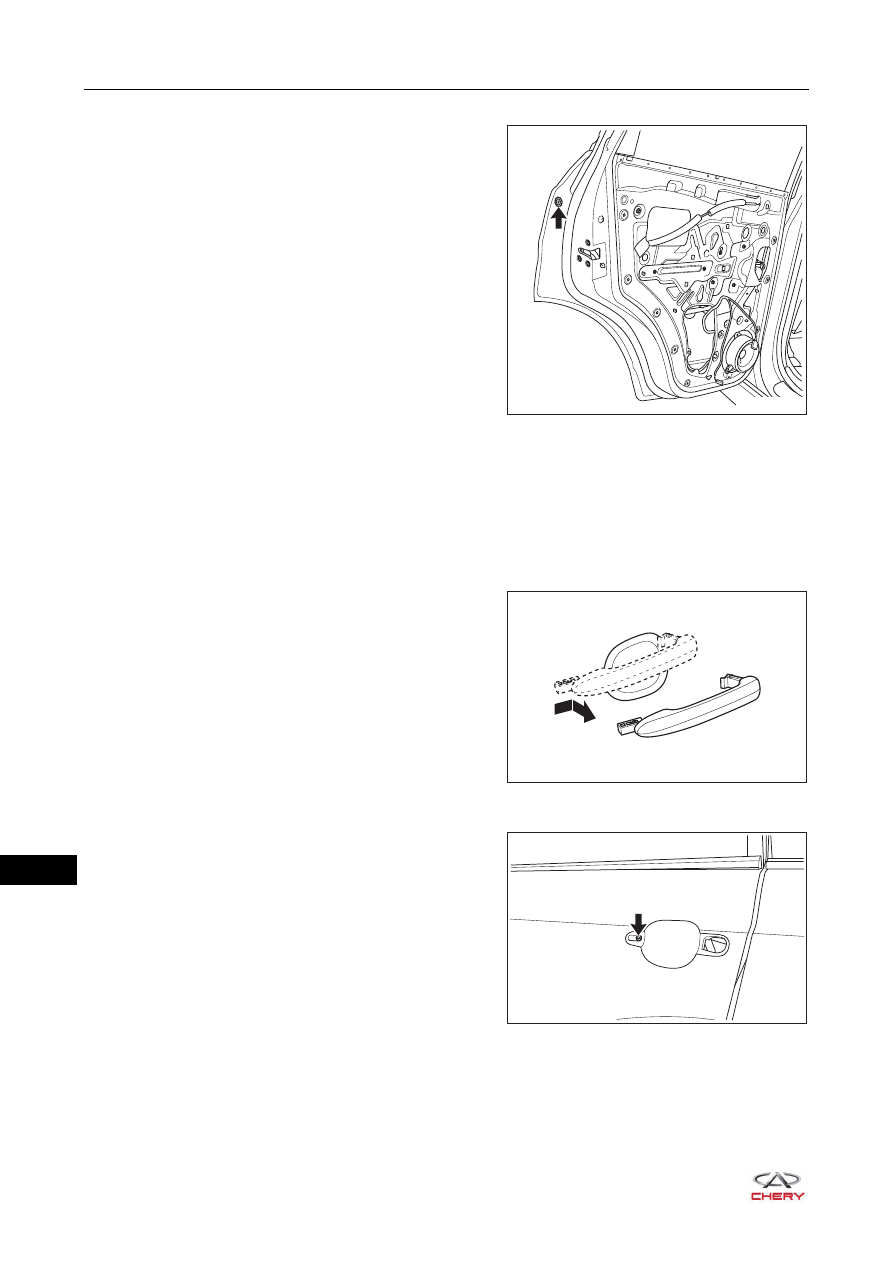

12.Remove the protective cover without key cylinder from the rear left door.

a. Using a screwdriver wrapped with protective tape,

remove the plug of protective cover (arrow) without
key cylinder from the rear left door.

b. Remove the fixing screw from the protective cover without key cylinder, and remove the protective

cover without key cylinder from the rear left door.



(Tightening torque: 5 ± 1 N·m)

HINT:
It is not necessary to remove the fixing screw for protective cover without key cylinder of rear door,
because it is integrated with the protective cover without key cylinder of rear door.

13.Remove the rear left door outside handle.

a. Slide and pull the rear door outside handle in the

direction of arrow as shown in the illustration, and
remove it.

14.Remove the rear left door outside handle base assembly.

a. Remove the fixing screw (arrow) from the rear left

door handle base assembly.



(Tightening torque: 5 ± 1 N·m)

b. Remove the rear left door outside handle base

assembly.

15.Remove the rear left door outside handle front gasket.

a. Disengage the claws from the rear door outside handle front gasket, and remove the rear left door

outside handle front gasket.

16.Remove the rear left door outside handle rear gasket.

RT21470635

RT21470636

RT21470660

 47–

43

47

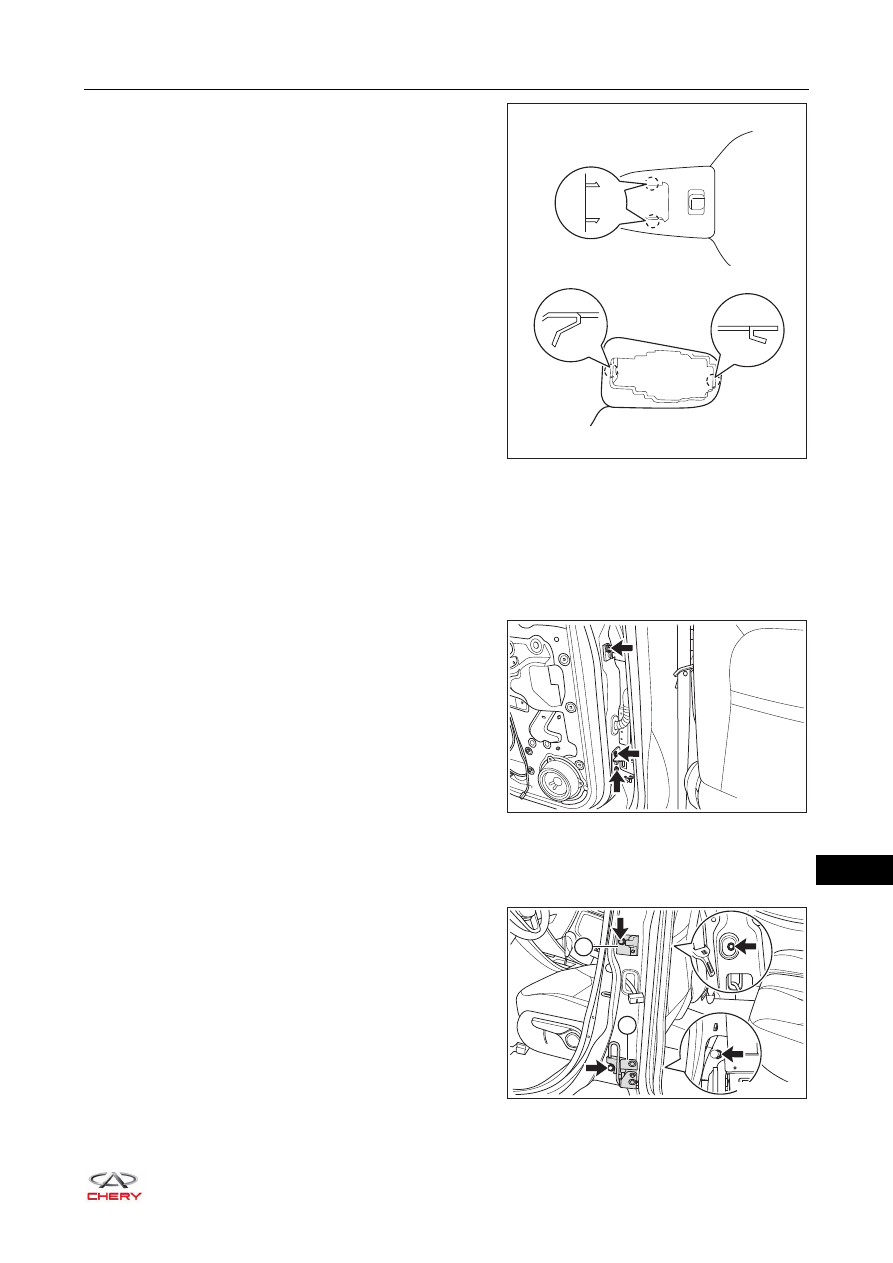

a. Disengage the claws from the rear door outside

handle rear gasket, and remove the rear left door
outside handle rear gasket.

17.Remove the rear left door outer weather bar (

See page 43-58

).

18.Remove the rear left door glass assembly (

See page 43-59

).

19.Remove the rear left door glass rear guide rail assembly (

See page 43-61

).

20.Remove the rear left door power glass regulator assembly (

See page 43-62

).

21.Remove the rear left door lock assembly (

See page 37-47

).

22.Remove the rear left door assembly.

a. Remove 3 fixing bolts (arrow) between rear door

hinge assembly and door.



(Tightening torque: 70 ± 3 N·m)

b. Remove the rear left door assembly.

23.Remove the B-pillar lower protector assembly (

See page 49-20

).

24.Remove the rear left door hinge assembly.

a. Remove 4 fixing bolts (arrow) between rear door

hinge assembly and body.



(Tightening torque: 70 ± 3 N·m)

b. Remove the rear door upper hinge assembly (1) and

rear door lower hinge assembly (2).

RT21470410

RT21470670

1

2

RT21470680
