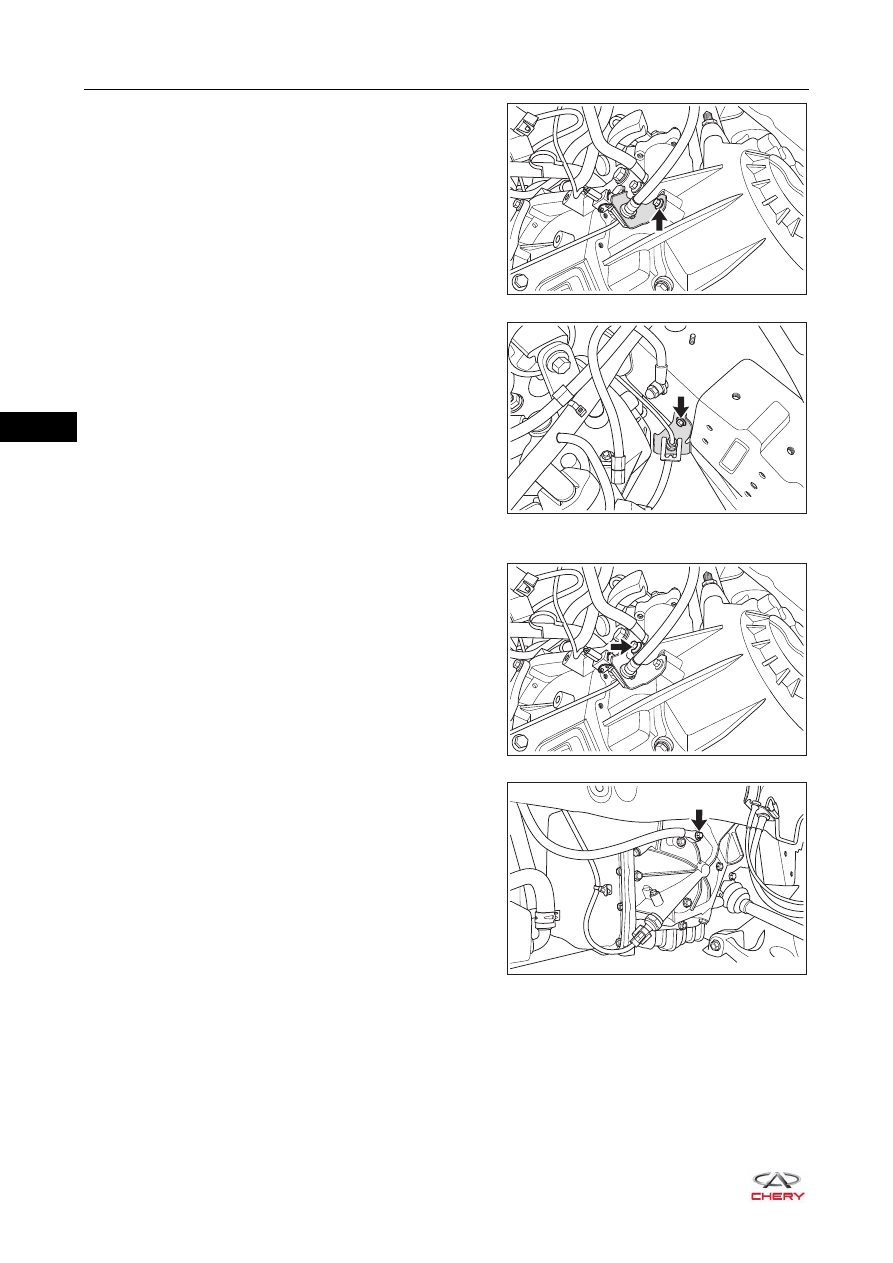

b. Remove the fixing bolt (arrow) and move away the

bracket II from transmission.



(Tightening torque: 15 ± 2 N·m)

c. Remove the fixing bolt (arrow) and move away the

bracket I from transmission.



(Tightening torque: 15 ± 2 N·m)

33.Move away the transmission ground wire.

a. Remove the transmission ground wire fixing bolt

(arrow) and move away the transmission ground wire
(for MT model).



(Tightening torque: 15 ± 2 N·m)

b. Remove the transmission ground wire fixing bolt

(arrow) and move away the transmission ground wire
(for CVT model).



(Tightening torque: 15 ± 2 N·m)

RT21070780

RT21070781

RT21070790

RT21070791

07–

75

07

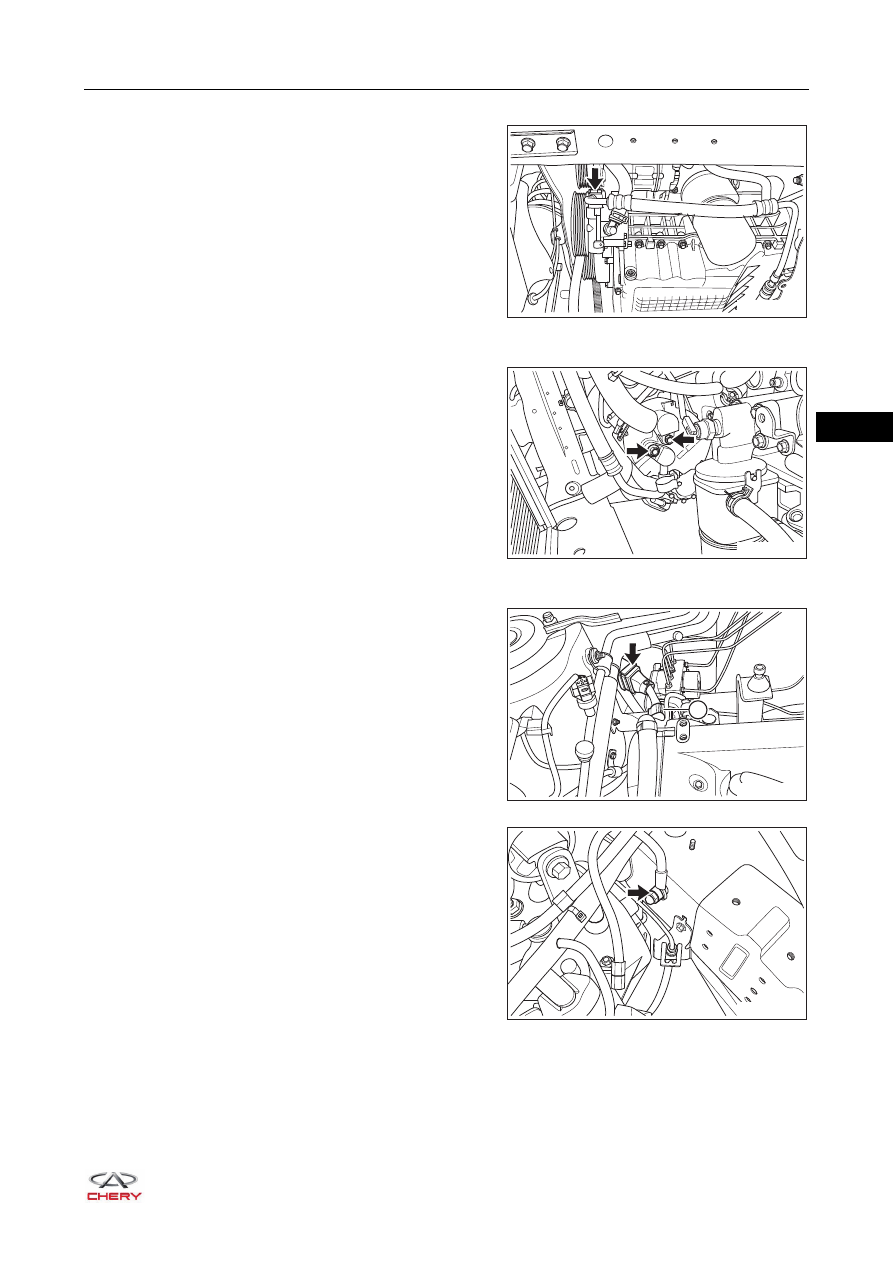

34.Disconnect the steering pump line (w/ hydraulic assist steering).

a. Remove the hollow bolt (arrow) from high pressure

pipe and move away the steering pump line from
steering pump.



(Tightening torque: 45 ± 5 N·m)

35.Disconnect the A/C line.

a. Remove 2 fixing bolts (arrow) between A/C high/low

pressure line and compressor assembly, and
disengage the A/C high/low pressure line from
compressor assembly.



(Tightening torque: 25 ± 2.5 N·m)

36.Disconnect the engine wire harness.

a. Disconnect the engine wire harness connector (arrow)

and move the engine wire harness away from the wire
harness clip (1).

b. Remove the battery wire harness ground wire fixing

bolt (arrow) and move away the battery wire harness
ground wire.

RT21070792

RT21310860

1

RT21070800

RT21070810

07–

76

07

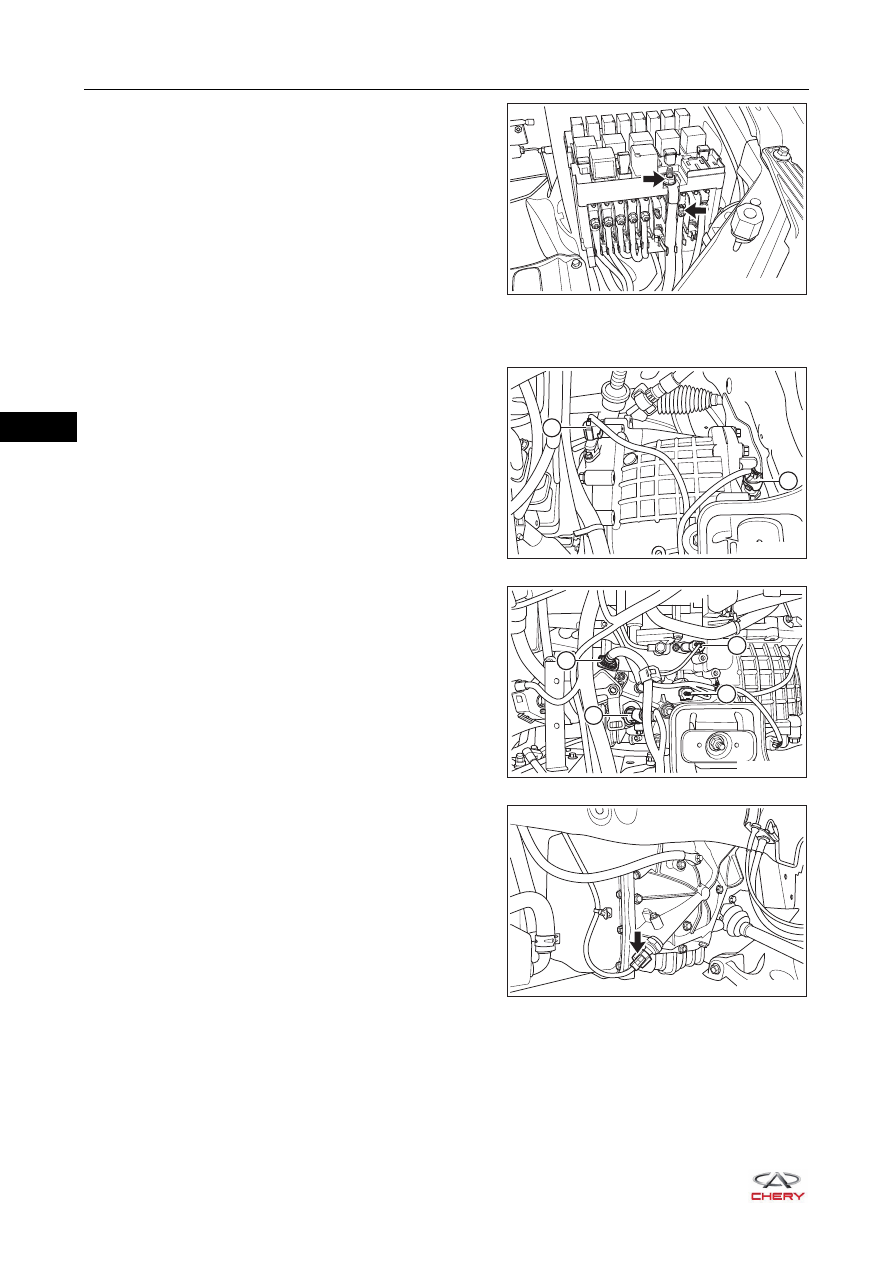

c. Open the fuse and relay box cover, remove the

battery wire harness fixing nut (arrow), and disconnect
the connection between battery wire harness and fuse
and relay box.



(Tightening torque: 7 ± 1 N·m)

d. Remove the fuse and relay box and disconnect 2 engine wire harness connectors.

37.Disconnect the CVT connector (for CVT model).

a. Disconnect the second shaft pressure sensor (1).
b. Disconnect the second shaft speed sensor (2).

c. Disconnect the connector B (1).
d. Disconnect the connector A (2).
e. Disconnect the clutch speed sensor (3).
f. Disconnect the primary shaft speed sensor (4).

g. Disconnect the primary shaft pressure sensor (arrow).

38.Use an engine equalizer to hang the engine.
39.Remove the engine rear mounting assembly (

See page 07-64

).

40.Remove the engine front mounting assembly (

See page 07-66

).

41.Remove the engine equalizer and use an engine hoist to hang the lifting eyes on both sides of the engine.
42.Remove the engine left mounting cushion assembly (

See page 07-67

).

RT21070820

2

1

RT21070830

4

3

2

1

RT21070840

RT21070850

07–

77

07

43.Remove the engine right mounting cushion assembly (

See page 07-68

).

44.Confirm that all the components are disconnected from engine.
45.Hang the engine with transmission out of engine compartment.
46.Remove the engine wire harness and battery wire harness from engine.
47.Separate the engine and the transmission.
48.Install the engine on the engine service platform.

Installation

Installation is in the reverse order of removal.
