Removal & Installation - Front Mounting Assembly

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine lower protector assembly (

See page 48-29

).

4. Support the transmission with a transmission carrier.
5. Remove the engine front mounting cushion assembly.

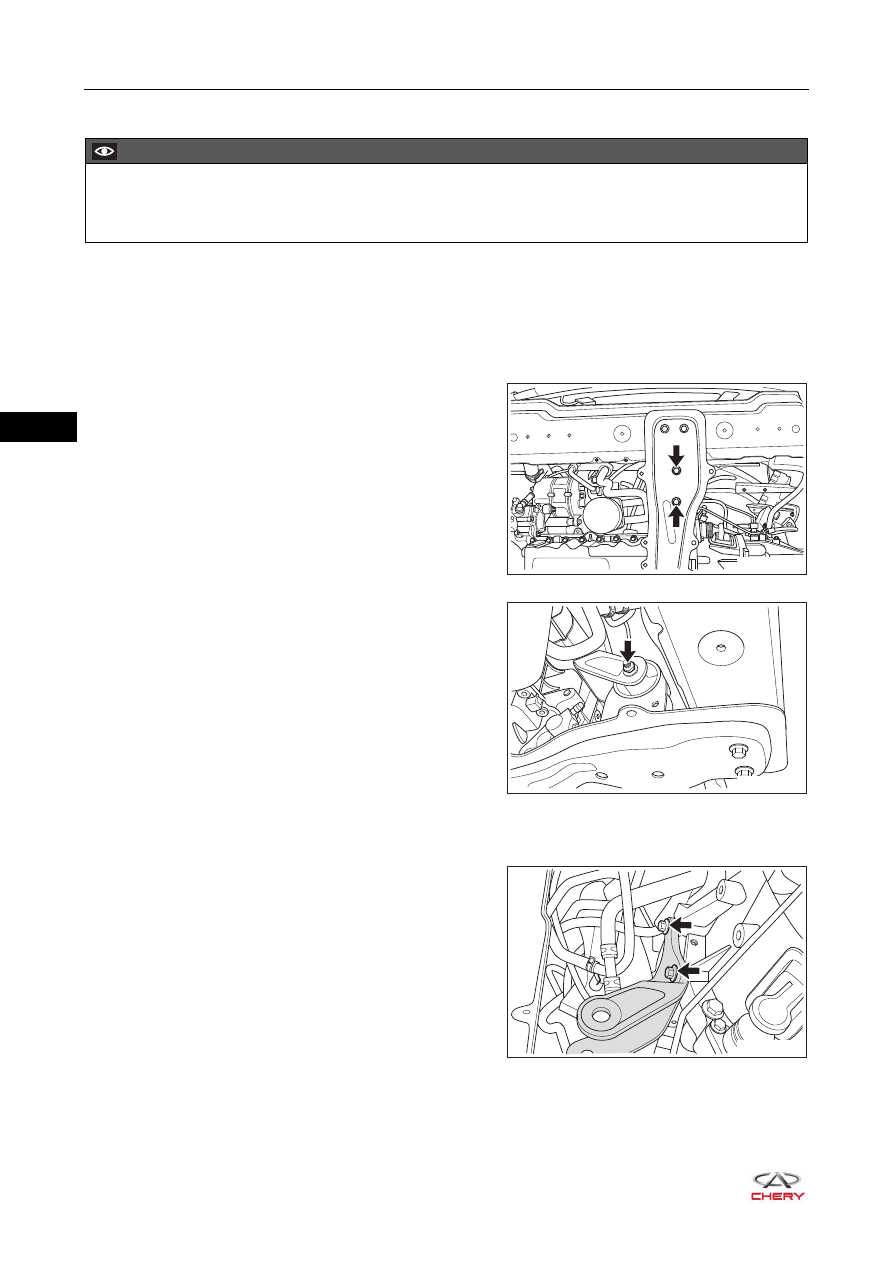

a. Remove 2 coupling bolts (arrow) between front

mounting cushion assembly and side rail welding
assembly.



(Tightening torque: 70 ± 5 N·m)

b. Remove the locking nut (arrow) for through bolt

between front mounting cushion assembly and front
mounting bracket, and remove the through bolt.



(Tightening torque: 70 ± 5 N·m)

c. Remove the engine front mounting cushion assembly.

6. Remove the engine front mounting bracket.

a. Remove 2 coupling bolts (arrow) between front

mounting bracket and transmission case.



(Tightening torque: 55 ± 5 N·m)

b. Remove the engine front mounting bracket from transmission case.

7. Installation is in the reverse order of removal.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21070630

RT21070640

RT21070650

07–

67

07

Removal & Installation - Left Mounting Assembly

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Use an engine equalizer to hang the engine.
4. Remove the air filter assembly and its bracket (

See page 10-17

).

5. Remove the battery (

See page 16-7

).

6. Remove the battery tray and tray bracket (

See page 16-9

).

7. Remove the engine left mounting cushion assembly (for MT model).

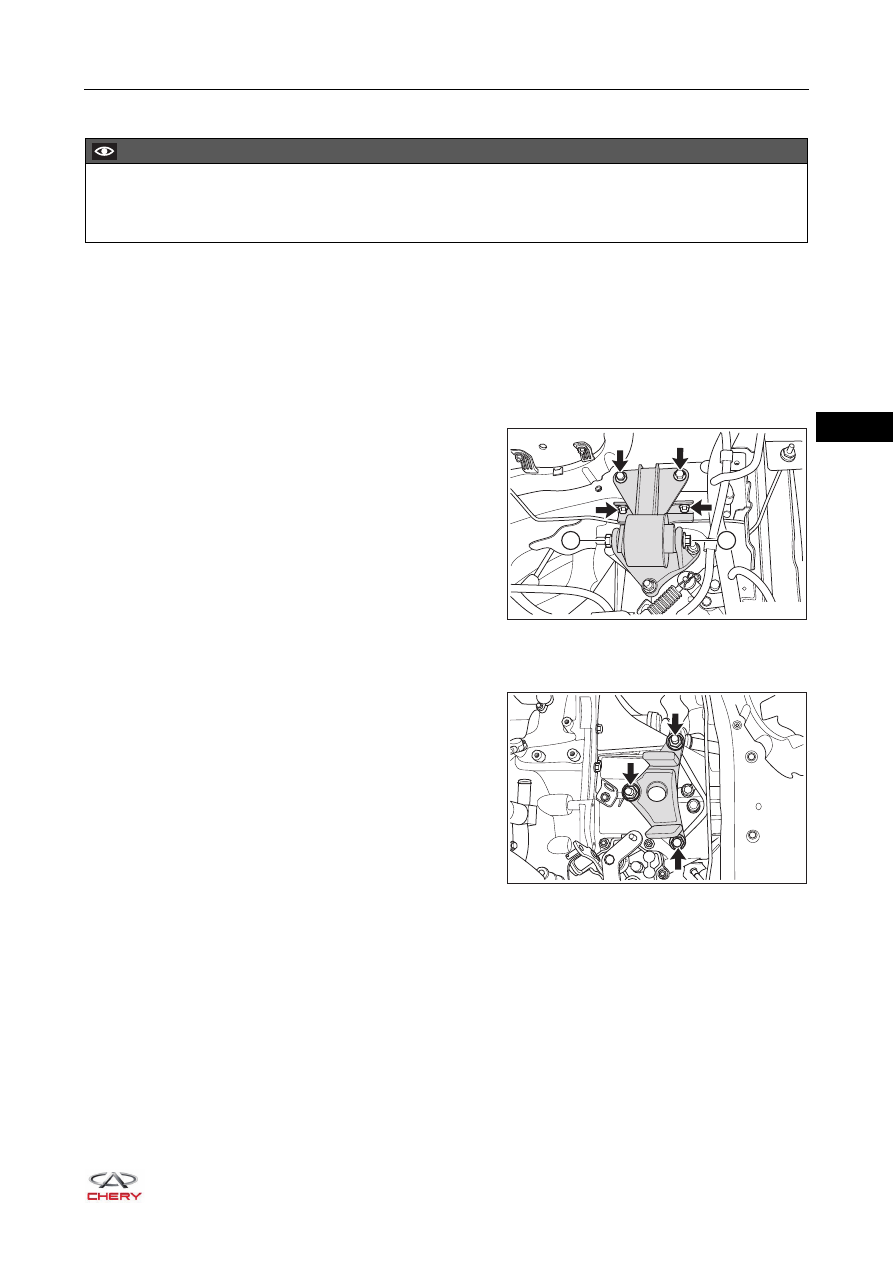

a. Remove the locking nut (1) for through bolt between

left mounting cushion assembly and left mounting
bracket, and remove the through bolt (2).



(Tightening torque: 105 ± 10 N·m)

b. Remove 4 coupling bolts (arrow) between left

mounting cushion assembly and body.



(Tightening torque: 70 ± 5 N·m)

c. Remove the left mounting cushion assembly.

8. Remove the engine left mounting bracket (for MT model).

a. Remove 3 fixing nuts (arrow) between left mounting

bracket and transmission case.



(Tightening torque: 80 ± 6 N·m)

b. Remove the left mounting bracket.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

1

2

RT21070660

RT21070670

07–

68

07

9. Remove the engine left mounting cushion assembly (for CVT model).

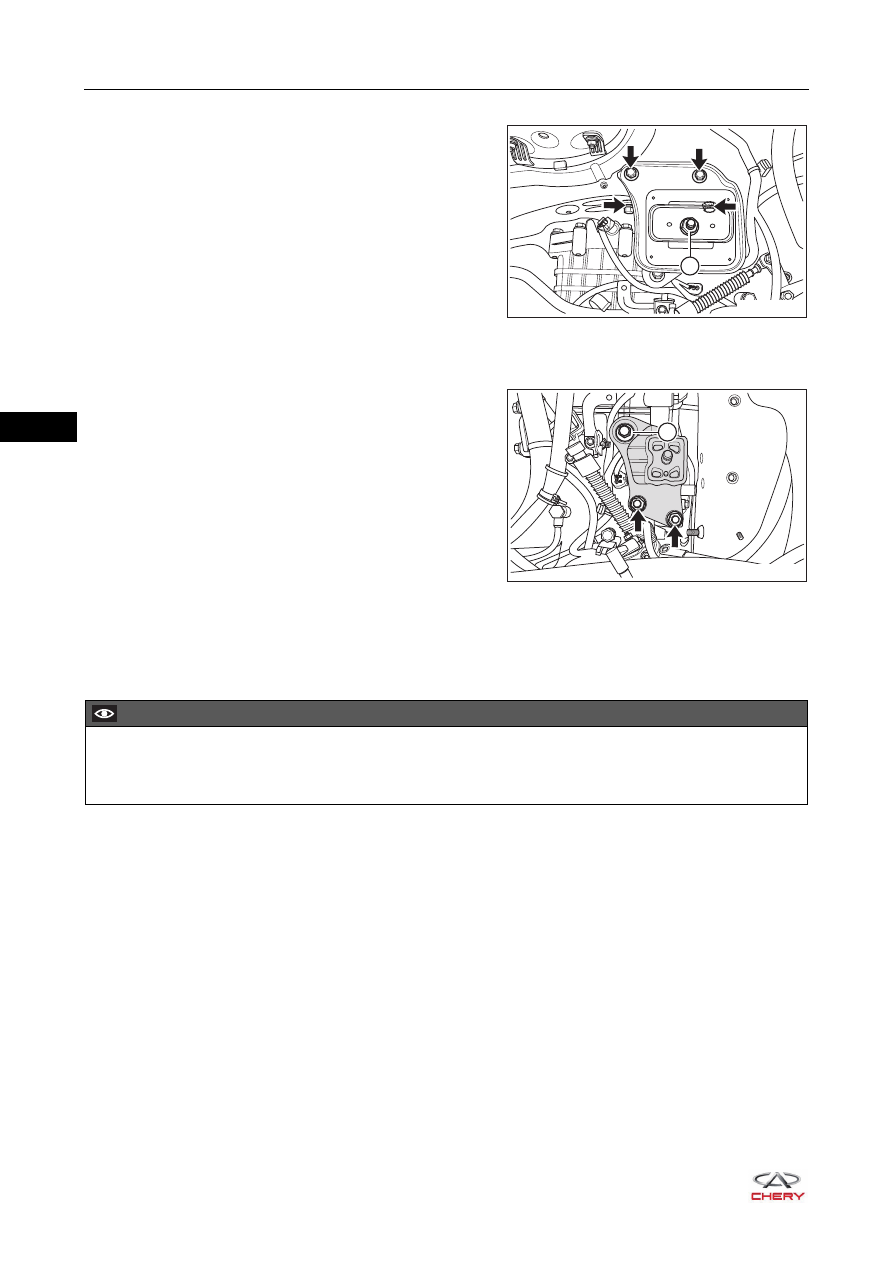

a. Remove the locking nut (1) from left mounting cushion

assembly.



(Tightening torque: 80 ± 6 N·m)

b. Remove 4 coupling bolts (arrow) between left

mounting cushion assembly and body.



(Tightening torque: 70 ± 5 N·m)

c. Remove the left mounting cushion assembly.

10.Remove the engine left mounting bracket (for CVT model).

a. Remove 2 fixing nuts (arrow) between left mounting

bracket and transmission case.



(Tightening torque: 80 ± 6 N·m)

b. Remove the coupling bolt (1) between left mounting

bracket and transmission case.



(Tightening torque: 80 ± 6 N·m)

c. Remove the left mounting bracket.

11.Installation is in the reverse order of removal.

Removal & Installation - Right Mounting Assembly

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine trim cover assembly (

See page 10-10

).

4. Remove the engine lower right protector assembly (

See page 48-29

).

5. Use an engine equalizer to hang the engine.
6. Remove the engine right mounting cushion assembly.

1

RT21070671

1

RT21070672

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

07–

69

07

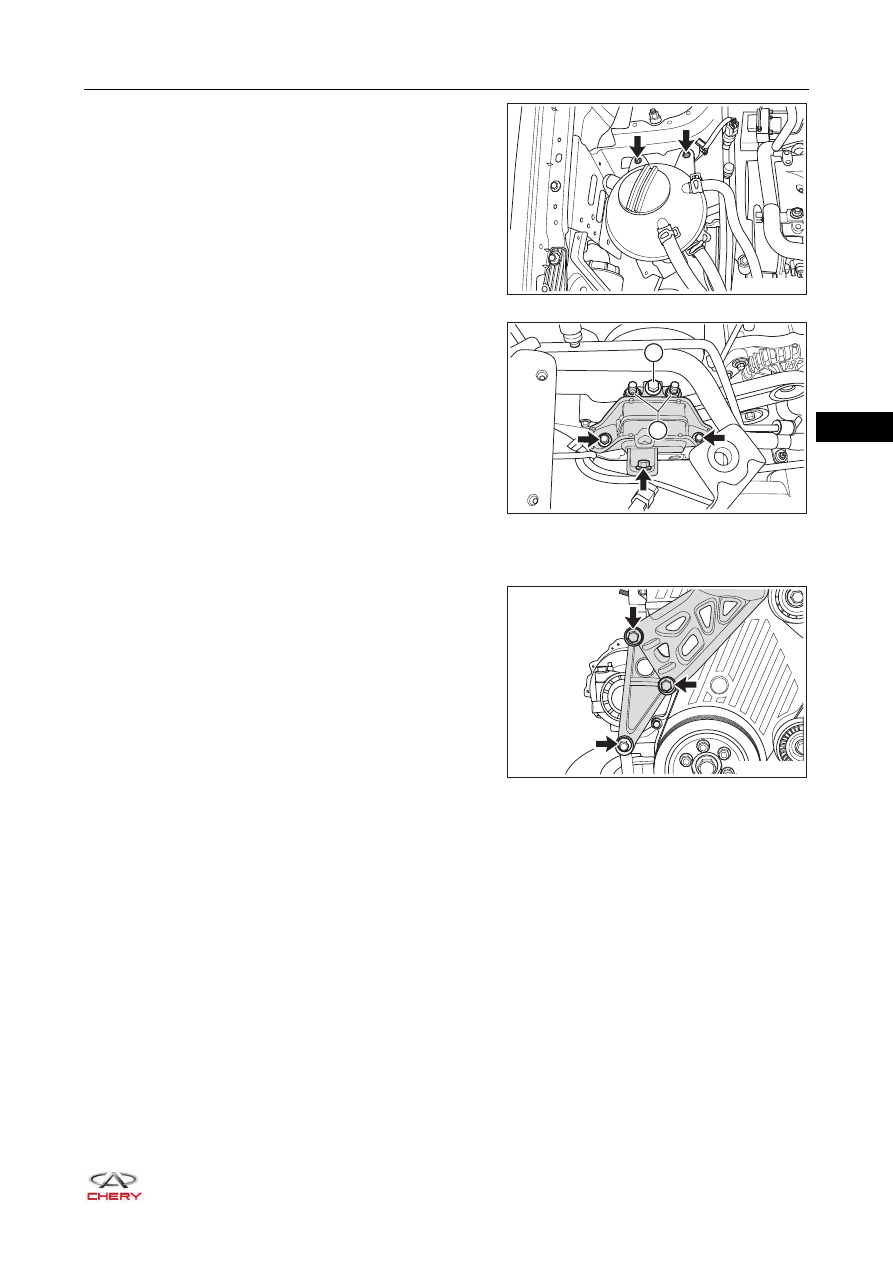

a. Remove 2 fixing bolts (arrow) from expansion tank

and move the expansion tank to one side.

b. Remove the coupling bolt (1) and 2 coupling nuts (2)

between right mounting cushion assembly and right
mounting bracket.



(Tightening torque: 80 ± 6 N·m)

c. Remove 3 coupling bolts (arrow) between right

mounting cushion assembly and body.



(Tightening torque: 70 ± 5 N·m)

d. Remove the engine right mounting bracket.

7. Remove the engine right mounting bracket.

a. Remove 3 fixing bolts (arrow) from right mounting

cushion assembly.



(Tightening torque: 55 ± 5 N·m)

b. Remove the engine right mounting bracket assembly.

8. Installation is in the reverse order of removal.

RT21070680

1

2

RT21070690

RT21070691
