Front compartment electric box

The box is situated in the right rear side of the engine compartment and under the trim plate of windscreen.

Please check or replace the fuse and relay according to the following procedures:

a)

Switch off all electric equipment;

b)

Remove the negative wire harness of the battery from the negative terminal of the battery;

c)

Use screwdriver or coin to screw off the plastic fixing fasteners (five pcs) of right front windscreen trim plate;

d)

Remove the upper cover of front compartment electric box (with metal fixing clamps in its both ends) and then you
will find the fuse and relay. Check and replace them one by one according to the function arrangement description
on the opposite to the box cover

Description:

1.  In order to provide our customers with the convenience to handle the emergency event, there is a front compartment

electric box’s fuse and relay function arrangement diagram printed on the cover of front compartment electric box (see
Figure 1).

2.  There are 8 spare fuses (2*15A, 2*5A, 3*10A and 1*30A) equipped on the cover of front compartment electric box.

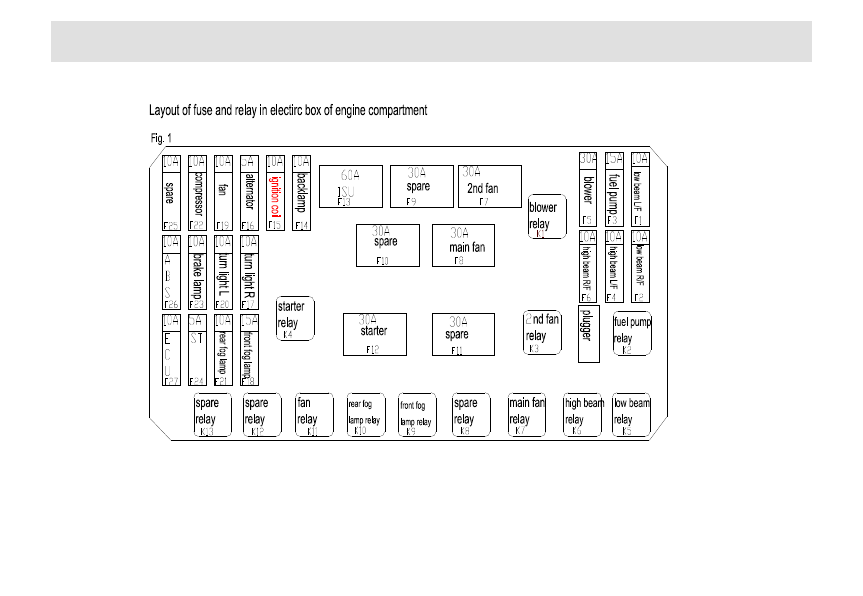

Figure 1 Positions of fuses and relays in the electrical box of engine compartment

Chery International                          Emergency Assistance

Wire harness plug-in parts arrangement diagram of engine compartment electric box



Chery International                          Emergency Assistance

Figure 2

Instrument panel electric box





D power C terminal

－－－－to black wire

E power B terminal

－－－－to red wire

Chery International                          Emergency Assistance

This electric box is situated in the left front side of interior of cabin and under the instrument panel, which is mounted on

the cross beam of instrument panel.

Please check or replace the fuse and relay according to the following procedures:

a)

Switch off all electric equipment;

b)

Remove the negative wire harness of the battery from the negative terminal of the battery;

c)

You can find the fuse and relay after the protective plate on the lower left side of instrument panel is opened. Check
and replace them one by one according to the function arrangement description.

Description:

1.

In order to provide our customers with the convenience to handle the emergency event, we offer a detailed fuse and
relay function arrangement diagram for the instrument panel electric box (see Figure 3).

2.

The diagnosis interface of the complete vehicle is also mounted on the lower part of the instrument panel electric box.
Take care not to damage it.

3.

There are also 8 spare fuses (2*15A, 2*5A, 3*10A and 1*30A) equipped with the instrument panel electric box.

 Locations of fuses and relays in the electric box of instrument panel
