C-001
L/32
Instrument Cluster
B1
C-002
G/32
Instrument Cluster
C1
C-003
W/4
Key Switch
B3
C-004
W/2
Key Hole Lamp
B3
C-005
Y/4
Brake Switch
B3
C-006
W/13
Multi-Function Switch
B3
C-007
B/10
Wiper And Washer Switch
B3
C-008
W/2
Blower Motor
F4
C-009
B/6
Accelerator Pedal Position Sensor
C3
C-010
W/6
Front Fog Lamp Switch
A3
C-011
Y/6
Rear Fog Lamp Switch
A3
C-012
W/6
Ignition Switch
B3
C-015
W/3
Console Power Outlet (For Cigarette
Lighter)
E4
C-016
W/4
Speed Resistor
F3
C-019
B/6
Dimmer Control Switch
A3
C-020
GR/6
Headlamp Aiming Switch
A3
C-021
W/4
Cruise/Audio Combination Switch
B3
C-022
G/16
Data Link Connector
B4
C-023
GR/2
Security Lamp
D3
C-024
B/2
Clutch Pedal Switch
A3
C-025
B/8
Immobilizer Control Module
C3
C-027
BR/6
Shifter Selector
D3
C-028
L/10
Winter Mode/Shifter Selector Register
D5
C-030
L/32
CAN Converter
B3
C-031
B/16
Audio
C2
C-034
W/2
Console Power Outlet (Illumination)
E4
C-035
W/8
Body Fuse And Relay Box (A)
A3
C-036
W/20
Body Fuse And Relay Box (B)
A3
C-037
B/2
Body Fuse And Relay Box (D)
A3
C-038
W/1
Horn Switch
B3
C-040
L/6
Heated Seat Switch LH
D3
C-041
G/6
Heated Seat Switch RH
D3
C-042
W/4
Body Fuse And Relay Box (E)
A3
C-043
W/16
Body Fuse And Relay Box (F)
A3
C-044
B/5
Recirculation Door Actuator
E3
C-047
B/16
HVAC Control Panel
D3
C-048
W/8
Blower Switch
D3
C-100
W/16
To A-100
A3
C-101
W/18
To A-101
A3
C-102
W/14
To E-102
G4
C-103
W/14
To E-103
G3
C-104
W/22
To B-104
A3
C-105
W/22
To B-105
G4
C-106
W/6
To J-100
A3

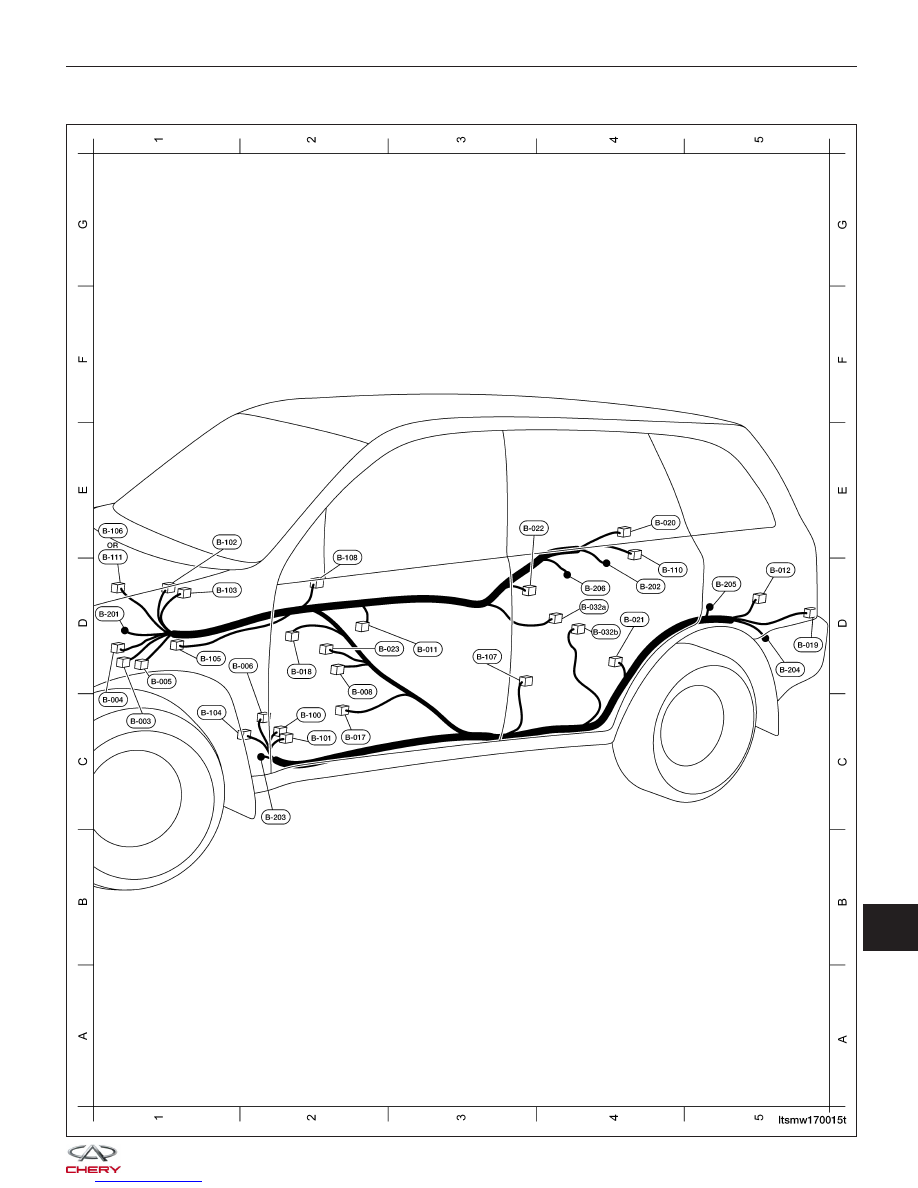

VEHICLE HARNESS ROUTING MAPS
16
