Chery Tiggo. Manual - part 437

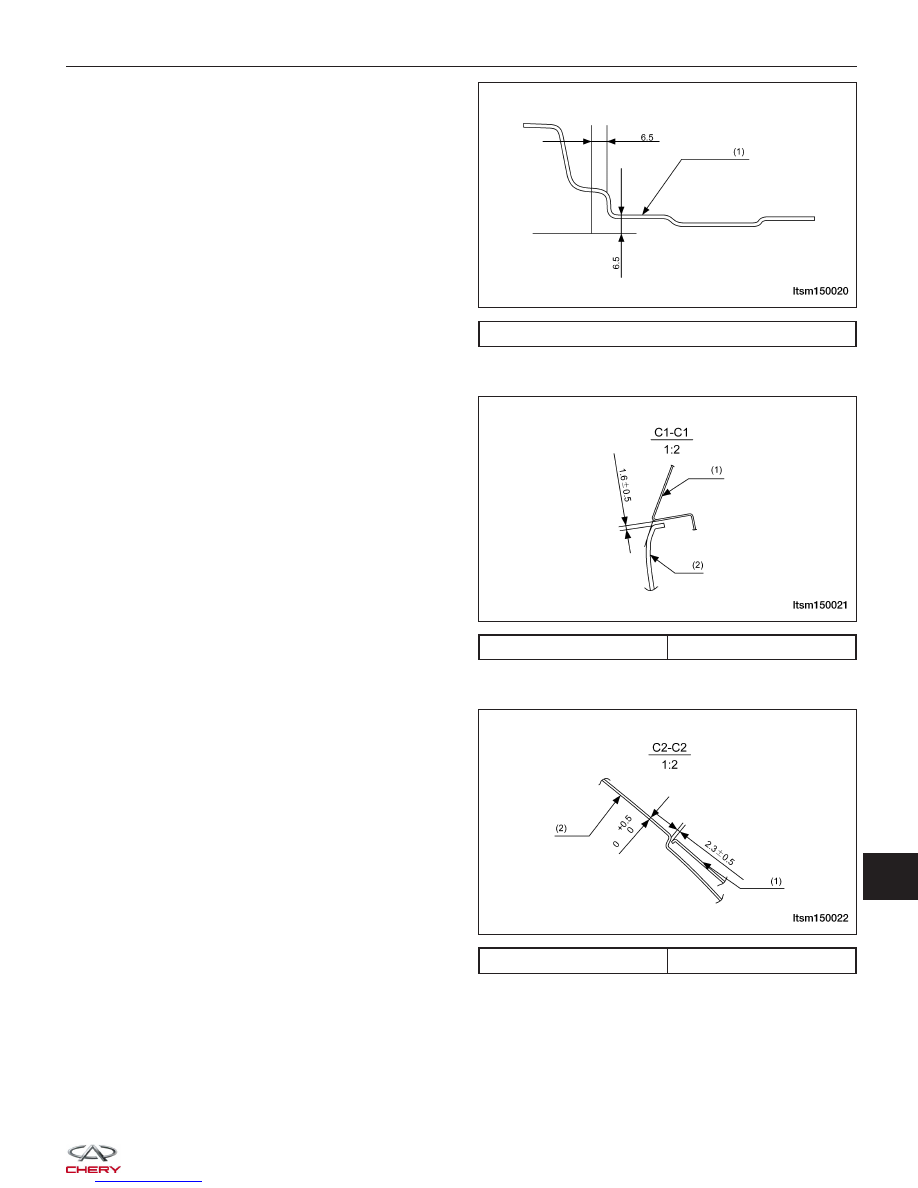

Cross section B1-B1, requirements for clearance and
levelness.

Cross section C1-C1, requirements for clearance and
levelness.

Cross section C2-C2, requirements for clearance and
levelness.

1 - External Plate Of Side Wall

1 - Fender

2 - Front Bumper

1 - Fender

2 - Side Wall

BODY DIMENSIONS

LTSM150020

LTSM150021

LTSM150022

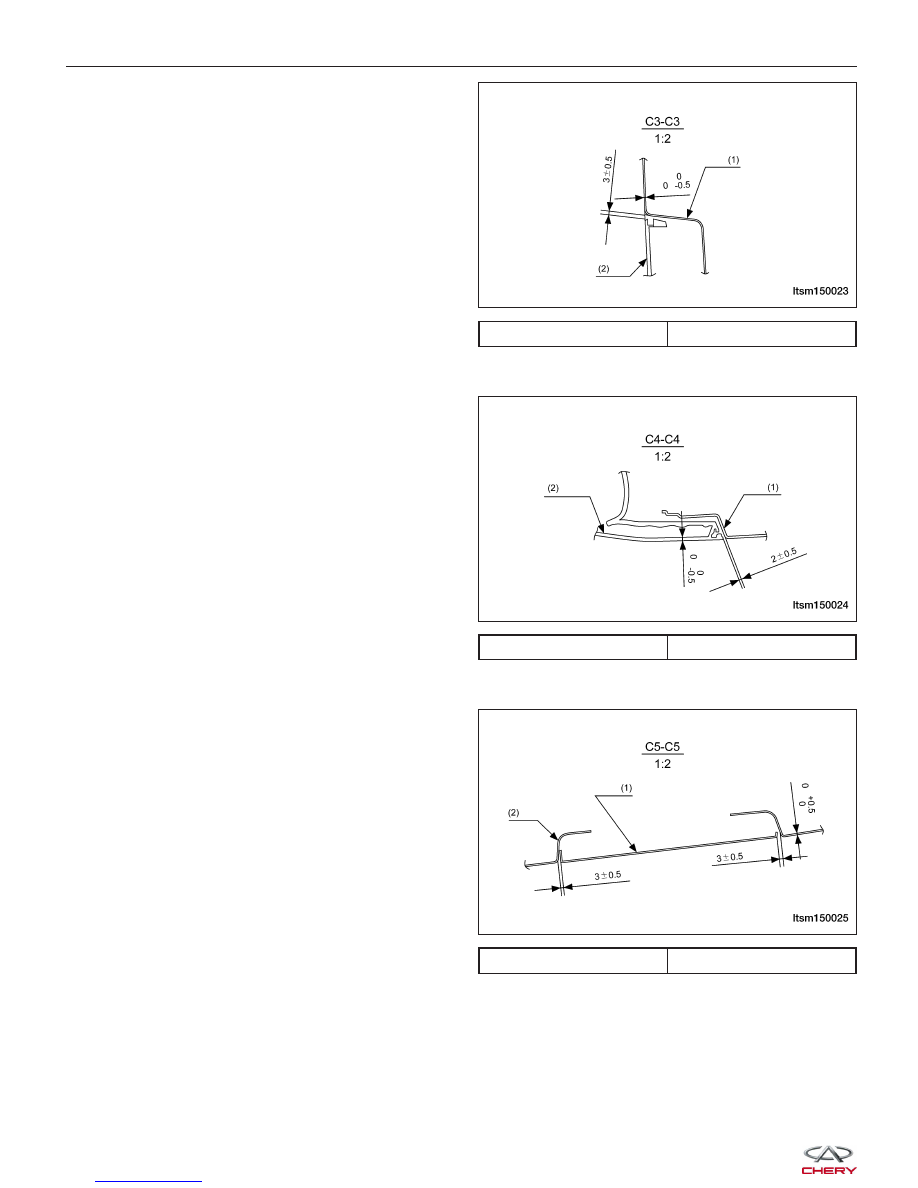

Cross section C3-C3, requirements for clearance and
levelness.

Cross section C4-C4, requirements for clearance and
levelness.

Cross section C5-C5, requirements for clearance and
levelness.

1 - Side Wall

2 - Rear Bumper

1 - Side Wall

2 - Rear Headlight

1 - Fuel Tank Cover

2 - Side Wall

BODY DIMENSIONS

LTSM150023

LTSM150024

LTSM150025

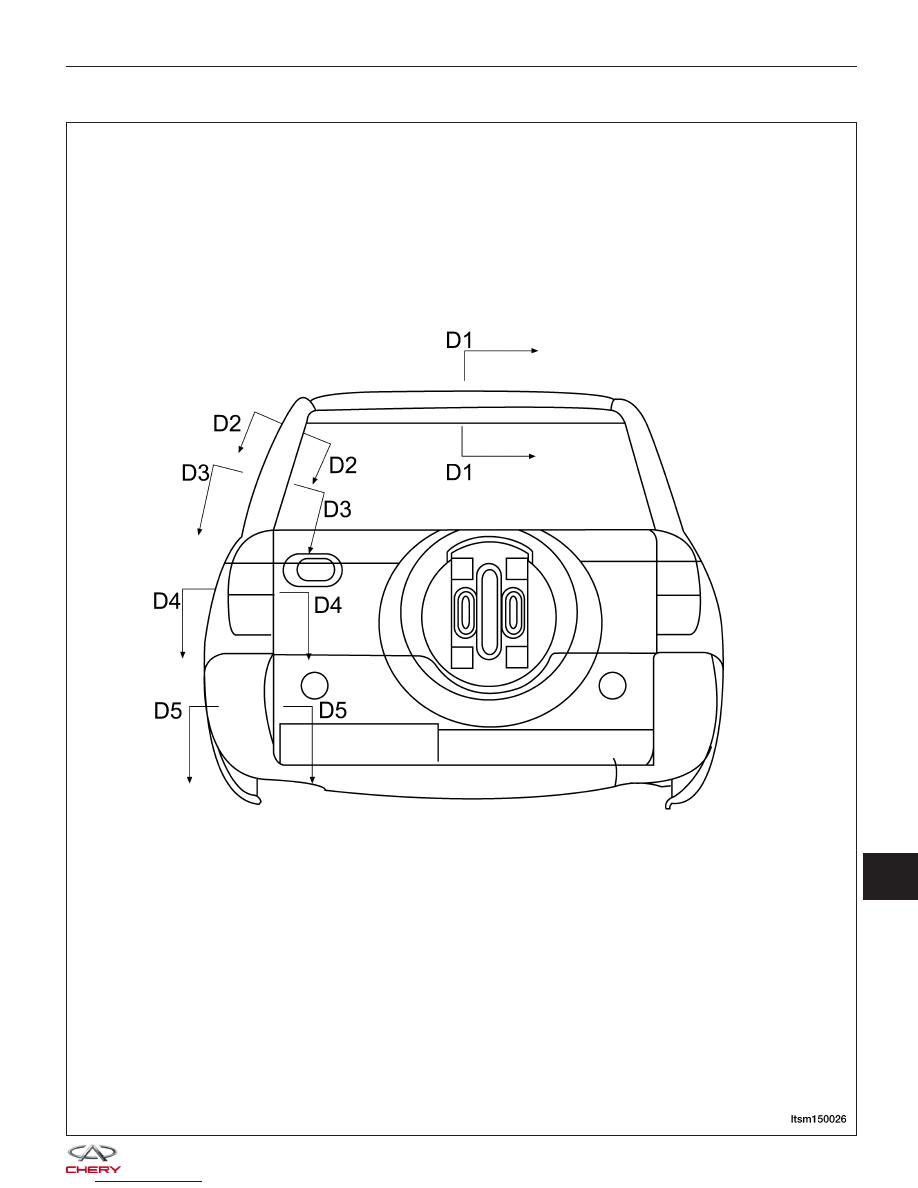

Rear View

BODY DIMENSIONS

LTSM150026

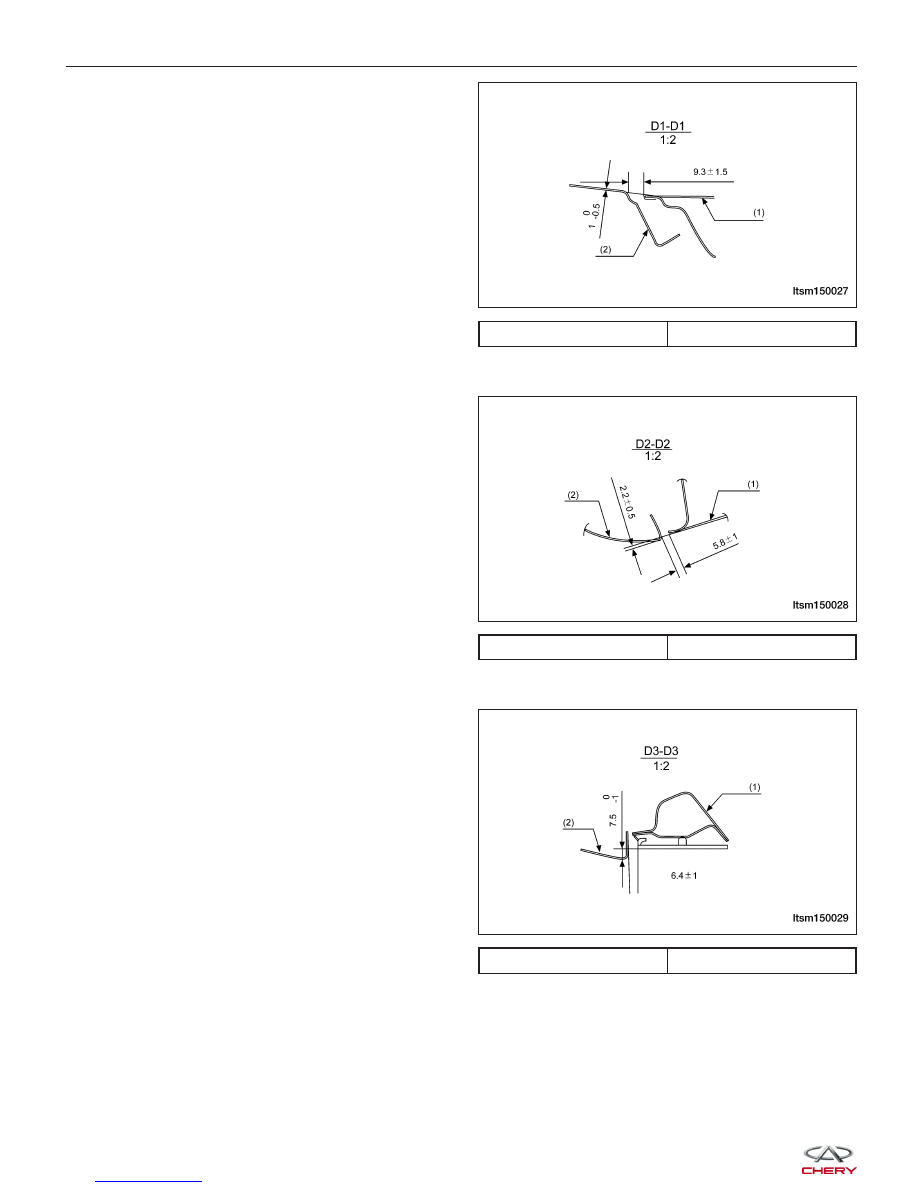

Cross section D1-D1, requirements for clearance and
levelness.

Cross section D2-D2, requirements for clearance and
levelness.

Cross section D3-D3, requirements for clearance and
levelness.

1 - Rear Back Door

2 - Head Cover

1 - Rear Back Door

2 - Side Wall

1 - Rear Back Door

2 - Side Wall

BODY DIMENSIONS

LTSM150027

LTSM150028

LTSM150029
