Chery Tiggo. Manual

Diagnostic Tools

• Diagnostic Scan Tool X-431

• Digital Multimeter

• Jumper Wire

Diagnostic Trouble Code (DTC) List

Instrument Cluster DTC List

DTC

DTC DEFINITION

U0303

Fuel Sensor O/C or Shorted To Supply

U0303

Fuel Sensor Shorted To Ground

U040F

Temperature Sensor O/C or Shorted To Supply

U040F

Temperature Sensor Shorted To Ground

U029C

Battery Over Voltage Error

U029C

Battery Under Voltage Error

U050F

EEPROM Checksum Error

DIAGNOSIS & TESTING

On Board Diagnostic Logic
• Self-diagnosis detection logic.

DTC NO.

DTC

DEFINITION

DTC

DETECTION

CONDITION

DTC SET CONDITION

POSSIBLE

CAUSE

U029C

Battery over

voltage error

Turn ignition

switch on

Instrument Cluster (IC) detected that
the battery voltage is excessively
high.

• Charge system

• Instrument
Cluster (IC)

U029C

Battery under

voltage error

Instrument Cluster (IC) detected that
the battery voltage is excessively
low.

• Battery

• Charge system

• Harness or
connector

• Instrument
Cluster (IC)

DTC Confirmation Procedure:

Before performing the following procedure, confirm that battery voltage is more than 12 V.

• Turn ignition switch off.

• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.

• Turn ignition switch on, select view, record and erase DTC.

• Start engine and warm it up to the normal operating temperature.

• Select view DTC and data stream.

• If the DTC is detected, the condition is current. Go to Diagnostic Procedure - Step 1.

• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-

bleshooting in Section 15 Body & Accessories for more information).

•

NOTE :
• Inspect the vehicle for aftermarket accessories that may exceed the Generator System output.

• Inspect the fuses. If an open fuse is found, use the wiring schematics as a guide and inspect the wiring and

connectors for damage.

• Troubleshoot any Engine Control Module (ECM) charging/cranking DTCs before proceeding.

NOTE :

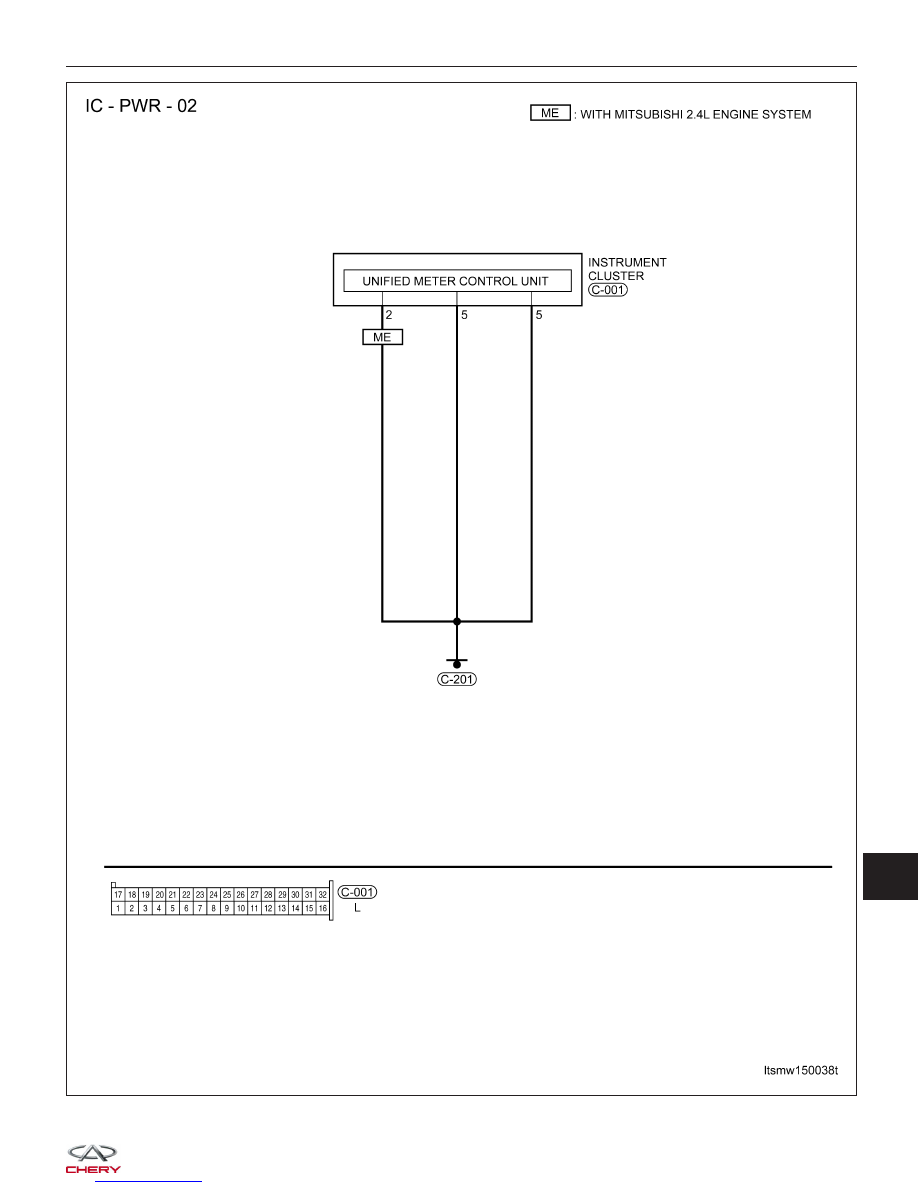

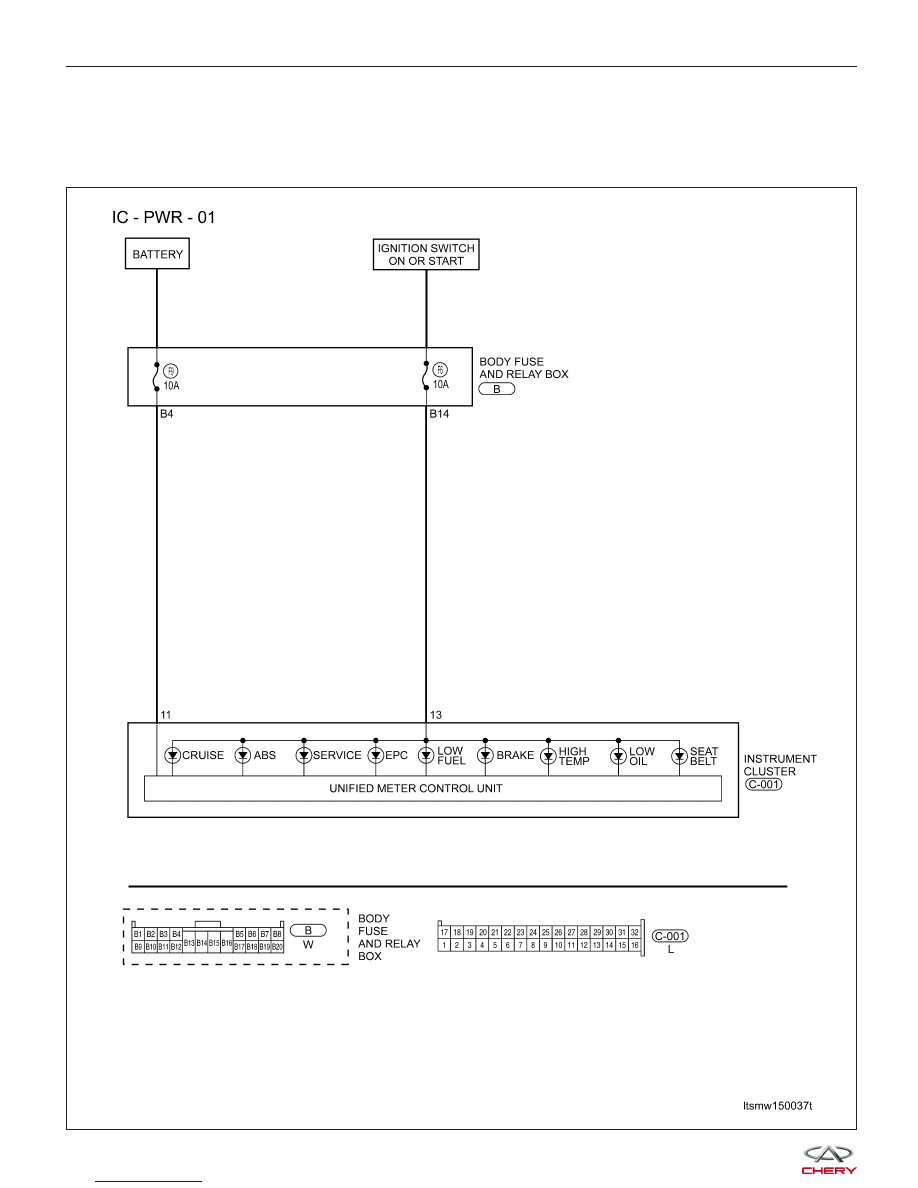

While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.

DIAGNOSIS & TESTING
