Chery Tiggo. Manual - part 408

INSTRUMENT PANEL

Removal & Installation

1. Remove the steering wheel (See Steering Wheel Removal & Installation in Section 11 Steering).

2. Remove the multi-function switch and the wiper switch.

3. Remove the instrument cluster (See Instrument Cluster Removal & Installation in Section 15 Body & Accesso-

ries).

4. Remove the radio (See Radio Removal & Installation in Section 15 Body & Accessories).

5. Remove the HVAC control panel (See HVAC Control Panel Removal & Installation in Section 13 Heating & Air

Conditioning).

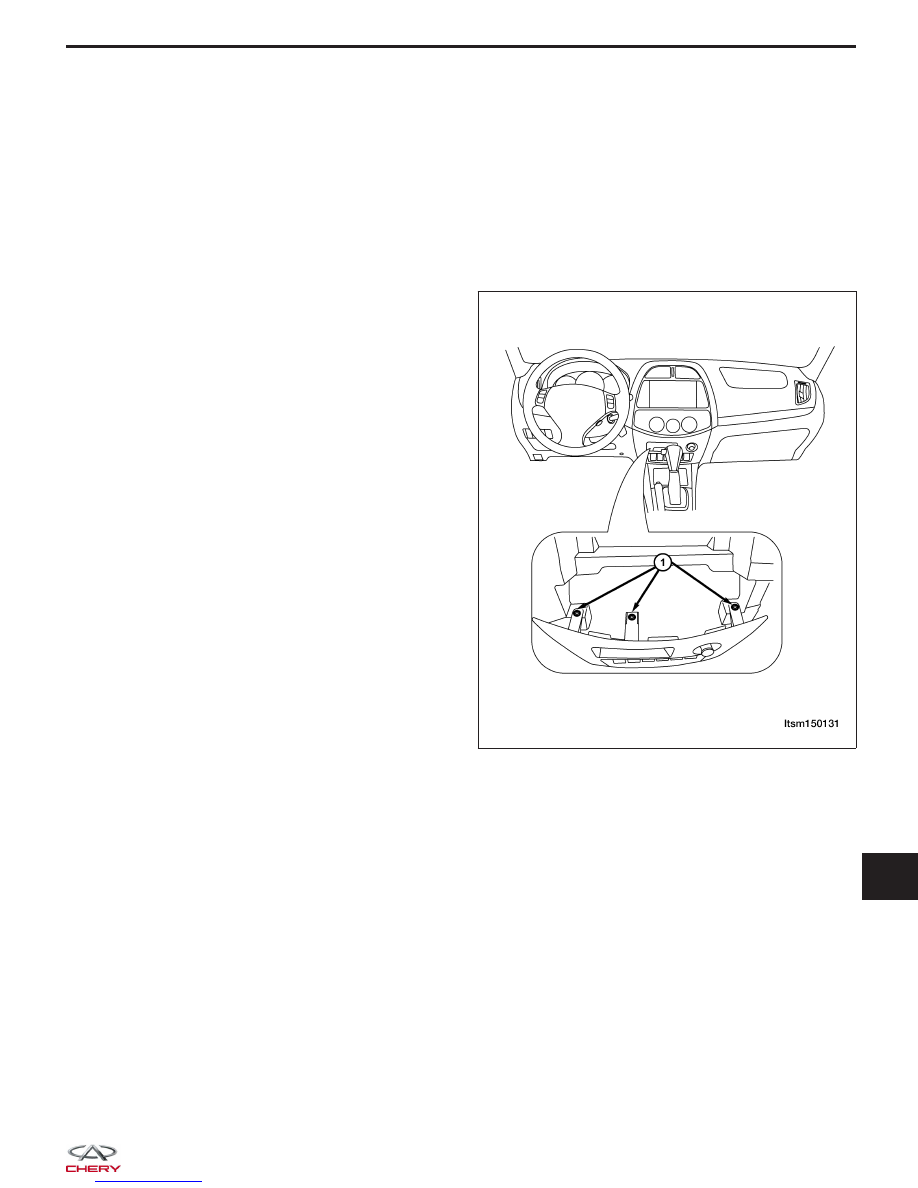

6. Remove lower center bezel retaining screws (1).

LTSM150131

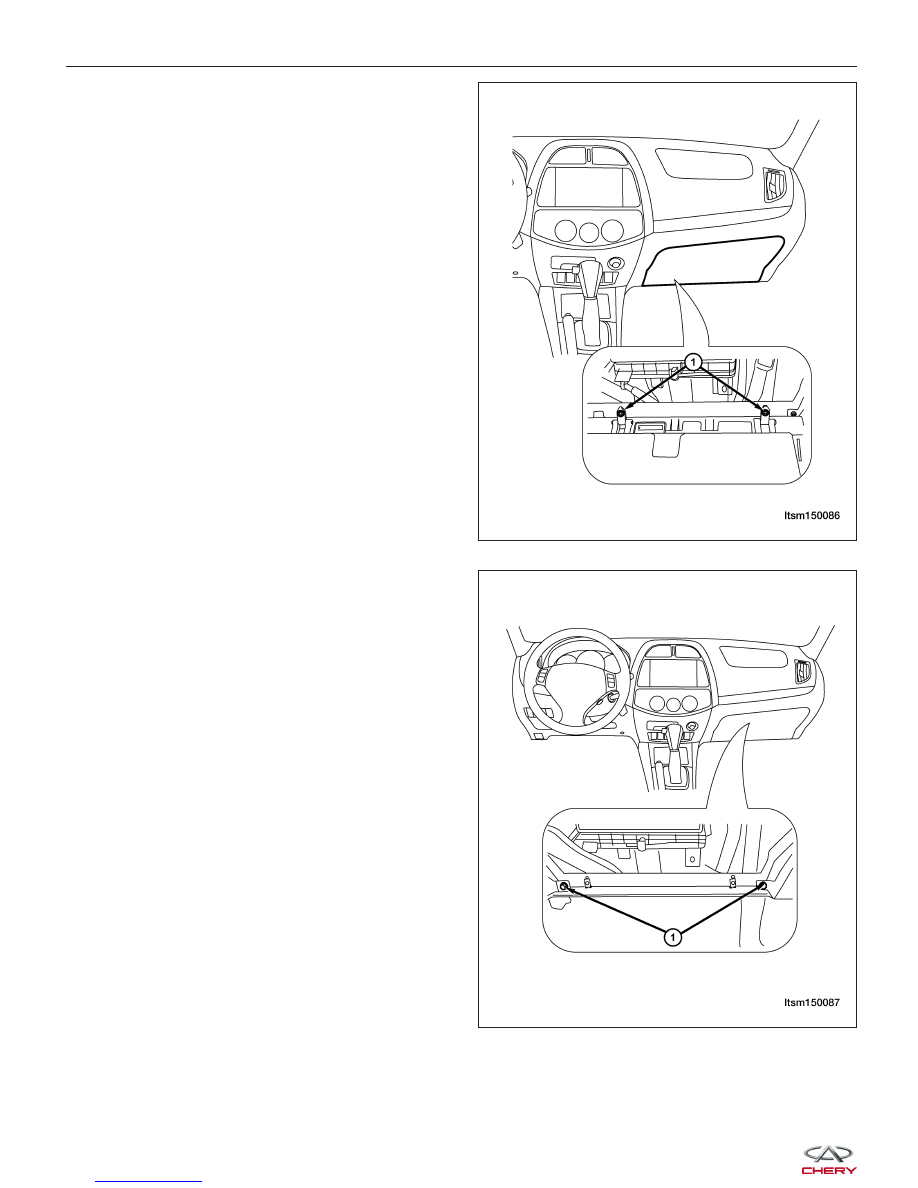

7. Remove the glove box retaining bolts (1).

8. Remove the bolts (1) under the glove box.

INSTRUMENT PANEL

LTSM150086

LTSM150087

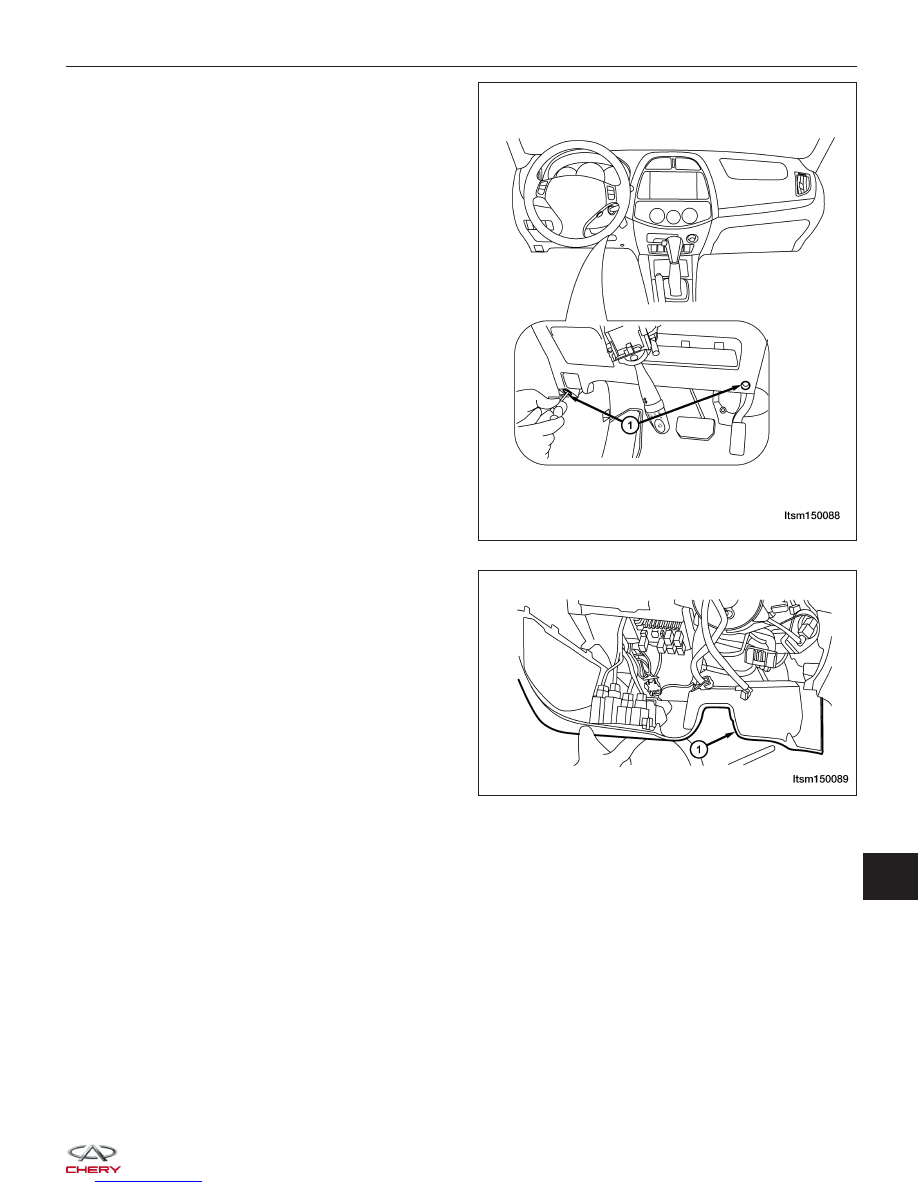

9. Remove the knee bolster mounting screws (1).

10. Remove the knee bolster (1) from the instrument

panel.

11. Remove the left trim cover of the instrument panel.

INSTRUMENT PANEL

LTSM150088

LTSM150089

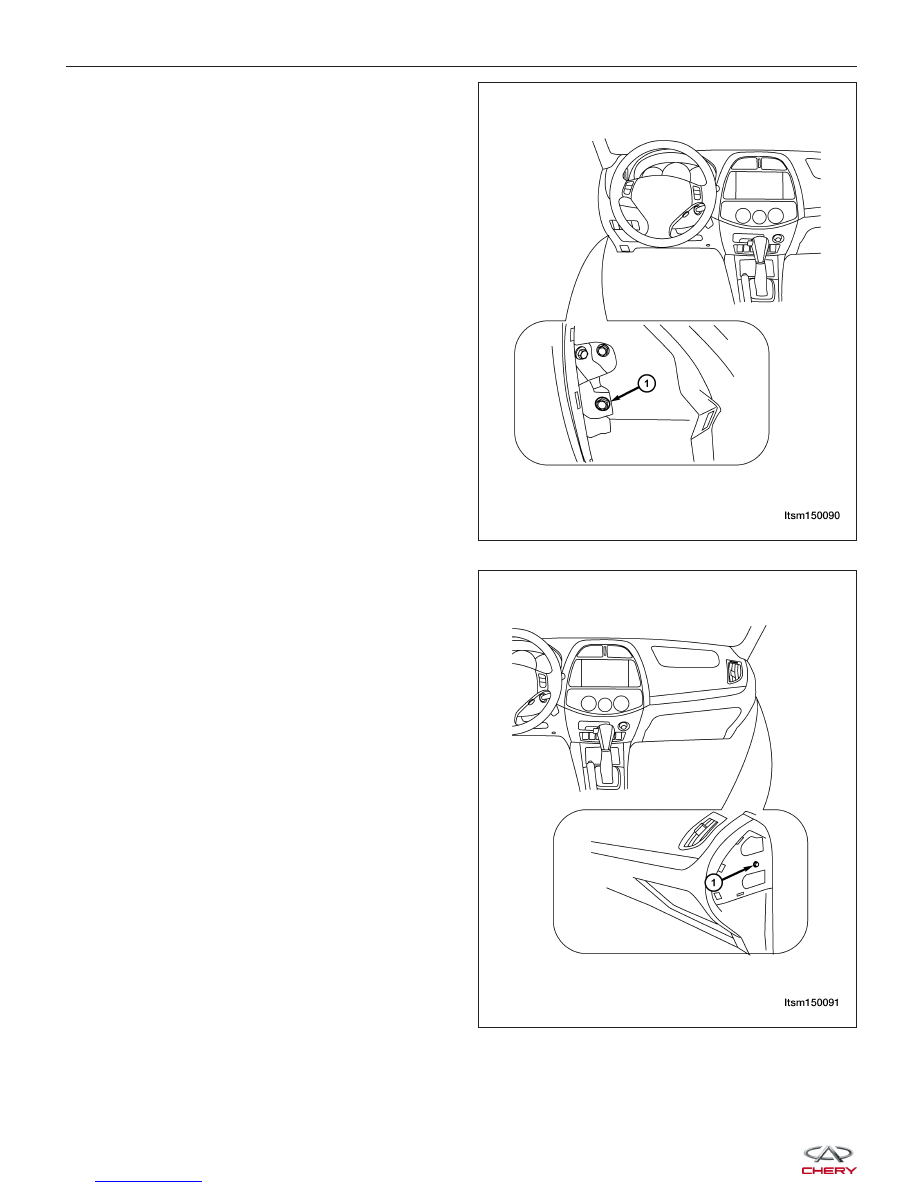

12. Remove the left instrument panel mounting bolt (1).

13. Remove the right trim cover of the instrument

panel.

14. Remove the right instrument panel mounting bolt

(1).

INSTRUMENT PANEL

LTSM150090

LTSM150091
