14. Remove three door lock assembly retaining bolts.

(Tighten: Door lock assembly retaining bolts to 9 ± 1 N·m)

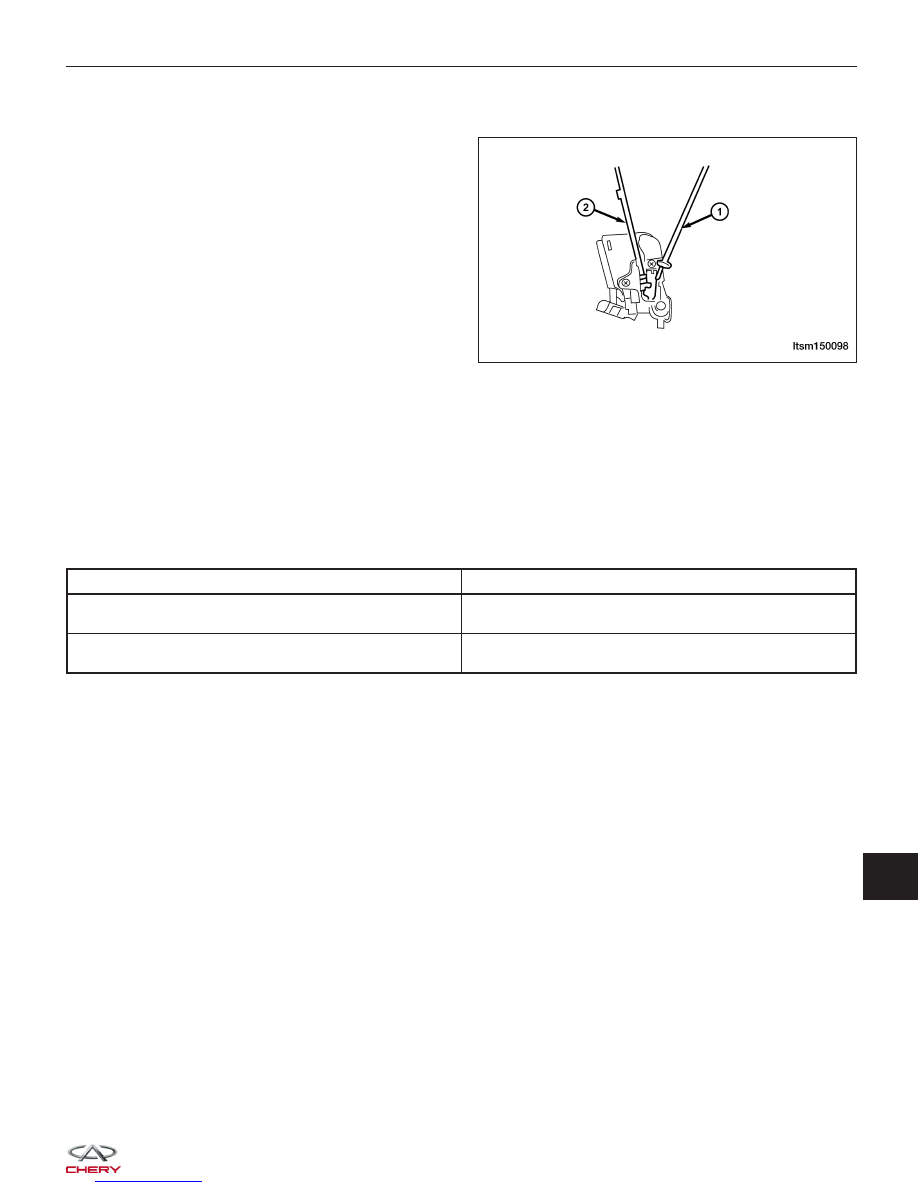

15. Remove the internal unlock cable (1) and lock

cable (2).

16. Remove the lock buckle with a screwdriver.

(Tighten: Lock buckle screws to 12 ± 2 N·m)

17. Installation is in the reverse order of removal.

Door Lock Assembly Inspection

1. Using the following table, apply battery voltage to the specified connector terminals.

2. Verify that the door lock assembly operates in the lock and unlock position when voltage is applied to the spec-

ified terminals.

3. If the test results are not as specified, replace the motor.

MEASURING CONDITION

OPERATIONAL DIRECTION

Battery positive (+) to terminal – 1
Battery negative (-) to terminal – 2

Lock

Battery positive (+) to terminal – 2
Battery negative (-) to terminal – 1

Unlock

DOOR LOCKS

LTSM150098

15



BODY CONTROL MODULE - BCM

Description

The Body Control Module (BCM) is located behind the glove box. The BCM controls many electrical components and
systems for the vehicle electrical system. The BCM is the primary hub that controls functions such as internal and
external lighting, power windows and power door locks.

Operation

The Body Control Module (BCM) uses hard wired inputs from various sensors and switches. The sensors and
switches are located throughout the vehicle.

The following components are inputs to the BCM:

• Key switch

• Rear defroster switch

• Hazard lamp switch

• Power window switches

• Power door lock switches

• Seat belt switch

• Vehicle speed

• Door ajar switches

• Turn signal switch
The following components are outputs from the BCM:

• Key lamp

• Stop lamp relay

• Rear defroster grid

• Courtesy lamps

• Power window motor

• Power door lock motor

• Turn signal lamps

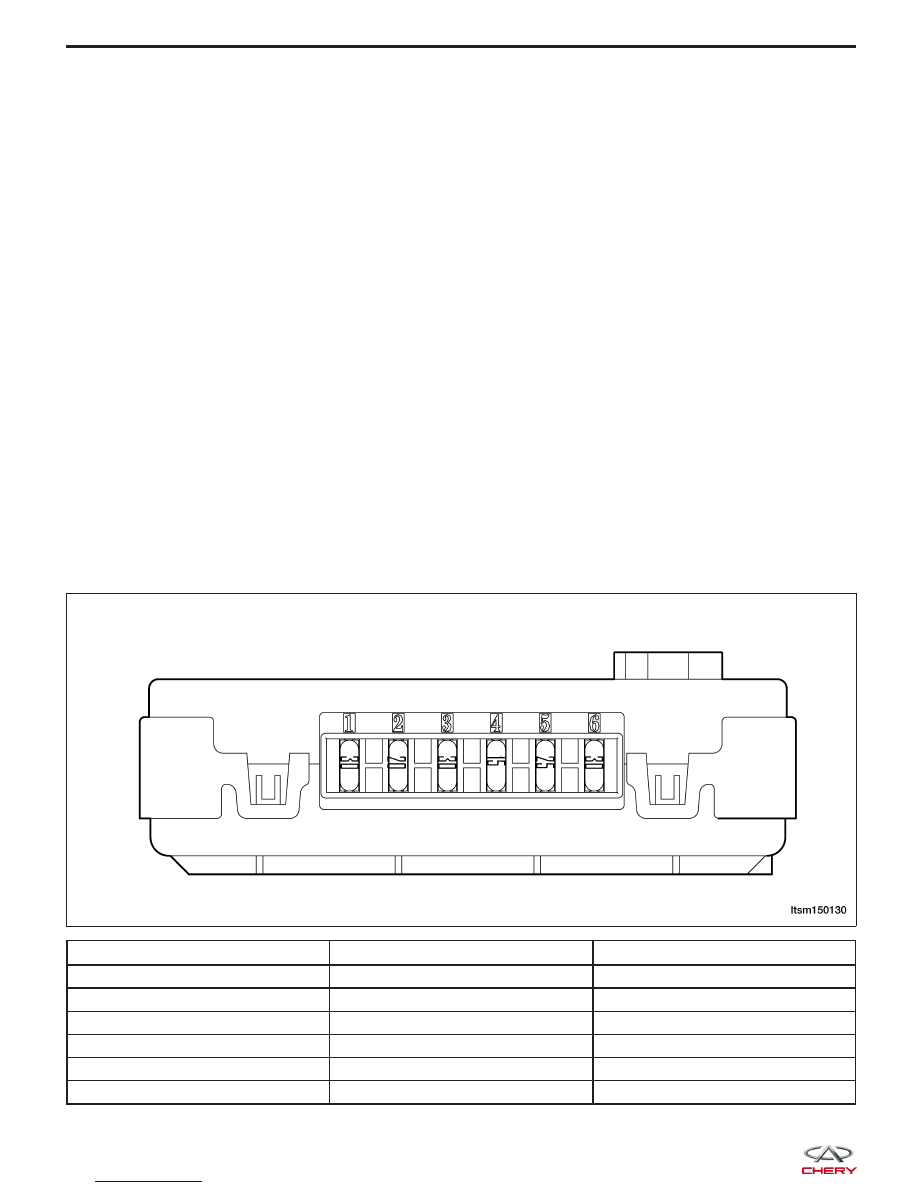

FUSE NO.

AMPERAGE RATING

FUNCTION

1

30 A

Front Fog

2

20 A

CNT Lock

3

30 A

Spare

4

15 A

Spare

5

25 A

Spare

6

30 A

Front WIN

LTSM150130



Electrical Schematics

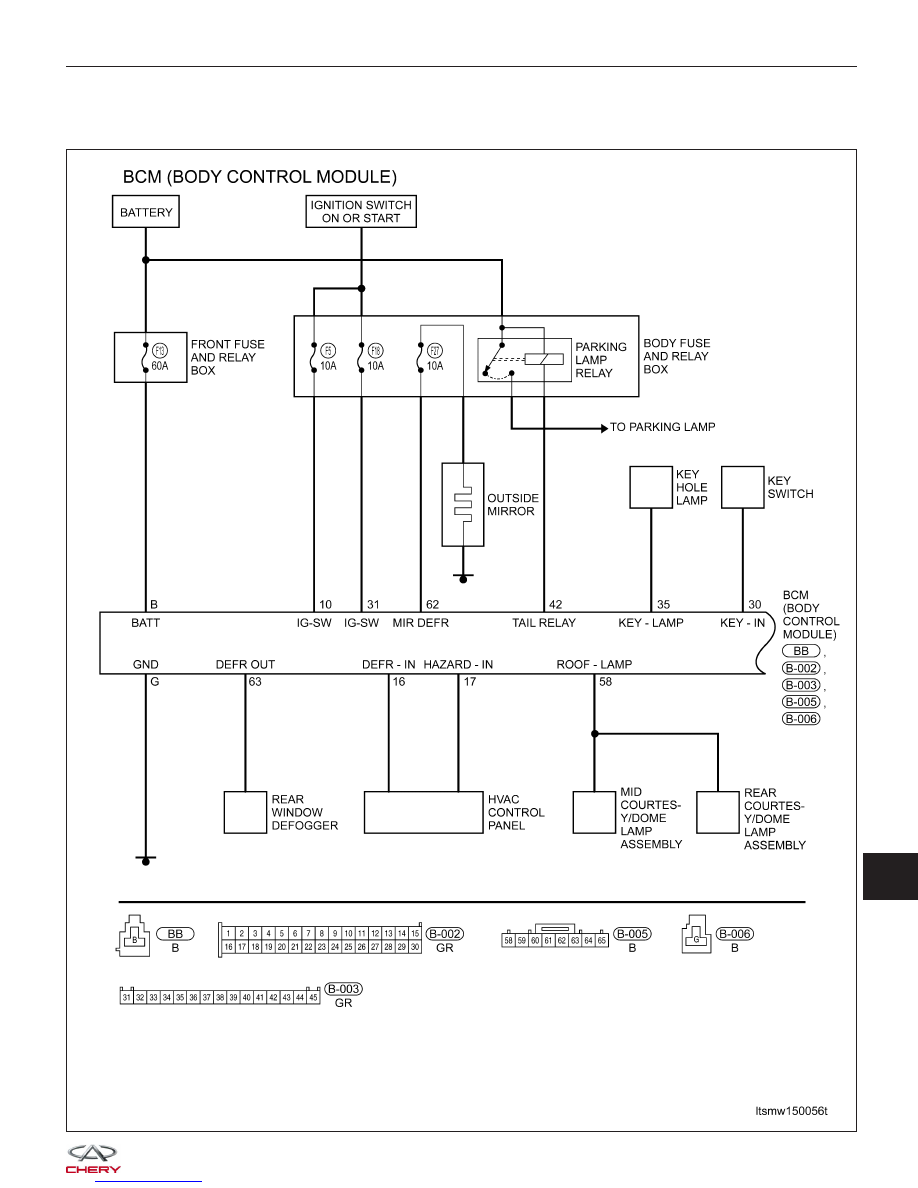

Body Control Module (Page 1 of 5)

BODY CONTROL MODULE - BCM

LTSMW150056T

15

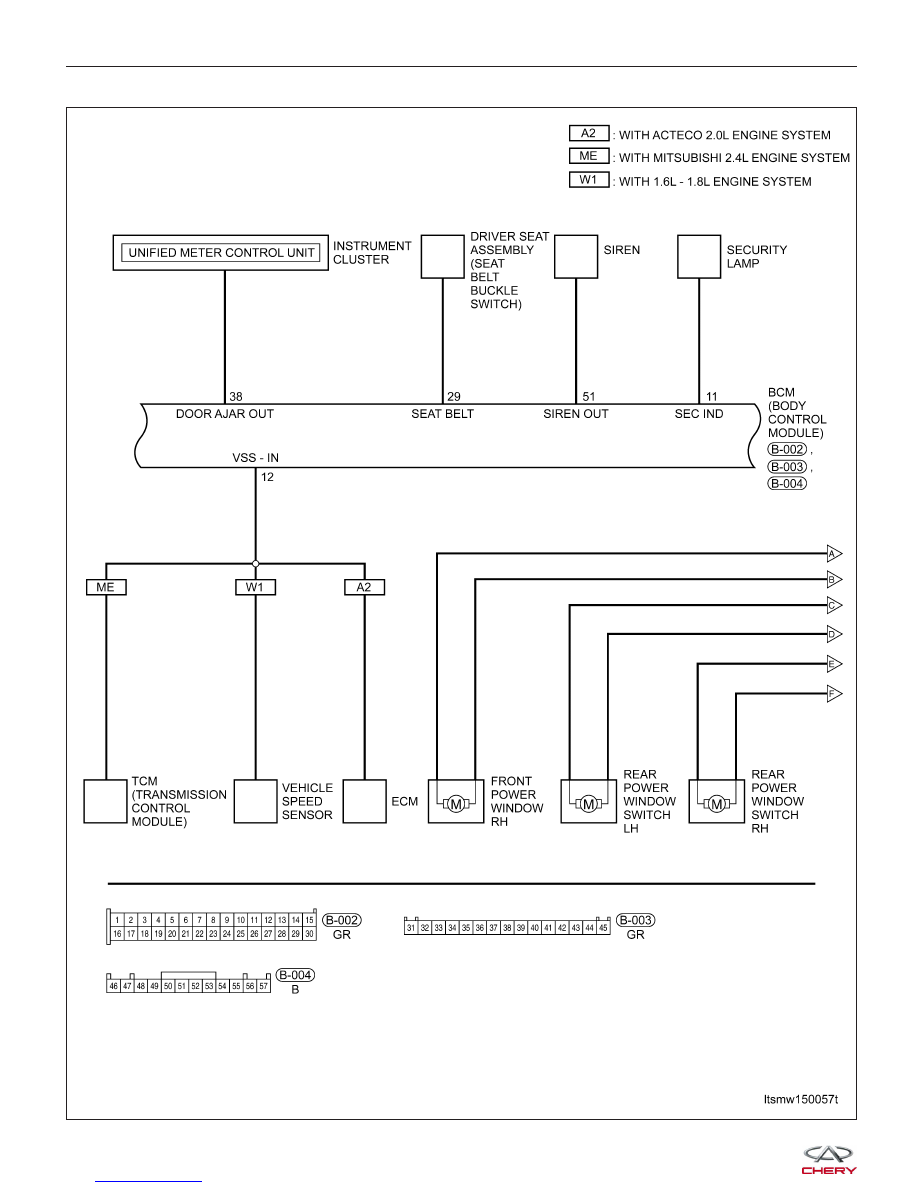

Body Control Module (Page 2 of 5)

BODY CONTROL MODULE - BCM

LTSMW150057T
