DESCRIPTION

TORQUE (N·m)

Right and Left Front Drive Shaft Nuts

260 - 280

Control Arm Knuckle Pin With Control Arm

140 - 160

Front Connecting Rod and Front Shock Absorber

40 - 50

Stabilizer Bar Clamp to Sub-Frame

22 - 28

Rear Rubber Buffer Assembly to Vehicle Body

22 - 28

Front Axle Hub Nut

135

Front Suspension Strut to Vehicle Body

45 - 55

Front Suspension And Bracket

75 - 85

Lower Sub-Frame Insert to Suspension Bolt

110 - 130

Longitudinal Beam to Vehicle (Front) Body Bolt

74 - 86

Upper Link to Trailing Arm Bolt

100 - 120

One On Each Side To Connect Upper Link With Rear
Sub-Frame

80 - 101

One On Each Side To Connect Lower Control Arm With
Trailing Arm

100 - 120

Steering Knuckle and Suspension Strut

110 - 130

Soft Gasket and Bracket of Front Suspension

75 - 85

Tie Rod to Steering Knuckle Nut

35 - 45

Sub-Frame and Gasket Of Vehicle (Front) Body

170 - 190

Sub-Frame and Longitudinal Beam Assembly Bolts

75 - 85

Steering Gear to Sub-Frame Bolts

75 - 85

Wheel Mounting Nut                                                                                                                                                110

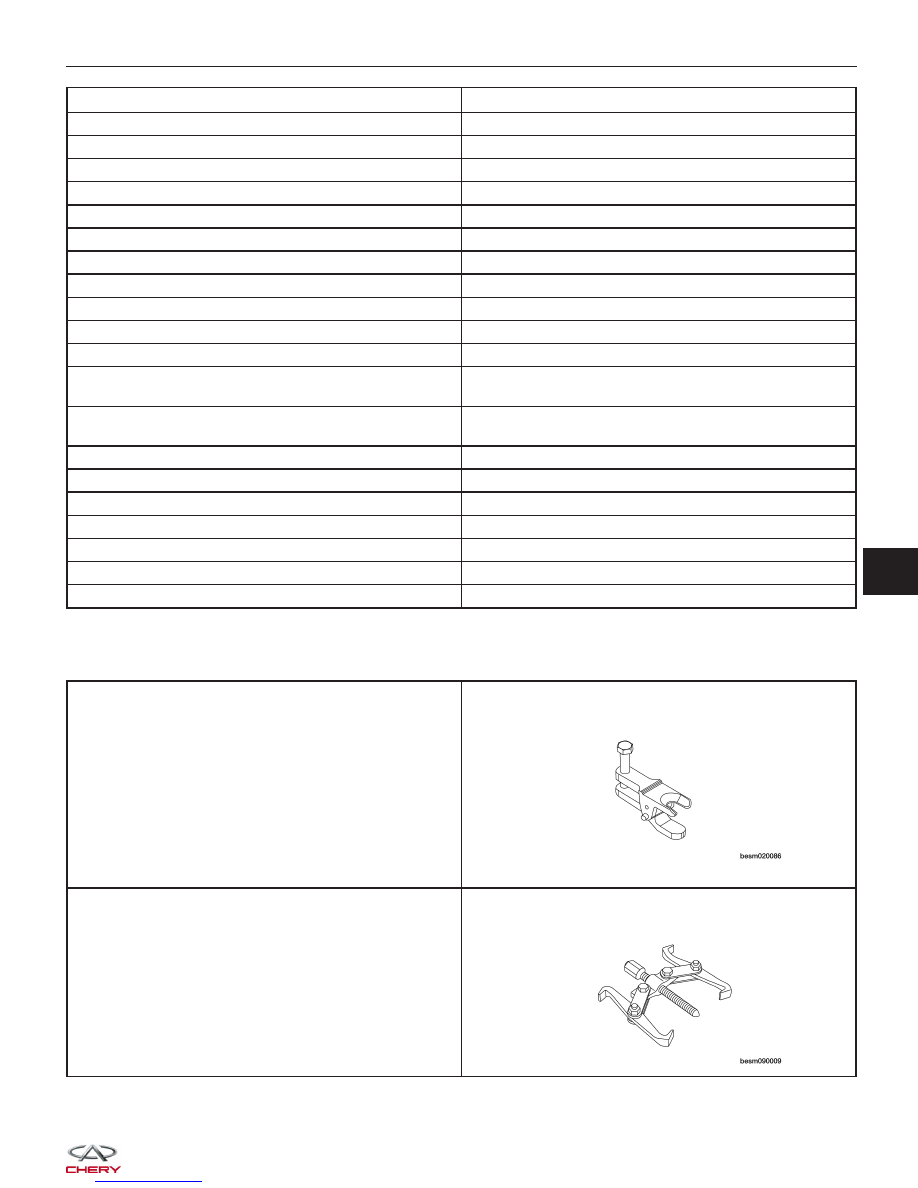

Special Tools

Ball Joint Separator

CH-10002

Bearing Puller

GENERAL INFORMATION

09



DIAGNOSIS & TESTING

Vehicle Inspection

Inspect the following for leaks or damage:

• Check for grease in the vicinity of the inboard tripod joint and outboard CV joint.

• Check the inner or outer joint seal boot or seal boot clamp for damage.

Noise Or Vibration On Turns

A clicking noise or a vibration in turns could be caused by one of the following conditions:

• Damaged outer CV joint or damaged CV seal boot or seal boot clamps.

• Damaged inner CV joint or damaged CV seal boot or seal boot clamps.

• Noise may also be caused by another component of the vehicle coming in contact with the half shafts.

NOTE :
If the CV seal boot is damaged, this will result in the loss and/or contamination of the joint grease, resulting in inad-
equate lubrication of the joint.

Clunking Noise During Acceleration

This noise may be a result of one of the following conditions:

• A torn seal boot on the inner or outer joint of the half shaft assembly.

• A loose or missing clamp on the inner or outer joint of the half shaft assembly.

• A damaged or worn half shaft CV joint.

Shudder Or Vibration During Acceleration

This problem could be a result of:

• A worn or damaged half shaft inner tripod joint.

• Improper wheel alignment.

Vibration At High Speeds

This problem could be a result of:

• Foreign material (mud, etc.) packed on the backside of the wheel(s).

• Out of balance tires or wheels.

• Improper tire or wheel runout.



ON-VEHICLE SERVICE

Front Hub and Bearing

Removal & Installation

NOTE :
The following special tools are required to perform the repair procedure:
• Bearing Puller

1. Raise and support the vehicle.

2. Remove the wheel mounting nuts and the tire and wheel assembly.

(Tighten: Wheel mounting nuts to 110 N·m)

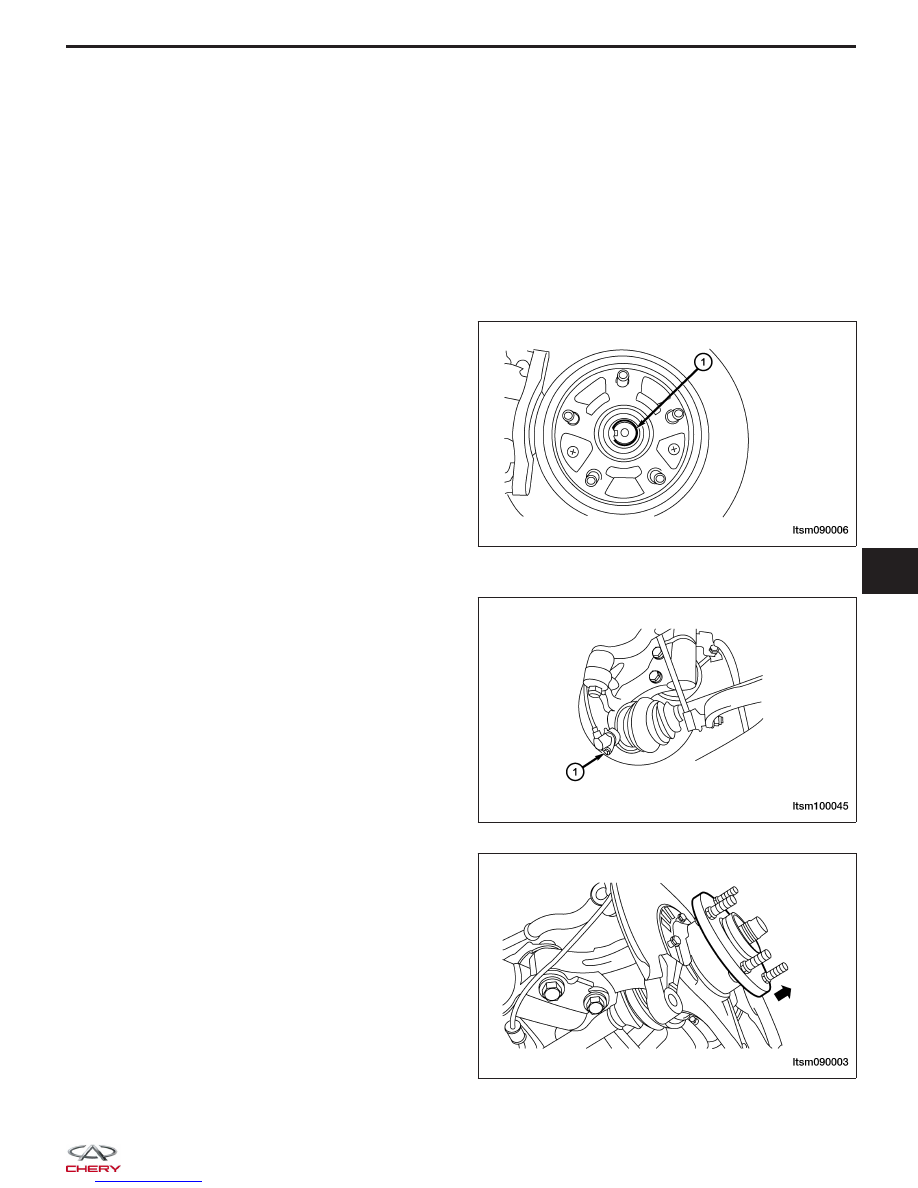

3. Remove the front axle hub nut (1) from the front

knuckle.
(Tighten: Front axle hub nut to 135 N·m)

4. Remove the front brake rotor (See Front Brake Rotor Removal & Installation in Section 12 Brakes).

5. Remove the wheel speed sensor mounting bolt (1),

then remove the wheel speed sensor.

6. Using the bearing puller, remove the wheel hub

bearing from the knuckle.

7. Installation is in the reverse order of removal.

LTSM090006

LTSM100045

LTSM090003

09



Front Axle Shaft

Removal & Installation

1. Raise and support the vehicle.

2. Remove the wheel mounting nuts and the tire and wheel assembly.

(Tighten: Wheel mounting nuts to 110 N·m)

3. Remove the front axle hub nut (1) from the front

knuckle.
(Tighten: Front axle hub nut to 135 N·m)

4. Remove the wheel speed sensor bolt (1), then

remove wheel speed sensor.

5. Remove the brake caliper adapter to steering knuckle mounting bolts.

(Tighten: Brake caliper adapter mounting bolts to 85 N·m)

6. Remove the brake caliper adapter (with the brake caliper still attached).

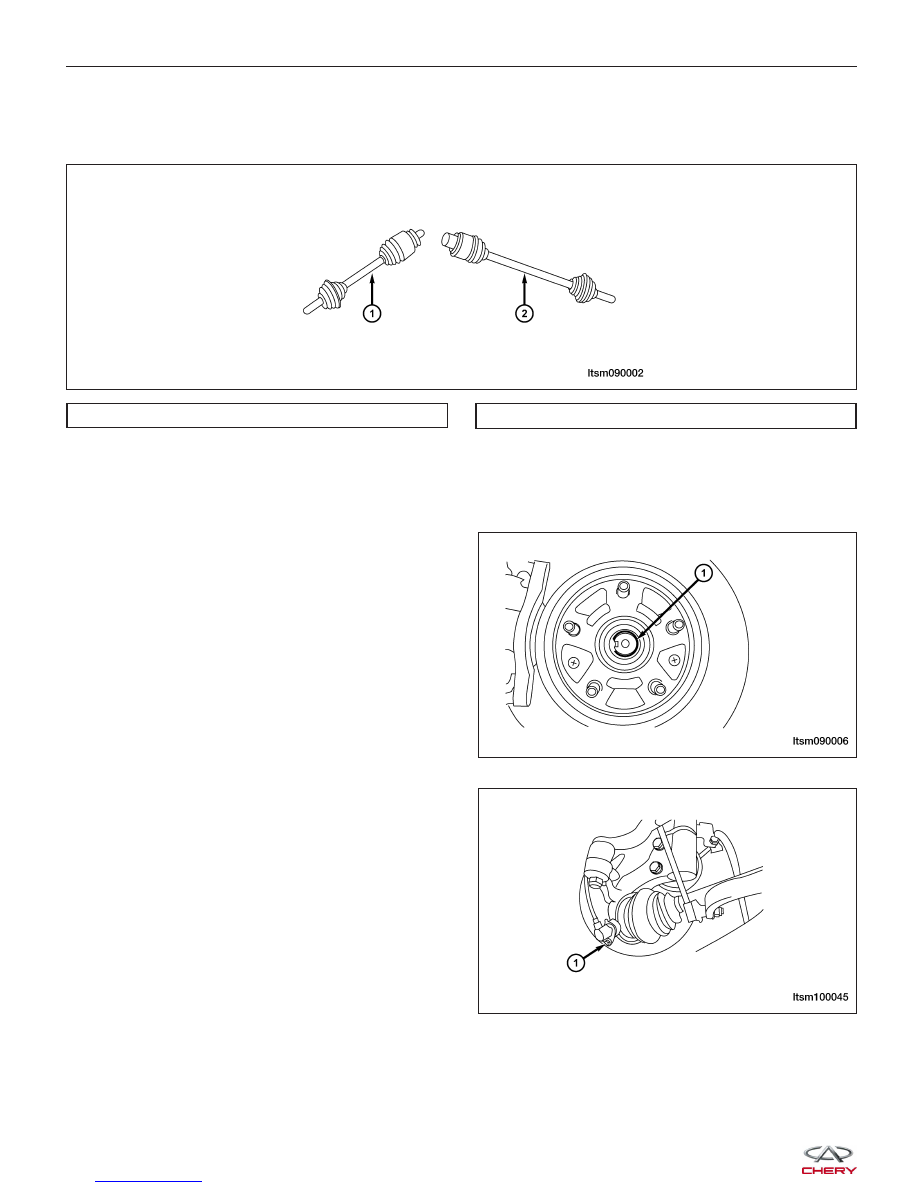

1 - Left Half Shaft

2 - Right Half Shaft

ON-VEHICLE SERVICE

LTSM090002

LTSM090006

LTSM100045
