Chery Tiggo. Manual - part 311





Assemble

Assemble in the reverse order of disassembly.

NOTE :
• Check and ensure the shift fork is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check and ensure the fork rack is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check and ensure backup light driving block is properly installed to the fork shaft, there should be NO axial or

radial motion in the fork shaft.

• Check the fork shaft surface for any damage.

• Check the position of the three spring pins, ensure the pins are in proper alignment. The extension of both ends

of the three spring pins should not exceed 3 mm.

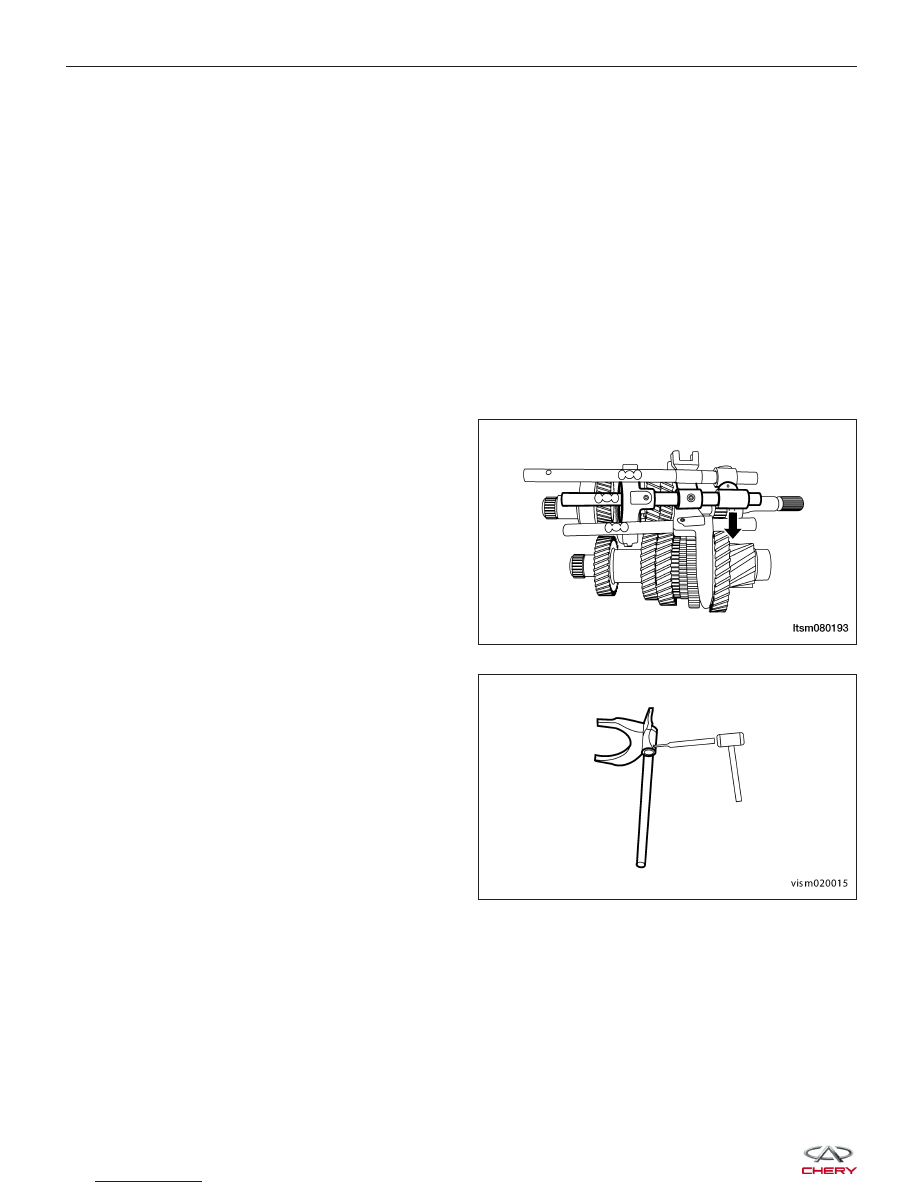

3rd-4th Gear Shift Fork

Disassemble

1. Separate the 3rd-4th shift fork from the shift fork

assembly.

2. Use a suitable tool to remove the shift fork spring

pin from the shift fork and the shift fork shaft.

MANUAL TRANSAXLE UNIT REPAIR

LTSM080193

VISM020015



3. Remove the spring pins (3) from the 3rd-4th shift fork shaft (1).

4. Separate the 5th shift fork (4) and the fork rack (2) from the 3rd-4th shift fork shaft (1).

Assemble

Assemble in the reverse order of disassembly.

NOTE :
• Check and ensure the shift fork is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check and ensure the fork rack is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check the fork shaft surface for any damage.

• Check the position of the three spring pins, ensure the pins are in proper alignment. The extension of both ends

of the three spring pins should not exceed 3 mm.

1st-2nd Gear Shift Fork

Disassemble

1. Separate the 1st-2nd shift fork from the shift fork

assembly.

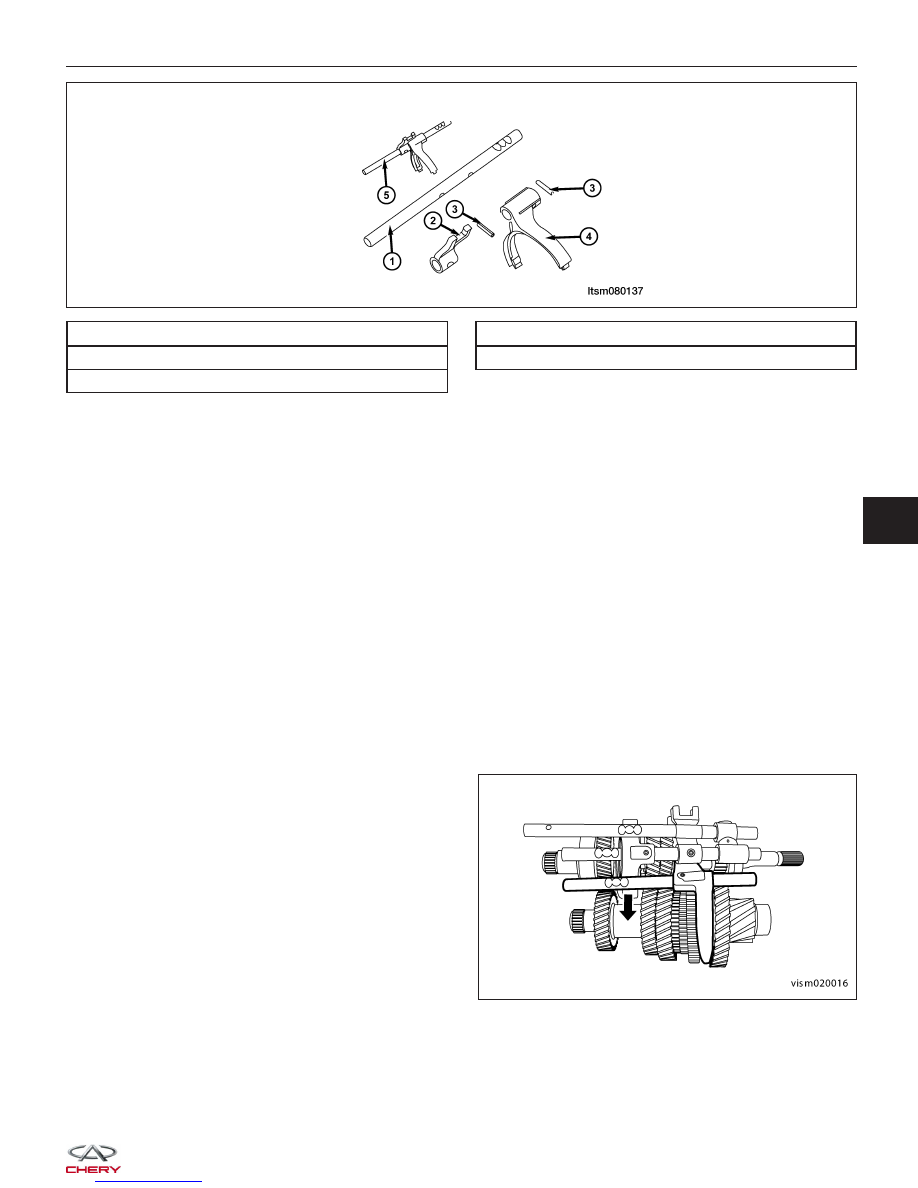

1 - 3rd-4th Shift Fork Shaft

2 - Fork Rack - 3rd-4th Gear Shift Fork

3 - Spring Pin for Fork Shaft

4 - 3rd-4th Shift Fork

5 - 3rd-4th Shift Fork Shaft Assembly

MANUAL TRANSAXLE UNIT REPAIR

LTSM080137

VISM020016

08



2. Use a suitable tool to remove the shift fork spring

pin from the shift fork and the shift fork shaft.

3. Remove the spring pins (3) from the 1st-2nd shift fork shaft (1).

4. Separate the 1st-2nd shift fork (4) and the fork rack (2) from the 1st-2nd shift fork shaft (1).

Assembly

Assemble in the reverse order of disassembly.

NOTE :
• Check and ensure the shift fork is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check and ensure the fork rack is properly installed to the fork shaft, there should be NO axial or radial motion in

the fork shaft.

• Check the fork shaft surface for any damage.

• Check the position of the three spring pins, ensure the pins are in proper alignment. The extension of both ends

of the three spring pins should not exceed 3 mm.

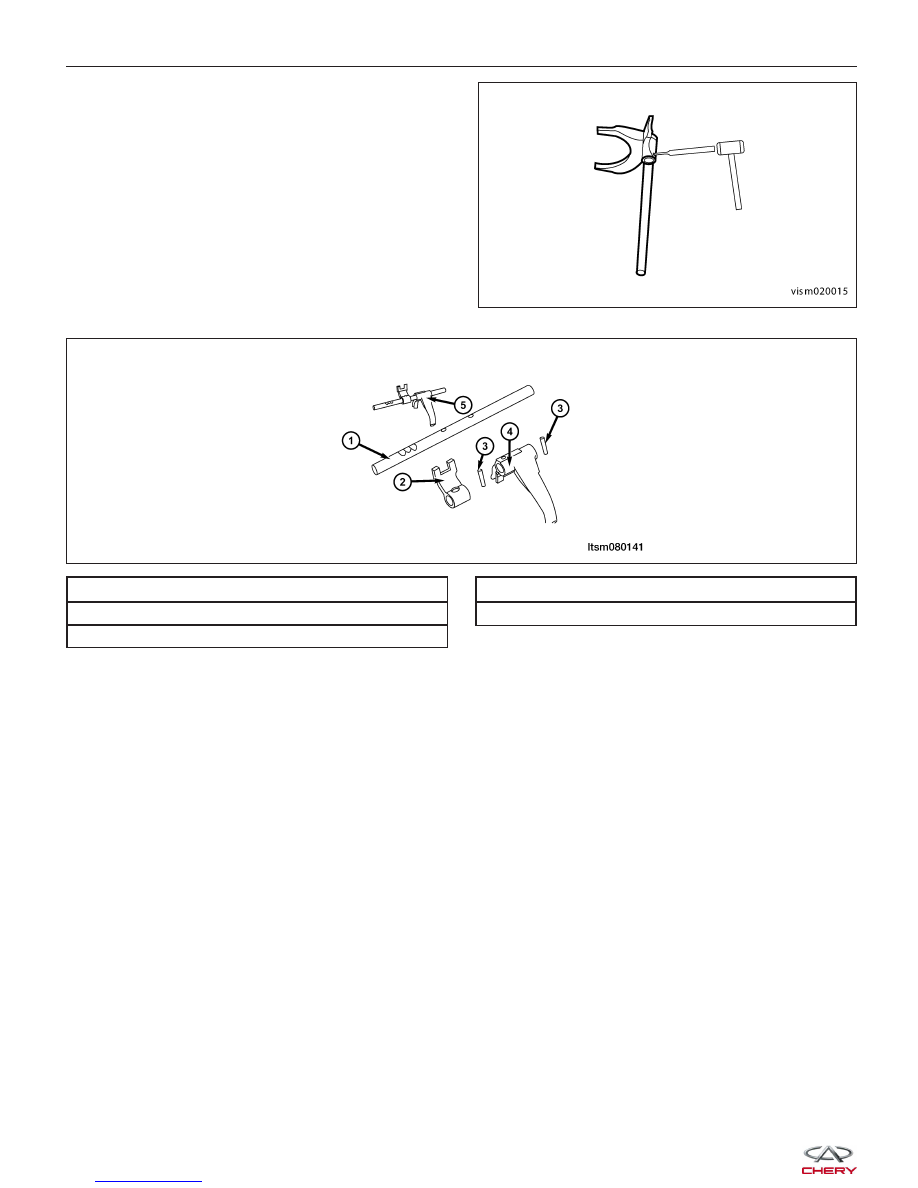

1 - 1st-2nd Shift Fork Shaft

2 - Fork Rack - 1st-2nd Gear Shift Fork

3 - Spring Pin for Fork Shaft

4 - 1st-2nd Shift Fork

5 - 1st-2nd Shift Fork Shaft Assembly

MANUAL TRANSAXLE UNIT REPAIR

VISM020015

LTSM080141

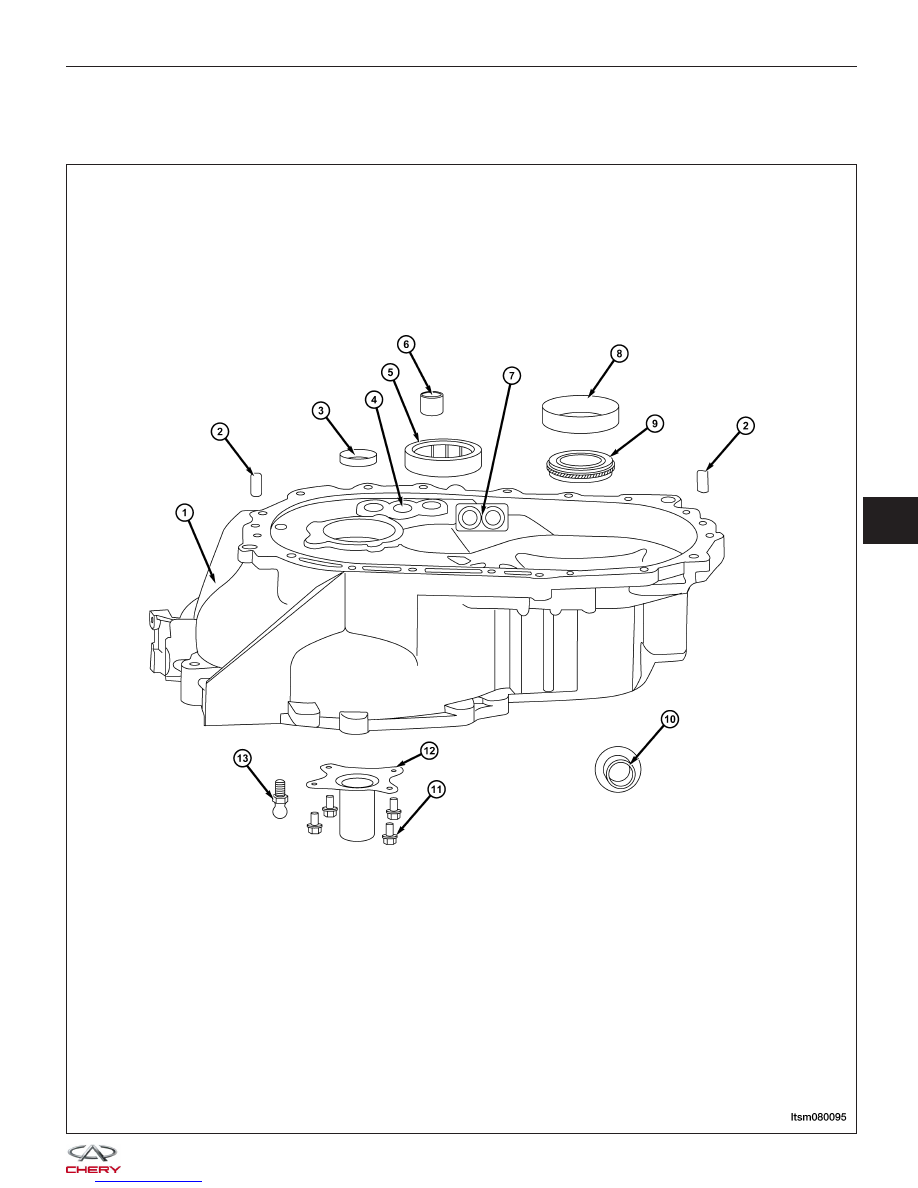

Transaxle Clutch Housing Assembly

Disassemble

MANUAL TRANSAXLE UNIT REPAIR

LTSM080095

08
