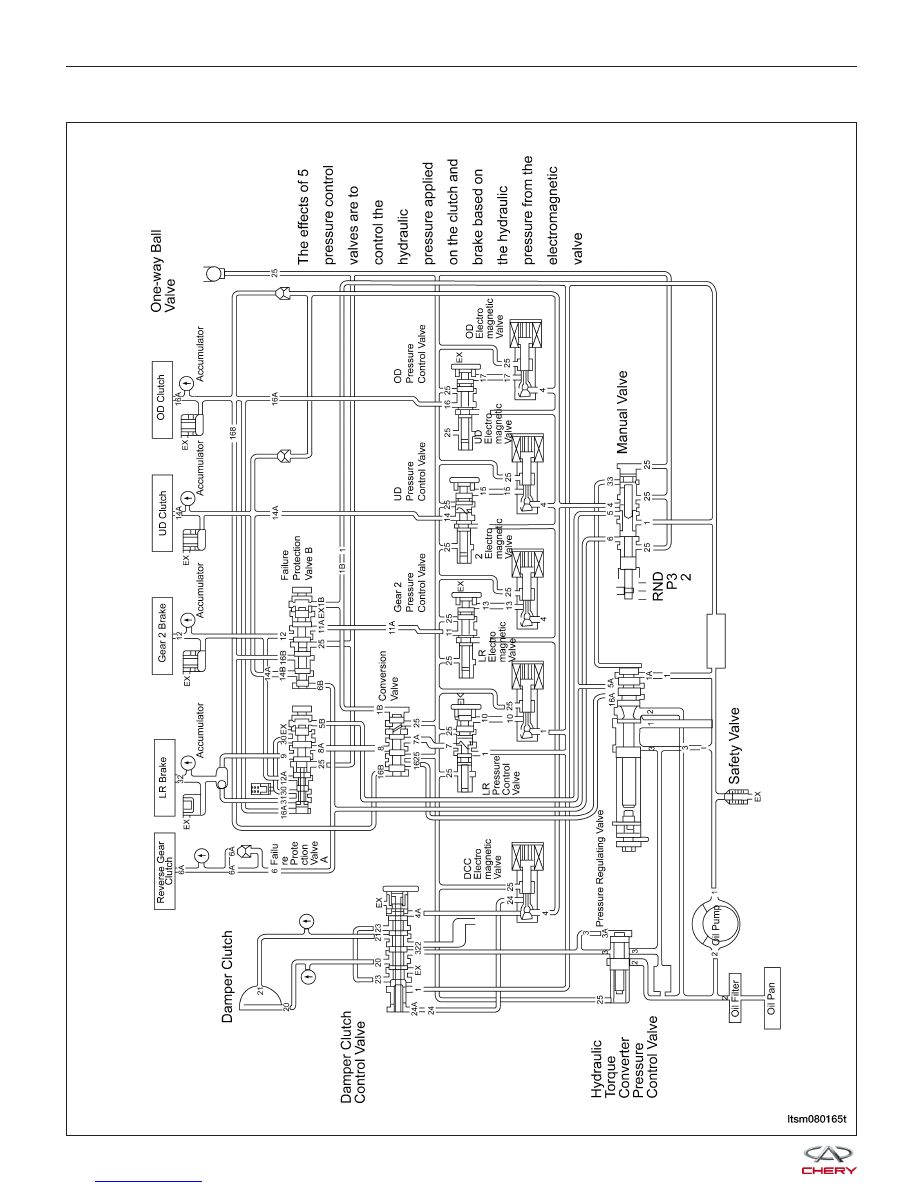

Transaxle Hydraulic Schematics

GENERAL INFORMATION

LTSM080165T



Specifications

Related Operating Components

GEARSHIFT

LEVER

POSITION

GEAR
RATIO

ENGINE
START

PARKING
MECHANISM

DRIVE

LOCK

LOW
SPEED
CLUTCH
(UD)

REVERSE
GEAR
CLUTCH
(REV)

OVERSPEED
CLUTCH
(OD)

LOW
GEAR/
REVERSE
GEAR
BRAKE
(LR)

GEAR
BRAKE
(2ND)

ONE-
WAY
CLUTCH
(OWC)

P

Parking

-

Enabled

X

-

-

-

X

-

-

R

Reverse

Gear

2.480

-

-

-

X

-

X

-

-

N

Neutral

Gear

-

Enabled

-

-

-

-

X

-

-

D

Gear 1

2.842

-

-

X

-

-

X*

-

X

Gear 2

1.529

-

-

X

-

-

-

X

-

Gear 3

1.000

-

-

X

-

X

-

-

-

Gear 4

0.712

-

-

-

-

X

-

X

-

3

Gear 1

2.842

-

-

X

-

-

X*

-

X

Gear 2

1.529

-

-

X

-

-

-

X

-

Gear 3

1.000

-

-

X

-

X

-

-

-

2

Gear 1

2.842

-

-

X

-

-

X*

-

X

Gear 2

1.529

-

-

X

-

-

-

X

-

L

Gear 1

2.842

-

-

X

-

-

X

-

-

*Low gear/reverse gear is applied when vehicle speed is lower than 10 km/h. X = Operating Components

Lubrication Specifications

DESCRIPTION

ITEM

Transaxle Fluid Quantity

6.5L

Fluid Type

DEXTRON III

Fluid Change Cycle

40000 Km or 3 years

GENERAL INFORMATION

08



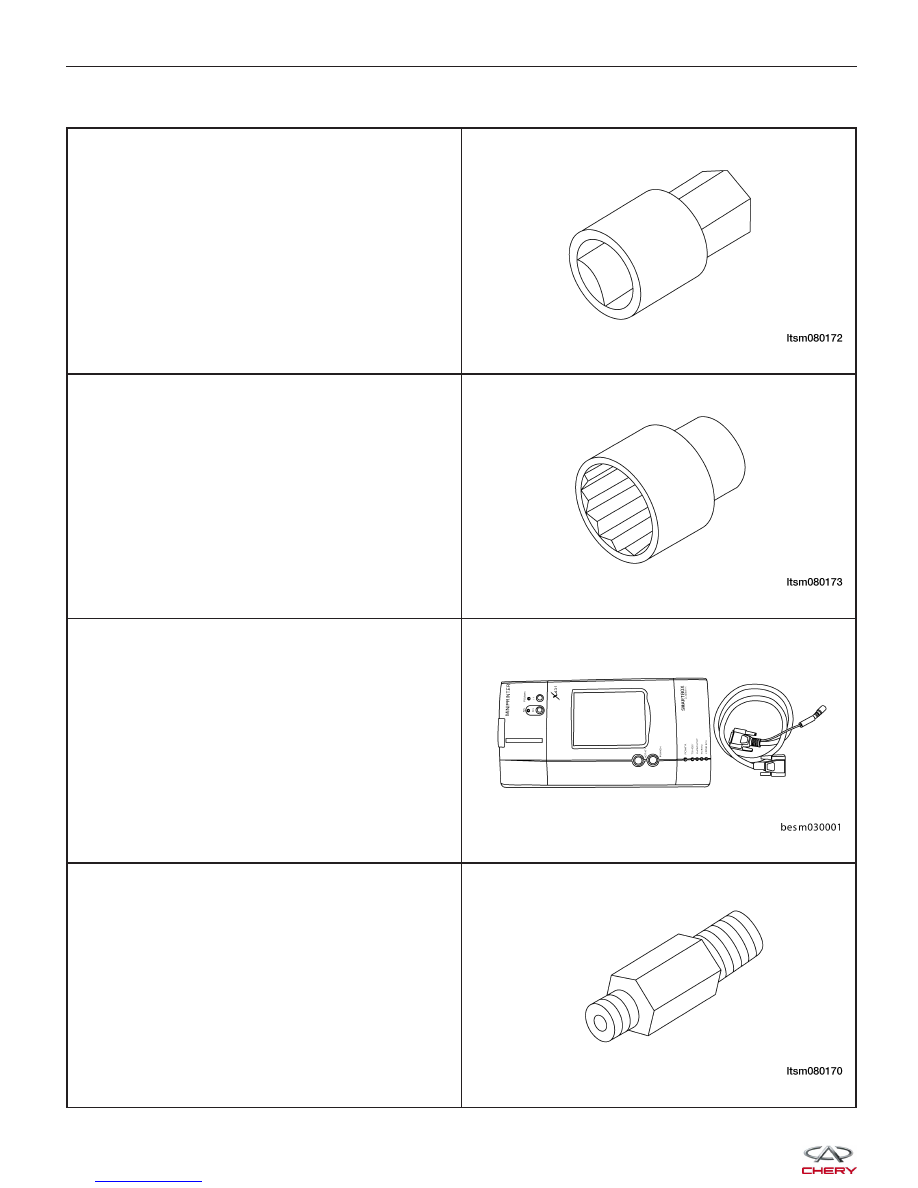

Special Tools

Torque Wrench Socket

MB-990607

Special Socket (41)

MB-991625

Diagnostic Scan Tool

X-431

Fluid Pressure Gauge Connector

MB-998332

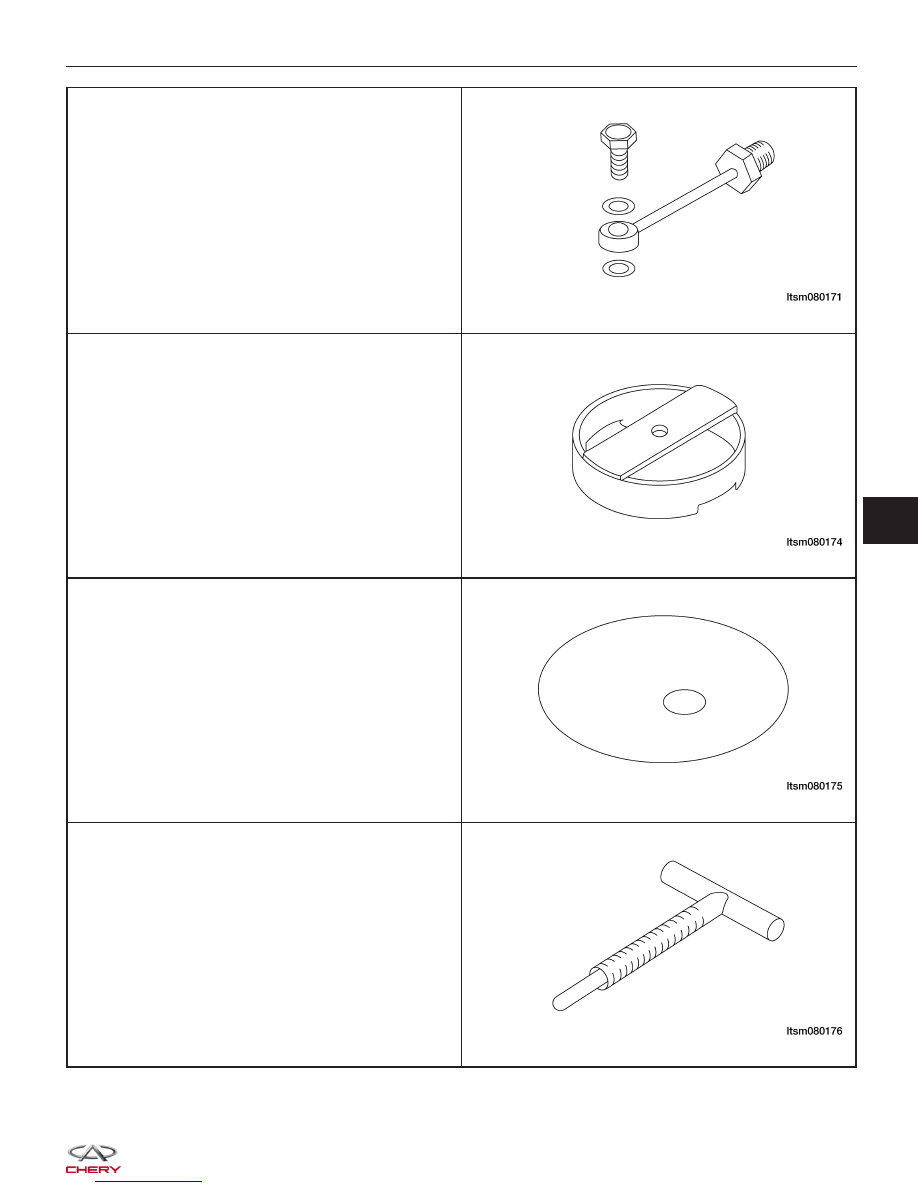

GENERAL INFORMATION



Fluid Pressure Gauge Connector

MB-998900

Spring Compressor

MB-991625

Clearance Measurer

MB-991631

Fluid Pump Dismounter

MB-998333

GENERAL INFORMATION
