GENERAL INFORMATION

Description

The generator is belt-driven by the engine. It is serviced only as a complete assembly. If the generator fails for any
reason, the entire assembly must be replaced. The generator produces DC voltage.

Operation

As the energized rotor begins to rotate within the generator, the spinning magnetic field induces a current into the
windings of the stator coil.

The Y-type stator winding connections deliver the induced AC current to 3 positive and 3 negative diodes for recti-
fication. From the diodes, rectified DC current is delivered to the vehicle’s electrical system through the generator,
battery, and ground terminals.

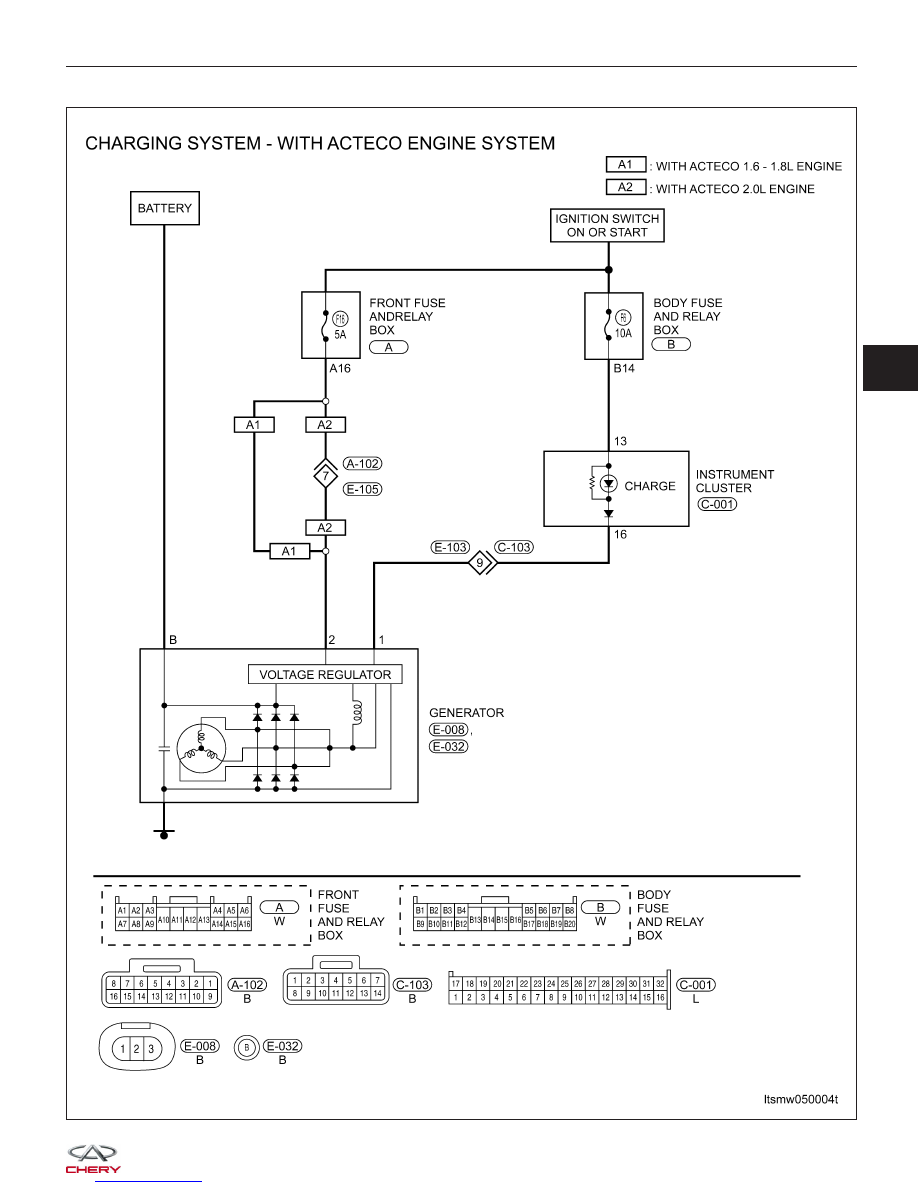

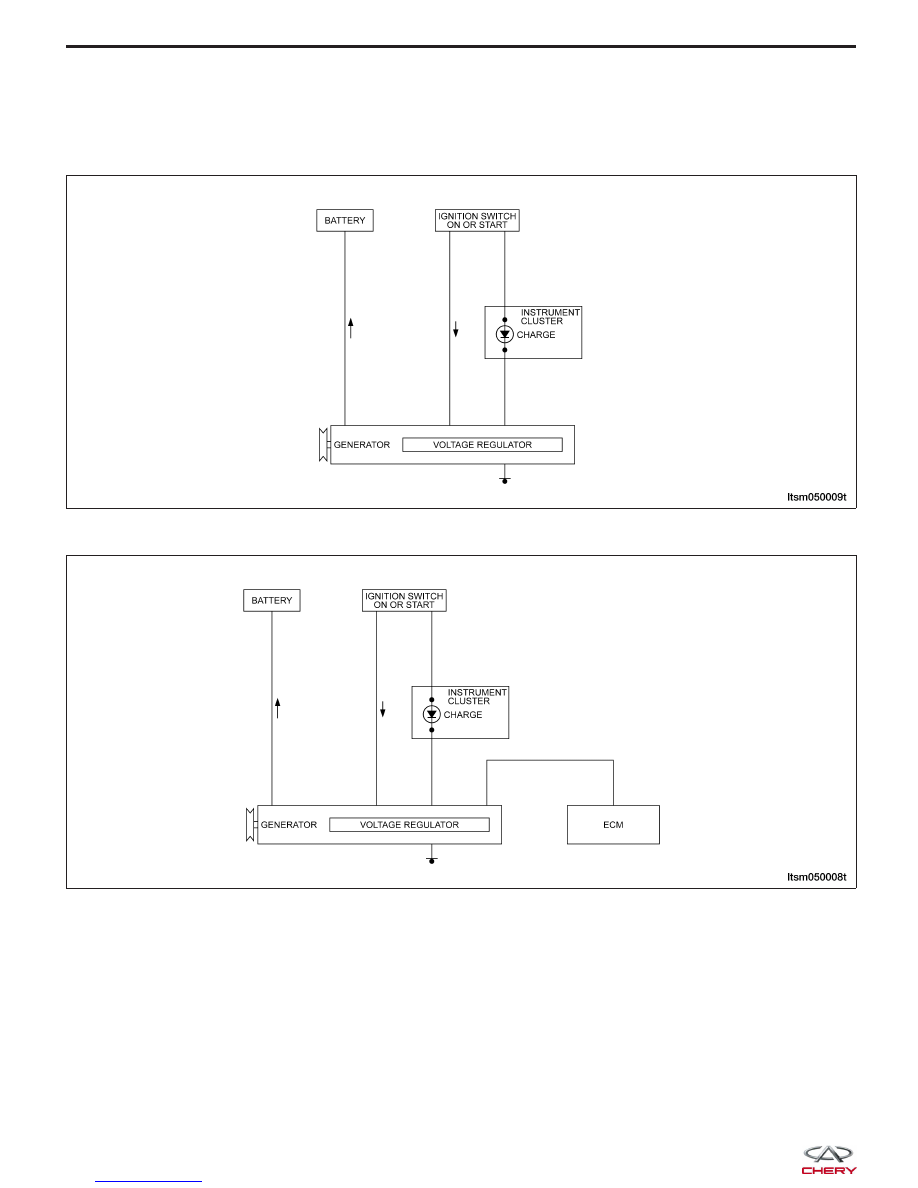

1.6L & 1.8L & 2.0L

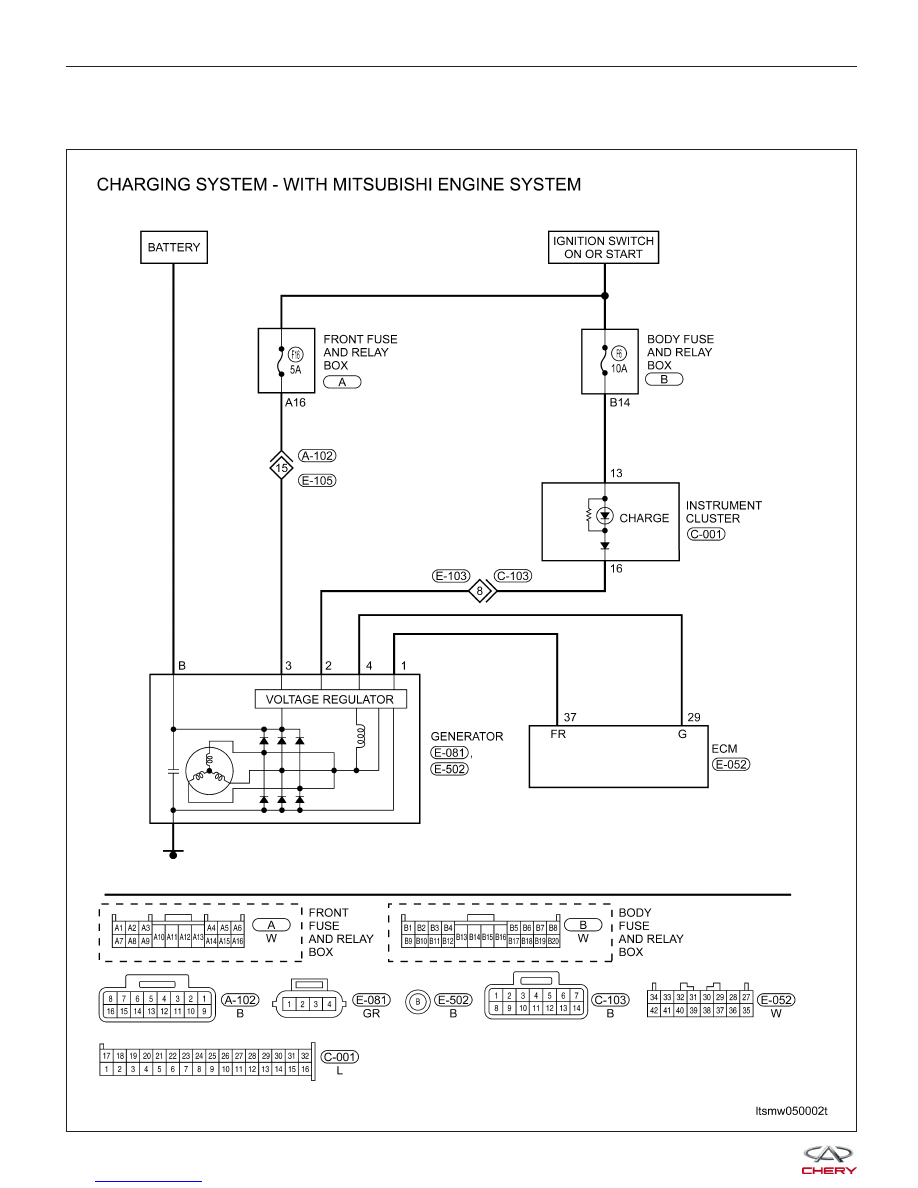

2.4L

LTSM050009T

LTSM050008T
