Positive Battery Cable

Removal & Installation

1. Disconnect the negative battery cable.

2. Disconnect the positive battery cable.

3. Remove the battery cable from the B+ terminal of the generator.

4. Remove the battery cable from the B+ terminal of the starter motor.

5. One at a time, trace the battery cable retaining push pins, fasteners and routing clamps until the cables are free

from the vehicle.

6. Remove the battery cable from the engine compartment.

7. Installation is in the reverse order of removal.

Negative Battery Cable

Removal & Installation

1. Disconnect the negative battery cable.

2. Remove the bolts securing the negative cable to the body ground and the transaxle.

3. One at a time, trace the battery cable retaining push pins, fasteners and routing clamps until the cables are free

from the vehicle.

4. Remove the battery cable from the engine compartment.

5. Installation is in the reverse order of removal.

Battery Hold Down

Removal & Installation

1. Remove the retaining nuts (1).

2. Remove the battery hold down.

3. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

LTSM050001



Battery Tray

Removal & Installation

1. Disconnect the negative battery cable.

2. Disconnect the positive battery cable.

3. Remove the battery hold down.

4. Remove the battery.

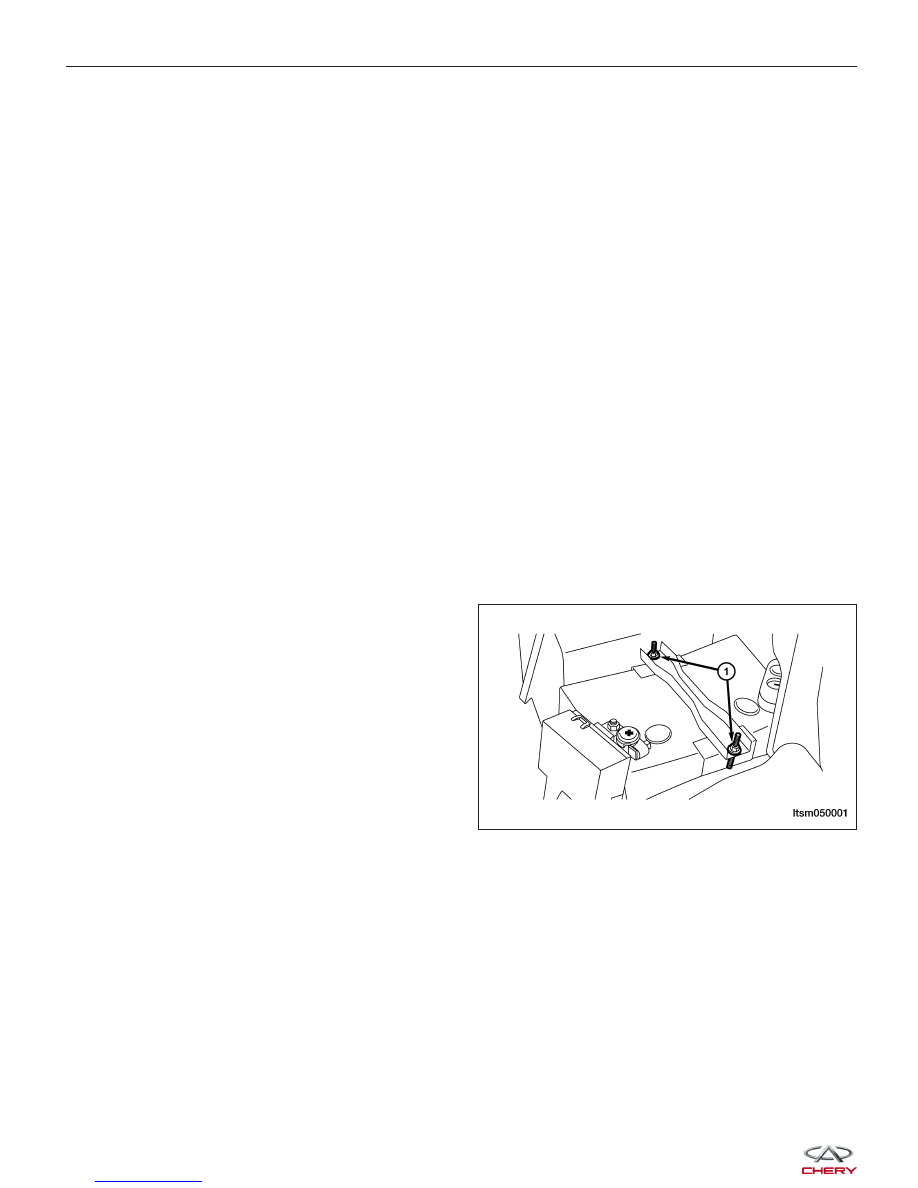

5. Remove the three bolts (1) from the battery tray.

6. Lift the battery tray out of the engine compartment

and remove from the vehicle.

7. Installation is in the reverse order of removal.

Starter Motor Assembly

Description

The starter motor is mounted with two bolts to the transaxle housing and is located on the side of the engine. The
starter motor incorporates several features to create a reliable, efficient, compact, lightweight and powerful unit. The
electric motor of the starter features electromagnetic field coils wound around pole shoes, and brushes contact the
motor commutator. The starter motor is serviced only as a unit and cannot be repaired.

Operation

The starter motor is equipped with a planetary gear reduction system. The planetary gear reduction system consists
of a gear that is integral to the output end of the electric motor armature shaft that is in continual engagement with
a larger gear that is splined to the input end of the starter pinion gear shaft. This feature makes it possible to reduce
the dimensions of the starter. At the same time, it allows higher armature rotational speed and delivers increased
torque through the starter pinion gear to the starter ring gear.

Removal & Installation - 1.6L & 1.8L & 2.0L

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector from the starter.

3. Remove the bolts connecting the engine oil dipstick to the cylinder block and intake manifold.

4. Remove the engine oil dipstick.

NOTE :
After removing the engine oil dipstick, you should immediately plug the hole in the cylinder block in order to prevent
any debris from entering the engine.

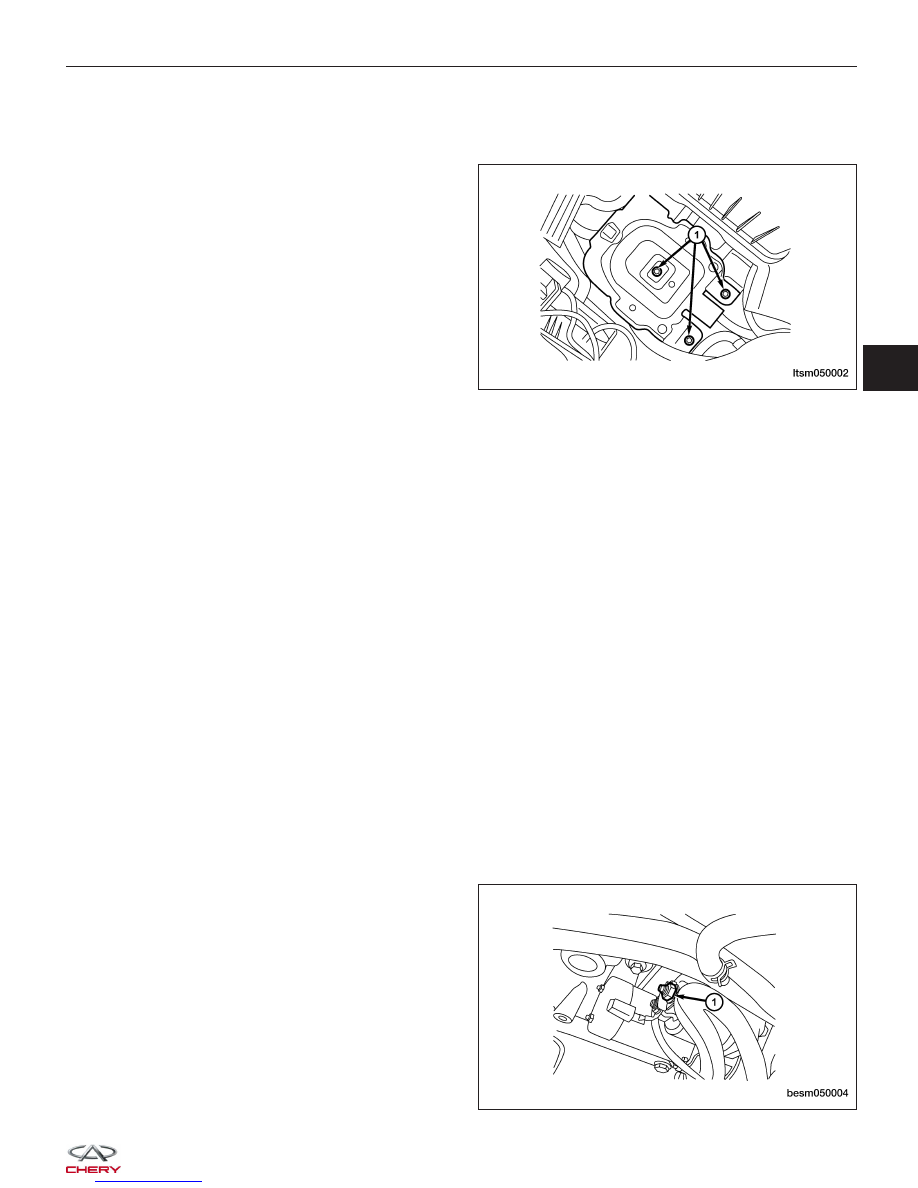

5. Remove the starter solenoid nut (1) from the

starter.
(Tighten: Starter solenoid nut to 10 N·m)

ON-VEHICLE SERVICE

LTSM050002

BESM050004

05



6. Remove the two starter mounting bolts (1) connect-

ing the starter and transaxle.
(Tighten: Starter mounting bolts to 30 N·m)

7. Remove the starter from the engine.

8. Installation is in the reverse order of removal.

Removal & Installation - 2.4L

1. Disconnect the negative battery cable.

2. Remove the exhaust manifold (See Exhaust Manifold Removal & Installation in Section 02 Engine).

3. Disconnect the electrical connector from the starter.

4. Remove the starter solenoid nuts from the starter.

(Tighten: Starter solenoid nuts to 10 N·m)

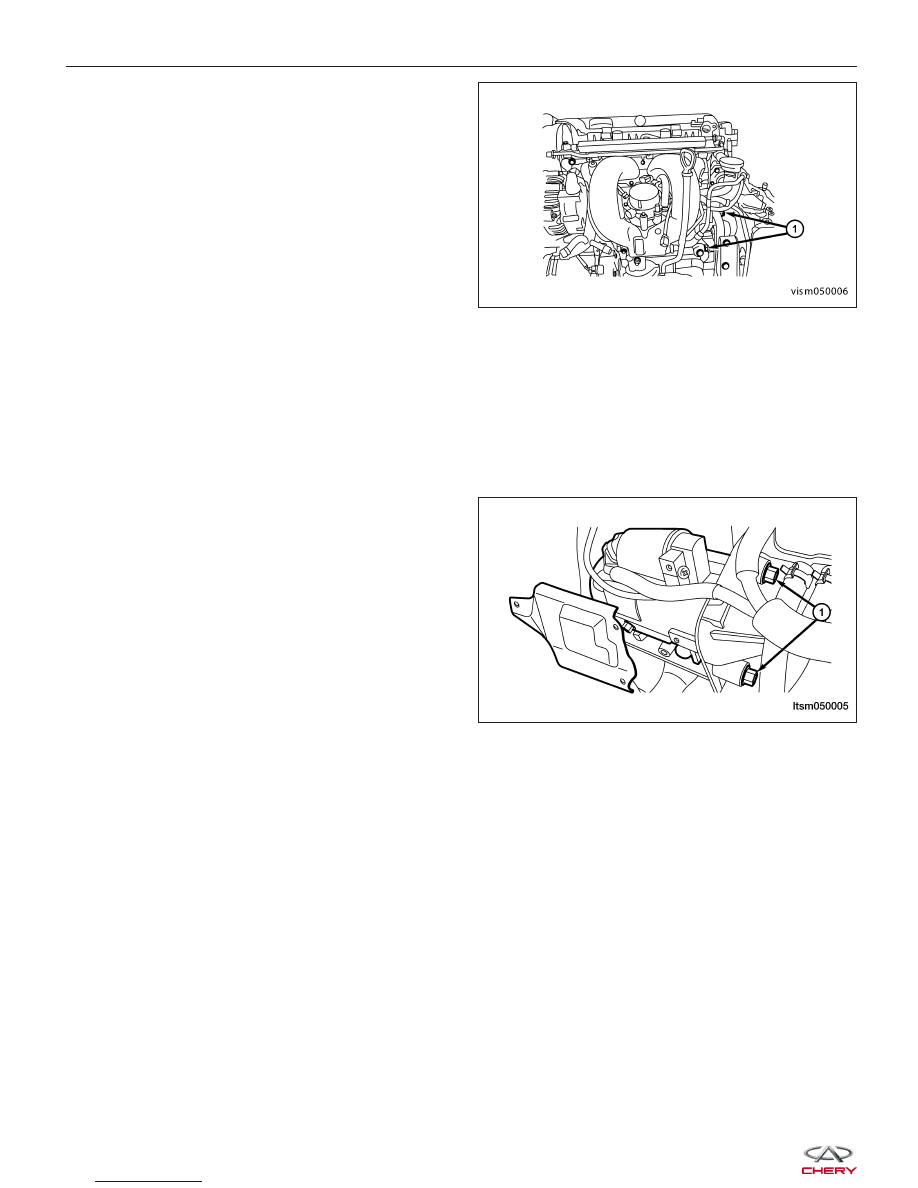

5. Remove the two starter mounting bolts (1) connecting the starter and transaxle.

(Tighten: Starter mounting bolts to 30 N·m)

6. Remove the starter from the engine.

7. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

VISM050006

LTSM050005
