IGNITION CONTROL

GENERAL INFORMATION

03-566

Description

03-566

Operation

03-566

Specifications

03-566

Special Tools

03-567

Electrical Schematics

03-568

ON-VEHICLE SERVICE

03-571

Ignition Coil 1.6L & 1.8L & 2.0L

03-571

Description

03-571

Operation

03-571

Removal & Installation

03-571

Ignition Coil 2.4L

03-572

Description

03-572

Operation

03-572

Removal & Installation

03-572

Spark Plug Wire 1.6L & 1.8L & 2.0L

03-573

Removal & Installation

03-573

Spark Plug Wire 2.4L

03-574

Removal & Installation

03-574

Spark Plug 1.6L & 1.8L & 2.0L

03-574

Removal & Installation

03-574

Spark Plug 2.4L

03-575

Removal & Installation

03-575

03



GENERAL INFORMATION

Description

The electronic ignition system consists of the following components:

• Engine Control Module (ECM)

• Ignition Coil

• Spark Plugs

• Spark Plug Wires

• Camshaft Position (CMP) Sensor

• Crankshaft Position (CKP) Sensor

Operation

The ignition system utilizes a split ignition coil which supplies secondary voltage to two cylinders. When the ignition
coil discharges, two spark plugs fire at the same time. The Engine Control Module (ECM) uses inputs from the
Crankshaft Position (CKP) Sensor to determine the Top Dead Center (TDC) position of the piston for cylinder number
one, and the Camshaft Position (CMP) Sensor to determine which ignition coil to energize.

Specifications

Torque Specifications

DESCRIPTION

TORQUE (N·m)

Spark Plugs

30

Ignition Coil Bolts

6

Spark Plug Specifications

DESCRIPTION

GAP

FR7DTC

0.7 mm - 1.1 mm



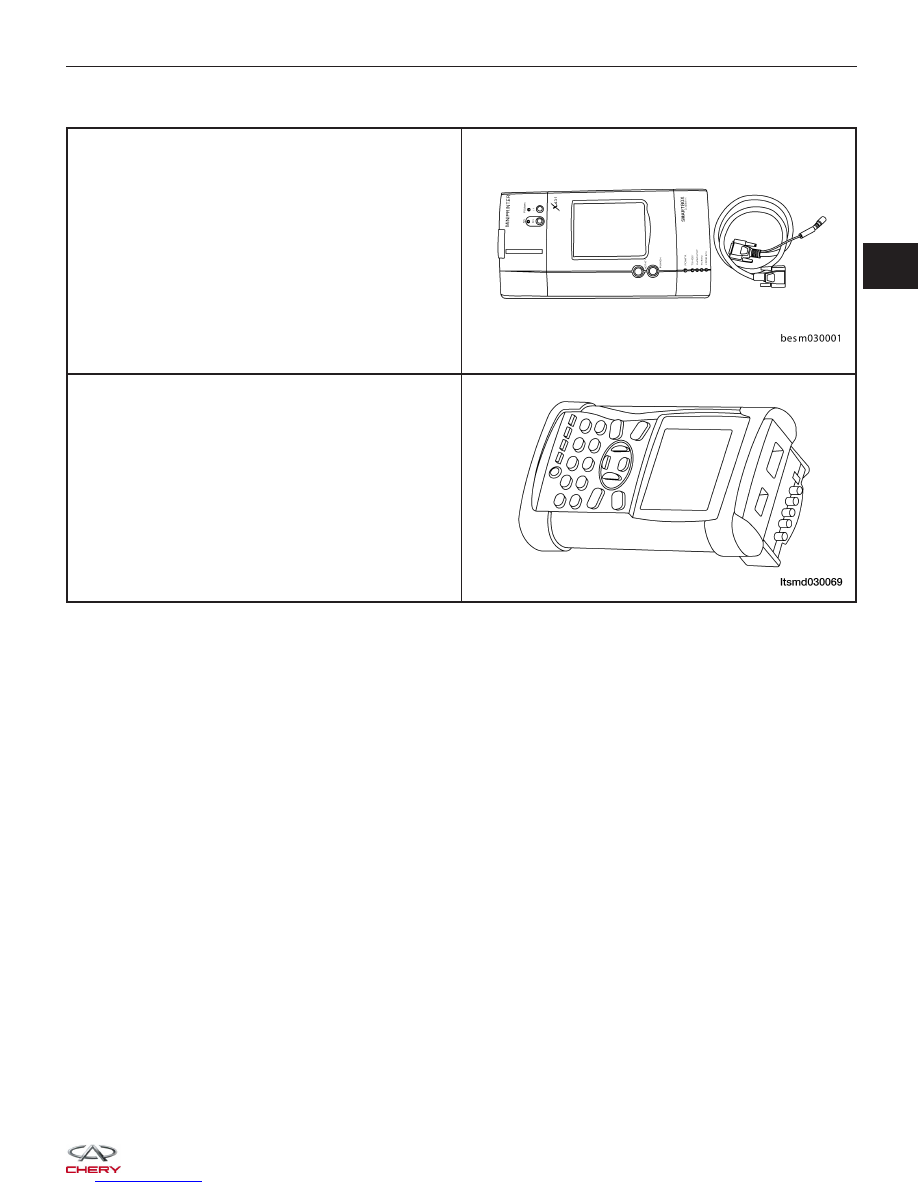

Special Tools

Diagnostic Scan Tool

X-431

Engine Analyzer

KES-200

GENERAL INFORMATION

03



Electrical Schematics

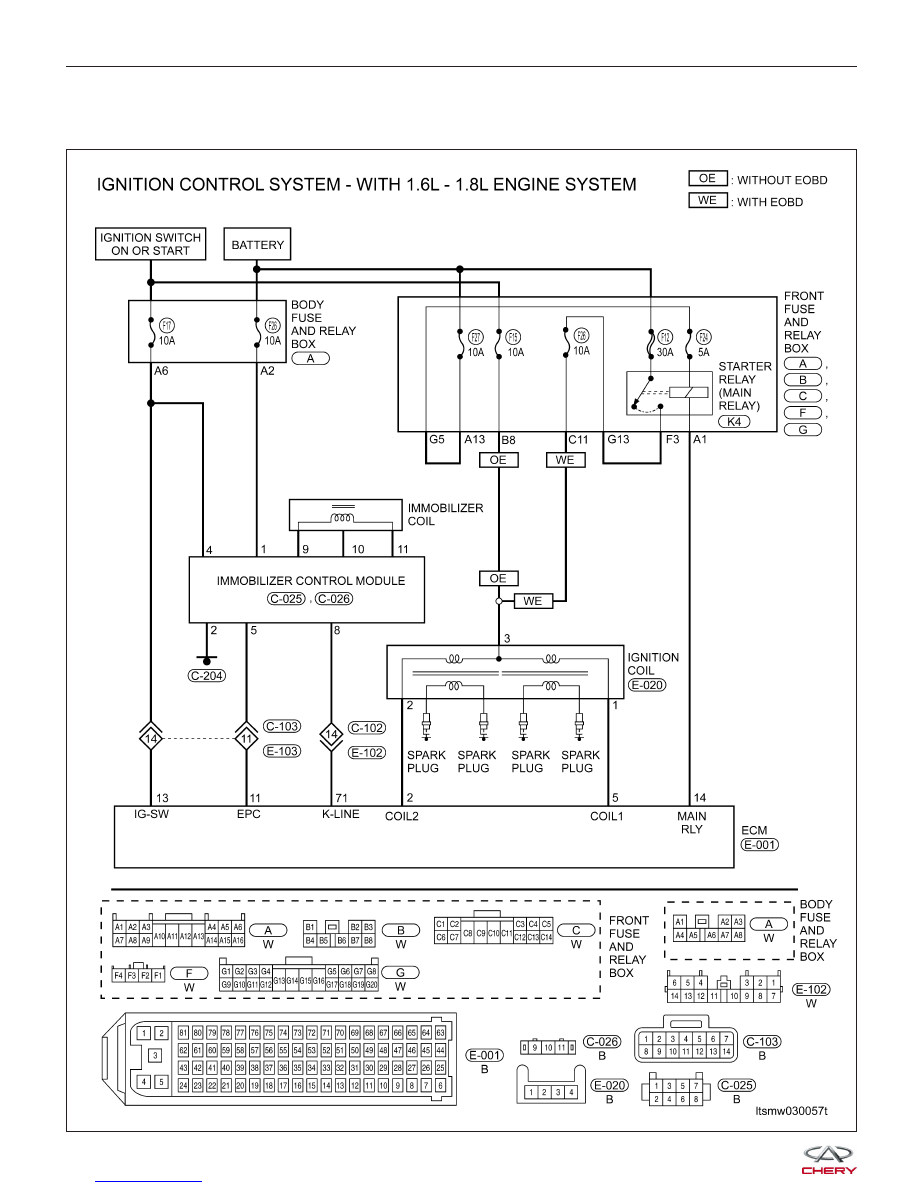

Ignition Control System - 1.6L / 1.8L (Page 1 of 1)

GENERAL INFORMATION

LTSMW030057T
