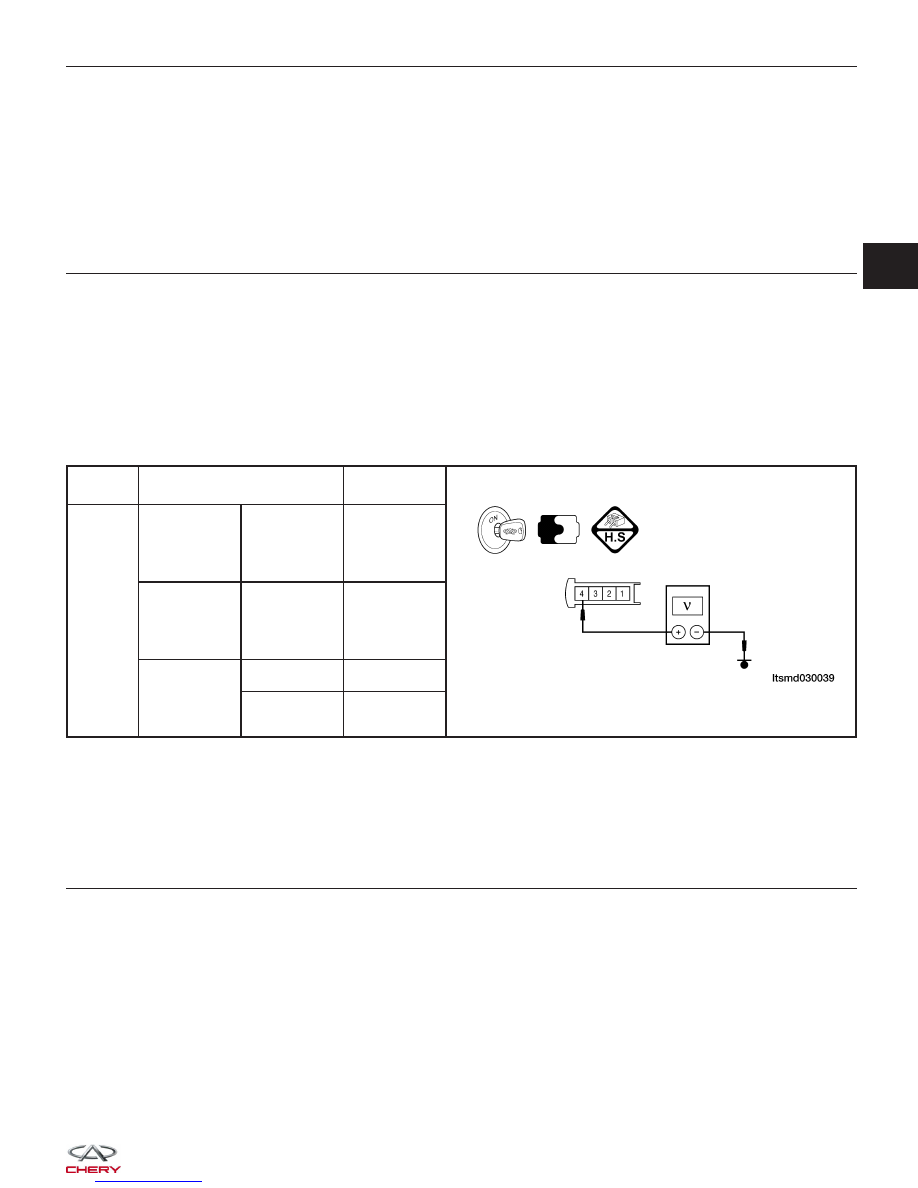

• Continuity should exist. • Check harness short to power supply circuit. Is the check result normal? Yes >> Go to the next step. No >> Repair or replace circuit for an open or short to power in harness or connectors. 5. CHECK O 2 SENSOR • Connect O 2 sensor connector. • Connect ECM connector. • If with the X-431, refer to data stream value. • If without the X-431, as following procedure: − Start engine and warm it up to normal operating temperature 350°C. CHECK ITEM CHECK CONTENT NORMAL VALUE Oxygen sensor • Warm-up condition • Become lean while Decelerate RPM suddenly Below 100 mV • Warm-up condition • Become rich while Accelerate suddenly Approximately 600 - 900 mV • Warm-up condition • Check with O 2 sensor signal Idle 100 - 900 mV 2500 RPM Approximately 600 - 900 mV Is the check result normal? Yes >> Go to the next step. No >> Replace O 2 sensor. 6. CHECK DTC • With the X-431 scan tool, read ECM DTCs. • Refer to ⬙DTC Confirmation Procedure⬙. Is DTC P0132 still present? Yes >> Replace the ECM. NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal- lation in Section 03 Electronic Engine Controls). No >> The system is now operating properly. DIAGNOSIS & TESTING 03
|
