Chery Tiggo. Manual - part 60





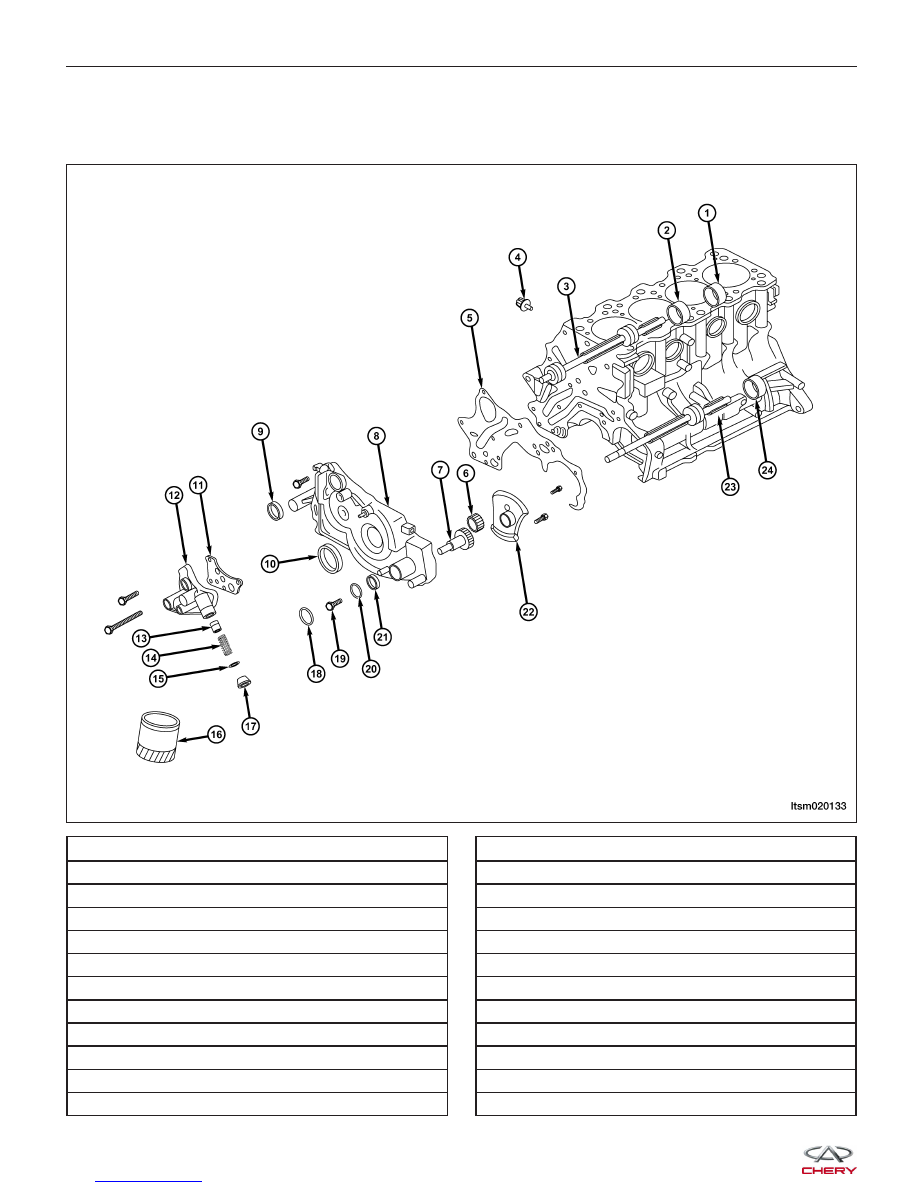

Lower Balance Shaft

Removal & Installation

1 - Upper Balance Shaft Rear Bearing

2 - Upper Balance Shaft Front Bearing

3 - Upper Balance Shaft

4 - Oil Pressure Switch

5 - Front Cover Gasket

6 - Oil Pump Driven Gear

7 - Oil Pump Drive Gear

8 - Front Cover

9 - Upper Balance Shaft Oil Seal

10 - Crankshaft Front Oil Seal

11 - Oil Filter Adapter Gasket

12 - Oil Filter Adapter

13 - Pressure-Relief Valve

14 - Pressure Relief Spring

15 - Pressure-Relief Valve Seal

16 - Oil Filter

17 - Pressure Relief Valve Plug

18 - Plug

19 - Front Cover Bolt

20 - O-Ring

21 - Oil Pump Oil Seal

22 - Oil Pump Cover

23 - Lower Balance Shaft

24 - Lower Balance Shaft Rear Bearing

ON-VEHICLE SERVICE

LTSM020133



NOTE :
The following special tools are required to perform the repair procedure:
• MD-991603 - Balance Shaft Bearing Puller Limiter

• MD-998162 - Plug Spanner

• MD-998371 - Balance Shaft Bearing Puller

• MD-998372 - Balance Shaft Bearing Puller

• MD-998375 - Crankshaft Front Oil Seal Installer

• MD-998705 - Balance Shaft Bearing Installer

• MD-998727 - Oil Pan Remover

• MD-998783 - Plug Spanner Fixer

• MD-991828 - Oil Filter Wrench

• MD-991396 - Oil Filter Wrench

1. Raise and support the vehicle.

2. Loosen the oil drain plug and drain the oil.

3. Remove the engine timing belt (See Engine Timing Belt Removal & Installation in Section 02 Engine).

4. Remove the upper balance shaft timing belt (See Upper Balance Shaft Timing Belt Removal & Installation in

Section 02 Engine).

5. Remove the oil pan retaining bolts.

(Tighten: Oil pan bolts to 18 N·m)

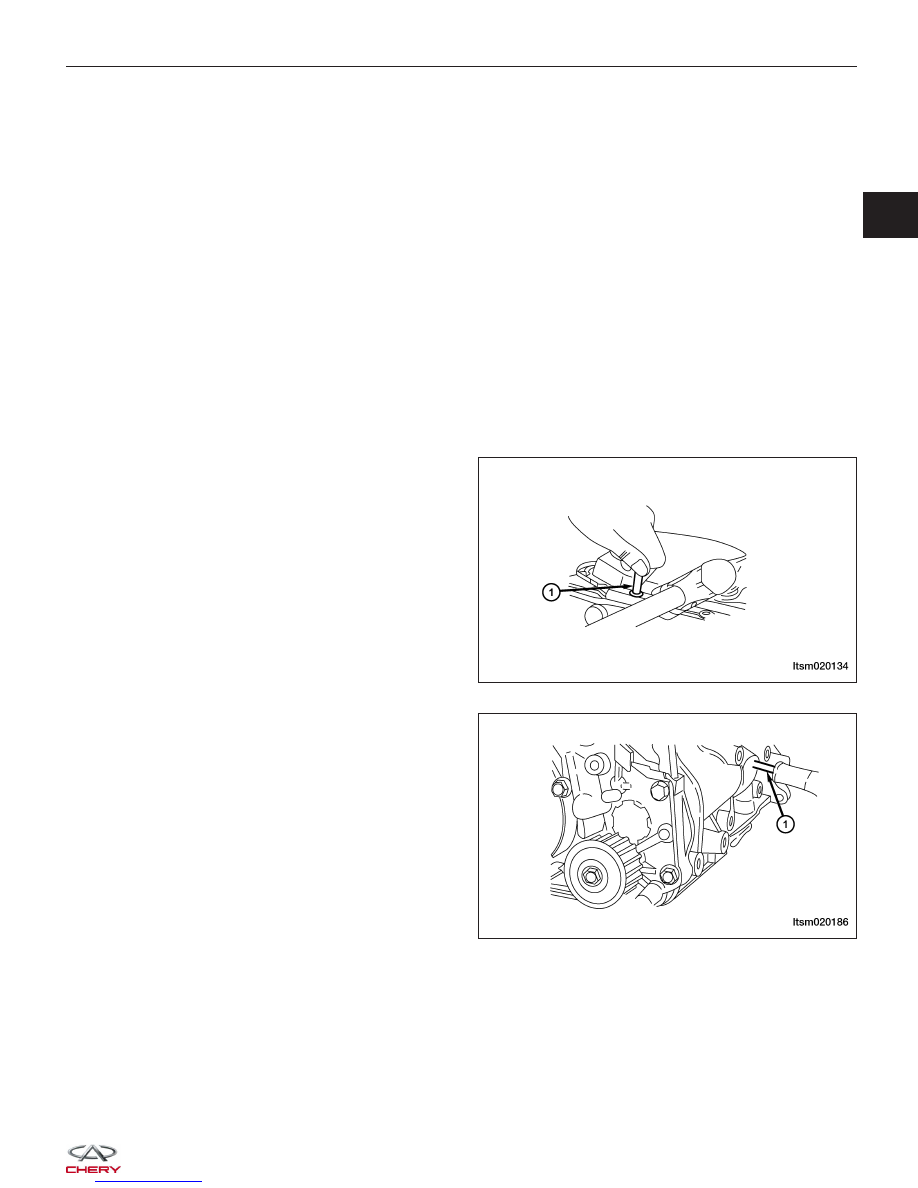

6. Using special tool MD-998727 (1), remove the oil

pan.

NOTE: Insert the special tool between cylinder
block and the oil pan. Do not use a screwdriver or
chisel, otherwise the edge of oil pan may be dis-
torted and oil leaks will occur.

7. Remove the oil strainer retaining bolts.

(Tighten: Oil strainer bolts to 19 N·m)

8. Remove the oil strainer.

9. Remove the oil strainer gasket.

10. Secure the lower balance shaft. Remove the plug

from the cylinder block and then insert a holder (1)
(8 mm diameter) into the hole.

NOTE: If the holder can be inserted more than 60
mm, then the timing marks are aligned. If the
holder could not be inserted more than 20-25 mm,
the lower balance shaft pulley should be rotated
one revolution and the timing marks should be then
be aligned. Keep the holder installed until the
installation of the timing belt is complete.

ON-VEHICLE SERVICE

LTSM020134

LTSM020186

02

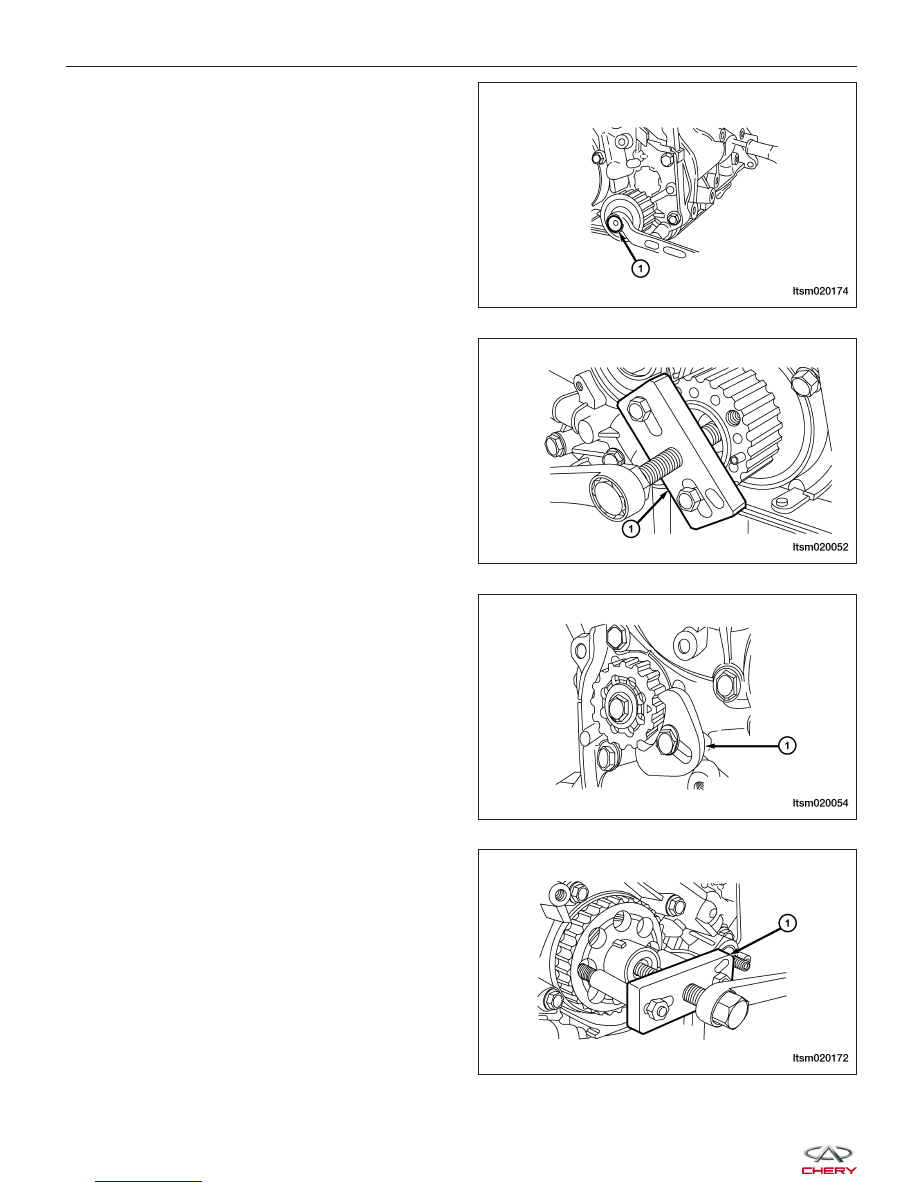

11. Remove the lower balance shaft bolt (1).

(Tighten: Lower balance shaft bolt to 55 N·m)

12. Remove the lower balance shaft pulley.

13. Remove the crankshaft pulley bolt.

(Tighten: Crankshaft pulley bolt to 120 N·m)

14. Using special tool MD-9988778 (1), remove the

crankshaft pulley.

15. Using special tool MD-9988785 (1), lock the upper

balance shaft pulley in place.

16. Remove the upper balance shaft pulley bolt.

(Tighten:

Upper

balance

shaft

pulley

bolt

to

45 N·m)

17. Using special tool MD-9988778 (1), remove the

upper balance shaft pulley.

18. Remove the front cover.

19. Remove the front cover gasket.

20. Remove the lower balance shaft.

21. Remove the lower balance shaft bearings (See

Lower Balance Shaft Bearing Replacement in Sec-
tion 02 Engine).

22. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

LTSM020174

LTSM020052

LTSM020054

LTSM020172

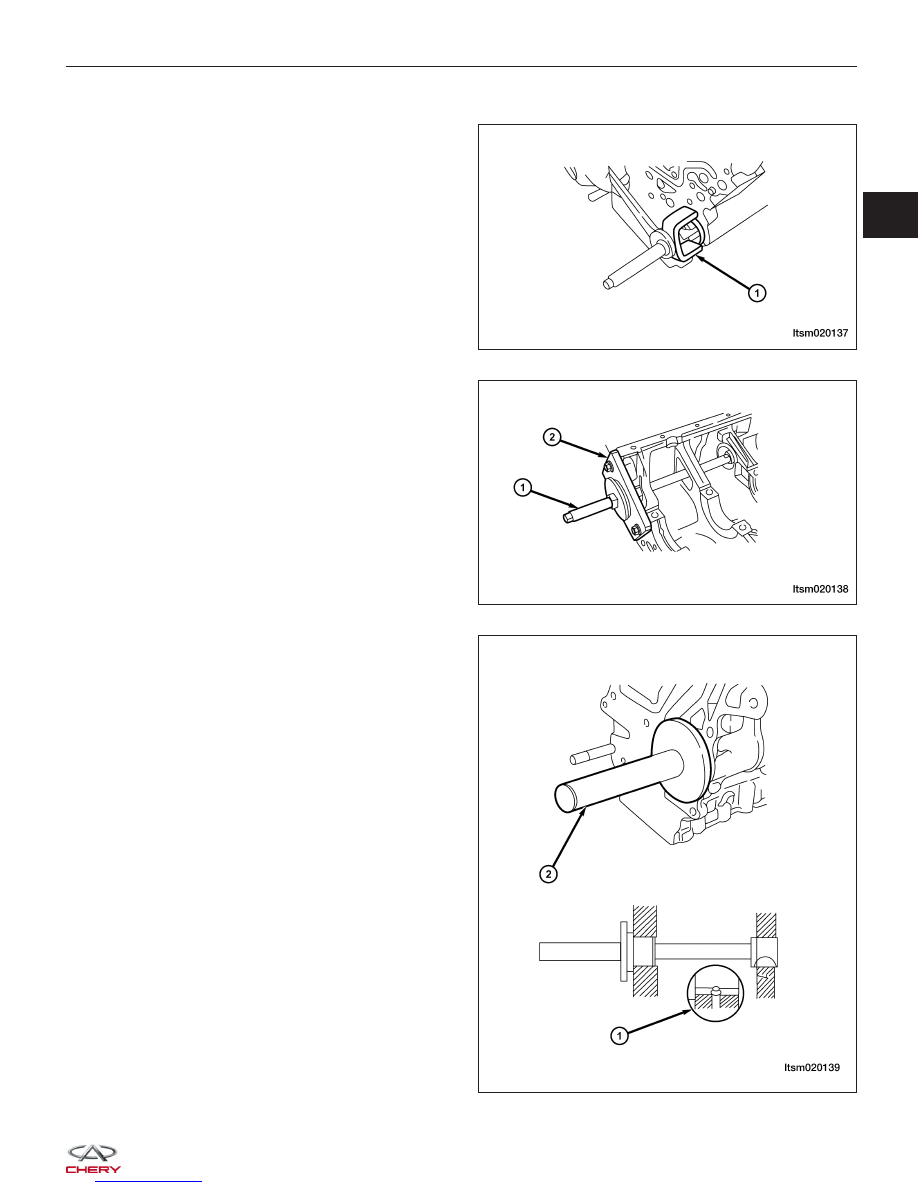

Lower Balance Shaft Bearing Replacement

1. Using special tool MD-998371 (1), remove the

lower balance shaft front bearing from the cylinder
block.

2. Using special tool MD-998705 (1) MD-991603 (2),

remove the lower balance shaft rear bearing from
the cylinder block.

3. Using special tool MD-998705 (2), install the rear

bearing.

NOTE :
Align the oil holes (1) in the rear bearing and the cylin-
der block.

ON-VEHICLE SERVICE

LTSM020137

LTSM020138

LTSM020139

02
