A11-2002                                                                                                                                                    CIRCUIT MANUAL

1










ET VEHICLE CIRCUIT MANUAL

（2002 VERSION）











Note:  The  differences  between  ET  VEHICLE  CIRCUIT  MANUAL  and

previous  part  are  in  pages  No.  1,  2,  14,  15  and  an  added  page  No.23

Automatic Transmission Gear.

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

A11-2002                                                                                                                                              CIRCUIT MANUAL





CONTENT

——Battery, Alternator, Automatic Transmission Start System, Ignition Switch, Back Light

························

01

——MPI Electronic Injection (EJ) (MOTOROLA)

························································································

02

——A/C Unit, Control Head, Cooling System

································································································

03

——A/C Switch, Interior Circulate Solenoid, High & Low Pressure Switch

··················································

04

——Oil Pressure Switch, Coolant Temperature Sensor, Manual Brake Indicator Switch, Odometer Sensor

·

05

——Radio and 6 Speakers

·······························································································································

06

——Instrument Panel (IP) and MFA

···············································································································

07

——Front Fog Lamp, Cigar Lighter, A/C Panel Indicator

···············································································

08

——Rear Window Heating System, Dual Tone Horn, Compressor Magnetic Clutch

·····································

09

——Wiper, Horn Button, Washer

····················································································································

10

——Headlight, Front Position Light, Light Relay

····························································································

11

——Turn Light, Parking Light Switch, Emergency Warning Relay

································································

12

——Taillight, Side light, Brake Light

··············································································································

13

——Light Switch, Gear Position Illumination light

························································································

14

——Rear Fog Lamp

·········································································································································

15

——Headlight Adjustment

·······························································································································

16

——Front  &  Rear  Interior  Light,  Luggage  Compartment  Illumination  Light,  Sun  Visor  Light,  License  Plate

Lamp, Door Touch Switch

·······················································································································

17

——Central Locking

······································································································································

18

——Power Mirror

············································································································································

19

——ABS

··························································································································································

20

——Power Window Glass Lifter Control Unit

································································································

21

——Power Window Glass Lifter Control Switch

····························································································

22

——Automatic Transmission (A/T) Gear

········································································································

23



PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

A11-2002                                                                                                                                                    CIRCUIT MANUAL

1

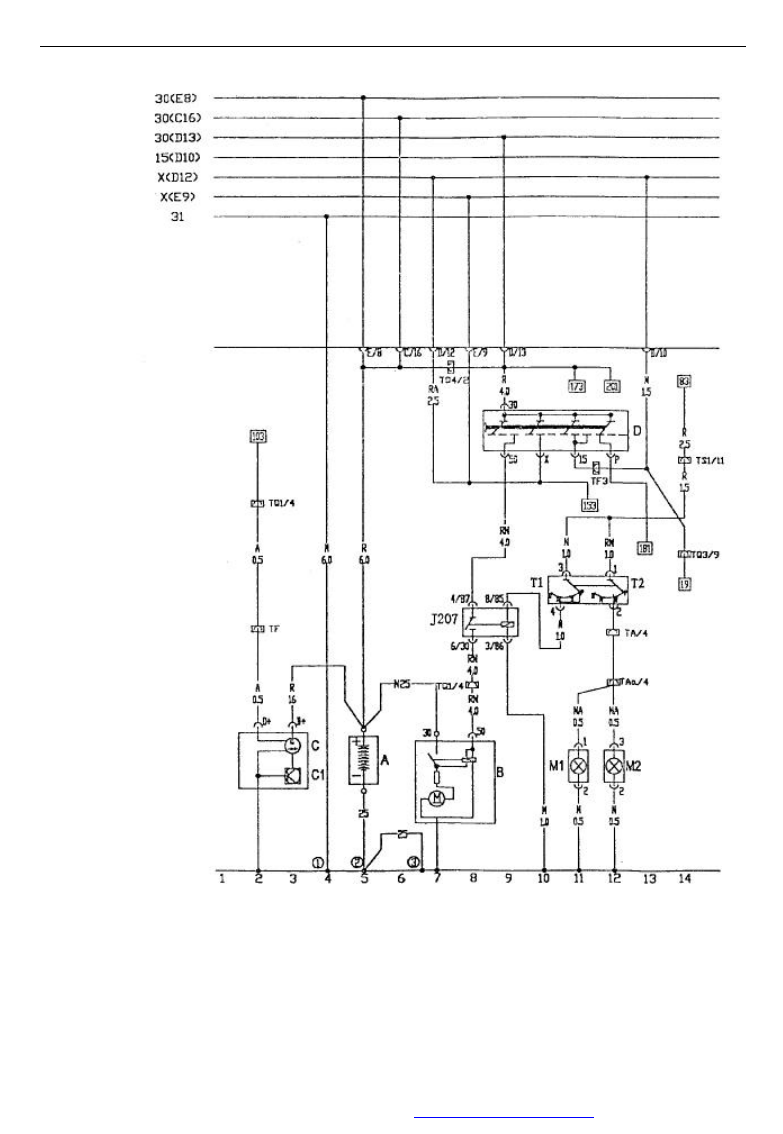

BATTERY，ALTERNATOR，A/T START SYSTEM，IGNITION SWITCH，BACK LIGHT



B=White

N=Black

R=Red

M=Brown

V=Green

A=Blue

H=Grey

Z=Purple

G=Yellow



A    Battery









T2 Back Light Switch

B    Starter Motor





M1 Left Back Light

C    Alternator







M2 Right Back Light

C1 Voltage Regulator                    (1) Ground, on ground carrier beside central electrical box
D Ignition Switch                          (2) Body ground, near battery
J207 A/T Start Relay



      (3) Engine ground, beside transmission

T1 On Switch







TQ4    2 holes match connector

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

A11-2002                                                                                                                                              CIRCUIT MANUAL

2



MPI ELECTRONIC INJECTION (EJ)(Motorola)



B=White

N=Black

R=Red

M=Brown

V=Green

A=Blue

H=Grey

Z=Purple

G=Yellow

J=Orange

F=Pink

J    Power Relay

P35 ECU Fuse

P36 Power Fuse

M Idle Step Motor

KS Knock Sensor

TW Crankshaft Position Sensor

IC    Ignition Coil

Q    Spark Plug

IJ 1-4 Fuel Injector

QS Oxygen Sensor

BC Water Temperature Sensor

TP Throttle Position Sensor

TC Air Intake Temperature Sensor

G Fluid Level Sensor

G6 Fuel Pump



TK Diagnosis Socket

TD Spare Socket

TB Oil Pump Connector

(4)  Ground on Engine

(4)a    ground on Air Intake Manifold
