The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

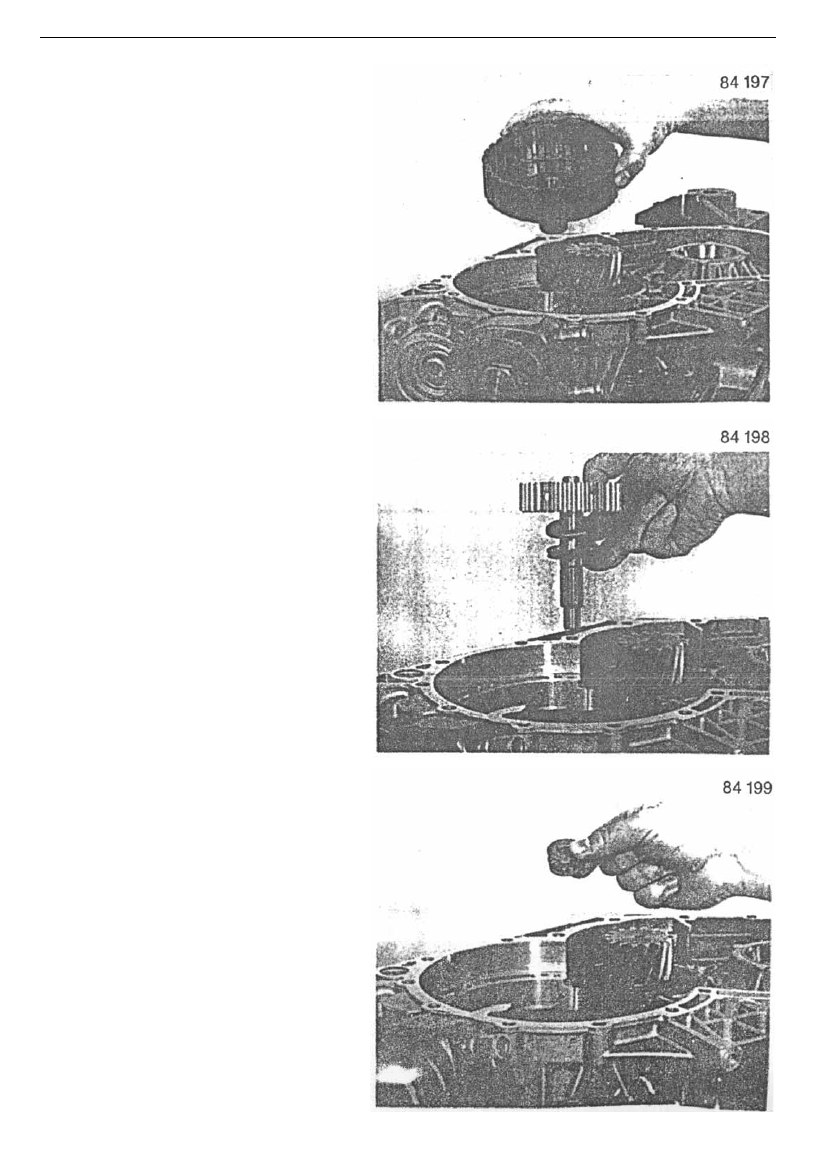

Install sun gear shaft 02 160, and inspect its

engagement condition.

If the installation is right, drive drum shall turn

towards the sun gear.

Install thrust washer 30 170, thrust bearing 30

180 and washer 30 190 onto intermediate shaft

30 160, and then install the intermediate shaft in

the housing.

Install 2 washers 30 140 and one thrust bearing

30 150 onto intermediate shaft.

-90-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

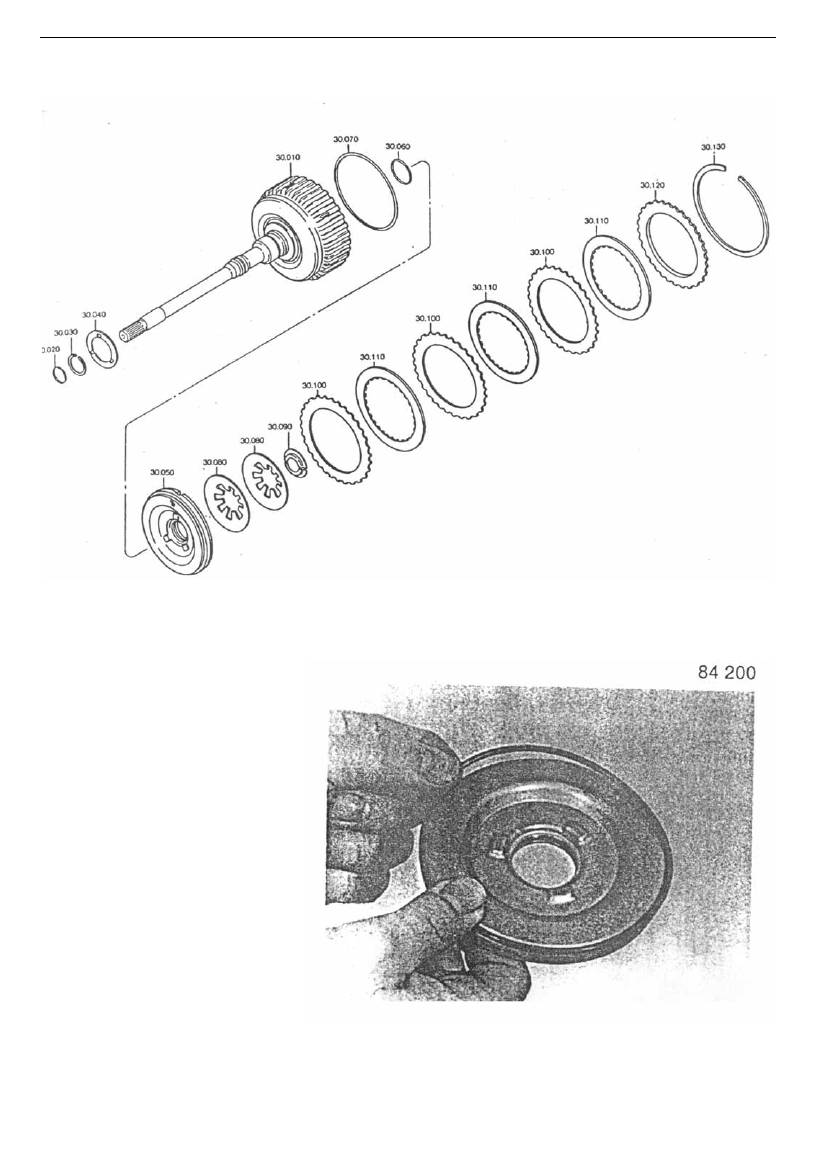

3.6、Installing input shaft and clutch E assembly

After applying lubricant or petrolatum

to O ring, install it into piston E 30

050.

-91-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

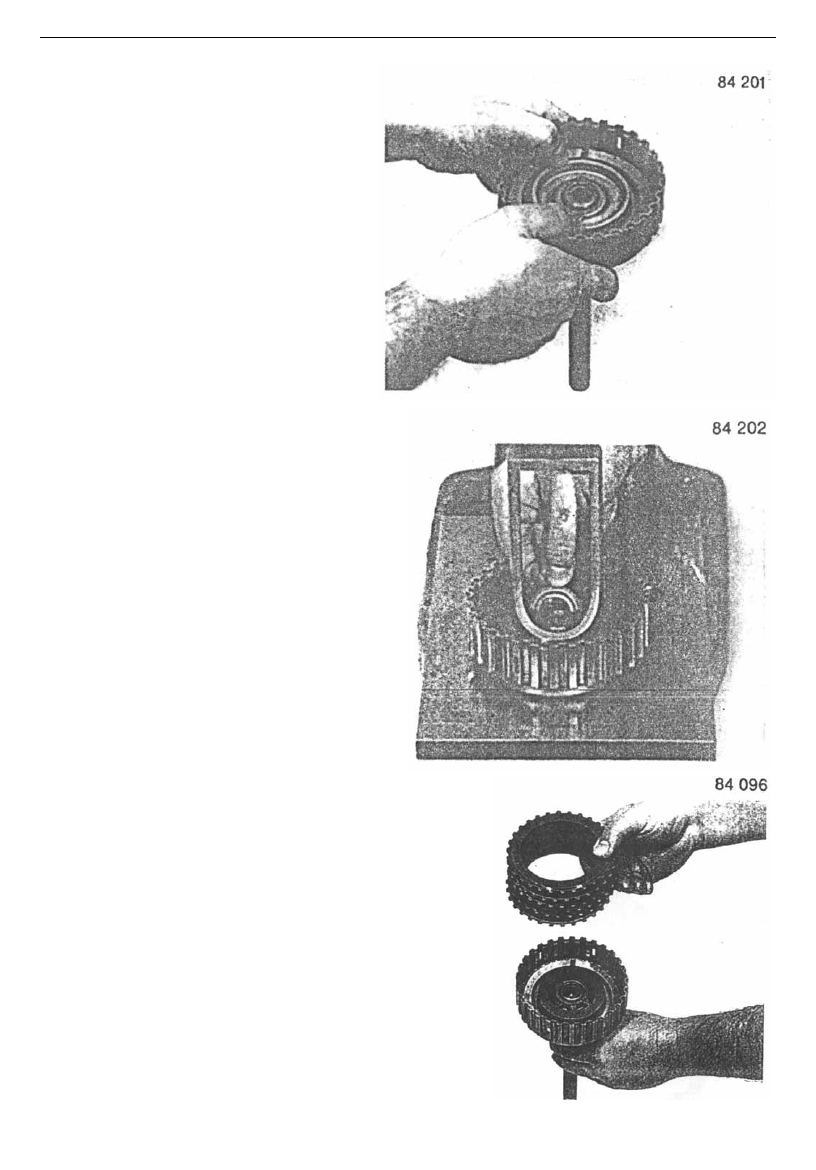

Press piston E into the cylinder body of engine

input shaft 30 010.

Install two U washers 30 080 on the top of the

piston with installing tool 5×46 000 148, and fix

with snap ring 30 090.

Install the whole clutch E assembly.

Install outer teeth steel sheet 30 100, and then

install inner teeth friction plate 30 110, and install

alternately.

-92-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

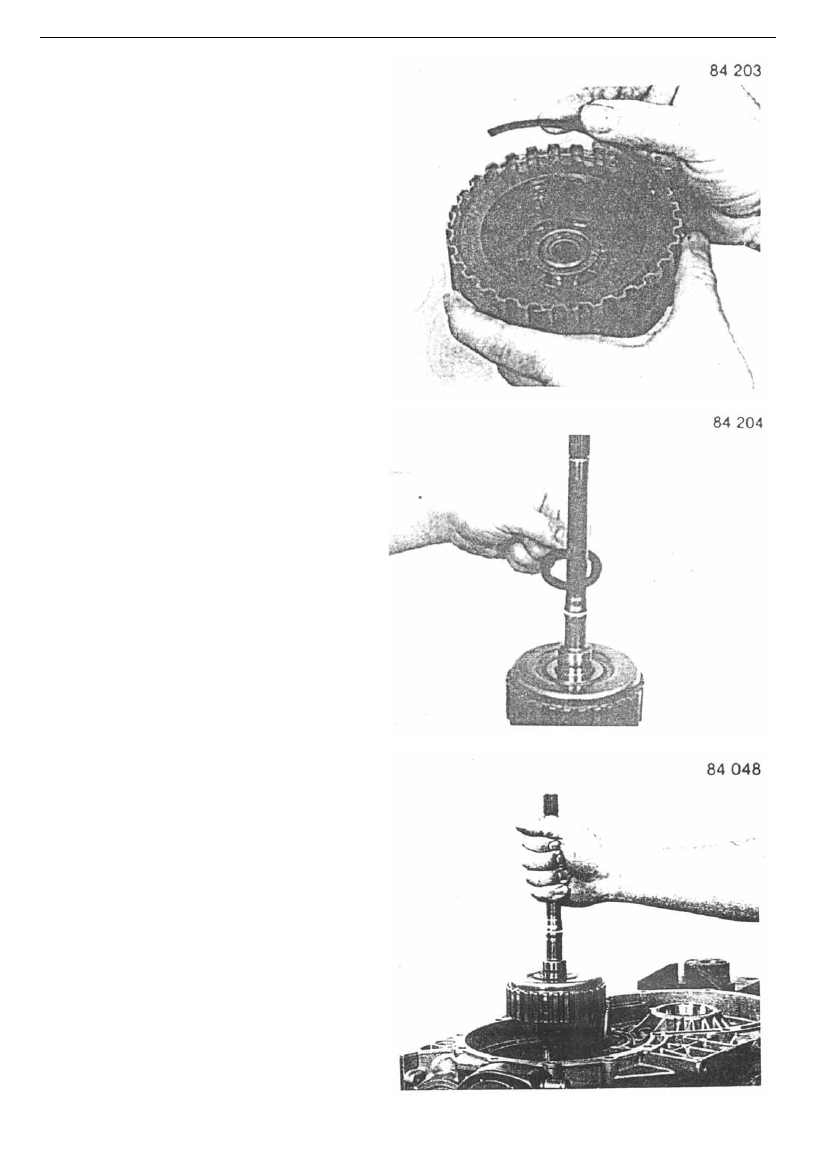

Install retainer ring 30 120 on the top of clutch

assembly.

If the group numbers of the clutch inner friction

plate and sheet steel is changed, the outer diameter

of the retainer ring shall be changed accordingly.

Install snap ring 30 130.

Install washer 30 020 and 30 030 into input shaft,

and make them interlocked.

Install thrust washer 30 040, and adjust its position.

Insert input shaft assembly into the housing.

Install correctly, engage gear ring with sun gear

shaft.

-93-
