The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

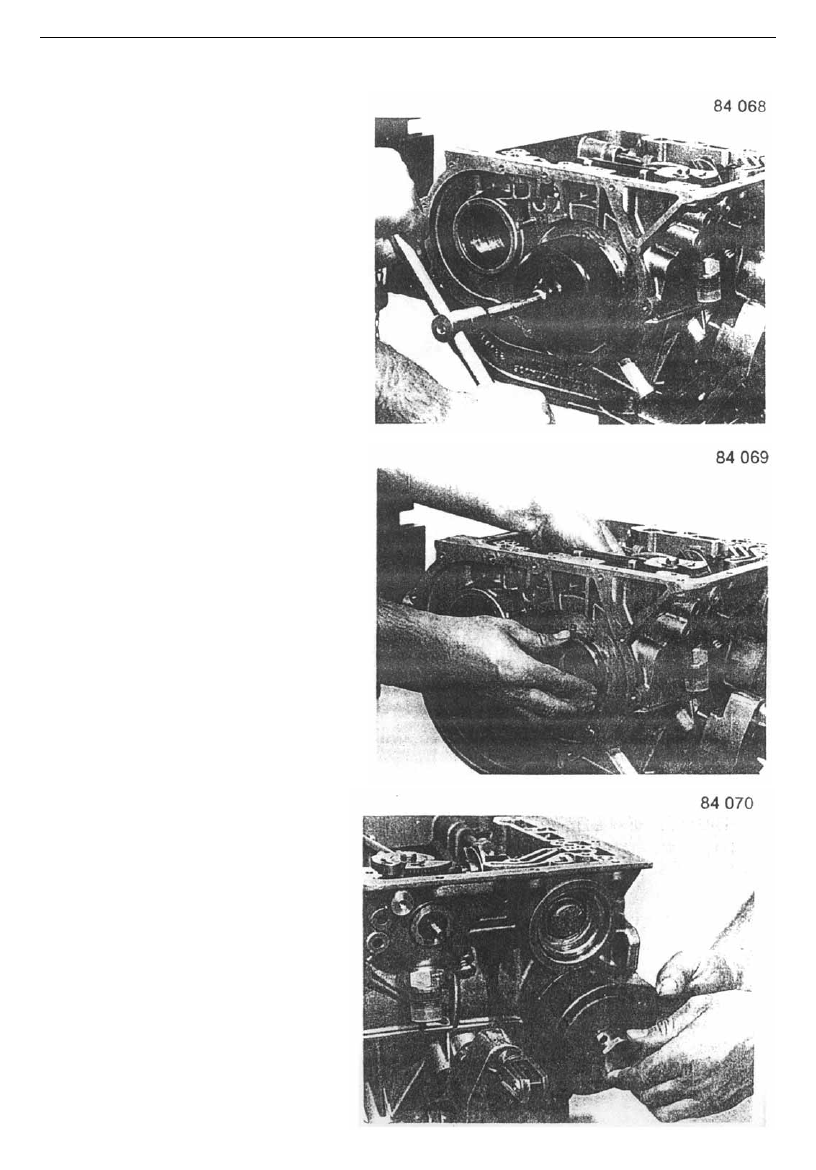

Turn over the transmission by 90

, remove

protect plate.

Using removing/installing socket 5 x 46 000

155 remove groove nut.

Remove 1st gear one-way overrunning clutch.

-42-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

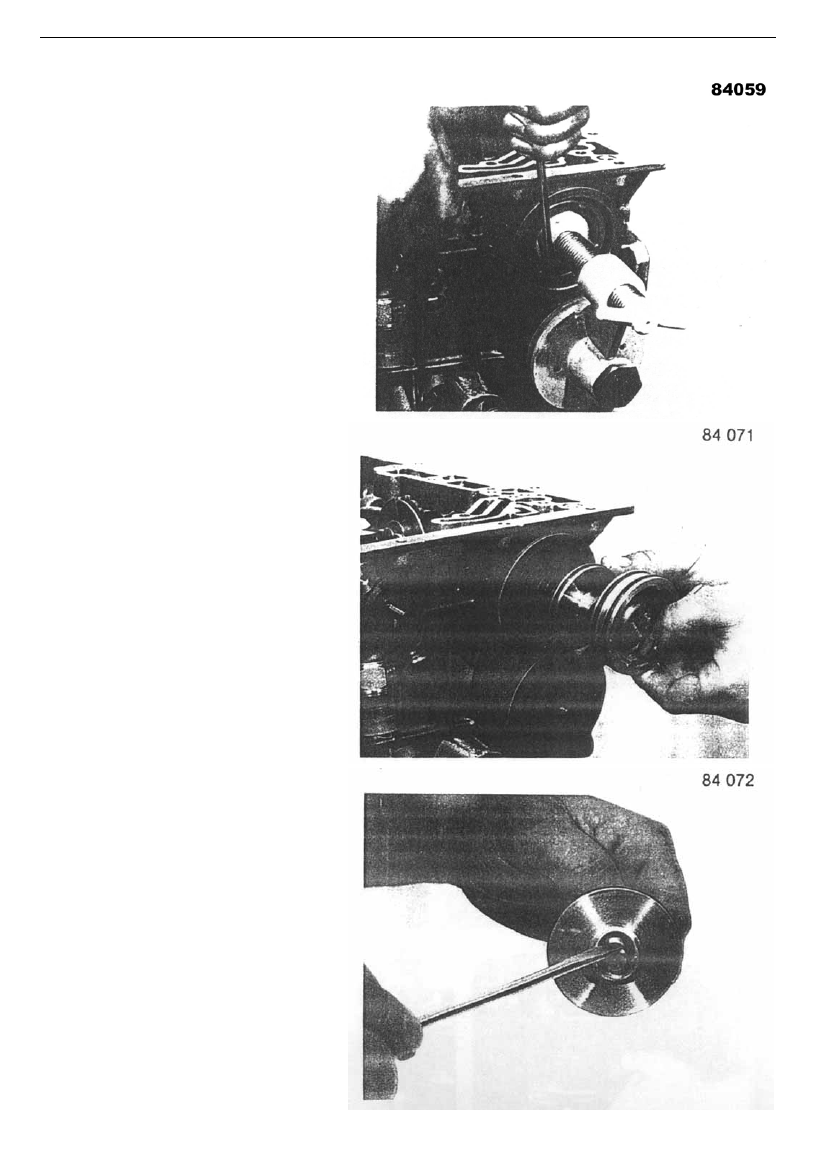

2.2、Removing brake C.

Install an installer 5 x 46 000 295 with screw

mechanism, push brake band hydraulic

cylinder head inwards. Remove snap ring

with 2 screwdrivers.

Take off brake band hydraulic cylinder cap

and brake band piston C’.

As shown on figure, remove snap ring, piston

and 2 U steel sheet spring with screwdriver.

-43-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

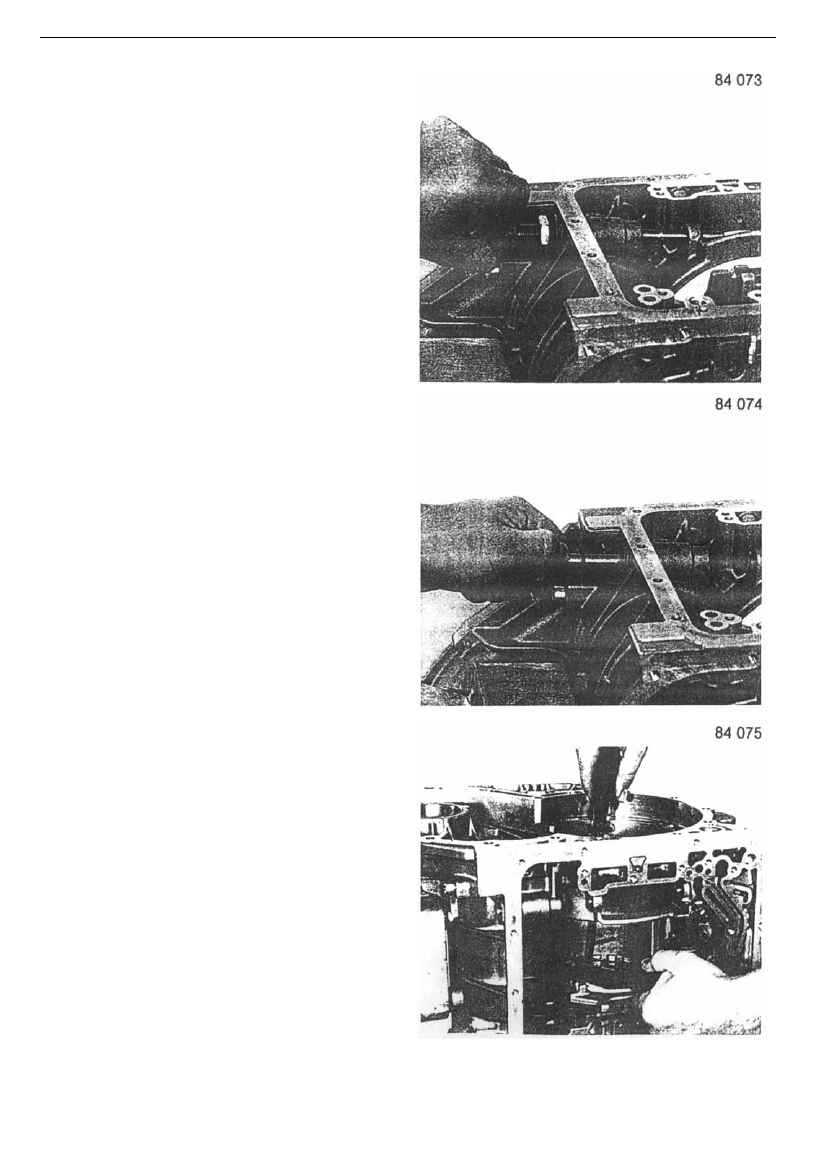

Screw adjuster bolt out after loosening locking nut.

Pull out brake band locator rod.

2.3、Removing brake band D

Turn over transmission by 90

As shown on figure, remover cotter snap ring with 2

screwdrivers.

-44-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

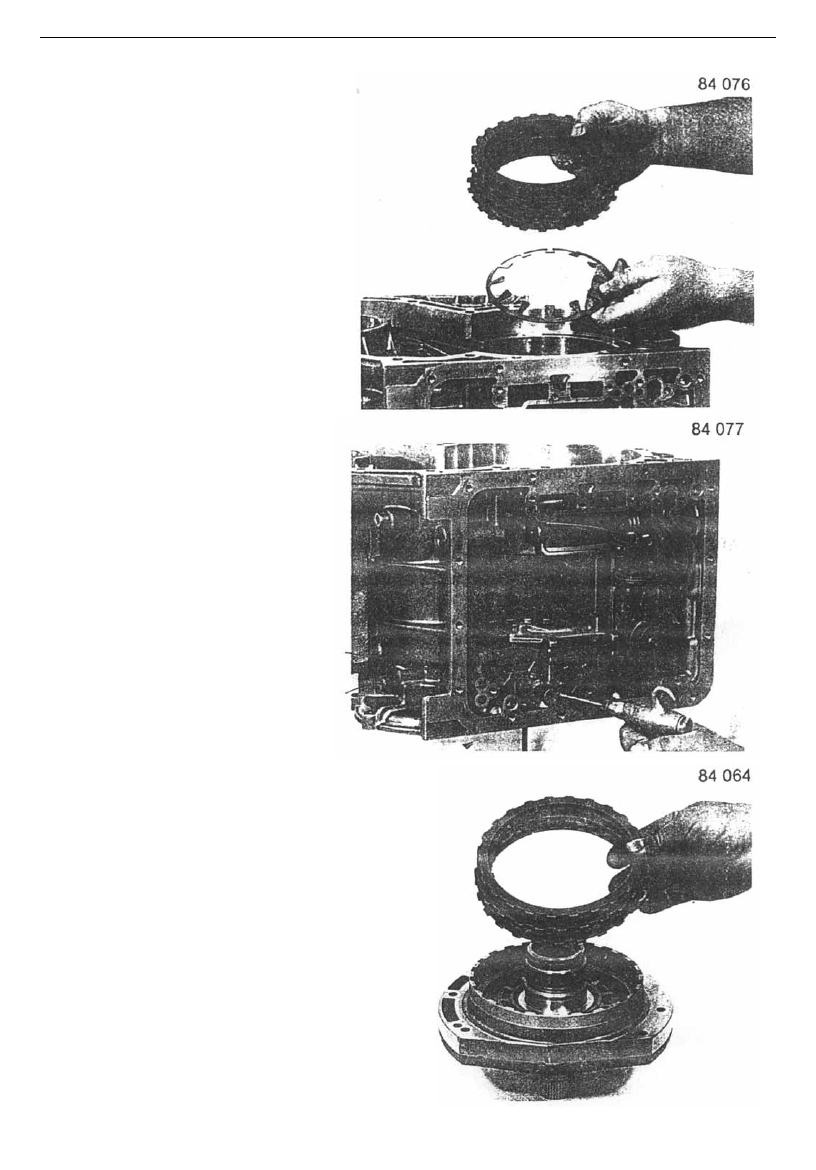

Remove complete brake D assembly and

diaphragm spring.

Insert air gun into oil inlet and remove

piston D using HP gas.

2.4 、 Removing central seat, brake C

assembly and oil pump

Press down the diaphragm spring of the

brake C with special tool 5 x 46 000 167.

Remove cotter snap ring with screwdriver,

then remove diaphragm spring, pressure

plate and retaining ring etc.

-45-
