12. Install windshield

Note：Verify that water- resisting chips have

been stuck on the face plate of car body

as showed in the drawing







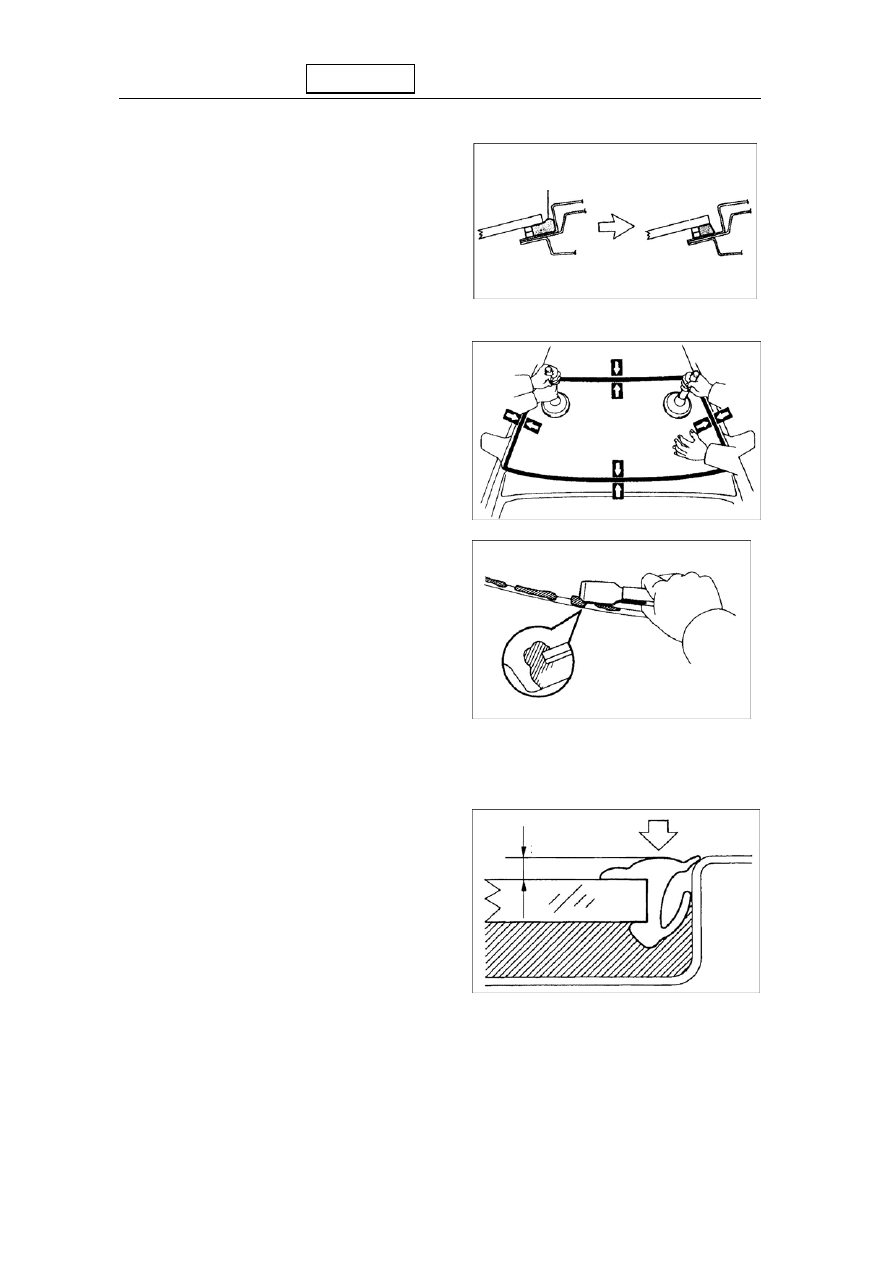

（1）When install windshield,

    align the reference marks

    on windshield and car body, then

    gently press in windshield towards

periphery

（2）Smear windshield at periphery

      with bonding agent







（3）Remove excess or spilled bonding

          agent with scraper

（4）Fasten windshield until bonding

     agent hardened



13. Water leakage checking and maintenance

（1）Water leakage test shall be conducted

  after hardening period

(2) Block up water leaking places with

sealant



14.Install upper inlaid strips on windshield

Put upper inlaid strips on car body and pat the strips by hand to tighten



bonding agent

2.7mm (0.11in)



    Chery QQ Service Manual



15. Fix outside inlaid strips

Fix screws and outside inlaid strips

16. Fix front door sealing strips

17. Install the following parts：

（1）front roof lining

（2）interior rear-view mirror

（3）middle sun shading boards

（4）small illuminating light

（5）sun shading boards and holder

（6）front pillar ornament

（7）middle pillar ornament

（8）inner roof lateral ornament

（9）small rear seat lighting bulb

（10）decorative board of glove compartment

（11）assistant grasp

（12）speaker mesh guard

（13）lateral ornament of rear seat at upper parking lamp

back door frame plate

back of rear seat

Torque：18 N.m（185 kgf/cm，13 lbf/in）

bolts on the lower end of rear seat belt

Torque：43 N.m，32 lbf/in）

rear seat cushions

front seats

   Torque：37 N/m（375 kgf/cm，27 lbf/in）

 windshield

sealing strips for windshield

windshield wiper arms



    Chery QQ Service Manual



Remove rear window glass

1. Remove the following parts：

rear seat cushions

bolts on the lower end of rear seat belt

back of rear seat

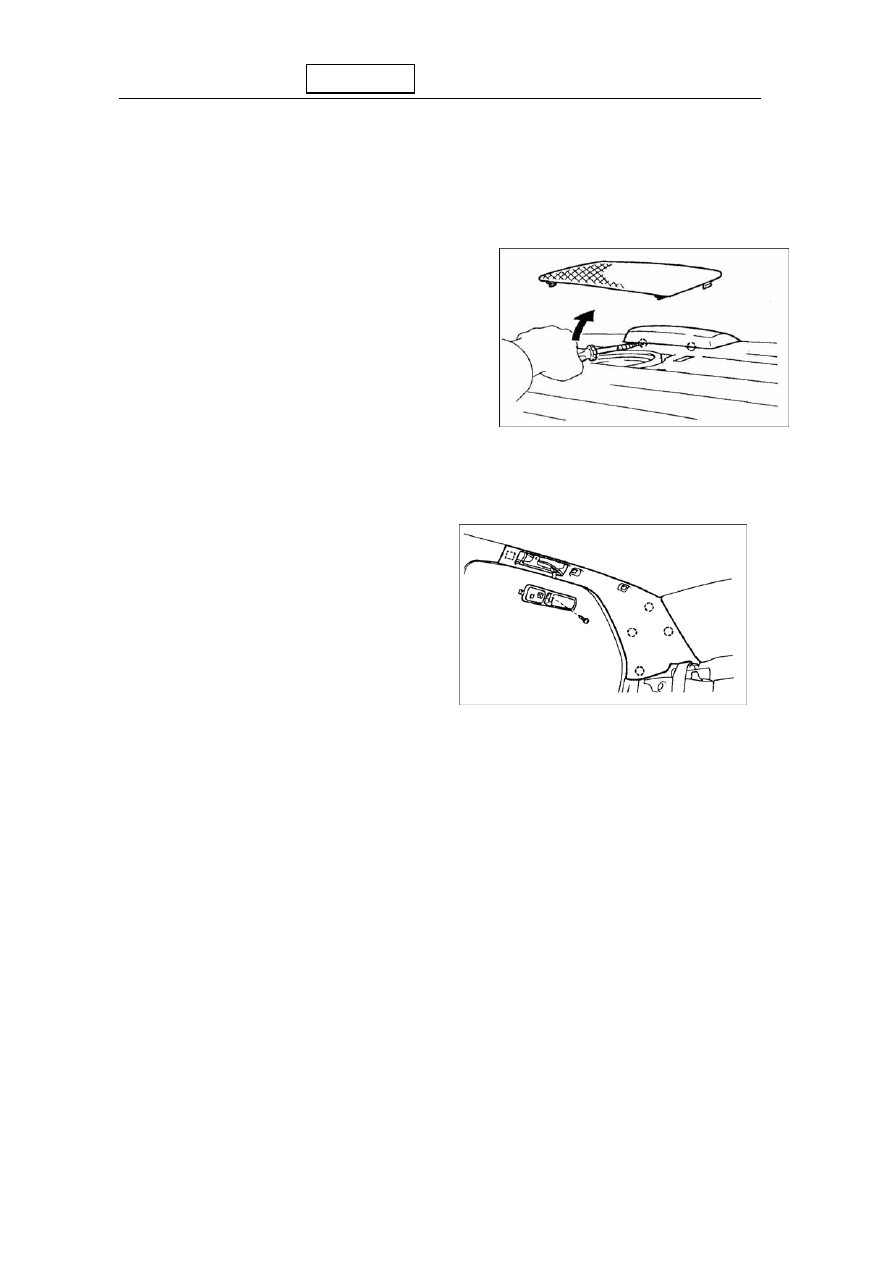

speaker mesh guard

upper parking lamp

decorative board of glove compartment

assistant grasp

small rear seat illuminating light

inner roof lateral ornament



2. Detach roof lining

3. Disconnect rear window connector

Disconnect rear window connector

4. Remove lower inlaid strips

As showed in the drawing, cut off the double-side adhesive tapes

on the two ends of inlaid strip with scraping cutter

Note: Before using, scraping cutter point shall be bandaged with



adhesive tape

Prize out inlaid strips at six clamps and take the strips down



5. Remove rear window glass

Lead piano wire out between car body and glass

Bind up two wire ends with wood blocks or similar objects

Note：Do not let piano wire damage two stops

Remove the glass

6. Remove rear window inlaid strips





    Chery QQ Service Manual

Install rear window glass

1. Fixing rear window inlaid strips

Put inlaid strips on glass periphery and

fix the strips by hand

Note：Rear window glass must be removed

before fixing inlaid strips





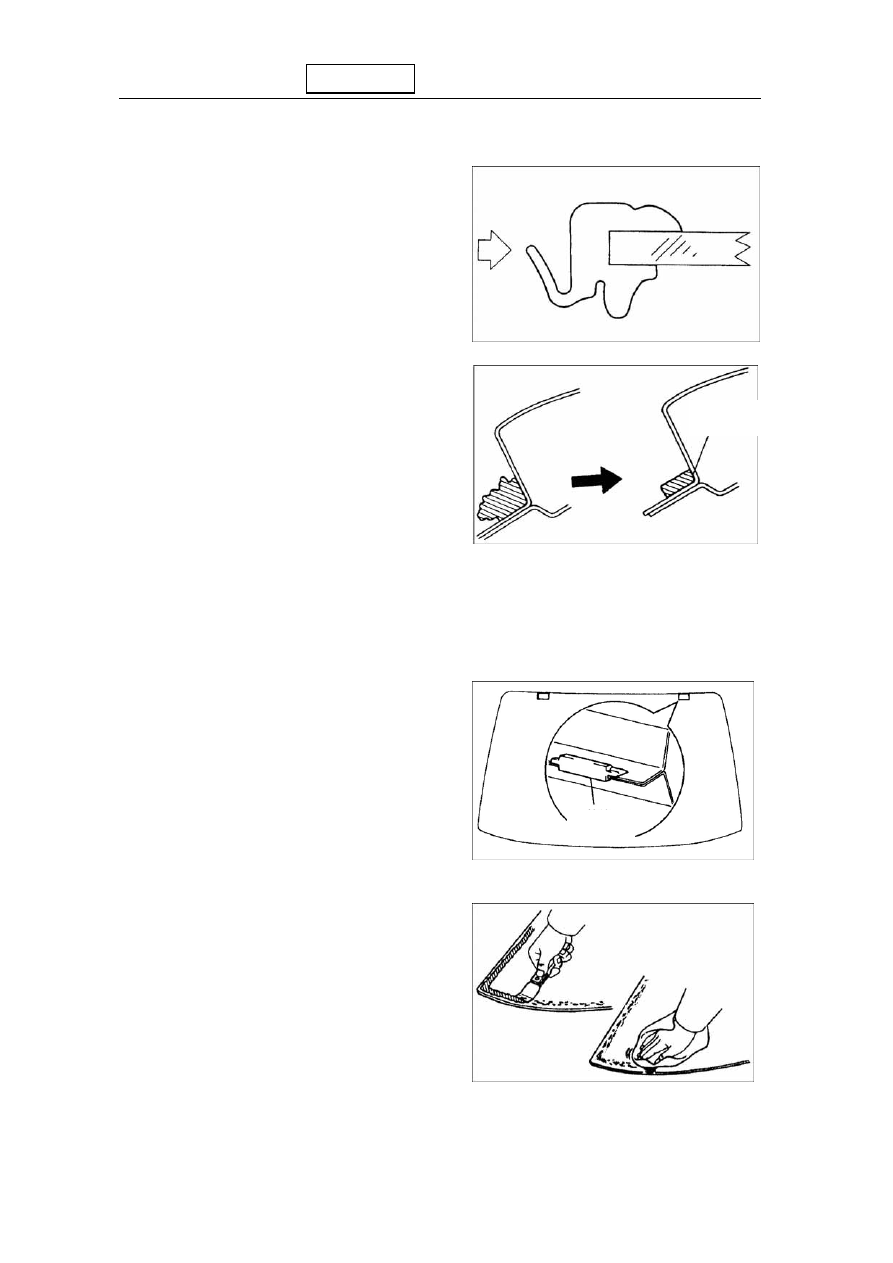

2. Clean and finish the joint surface

  of car body

Cut roughness off bonding agent sticking to

car body with knife

Note：Keep bonding agent on car body

  as much as possible

Clean the cutting surface of bonding

agent with a rag soaked in cleaning liquid

Note：Even though all of bonding agent is completely removed,

car body must be cleaned


3.Remove block stop：

Remove block stop by knife







4. Clean removed glass

Remove the bonding agent stuck on glass

with scraper

Remove block stop by knife

Clean glass with cleaning liquid

Attention：Do not touch glass after cleaning



bonding agent

Block stop
