2. Remove front door sealing strips

Pull out sealing strips by hand

3. Remove outside inlaid strips

Take down screws and outside inlaid strips

4. Remove the upper inlaid strips

   on windshield

As showed in the figure：Cut off

inlaid strips with knife

Attention：Do not let knife damage

 car body

5. Remove windshield

（1）Lead piano wire out between car

body and windshield from interior car

（2）Bind up two wires ends with wood

     blocks or similar objects

Note：Stick a piece of adhesive tape outside to prevent windshield external

surface from being scratched

Attention：

（1）Do not damage paint surface, internal

and external ornaments when detaching

piano wire

bonding agent

windshield

（2）To avoid the scratch on dashboard,

a sheet plastic can be placed between

piano string and dashboard

Drag the wire along all sides of windshield

to cut off bonding agent to remove windshield

Attention：Bonding agent should be kept on car body as much as possible

when cutting windshield joint





    Chery QQ Service Manual



1. Installation of Windshield

（1）No touch on windshield surface

bonding agent

 after cleaning

(2) Cut roughness off bonding agent sticking

to car body with knife

Note：Keep bonding agent on car body

as much as possible

（3）Clean the cutting surface of

  bonding agent with a rag soaked in cleaning liquid

Note：Even though all of bonding agent is completely removed, car body surface must

be cleaned

stop

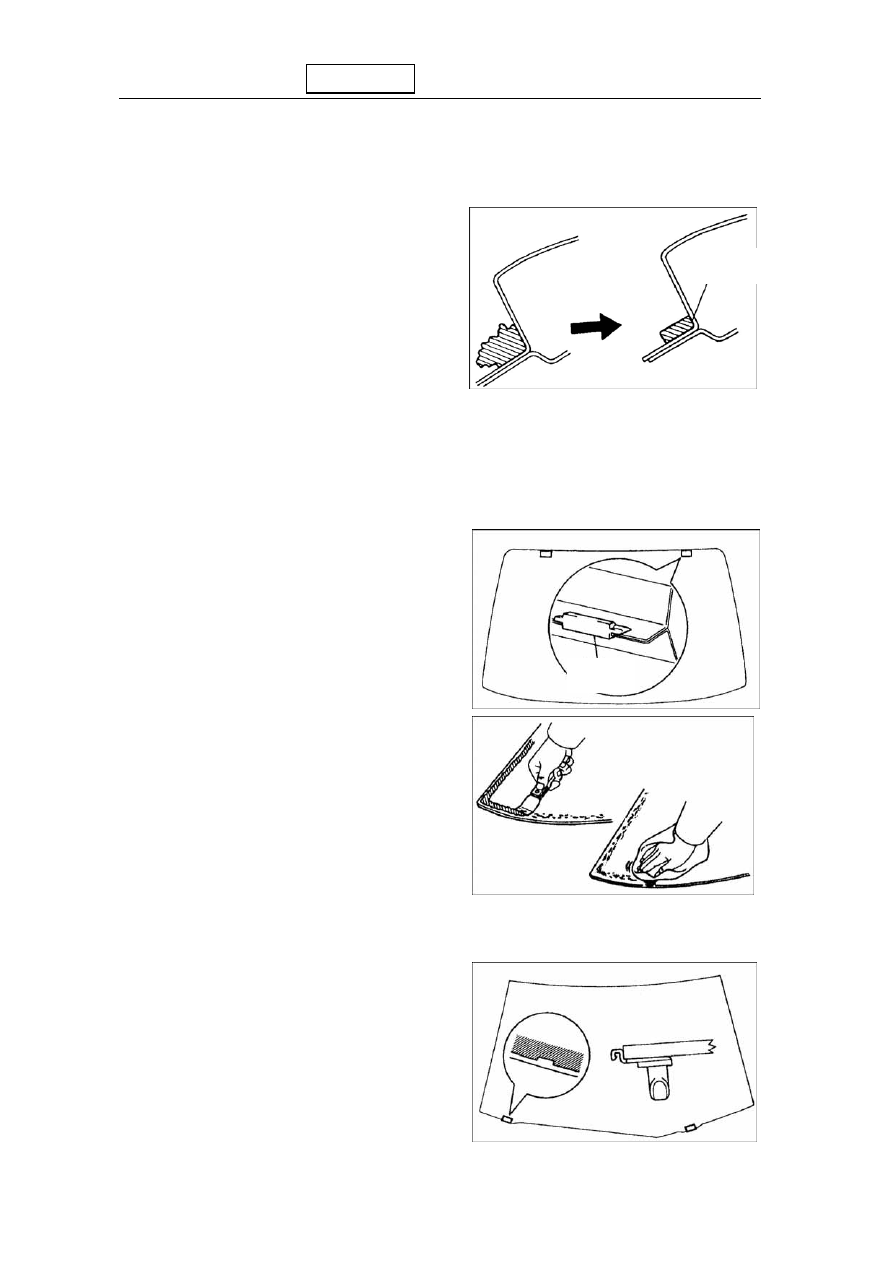

2. Remove block stop：

Remove block stop with knife







3. Clean the removed windshield

（1）Remove the bonding agent stuck

on windshield with scraper

（2）Clean windshield with cleaning

          liquid

Attention：Do not touch windshield

after cleaning

4. Replace clamps if necessary

（1）Remove stops with knife

（2）Take down used clamps

（3）Put new clamps on





    Chery QQ Service Manual

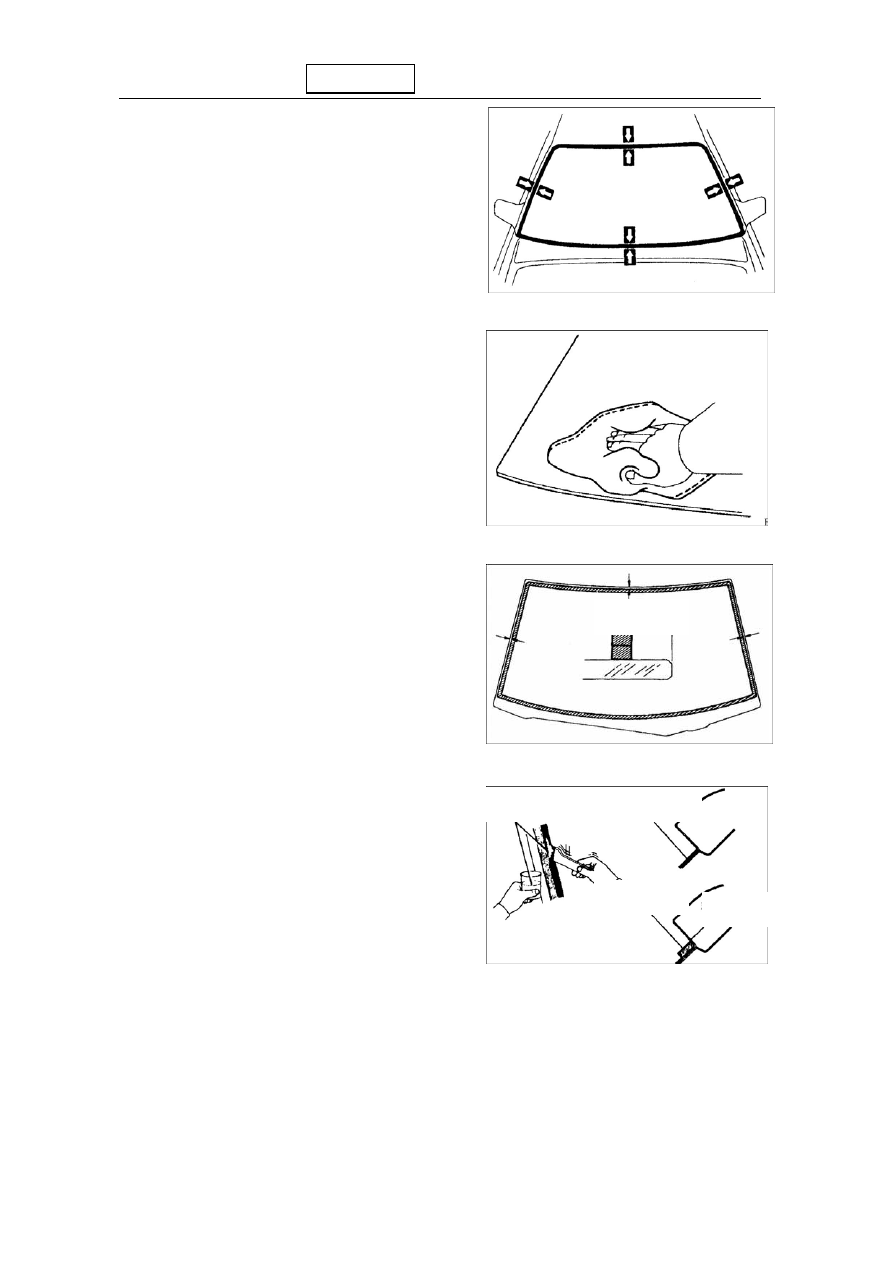

5. Position windshield

（1）Put windshield in right place

（2）Make reference marks on windshield

     and car body

（3）Remove windshield

6. Clean the joint surface of windshield

Clean the black dirt with clean liquid on

the joint surface of windshield periphery

Attention：Do not touch windshield

  surface after cleaning







7. Install water-resisting chips

As showed in the drawing，fix water-

7mm (0.28in)

resisting chips with double-side
adhesive tape

Attention：Do not touch windshield

  surface after cleaning

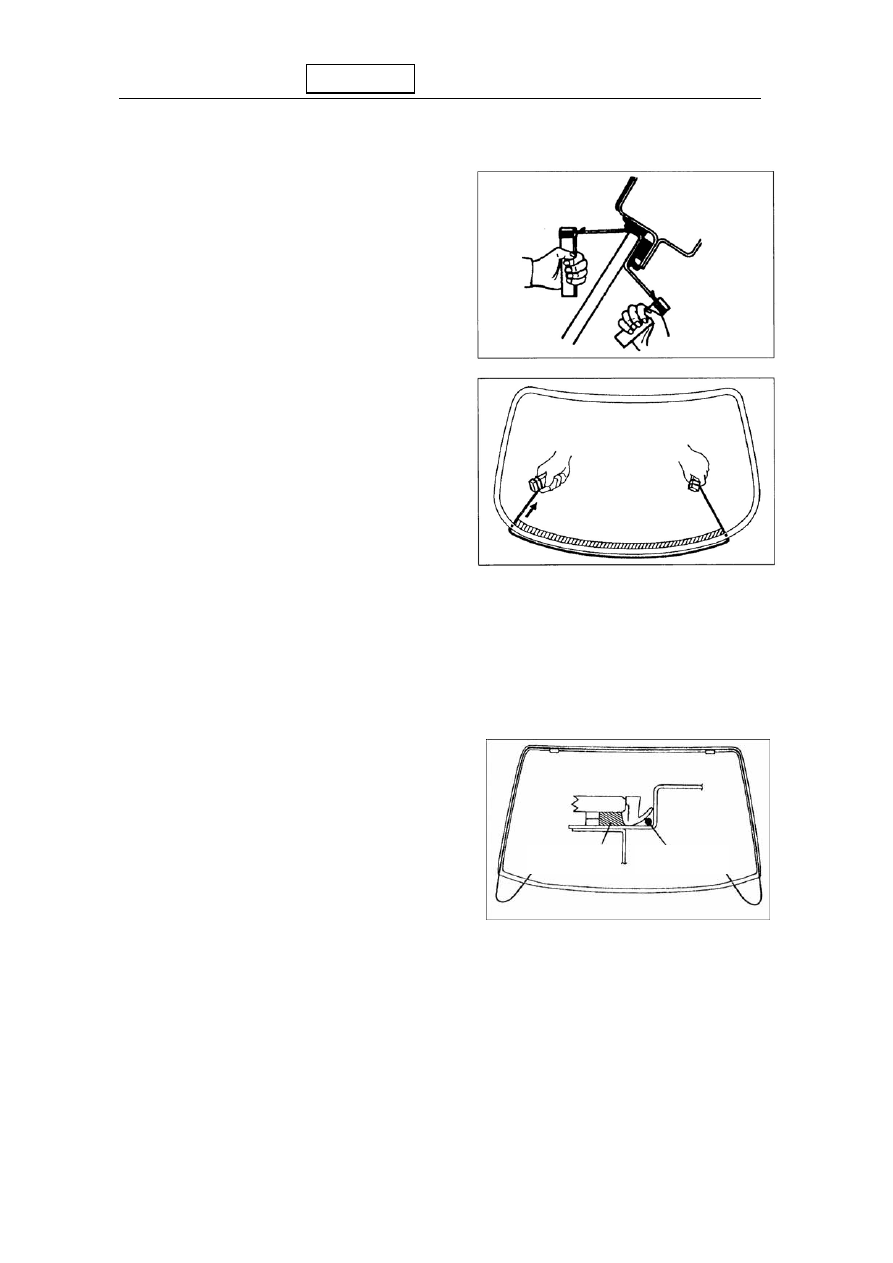

8. Coat a layer of base paint M

bonding agent

base paint M

base paint M

base paint M

      on the joint surface of car body

 Brush a layer of base paint M

  onto the joint surface of car body

Attention：

（1）Wait for base coating layer

to dry over 3 minutes

（2）No coating on bonding agent

（3）Never reserve unsealed base paint M

   for later use





    Chery QQ Service Manual

9. Coat a layer of base paint G on the

contact surface of windshield

base paint G

（1） Coat a layer of base paint G with brush

or sponge on windshield periphery and

joint surface

（2） Clear base paint with a clean rag

before drying

Attention：

（1）Leave base paint layer dry for 3 minutes at least

（2）No coating on bonding agent

（3）Never reserve unsealed base paint G for later use

10. Mix bonding agent

 Attention：

A.  Ensure the fixation of inlaid strip to

finish within the applicable duration

of bonding agent

 B. Mixing bonding agent must be

    completed within 5 minutes

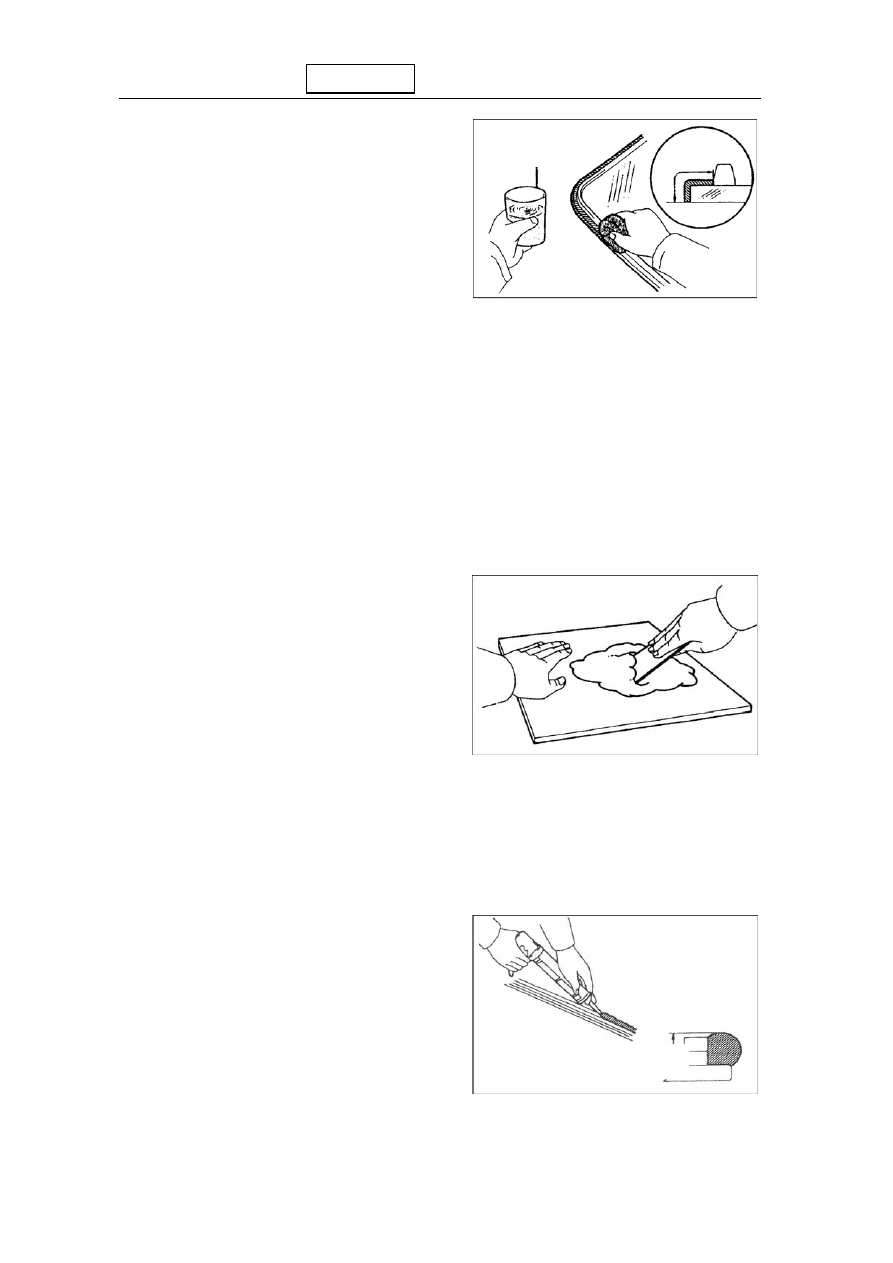

（1） Clean glass plate and oil loam scraper

   thoroughly with solvent

(2 ) Fully mix 500g principal agent with

75g hardening agent with scraper on

glass plate or similar object

11.  Apply bonding agent

 （1）Cut off the Note of tubular pot and fill

      bonding agent in the pot

 （2）Put the pot into sealing glue gun

 （3）Apply bonding agent on windshield

    as showed in the drawing



10mm (0.39in)
