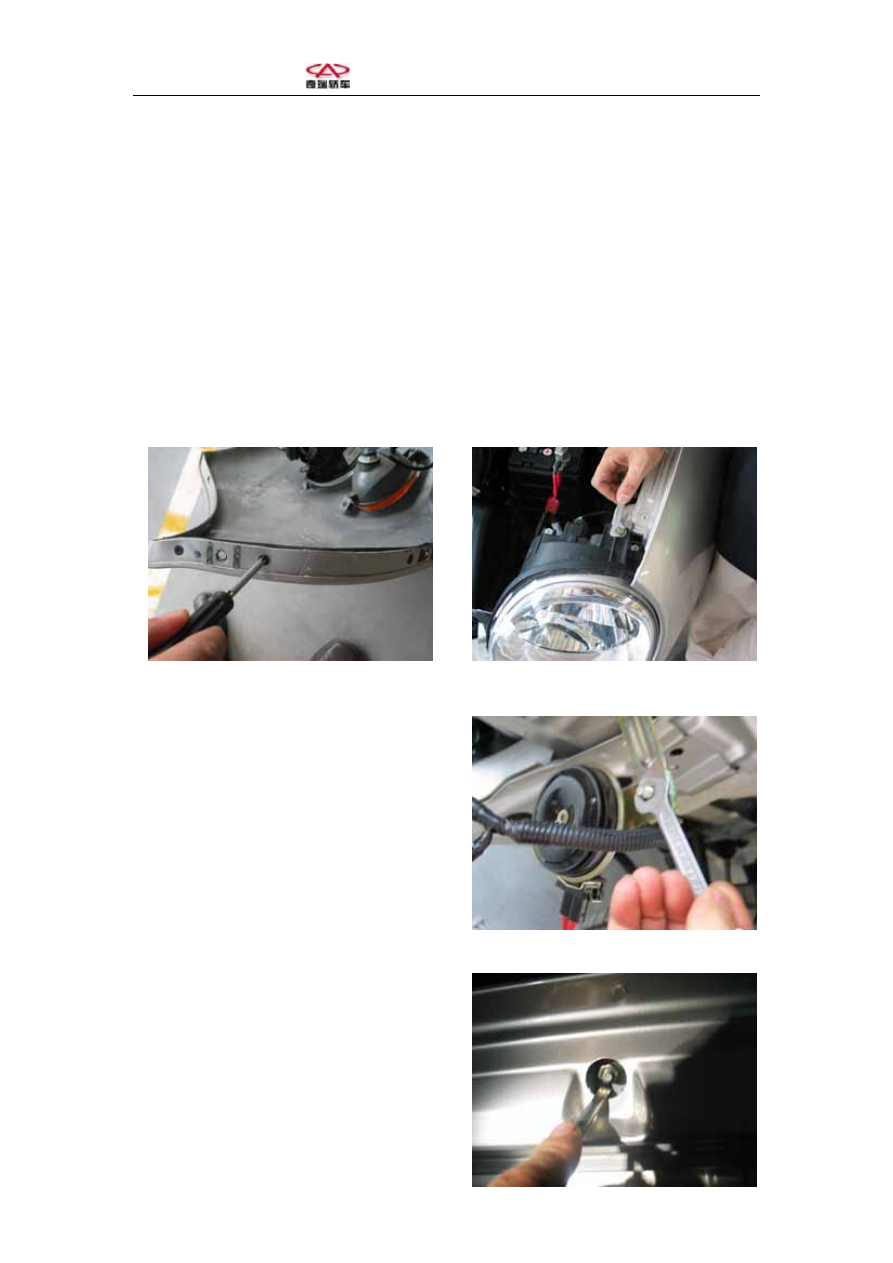

Chery QQ Service Manual

（4）Loosen the harness connector of the mirror from the door inner panel; take out

the rearview mirror assembly.

Removal of headlamp

（1）Remove front bumper (see dismantlement of front bumper for reference)

（2）Loosen 3 set bolts, take out the head lamp.

Removal of horn

（1）Remove tire plate

（2）Loosen set bolts, take off the horn.

Removal of tail surface:

Loosen 3 set screws, take out tail wing

- 247 -

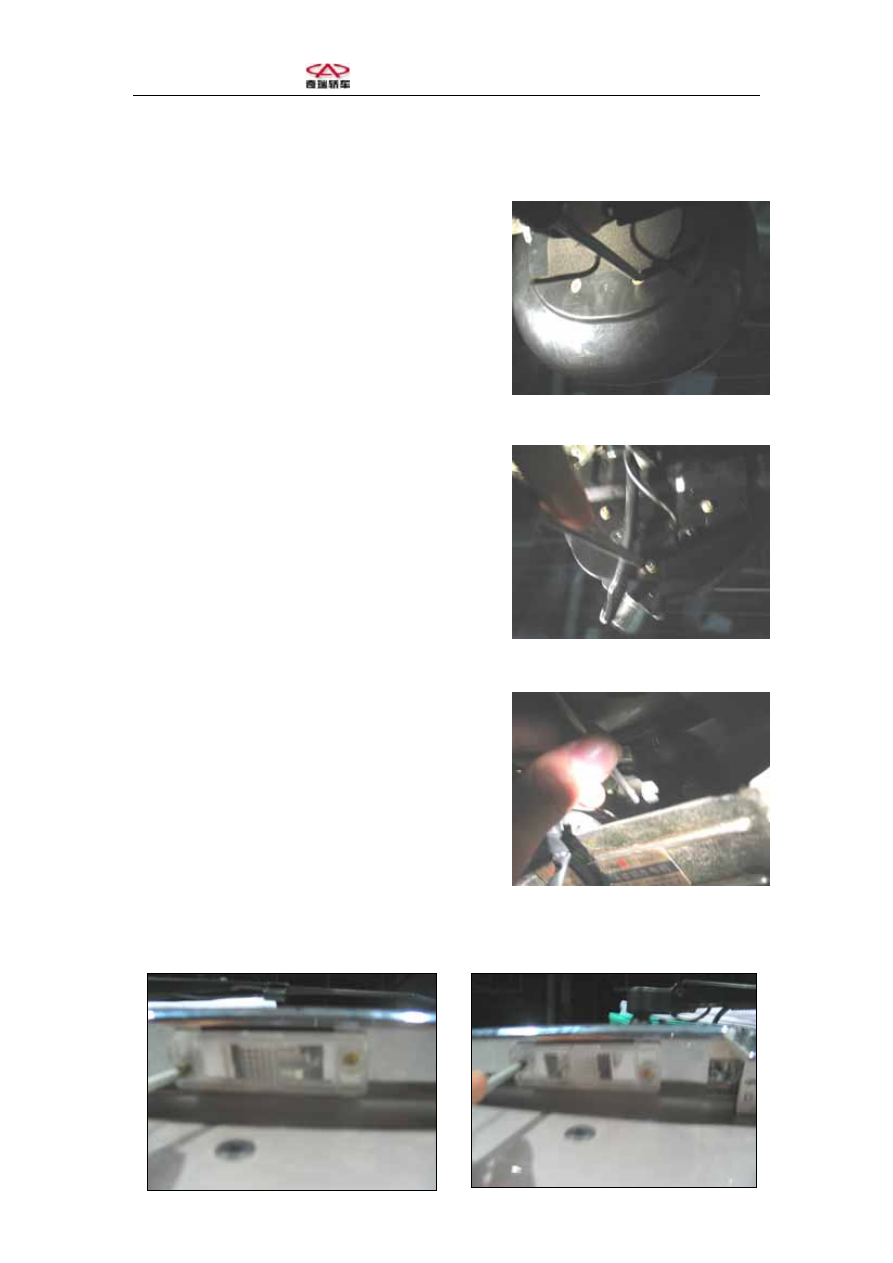

Chery QQ Service Manual

Removal of high-mount stop lamp

（1） Loosen 2 set screws, pull out lamp cover

downwards

（ 2 ） Loosen 3 set screws, take out the

high-mounted stop lamp.

Removal of number plate lamp/protective

panel assembly

（1）Loosen 4 set screws of the license plate lamp with screw driver to take them off.

- 248 -

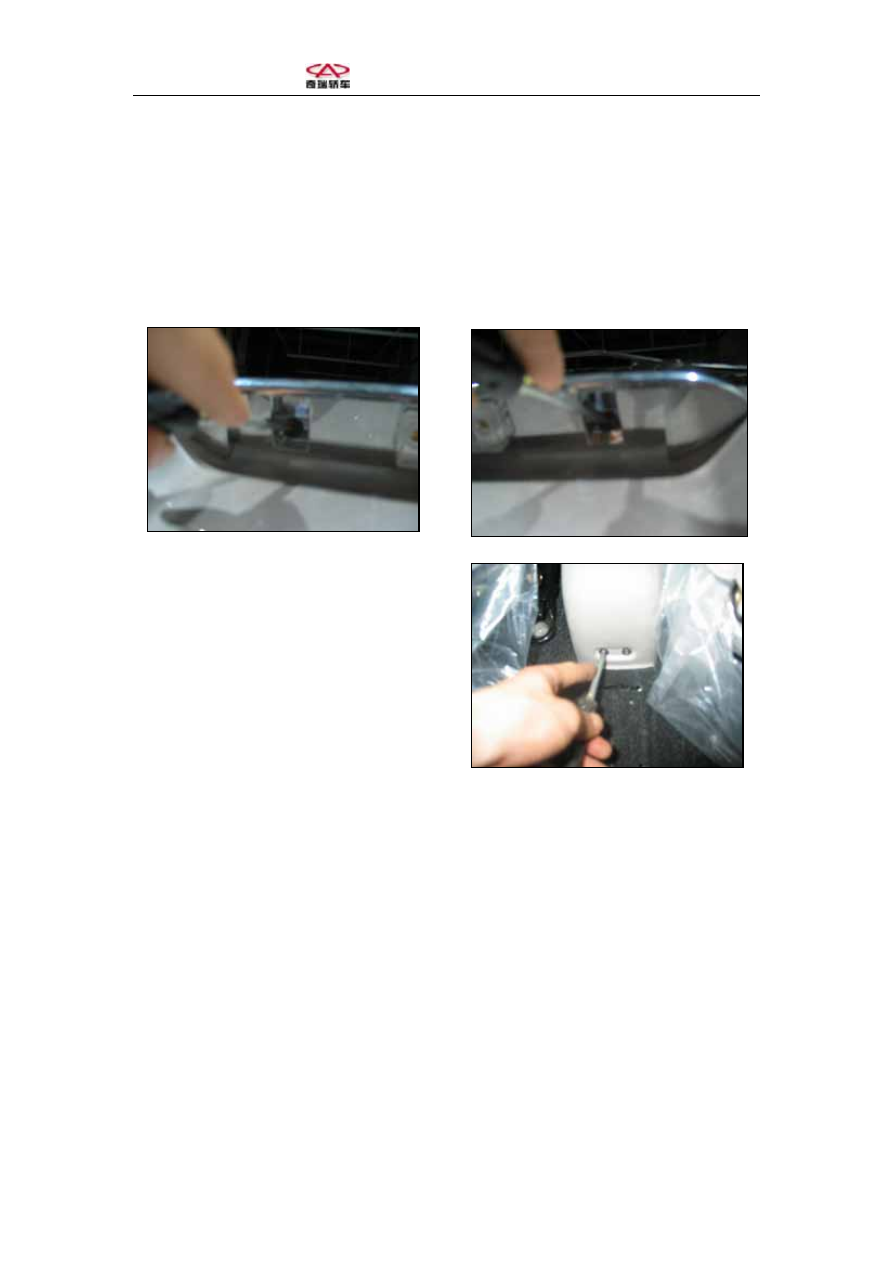

Chery QQ Service Manual

（2）Loosen 2 set screws on the protective panel, and then take off the screws.

Removal of fuel tank lid

Loosen set bolt of fuel tank lid; remove the fuel tank lid.

The installation sequence is just the reverse of dismantlement sequence

- 249 -

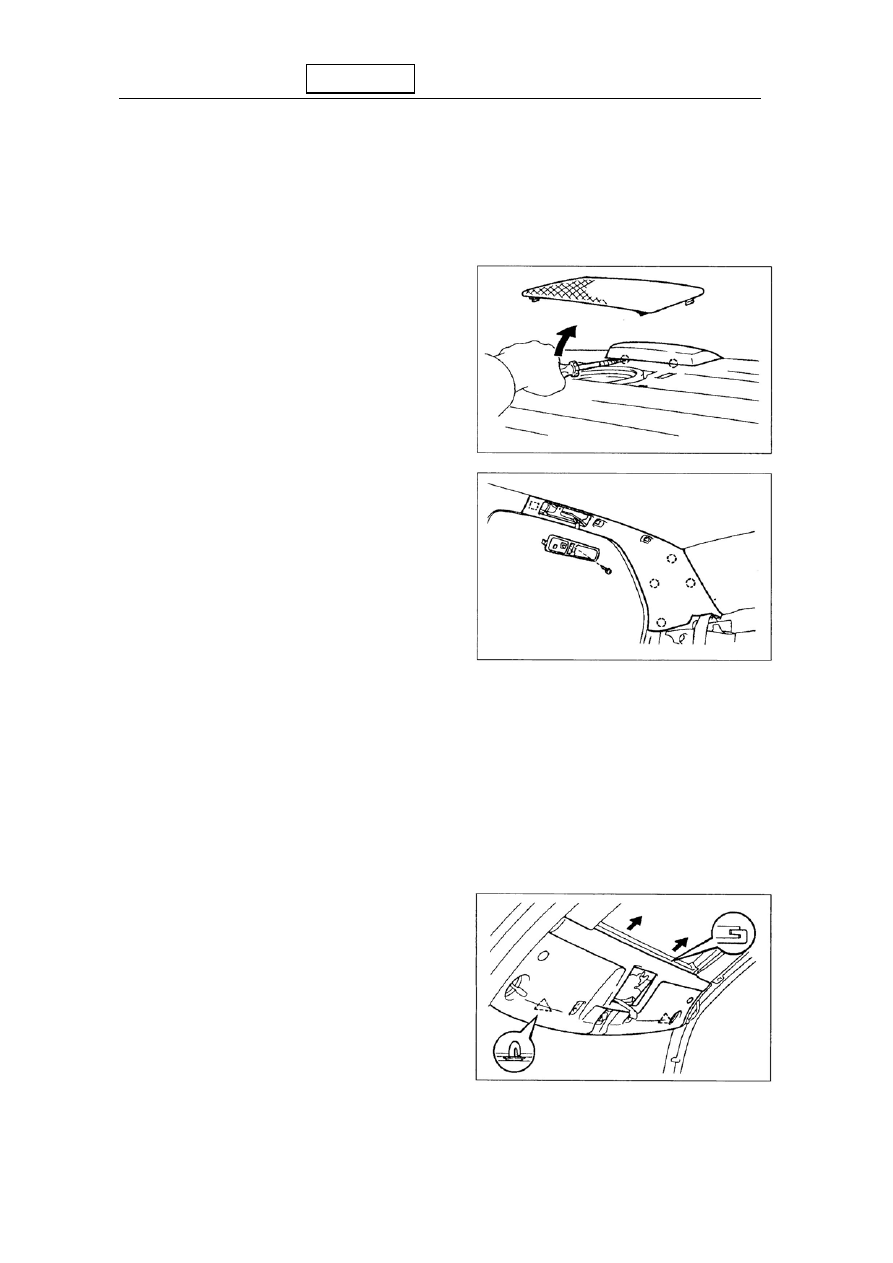

Chery QQ Service Manual

Chapter 14 Removing Windshield

1. Remove the following parts:

（1）front seat

（2）rear seat cushions

（3）bolts on the lower end

of rear seat belt

（4）back of rear seat

（5）front door frame plate

（6）back door frame plate

（7）decorative side plate

of rear seat

（8）upper parking lamp

（9）speaker mesh guard

（10）decorative board

of glove compartment

(11）assistant grasp

(12）small rear seat lighting bulb

(13）interior roof lateral ornament

（14）middle pillar ornament

（15）front pillar ornament

(16) sun shading board and holder

（17）small illuminating light

（18）middle sun shading boards

（19）interior rear-view mirror

（20）front roof lining

（21）windshield wiper arms

（22）sealing strips for windshield
