Chery QQ Service Manual





Chapter 11  Seat and Belt



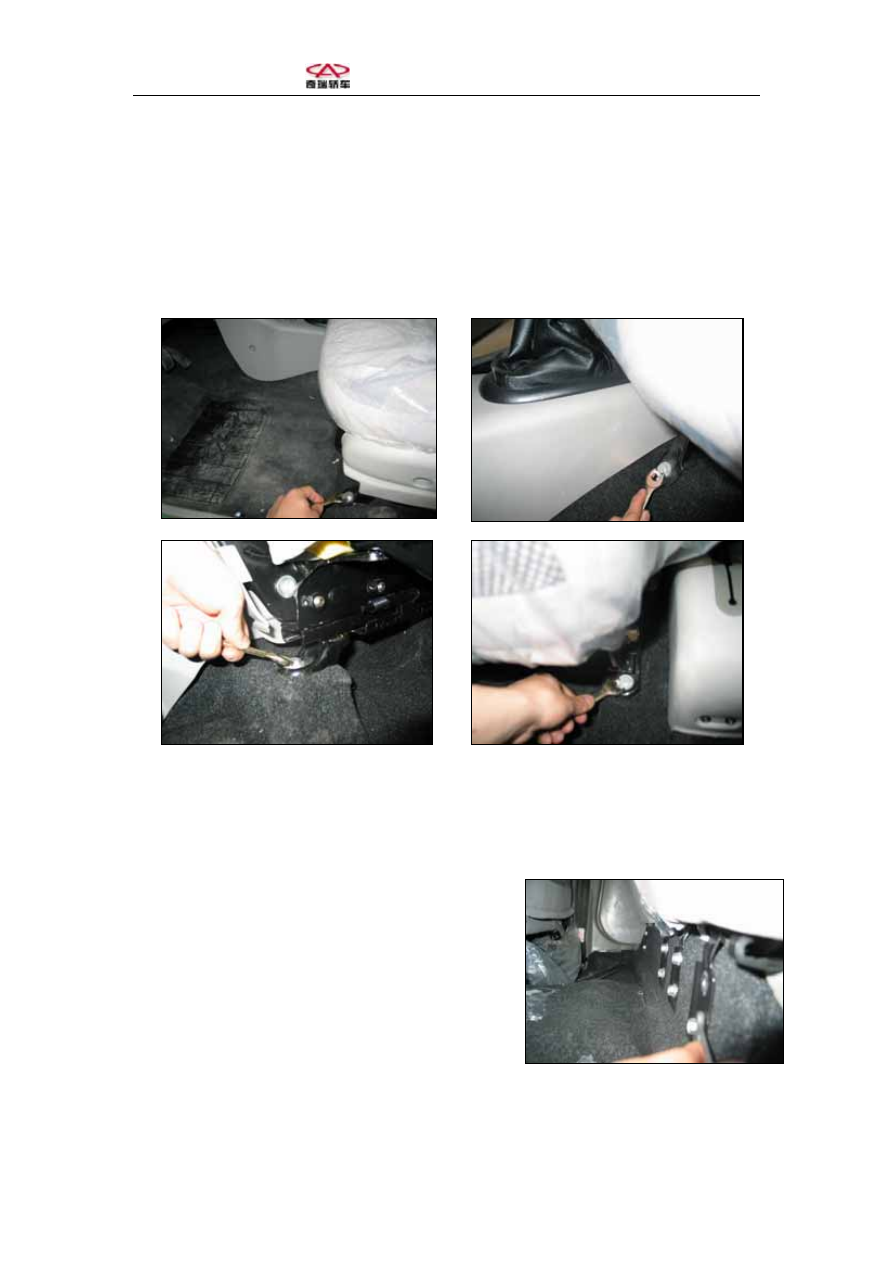

Removal of front seat

（1）Remove 4 set bolts of front seat



（2）Take out the seat assembly





Removal of rear seat

1. Removal of rear left seat cushion

Loosen 4 set bolts, lift left rear seat cushion

frontward and upward.

2. Removal of rear right seat cushion

Loosen 4 set bolts, lift right rear seat cushion

frontward and upward.

- 239 -





Chery QQ Service Manual









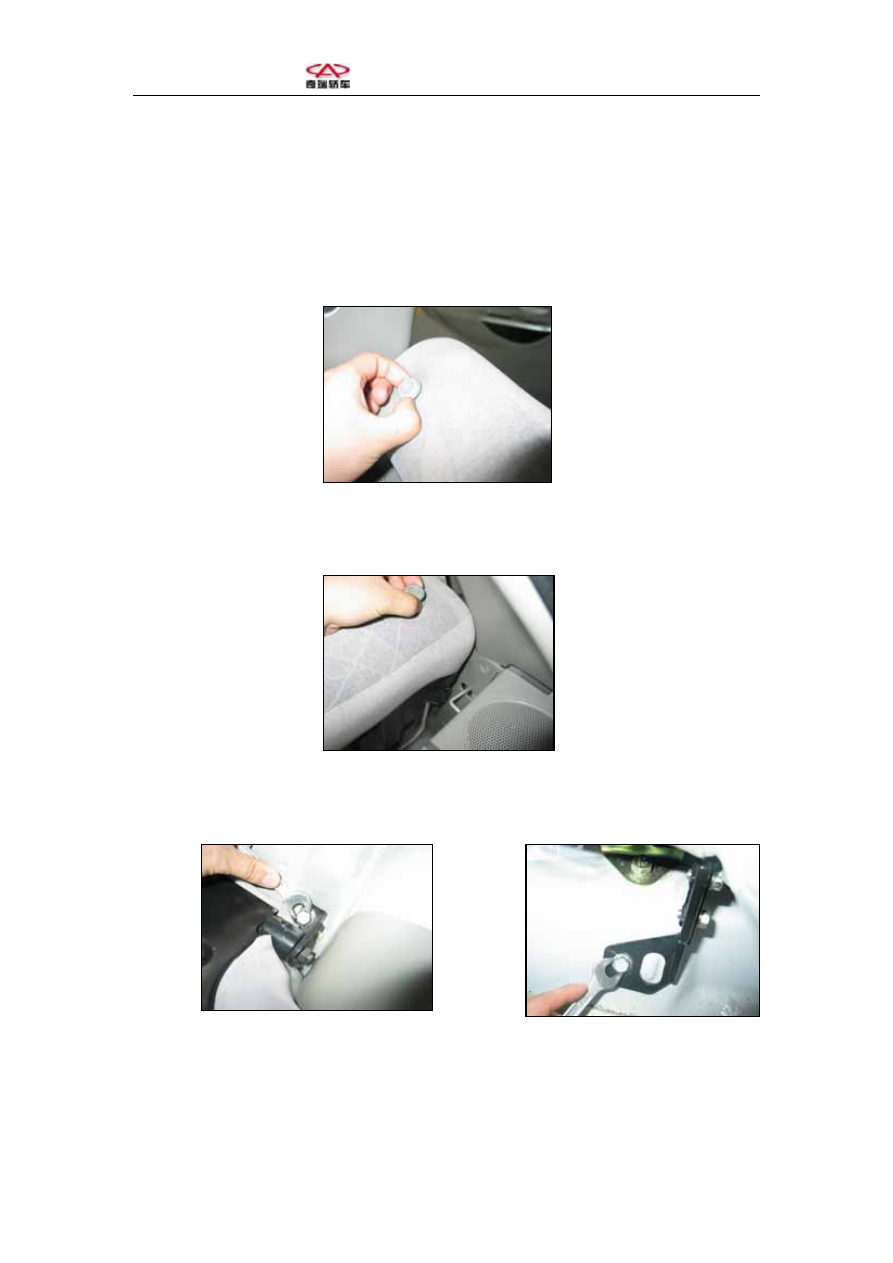

3. Removal of backrest

（1）Draw back the buckle on rear seat, move seat cushion frontward from the rear.













（2）Draw back the left/right bolts, move the backrest frontward.















（3）Loosen 3 set bolts, take out backrest of rear Seat assembly.



















- 240 -





Chery QQ Service Manual





4. Dismantlement of backrest lock

（1） Loosen outer cover of the seat.

（2）Loosen 2 set bolts, take out rear back lock.

5. Removal of safety belt of rear seat

（1）Draw back the buckle, move the seat pad frontward;

（2）Loosen set bolt of the safety belt handspike, take out the bolts.

（3）Loosen set bolts of the left/right safety belt;

（4）Use special tools to loosen the clamp buckle, move the footrest.

（5）Loosen 3 set bolts of the left/right acoustics horn, move the bolts. Loosen 2

upper and lower set bolts; take off the safety belt.































- 241 -





Chery QQ Service Manual







Chapter 12 Interior accessories



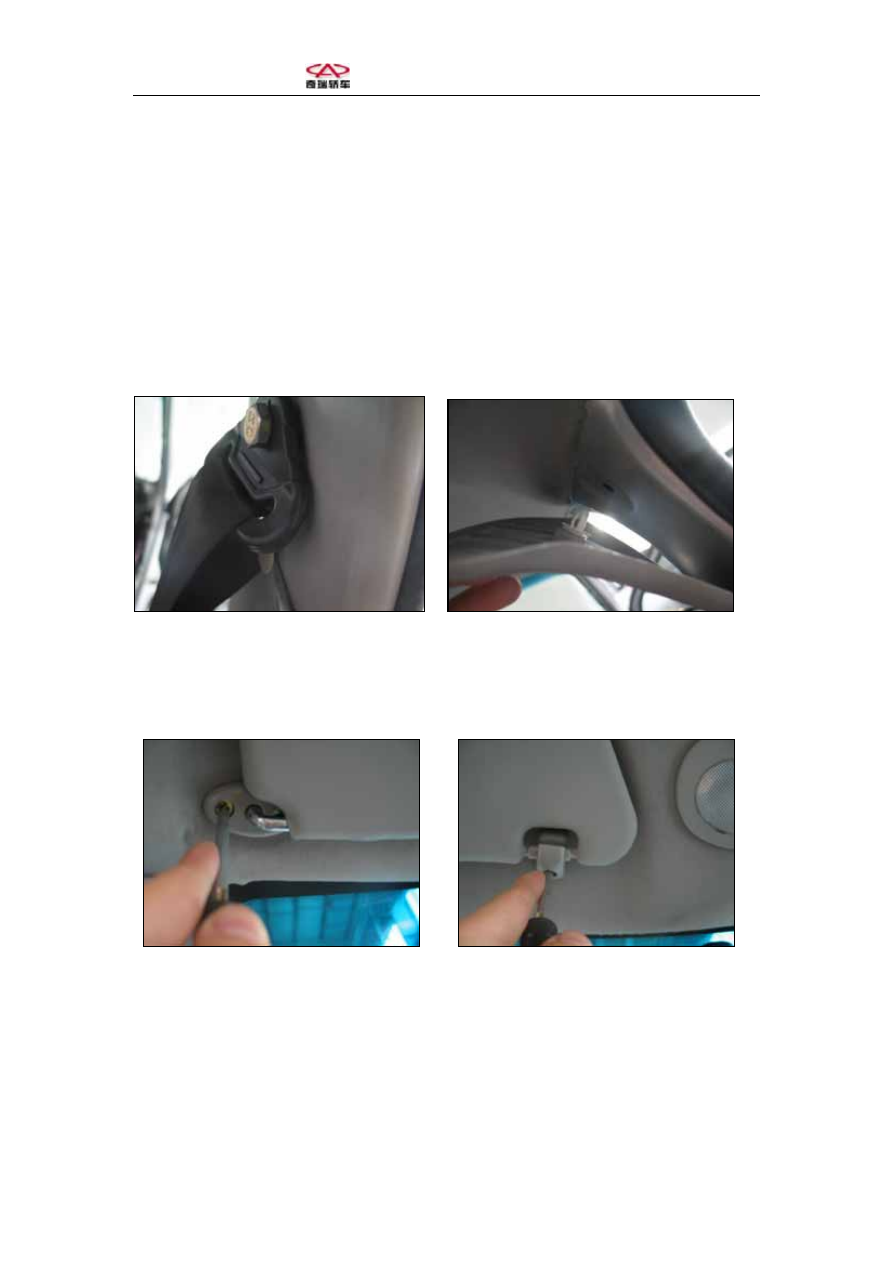

Removal of vehicle roof panel

（1）Pull out inner panel of A pillar on the left side.



















（2）Loosen bolts on the sun shading panel with screwdriver.

























- 242 -
