Chery QQ Service Manual

(3)Be careful of sputtering iron scrap when drilling the hole.

(4)Air in the cylinder is colorless, smell-less, and nontoxic

(5)Deal with the support carefully. Do not drop paint or oil on it.

(6)When the support fully extrudes, do not turn the piston rod or cylinder.



3.  Install the trunk door support

(1)Apply adhesive agent on the bolts.

(2)Install the trunk door support.

Torque: 22 N.m(225 kg-cm, 16 pound-foot).





Chery QQ Service Manual





Chapter 10 Door



Disassembly of front door

Removal of inner door panel of front door

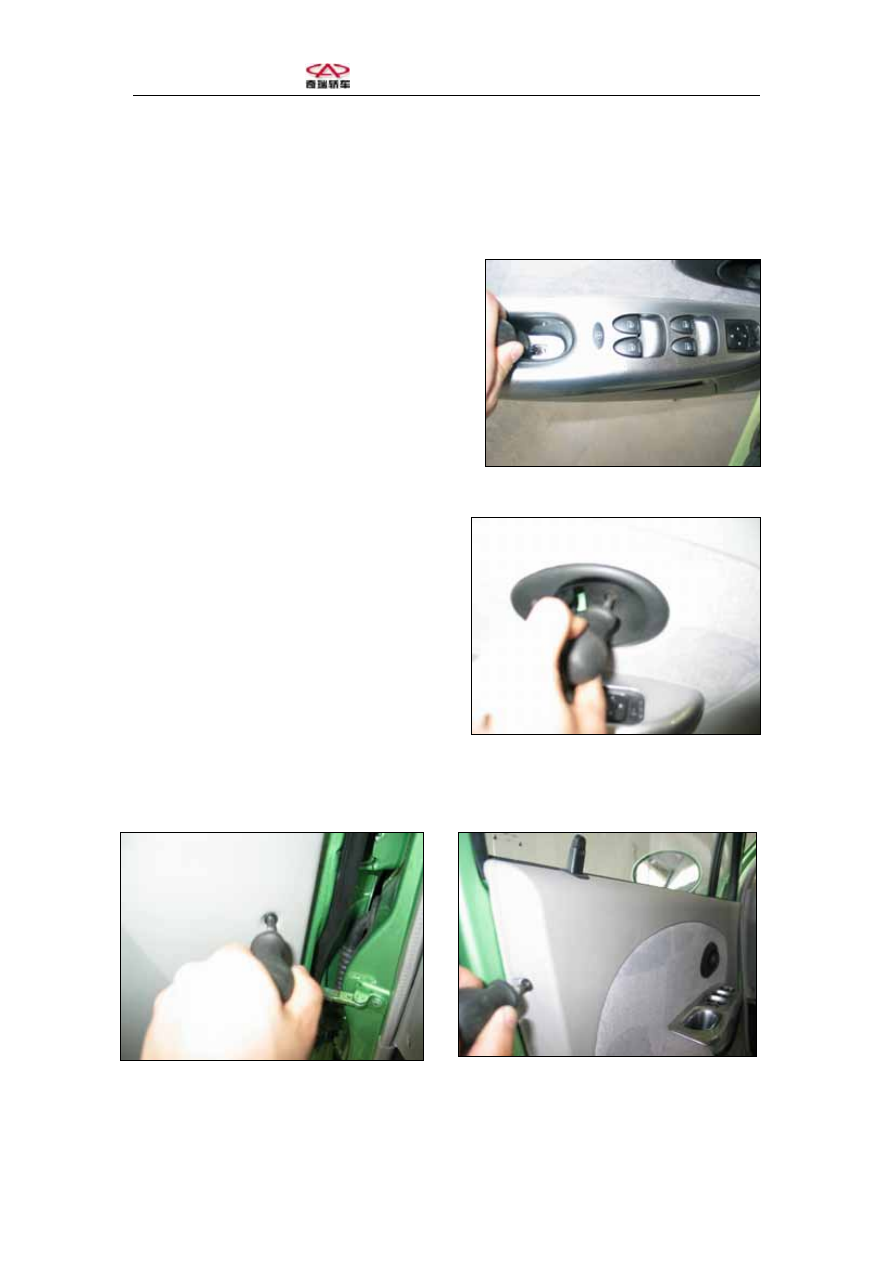

（1）Remove set bolt on the fixed handle base

plate with cross screwdriver.











（2）Remove bolts of fixed handle with

cross screwdriver.









（3）Remove 4 set bolts of inner door panel.





















- 232 -





Chery QQ Service Manual





















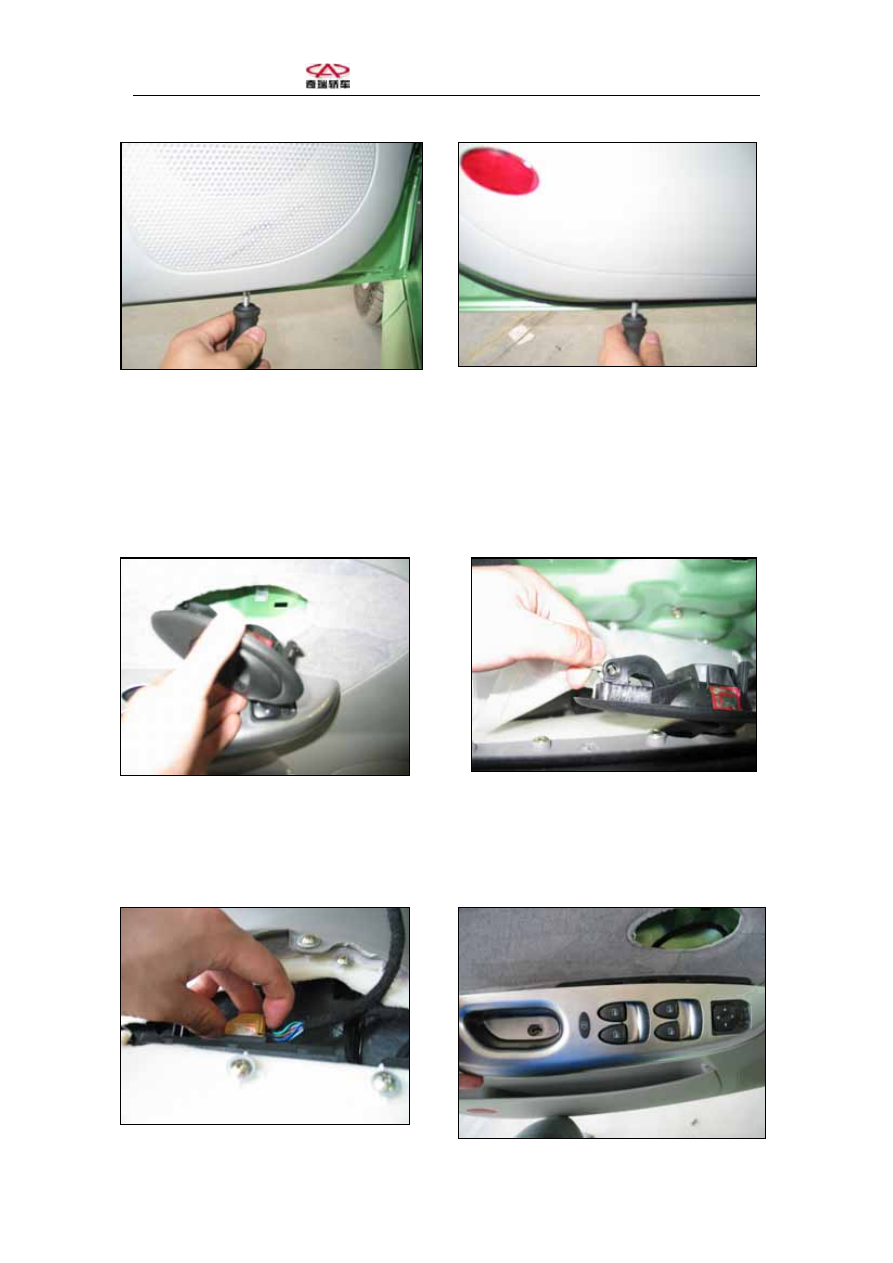

（4）Sway the door inner door panel from top to bottom by hand, take out the inner

door panel upwards.

（5）From the rear of inner door panel, separate the connecting rod of fixed handle,

then take out the fixed handle.

















（6）Disconnect the wire harness plug of central lock main switch from the rear of

door inner door    panel, and then take out the base plate of door handle.

















- 233 -





Chery QQ Service Manual

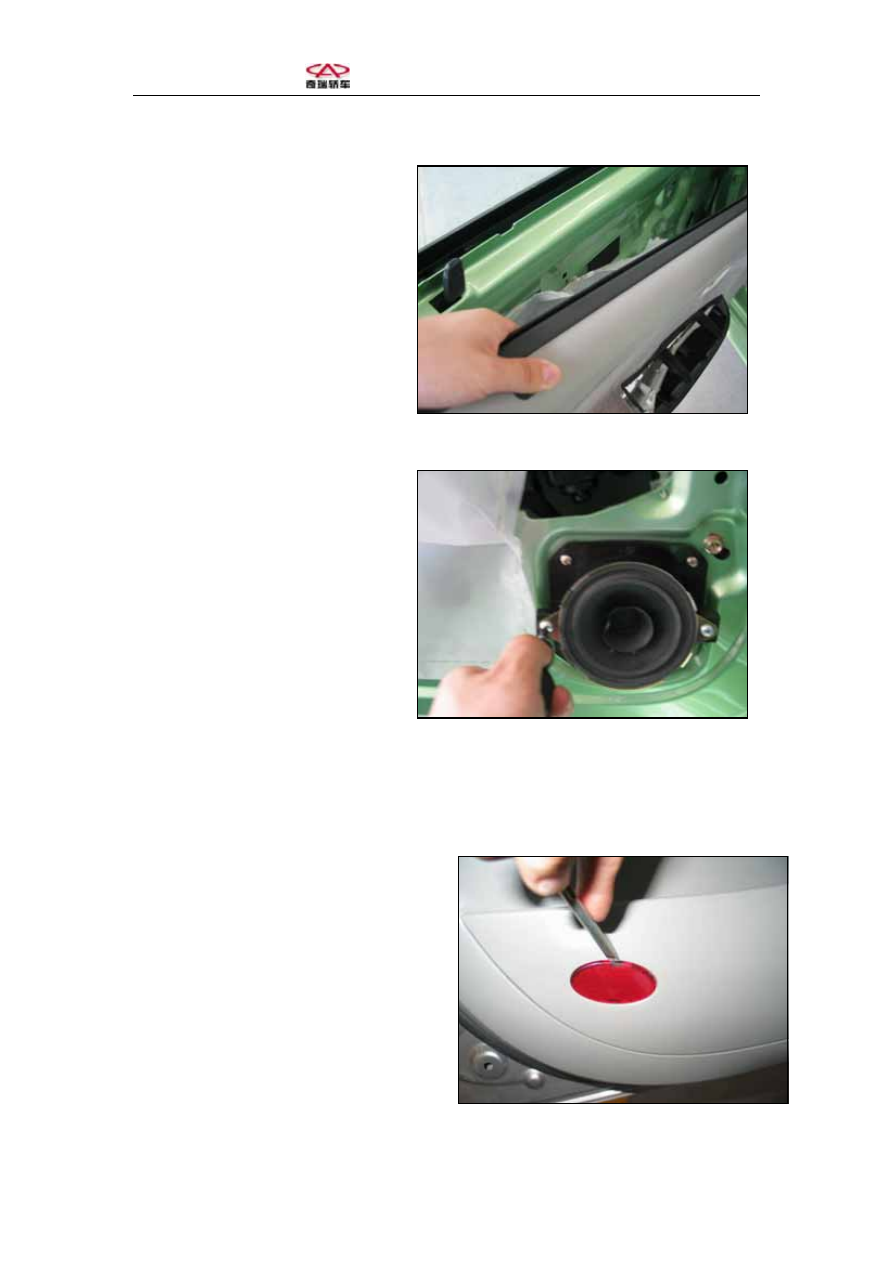

（7）Take out inner door panel.















Removal of Front door Horn

（1）Remove the inner door panel;

See “removal of the interior

decorative panel” for reference.

（2）Remove 4 set bolts of the horn.











（3）Remove the horn plug, take the horn out.

  Removal of front indoor light



（1）Remove indoor lamp cover with flat

screwdriver.

（2）Take the indoor lamp assembly out.









- 234 -
