Acura RSX Honda Integra. Manual - part 491

０１

＊０１

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１１５ＦＡＡＴ００

−

YES

Special Tools Required

YES

DTC 11-5:

23-96

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR B (18P)

07XAZ-S1A0200

07SAZ-TB4011A

11. Disconnect SRS unit connector B (18P) from the

SRS unit.

12. Turn the ignition switch ON (II).

13. Check for voltage between the No. 6 terminal of

SRS unit connector B (18P) and body ground, and
between the No. 17 terminal and body ground.
There should be 0.5 V or less.

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short to power in the floor wire harness;

replace the floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the floor wire harness 2P connector (A)

from the driver’s side airbag (B).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead E to the floor
wire harness 2P connector.

Short to Ground in Driver’s Side

Airbag Inflator

Wire side of female terminals

Is the voltage as specif ied?

Does the SRS indicator stay on?

05/06/27 18:10:26 61S6M040_230_0096

０２

０１

＊０１

−

YES

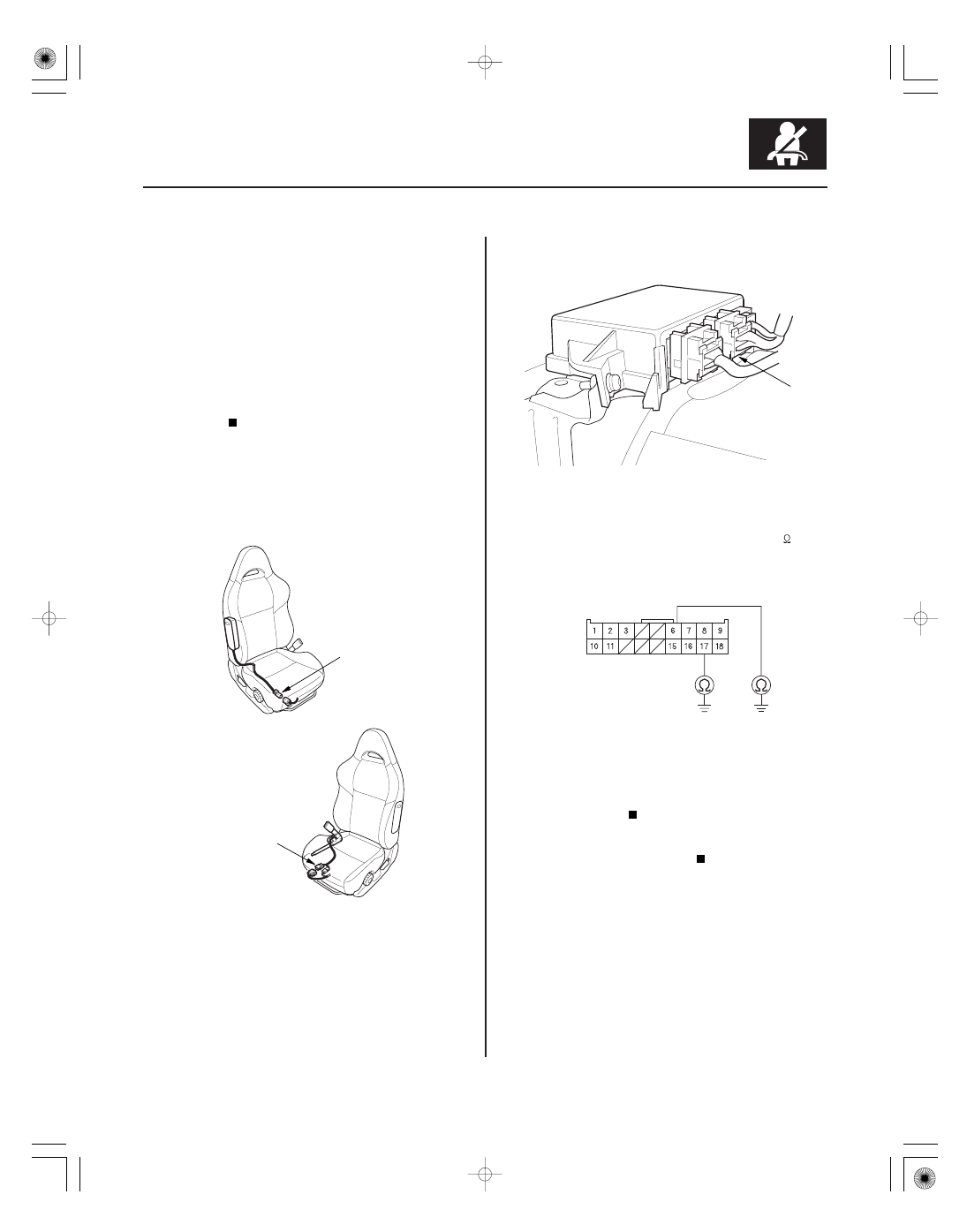

23-97

SRS UNIT CONNECTOR B (18P)

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short to ground in the driver’s side airbag

inflator; replace the driver’s side airbag (see page
23-134).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the front passenger’s side airbag 2P

connector (A) and both seat belt buckle tensioner
4P connectors (B).

11. Disconnect SRS unit connector B (18P) from the

SRS unit.

12. Check resistance between the No. 17 terminal of

the SRS unit connector B (18P) and body ground,
and between the No. 6 terminal and body ground.
There should be an open circuit or at least 1 M

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short to ground in the floor wire harness;

replace the floor wire harness.

Wire side of female terminals

Is DT C 11-5 indicated?

Is the r esistance as specif ied?

05/06/27 18:10:26 61S6M040_230_0097

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１２１ＦＡＡＴ２０

−

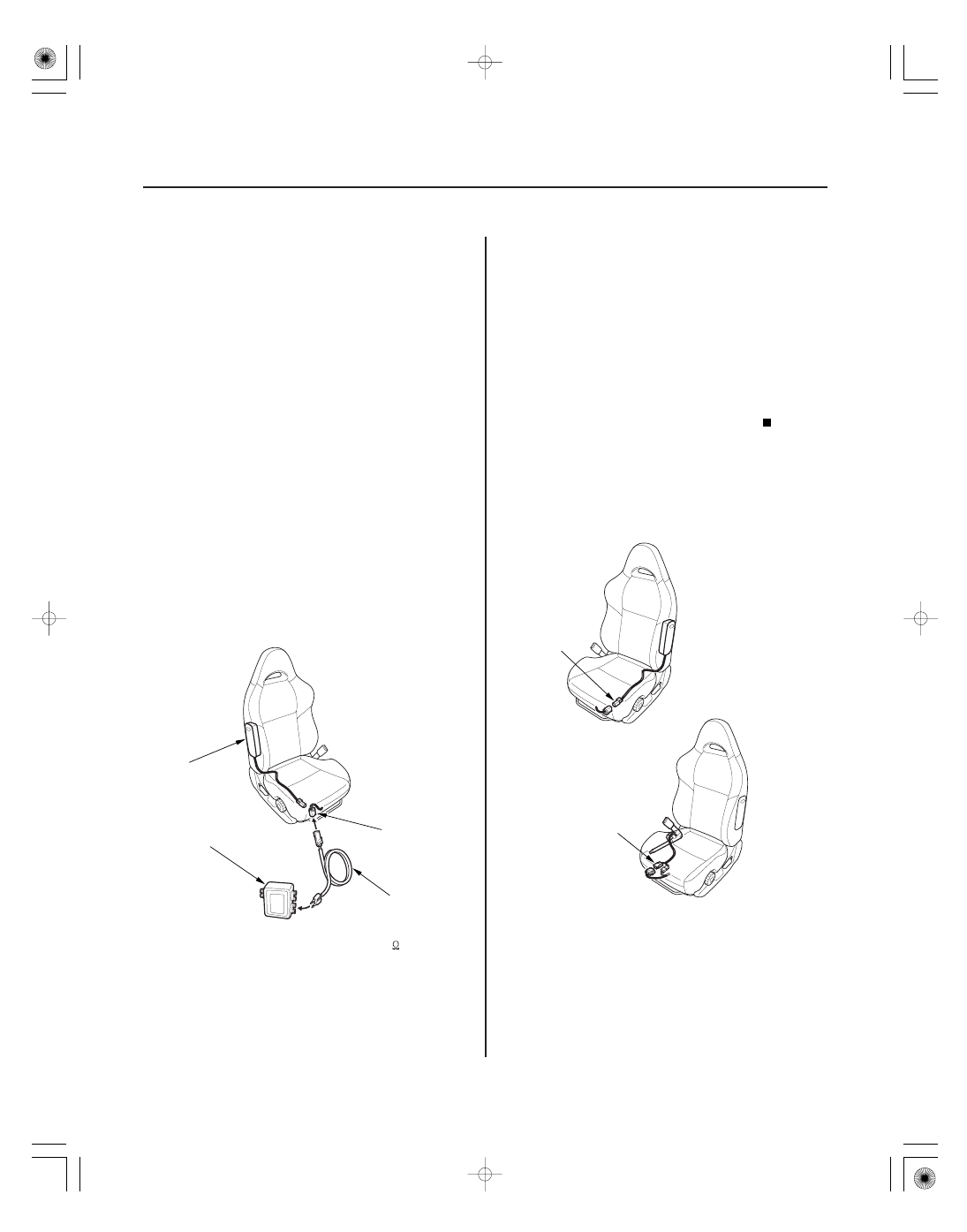

DTC 12-1:

Special Tools Required

YES

23-98

SRS

DTC Troubleshooting (cont’d)

07XAZ-S1A0200

07SAZ-TB4011A

Open or Increased Resistance in

Front Passenger’s Side Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the floor wire harness 2P connector (A)

from the front passenger’s side airbag (B).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead E to the floor
wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Open or increased resistance in the front

passenger’s side airbag inflator; replace the front
passenger’s side airbag (see page 23-134).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the driver’s side airbag 2P connector (A)

and both seat belt buckle tensioner 4P connectors
(B).

Does the SRS indicator stay on?

Is DT C 12-1 indicated?

05/06/27 18:10:27 61S6M040_230_0098

−

０１

＊０１

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１２３ＦＡＡＴ００

−

YES

Special Tools Required

YES

DTC 12-3:

23-99

SRS UNIT CONNECTOR B (18P)

07XAZ-S1A0200

07SAZ-TB4011A

11. Disconnect SRS unit connector B (18P) from the

SRS unit. Do not disconnect the simulator lead
from the floor wire harness 2P connector.

12. Check resistance between the No. 7 and No. 18

terminals of SRS unit connector B (18P). There
should be 2.0

3.0

Faulty SRS unit or poor connection at SRS

unit connector B (18P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 23-141).

Open or increased resistance in the floor wire

harness; replace the floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the floor wire harness 2P connector (A)

from the front passenger’s side airbag (B).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead E to the floor
wire harness 2P connector.

(cont’d)

Short to Another Wire or

Decreased Resistance in Front Passenger’s
Side Airbag Inflator

Wire side of female terminals

Is the r esistance as specif ied?

Does the SRS indicator stay on?

05/06/27 18:10:27 61S6M040_230_0099
