Acura RSX Honda Integra. Manual - part 307





01

01

S6M6A02E10410917424KBAT00

Special Tools Required

14-353

Countershaft Bearing Replacement

07736-A01000B or
07736-A01000A

A

07749-0010000

07746-0010500

0

0.03 mm

(0

0.001 in.)

A

B

• Adjustable bearing puller, 25

40 mm

07736-A01000B or 07736-A01000A

• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

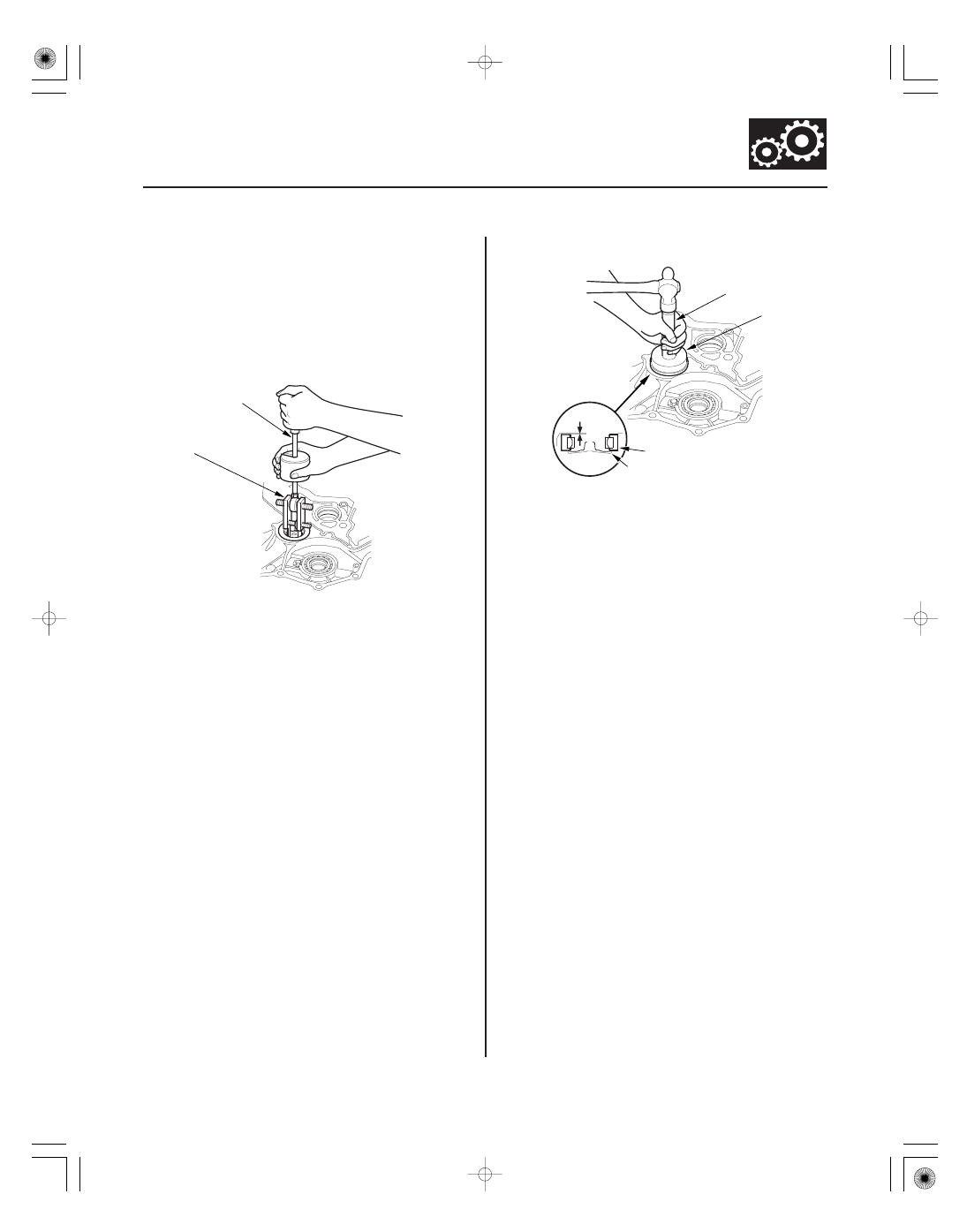

1. Remove the countershaft bearing with the special

tool and a commercially available 3/8 ’’-16 slide
hammer (A).

2. Install the ATF guide plate (A).

3. Install the new countershaft bearing (B) in the

housing with the special tools.

05/06/27 17:59:01 61S6M040_140_0354

01

02

03

04

S6M6A02E10411354202KBAT00

Special Tools Required

14-354

Torque Converter Housing

Secondary Shaft Bearing Replacement

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

B

A

C

B

A

07749-0010000

07746-0010500

• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

1. Remove the bolt, then remove the lock washer (A)

and bearing set plate (B).

2. Remove the secondary shaft bearing (A) by heating

the housing to about 212 °F (100 °C) with a heat gun
(B). Do not heat the housing in excess of 212 °F
(100 °C).

NOTE: Let the housing cool to normal temperature
before installing the bearing.

3. Install the new O-rings (A) on the ATF guide collar

(B), then install the ATF guide collar in the housing.

4. Install the new secondary shaft bearing (C) in the

direction shown.

5. Drive the secondary shaft bearing with the special

tools, and install it securely in the housing.

6. Check that the bearing groove aligns with the

housing surface, then install the bearing set plate
with aligning the bearing groove.

7. Install the new lock washer and bolt, then bend the

lock tab of the lock washer against the bolt head.

05/06/27 17:59:02 61S6M040_140_0355

01

01

S6M6A02E10410417258KBAT00

Special Tools Required

14-355

Selector Control Shaft Oil Seal Replacement

A

B

07749-0010000

07947-ZV00100

A

B

• Driver 07749-0010000
• Oil seal driver attachment 07947-ZV00100

1. Remove the oil seal (A) from the torque converter

housing (B).

2. Install the new oil seal (A) in the torque converter

housing in depth (B) of 0.5

1.5 mm (0,02

0.06 in.)

below the housing surface with the special tools.

05/06/27 17:59:02 61S6M040_140_0356

01

S6M6A02E10411200000MEAT00

→ →

14-356

Shafts and Clutches

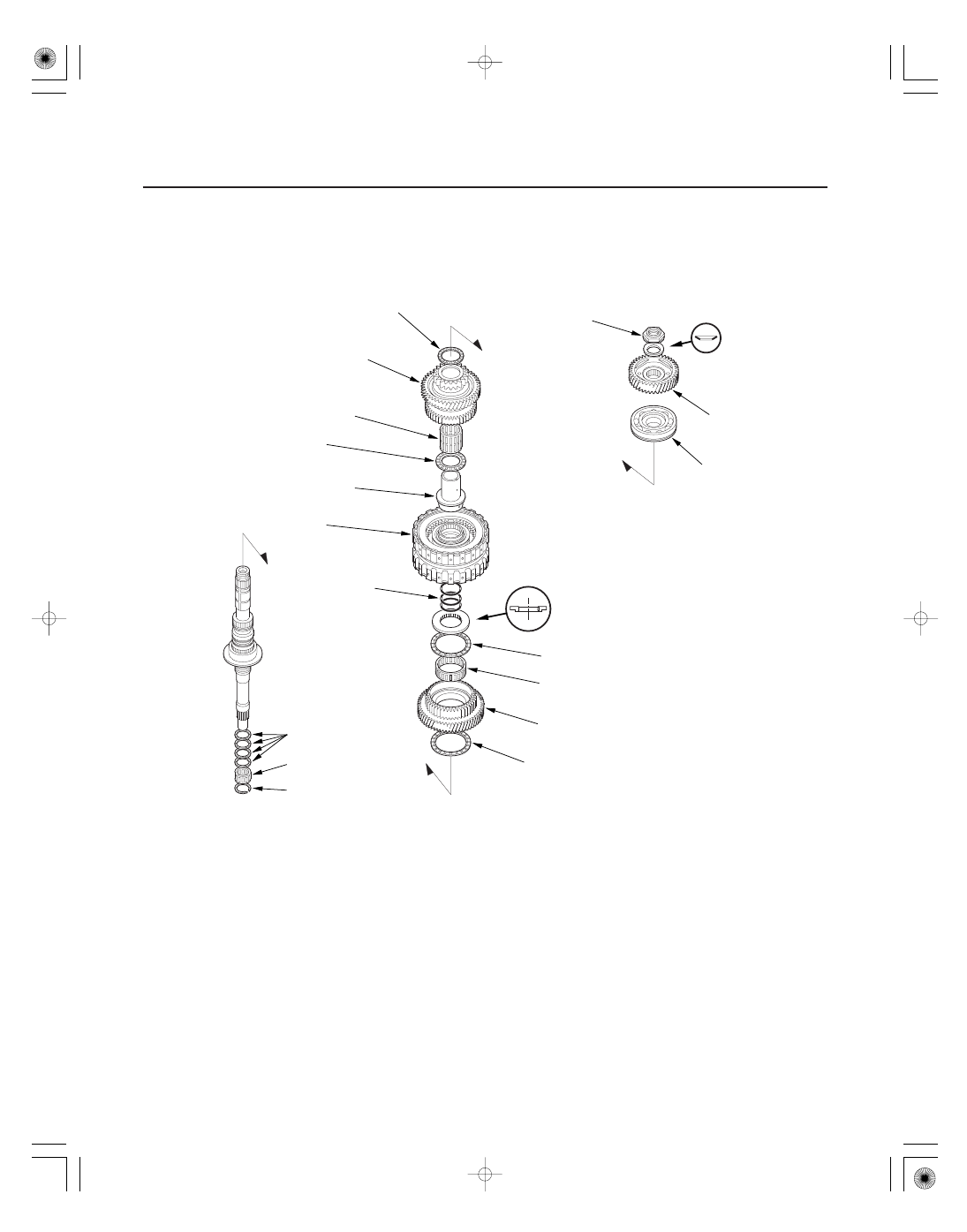

Mainshaft Disassembly, Inspection, and Reassembly

LOCKNUT (FLANGE NUT)
24 x 1.25 mm
226 N·m (23.0 kgf·m, 166 lbf·ft)

0

167 N·m (17.0 kgf·m, 123 lbf·ft)

CONICAL SPRING
WASHER

IDLER GEAR

TRANSMISSION
HOUSING BEARING

THRUST NEEDLE BEARING

4TH GEAR

NEEDLE BEARING

THRUST NEEDLE BEARING

4TH GEAR COLLAR

4TH/5TH CLUTCH

O-RING

THRUST WASHER, 41 x 68 mm

NEEDLE BEARING

THRUST NEEDLE BEARING

5TH GEAR

THRUST NEEDLE BEARING

SEALING RINGS,
29 mm

NEEDLE BEARING

SET RING

1. Inspect the thrust needle bearing and the needle bearing for galling and rough movement.

2. Inspect the splines for excessive wear and damage.

3. Check shaft bearing surface for scoring and excessive wear.

4. Before installing the O-rings, wrap the shaft splines with tape to prevent O-ring damage.

5. Lubricate all parts with ATF during assembly.

6. Install the conical spring washer, 41 x 68 mm thrust washer in the direction shown.

7. Replace the locknut and conical spring washer with new ones when assembling the transmission.

8. Check the clearance of the 5th gear (see page 14-357).

Repalce.

Replace.

Replace.

Selective part

05/06/27 17:59:02 61S6M040_140_0357
