7

PNK

FPC (FUEL PUMP
CONTROL)

Detects fuel pump
control signal

With ignition
switch ON (II):
pulses
With ignition
switch OFF: about
0 V

8

LT GRN

BKSW (BRAKE
PEDAL POSITION
SWITCH)

Detects brake pedal
position switch
signal

With brake pedal
released: about 0 V
With brake pedal
pressed: battery
voltage

9

BRN

BKSWNC (BRAKE
PEDAL POSITION
SWITCH)

Detects brake pedal
position switch
signal

With ignition
switch ON (II) and
brake pedal
released: battery
voltage
With ignition
switch ON (II) and
brake pedal
pressed: about 0 V

10

LT GRN

VSV
(EVAPORATIVE
EMISSION (EVAP)
CANISTER VENT
SHUT VALVE)

Drives EVAP
canister vent shut
valve

With ignition
switch ON (II):
battery voltage

11

BRN

VSSOUT (VEHICLE
SPEED SENSOR
OUTPUT SIGNAL)

Sends vehicle speed
sensor signal

Depending on
vehicle speed:
pulses

12

GRY

VCC4 (SENSOR
VOLTAGE)

Provides sensor
voltage

With ignition
switch ON (II):
about 5.0 V
With ignition
switch OFF: about
0 V

13

GRN

SDN (DOWNSHIFT
SWITCH)

Detects paddle
shifter - (downshift
switch) signal

In M position and
shift lever pushed
toward downshift
position: about 0 V
In M position and
shift lever in N
position: battery
voltage

14

RED

K-LINE

Sends and receives
HDS signal

With ignition
switch ON (II):
pulses or battery
voltage

15

WHT

CANH (CAN
COMMUNICATION
SIGNAL HIGH)

Sends
communication
signal

With ignition
switch ON (II):
pulses



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

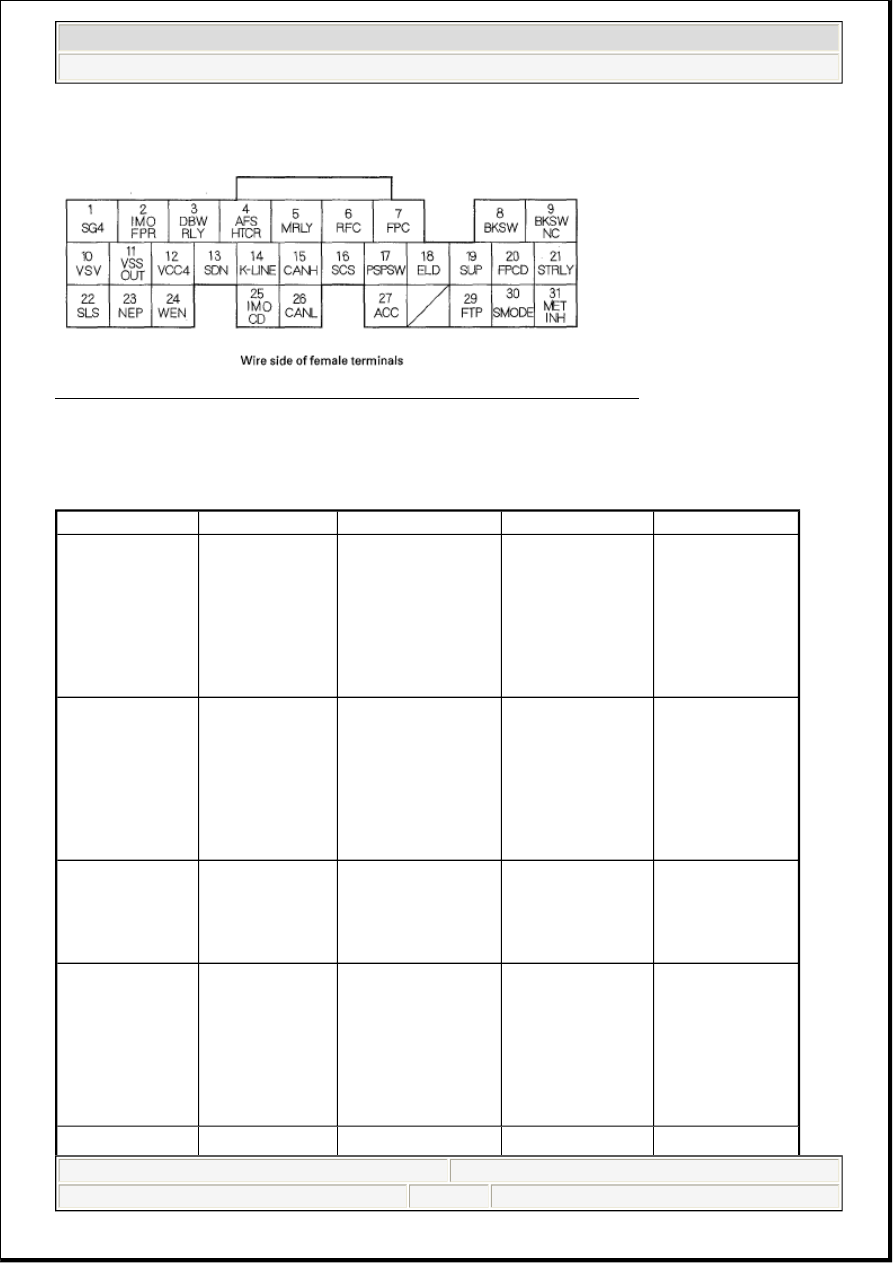

PCM INPUTS AND OUTPUTS AT CONNECTOR E (31P)

Fig. 26: Identifying PCM Inputs And Outputs Connector Terminals E (31P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR TERMINAL DESCRIPTION CHART

NOTE:

Standard battery voltage is about 12 V.

Terminal number

Wire color

Terminal name

Description

Signal

16

BRN

SCS (SERVICE
CHECK SIGNAL)

Detects service
check signal

With the service
check signal
shorted with the
HDS: about 0 V
With the service
check signal
opened: about 5.0
V

17

PNK

PSPSW (POWER
STEERING
PRESSURE
SWITCH SIGNAL)

Detects PSP switch
signal

At idle with
steering wheel in
straight ahead
position: about 0 V
At idle with
steering wheel at
full lock: battery
voltage

18

ORN

ELD (ELECTRICAL
LOAD DETECTOR
(ELD))

Detects ELD signal With ignition

switch ON (II):
about 0.1-4.8 V
(depending on
electrical load)

19

BLU

SUP (UPSHIFT
SWITCH)

Detects paddle
shifter + (upshift
switch) signal

In M position and
shift lever pushed
toward upshift
position: about 0 V
In M position and
shift lever in N
position: battery
voltage

20

LTBLU

FPCD (FUEL PUMP  Detect fuel pump

With ignition



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 48

© 2005 Mitchell Repair Information Company, LLC.

PGM-FI SYSTEM

The programmed fuel injection (PGM-FI) system is a sequential multiport fuel injection system.

Air Conditioning (A/C) Compressor Clutch Relay

CONTROL
MODULE
DIAGNOSIS)

control diagnosis

switch ON (II):
about 0 V
At idle: about 10.0
V

21

LT GRN

STRLY (STARTER
CUT RELAY)

Drives starter cut
relay 2 (ST CUT)

With ignition
switch ON (II):
about 0 V

22

PNK

SLS (SHIFT LOCK
SOLENOID)

Drives shift lock
solenoid

With ignition
switch ON (II), in
P position, brake
pedal pressed, and
accelerator
released: about 0 V

23

PNK

NEP (ENGINE
SPEED PULSE)

Outputs engine
speed pulse

With engine
running: pulses

24

RED

WEN (WRITE
ENABLE SIGNAL)

Detects write enable
signal

With ignition
switch ON (II):
about 0 V

25

ORN

IMOCD
(IMMOBILIZER
CODE)

Detects immobilizer
signal



26

BLK

CANL (CAN
COMMUNICATION
SIGNAL LOW)

Sends
communication
signal

With ignition
switch ON (II):
pulses

27

RED

ACC (A/C
COMPRESSOR
CLUTCH RELAY)

Drives A/C
compressor clutch
relay

With compressor
ON: about 0 V
With compressor
OFF: battery
voltage

29

LTGRN

FTP (FUEL TANK
PRESSURE (FTP)
SENSOR)

Detects FTP sensor
signal

With ignition
switch ON (II) and
fuel fill cap
removed: about 2.5
V

30

PUR

SMODE
(SEQUENTIAL
SPORT SHIFT
MODE)

Detects sequential
sport shift mode
switch signal

In M position:
about 0 V
In any position
other than M:
battery voltage

31

GRN

METINH (METER
DISPLAY INHIBIT
SIGNAL)

Sends inhibit signal With ignition

switch ON (II):
about 10.0 V



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

When the PCM receives a demand for cooling from the A/C system, it delays the compressor from being
energized, and enriches the mixture to assure smooth transition to the A/C mode.

Air Fuel Ratio (A/F) Sensor

The A/F sensor operates over a wide air/fuel range. The A/F sensor is installed upstream of the WU-TWC,
and sends signals to the PCM which varies the duration of fuel injection accordingly.

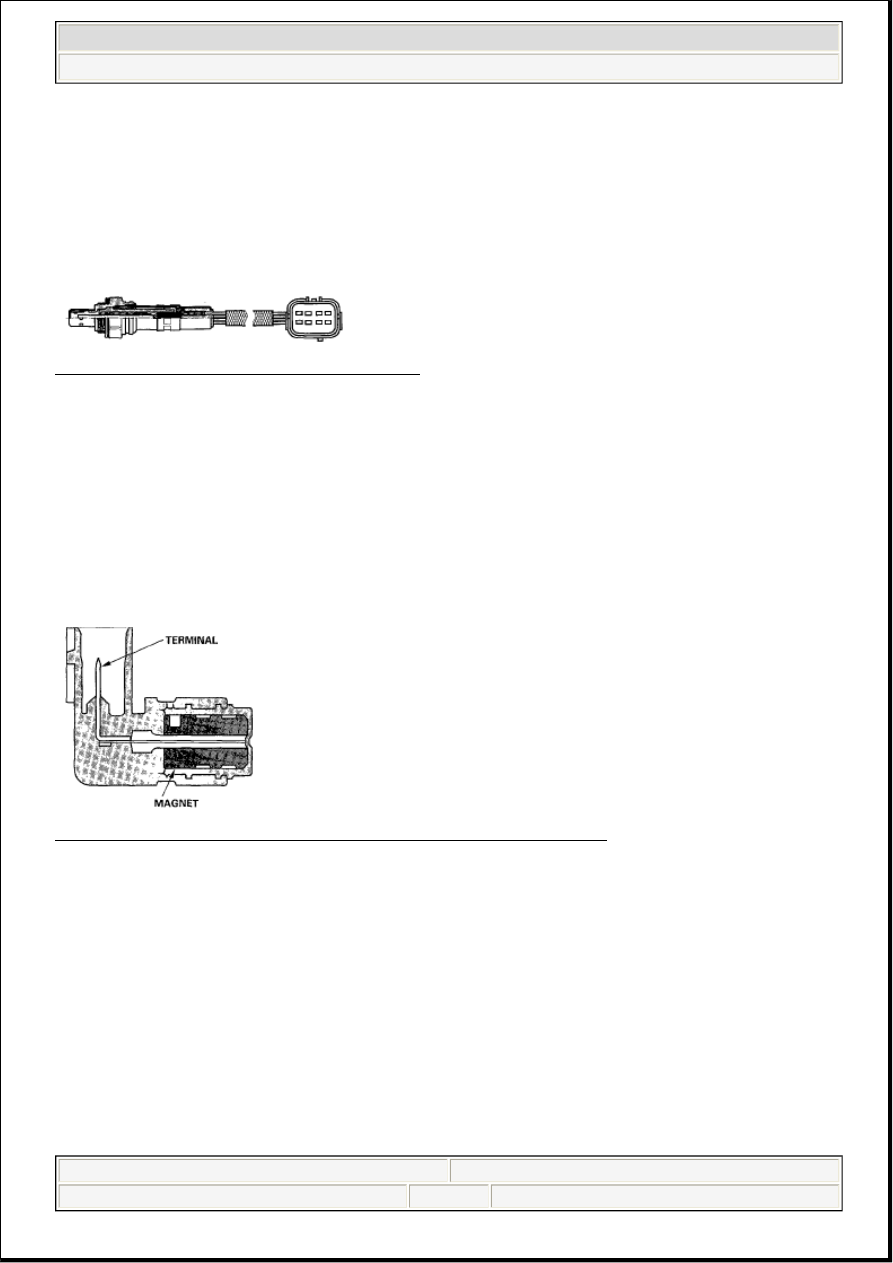

Fig. 27: Identifying Air Fuel Ratio (A/F) Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Barometric Pressure (BARO) Sensor

The BARO sensor is inside the PCM. It converts atmospheric pressure into a voltage signal that modifies the
basic duration of the fuel injection discharge.

Camshaft Position (CMP) Sensor

The CMP sensor input is used by the PCM to determine ignition timing at start up (cranking) and when
crank angle is abnormal.

Fig. 28: Identifying Terminal And Magnet Of Camshaft Position Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Crankshaft Position (CKP) Sensor

The CKP sensor detects crankshaft speed and is used by the PCM to determine ignition timing and timing
for fuel injection of each cylinder as well as detecting engine misfire.
